    XPS 1330 hinge, screen, body replacement and repair

    Discussion in 'Dell XPS and Studio XPS' started by billy_b0b, Jan 20, 2011.

  1. billy_b0b

    billy_b0b Notebook Consultant

    Reputations:
    2
    Messages:
    189
    Likes Received:
    0
    Trophy Points:
    30
    Hello,

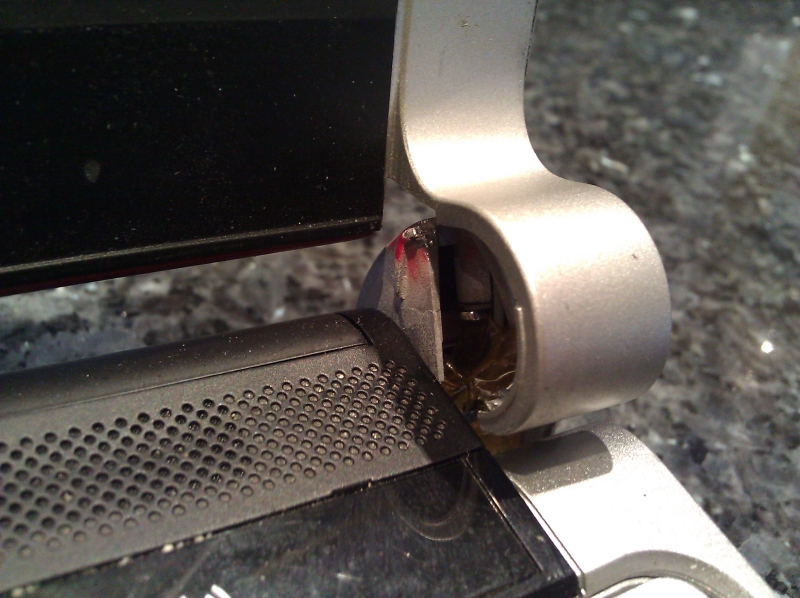

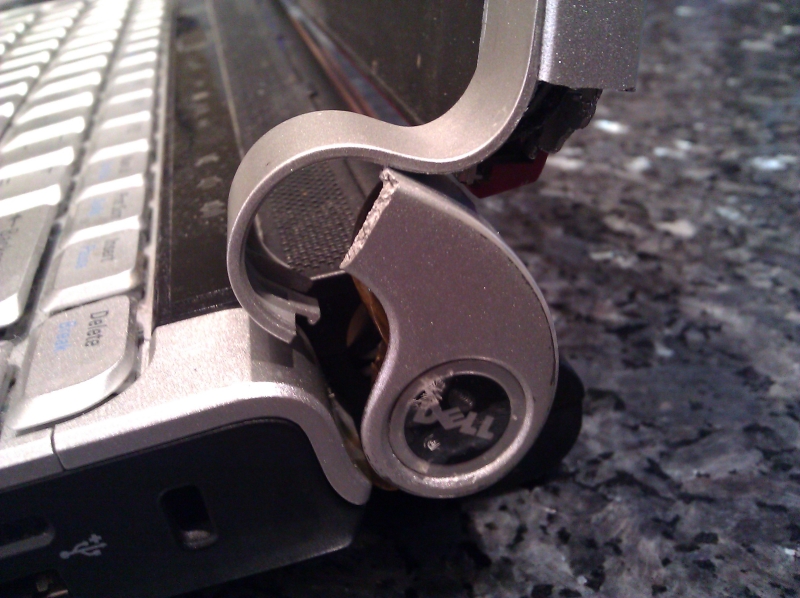

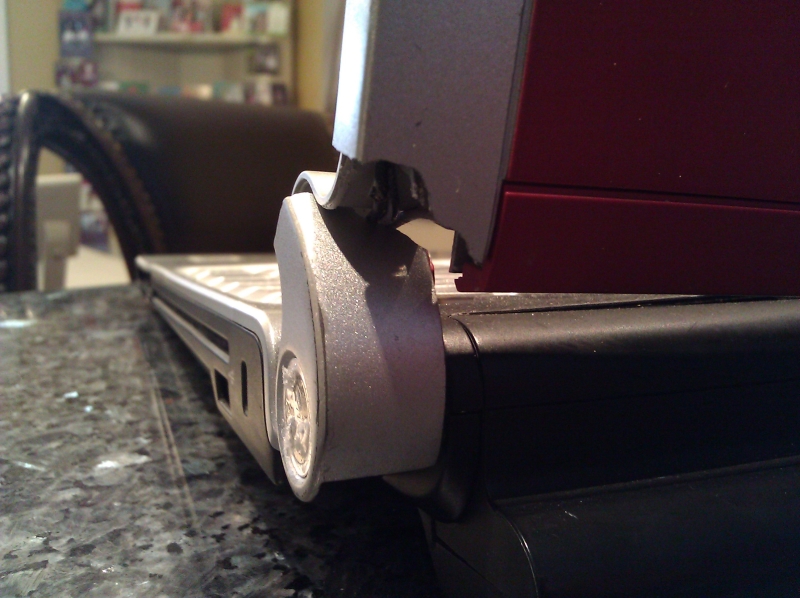

    I have a XPS 1330 that has what appears to be only a broken hinge assembly. Based on the photos of the laptop below, what part(s) would I need to replace this myself?

    I see a lot of different sellers on ebay selling various hinge and related parts, but I'm unsure to exactly what I need.

    THanks!


    Attached Files:

    billy_b0b, Jan 20, 2011
    #1
  2. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    Probably just the hinge itself and a new lid. If cables are broken, you might need a new cable harness as well.

    Commander Wolf, Jan 20, 2011
    #2
  3. billy_b0b

    billy_b0b Notebook Consultant

    Reputations:
    2
    Messages:
    189
    Likes Received:
    0
    Trophy Points:
    30

    thanks!

    the cables appear to be all connected and fine. the screen still works great

    is there anyplace online that has a nice tutorial, and/or video, on how to fix this??

    billy_b0b, Jan 20, 2011
    #3
  4. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    Commander Wolf, Jan 20, 2011
    #4
