    Dell XPS 15 9570 capacitor fried

    Discussion in 'Dell' started by Desosx, Jul 15, 2019.

  1. Desosx

    Desosx Notebook Guru

    Reputations:
    17
    Messages:
    56
    Likes Received:
    22
    Trophy Points:
    16
    Hello,
    I bought a Dell XPS 15 9570 refurbished from an ebay reseller partner with Dell.
    This laptop always had some overheating problems (idle temperature was 50-60 degrees) with spike of 90 degrees when simply installing programs. I kept this laptop because it might happen that after a clean installation of windows due to the heavy installation of programs in the background, the pc was always doing system and never in full "idle", and also because I softened this problem using throttlestop.
    Yesterday I restarted the pc in order to install windows updates and I see smoke coming from the pc. I immediately unplugged the pc from the AC, and opened the pc to unplug the internal battery.
    By doing this I apparently voided the warranty that I had with this seller, (I will try to contact ebay directly, because I don't think you can send via package a hazardous item like that)
    I'm now thinking... why it happened? Do I try to buy the motherboard only and try to change it and hope for the best, or this can happen again?


    Attached Files:

    Desosx, Jul 15, 2019
    #1
  2. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131
    Clean the area up with a tooth brush and rubbing alcohol. It's hard to tell what blew up.

    If a cap blew, just remove the blown cap and run the system as is.

    Usually power FETs blow though, and I'm suspecting that's what happened to your system. Those will need to be not just removed, but also replaced.

    I would not expect a replacement motherboard to have the same failure unless it is common for the model.

    Khenglish, Jul 15, 2019
    #2
    Papusan and Desosx like this.
  3. Desosx

    Desosx Notebook Guru

    Reputations:
    17
    Messages:
    56
    Likes Received:
    22
    Trophy Points:
    16
    Ok, I'll do it when I get home, thanks!
    If it is the mosfet, does it make sense to replace it? it might happen again right?

    It shouldn't be common for that model, I searched a bit and the only similar experience was from the previous model but a dog peed on it, and it was not the case for my laptop.

    Desosx, Jul 15, 2019
    #3
  4. Desosx

    Desosx Notebook Guru

    Reputations:
    17
    Messages:
    56
    Likes Received:
    22
    Trophy Points:
    16

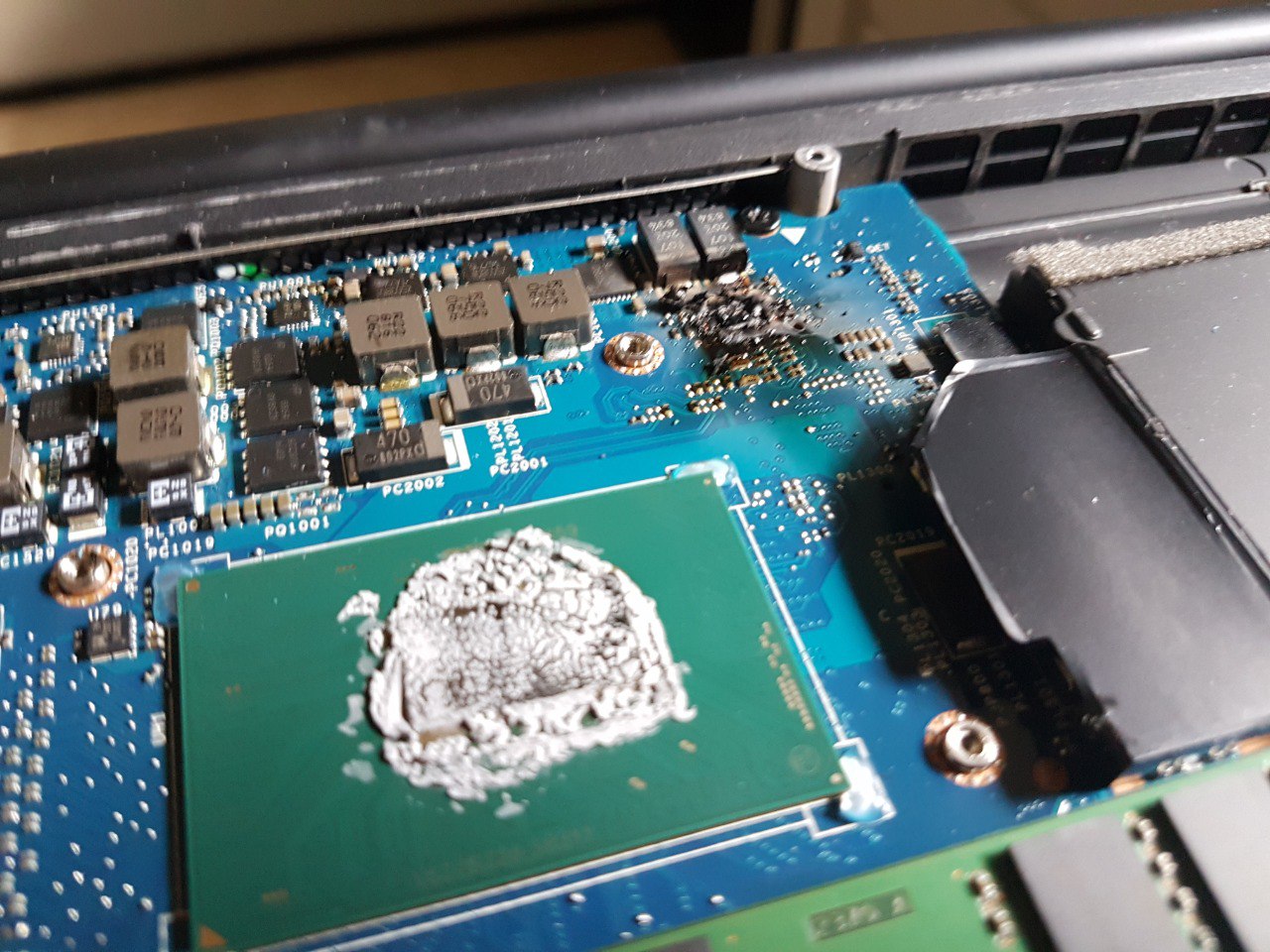

    I cleaned it and this is the result.
    If I connect the AC the motherboard will produce smoke again in the same spot where I cleaned, so I guess it won't turn on.
    What is more probable, that the motherboard was defective or that the AC charger fried my motherboard?


    Attached Files:

    Last edited: Jul 15, 2019
    Desosx, Jul 15, 2019
    #4
  5. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131
    There are probably 2 FETs in parallel and only one blew. If you don't replace it then the other is pushing twice as much current as it is supposed to. If there was only one FET, then you can only run on battery, and you can't charge the battery.

    Khenglish, Jul 15, 2019
    #5
    Desosx likes this.
  6. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131
    Ok that picture looks bad. I can't even tell what was there. Clean off whatever excess solder you can with an iron, braid, and flux.

    Khenglish, Jul 15, 2019
    #6
    Desosx likes this.
  7. Desosx

    Desosx Notebook Guru

    Reputations:
    17
    Messages:
    56
    Likes Received:
    22
    Trophy Points:
    16

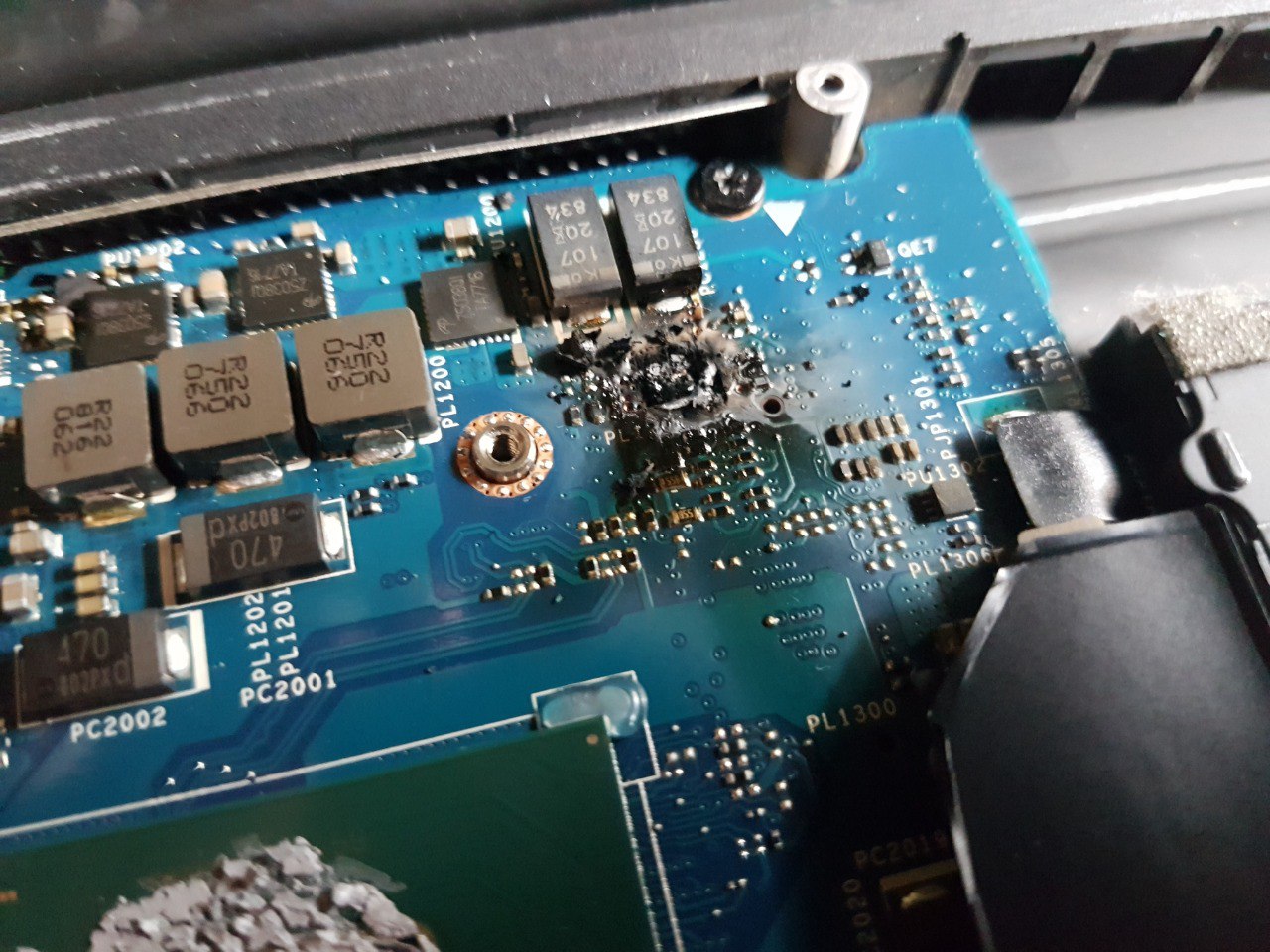

    I don't know if you noticed, but there is also this component at the bottom that has a bubble, and there was a little bit of ash near it.
    Also if I connect the battery the motherboard will produce smoke again.


    Attached Files:

    Last edited: Jul 15, 2019
    Desosx, Jul 15, 2019
    #7
  8. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131

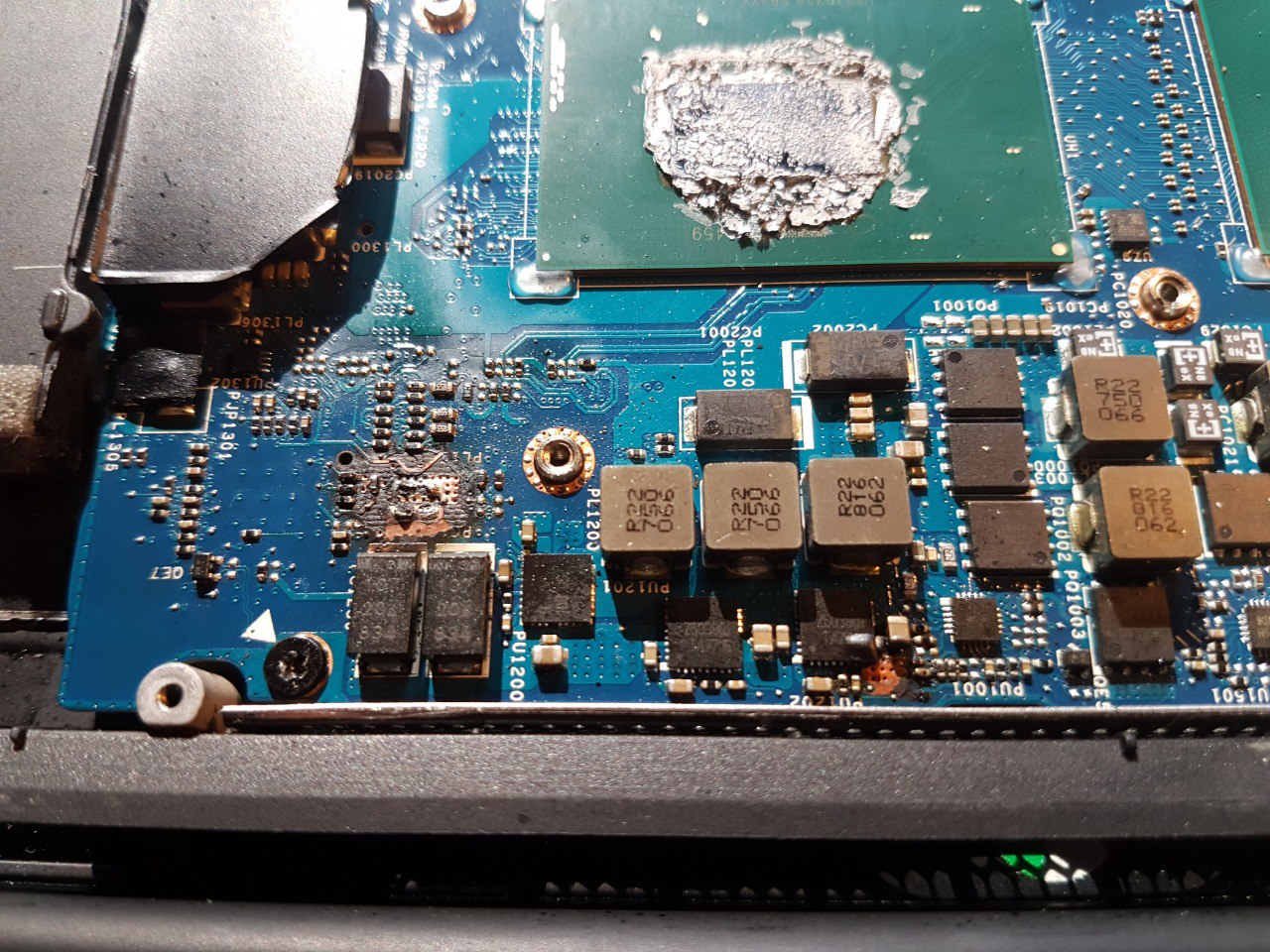

    Ah this makes sense.

    That latest pic shows you blew a power FET on one of the CPU phases. This short then drew a ton of current which then blew the AC power FET, which is the first failure you showed me.

    You'll need to remove the blown CPU power FET and make sure all shorts are gone. The CPU FET will need to be replaced.

    This is becoming a lot of work. I do not know what your soldering capability is.

    Also apparently your board's short circuit protection sucks. Stop trying to power it while it is shorted.

    Khenglish, Jul 15, 2019
    #8
    Desosx likes this.
  9. Desosx

    Desosx Notebook Guru

    Reputations:
    17
    Messages:
    56
    Likes Received:
    22
    Trophy Points:
    16
    My soldering capability is almost not existent, I might ask a friend of mine thou.
    Do you think it is worth a try?

    Desosx, Jul 15, 2019
    #9
  10. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131
    Well it's completely dead so you can't make things worse.

    The first step is to remove the shorts. Make sure the CPU output voltage and AC power in are not shorted to GND.

    Khenglish, Jul 15, 2019
    #10
    Papusan likes this.
  11. Desosx

    Desosx Notebook Guru

    Reputations:
    17
    Messages:
    56
    Likes Received:
    22
    Trophy Points:
    16
    I decided to buy a new mobo from eBay because I can't wait that long for my friend (I'm writing my thesis, and I have deadlines).
    Is there a possibility that my charger is faulty and was giving too much voltage?

    Desosx, Jul 16, 2019
    #11
  12. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131
    No, power FETs have a rating up to 30V typically, and capacitors 25V. There's no way the voltage got that high.

    Khenglish, Jul 16, 2019
    #12
    Desosx likes this.
  13. King_Khan

    King_Khan Notebook Consultant

    Reputations:
    12
    Messages:
    136
    Likes Received:
    5
    Trophy Points:
    31
    King_Khan, Aug 21, 2019
    #13
    Desosx likes this.
  14. Desosx

    Desosx Notebook Guru

    Reputations:
    17
    Messages:
    56
    Likes Received:
    22
    Trophy Points:
    16
    Thanks King_Khan.
    I dropped the idea to fix the motherboard because the explosion might have burned some lanes that are inside the mobo.
    I do have bought a refurbished mobo on ebay, but I couldn't get it out from CPU failuer LED blinking. (Tried many things)
    In the end I decided to just buy a new laptop, so I have a proper warranty this time :mad:

    Desosx, Aug 21, 2019
