    Dell studio over heating

    Discussion in 'Dell' started by ashoknalam, Feb 21, 2011.

  1. ashoknalam

    ashoknalam Notebook Enthusiast

    Reputations:
    2
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Hi,

    my laptop is getting over heat after 15minutes.
    I thought of fan is not rotating.i checked with local repair shop at that time fan was worked fine. He said some times fan will not rotate based on app load it will run.

    Stil i am facing the issue.
    mine is not under warranty.
    please suggest me what to do?

    ashoknalam, Feb 21, 2011
    #1
  2. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    How do you know it is overheating? Is your laptop shutting down?

    Download HWMonitor (free program) and post your idle, load and ambient room temperatures.

    You could also buy compressed air and blow out the fan (while keeping the fan stationary), heatsinks/heatfins. Any dust/crud accumulating in there will reduce the effectiveness of dissipating heat. You could also try repasting your CPU, most Studios have very easy access to the heatsink and CPU socket.

    Tsunade_Hime, Feb 21, 2011
    #2
  3. Jako

    Jako Notebook Evangelist

    Reputations:
    61
    Messages:
    476
    Likes Received:
    8
    Trophy Points:
    31
    Mine was also overheating. I had to open the case and remove the motherboard to clean the radiator and fan. The amount of dust inside looked like felt cloth, never seen anything like that in laptop.

    Jako, Feb 24, 2011
    #3
  4. ankushkool

    ankushkool Notebook Enthusiast

    Reputations:
    0
    Messages:
    29
    Likes Received:
    0
    Trophy Points:
    5
    I am facing same issue... and the laptop shuts!

    Opened the laptop removed the dust still the same! i noticed that the thermal paste on proc was quite less!!! one more thing the fan that is near the proc heatsink is throwing air downwards instead of the back vent... i remember that hot air used 2 come out the back vent but now it dosent!

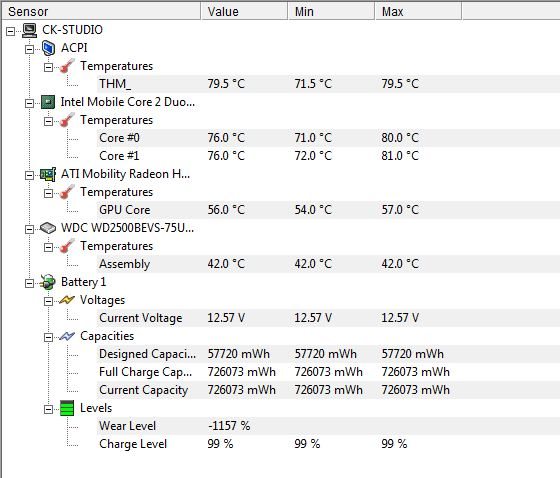

    have attached HW monitor screen shot

    [​IMG]

    ankushkool, Mar 4, 2011
    #4
  5. mavericke

    mavericke Notebook Consultant

    Reputations:
    12
    Messages:
    104
    Likes Received:
    0
    Trophy Points:
    30
    My Studio 15 was playing up too. It would just boot up for 30 minutes before shutting down completely. I would have to wait for a few minutes before restarting the laptop.

    I had to make a few calls to Dell and a Dell engineer came three times to fix my laptop. He changed the motherboard twice and heatsink/fan three times. I had to change to a 9 cell battery to improve on the airflow. It is now working like a charm.

    mavericke, Apr 10, 2011
    #5
  6. OneCool

    OneCool I AM NUMBER 67

    Reputations:
    77
    Messages:
    713
    Likes Received:
    0
    Trophy Points:
    30

    Is that Idle?
    Are there alot of background processes running?

    I dont see how the fan could change direction like that...very odd :confused:

    OneCool, Apr 11, 2011
    #6
  7. iafzal3

    iafzal3 Notebook Evangelist

    Reputations:
    8
    Messages:
    407
    Likes Received:
    0
    Trophy Points:
    30
    Your fan does not seem to be working. Studio 15 has fan directly on the CPU and your CPU temp is to high unless you are doing some serious stuff. GPU has no fan and is more likely to warm up under gaming.

    iafzal3, Apr 11, 2011
    #7
  8. FredFlint_

    FredFlint_ Notebook Consultant

    Reputations:
    4
    Messages:
    259
    Likes Received:
    4
    Trophy Points:
    31
    My 1747 has started getting hotter than it did. I opened the bottom but can not get at the fan? How do i clean the fan?

    FredFlint_, Apr 13, 2011
    #8
