    GDDR3 or GDDR2 on 8600m GT?

    Discussion in 'Dell' started by perrylyzr541, Sep 6, 2007.

  1. perrylyzr541

    perrylyzr541 Notebook Consultant

    Reputations:
    11
    Messages:
    180
    Likes Received:
    0
    Trophy Points:
    30
    So I've looked through the posts and can't seem to find it anywhere although I'm sure it's around. But could some one tell me how to identify if the 8600m GT I receive with my new lappie is GDDR3 or GDDR2. Thanx in advance for any help with this.

    perrylyzr541, Sep 6, 2007
    #1
  2. coriolis

    coriolis Notebook Nobel Laureate

    Reputations:
    2,319
    Messages:
    14,119
    Likes Received:
    1
    Trophy Points:
    455
    The latter.

    Only the MBP, G1s and G2s has the GDDR3 currently.

    coriolis, Sep 6, 2007
    #2
  3. perrylyzr541

    perrylyzr541 Notebook Consultant

    Reputations:
    11
    Messages:
    180
    Likes Received:
    0
    Trophy Points:
    30
    Really not a chance huh? Because a dell tech person said it would be GDDR3 but I had a feeling he might not even know. Oh and could you tell me where i can find a 3dmark test thats safe and free.

    perrylyzr541, Sep 6, 2007
    #3
  4. doulik3

    doulik3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    how does one check? riva tuner says otherwise >.>

    doulik3, Sep 6, 2007
    #4
  5. perrylyzr541

    perrylyzr541 Notebook Consultant

    Reputations:
    11
    Messages:
    180
    Likes Received:
    0
    Trophy Points:
    30
    What do you mean it says otherwise?

    perrylyzr541, Sep 6, 2007
    #5
  6. cvx5832

    cvx5832 Notebook Evangelist

    Reputations:
    58
    Messages:
    307
    Likes Received:
    0
    Trophy Points:
    30

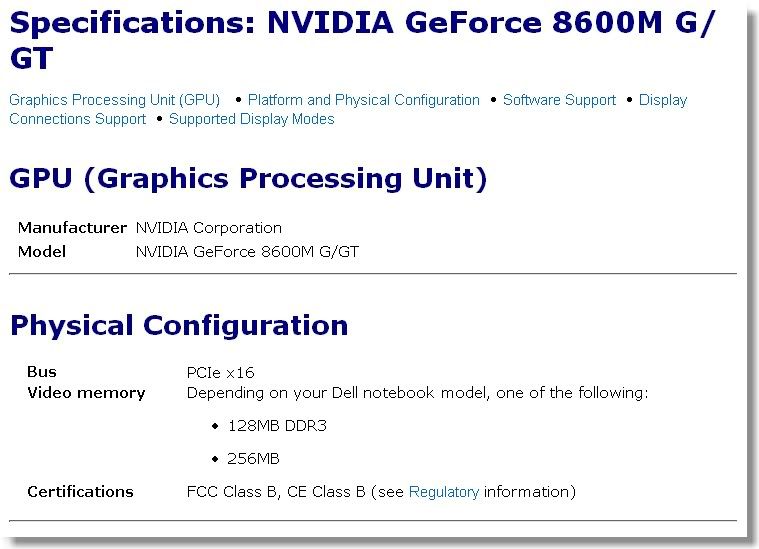

    From the Dell website.

    [​IMG]


    link

    Regards,
    Paolo

    cvx5832, Sep 6, 2007
    #6
  7. meh_cd

    meh_cd Notebook Evangelist

    Reputations:
    140
    Messages:
    422
    Likes Received:
    0
    Trophy Points:
    30
    It doesn't matter if Dell's website says it is. IT IS NOT GDDR3. Seriously, can we make a sticky or something? Listen to cori.

    meh_cd, Sep 6, 2007
    #7
  8. perrylyzr541

    perrylyzr541 Notebook Consultant

    Reputations:
    11
    Messages:
    180
    Likes Received:
    0
    Trophy Points:
    30
    I'm not saying it is or isn't I just want to know how to check mine personally. Even if you beleive it's GDDR2 or GDDR3 could someone please tell me if there is a way to check from the numbers on it or something.

    perrylyzr541, Sep 7, 2007
    #8
  9. Dragoneye1589

    Dragoneye1589 Notebook Consultant

    Reputations:
    67
    Messages:
    214
    Likes Received:
    0
    Trophy Points:
    30
    Ok, rivatuner is not accurate for notebooks.

    The card is not GDDR3, the clock speeds tell us that the memory bandwidth is the same as the GDDR2 version and the Dell site doesn't say the ram type on the 256MB version that are in the Inspirons.

    As for 3DMark06, just go to Futuremark.com and download the trial there, that is all that is needed.

    Dragoneye1589, Sep 7, 2007
    #9
  10. joebusby

    joebusby Notebook Consultant

    Reputations:
    2
    Messages:
    176
    Likes Received:
    0
    Trophy Points:
    30
    It's DDR2, but you can overclock easily to DDR3 speeds (I got 3900 in 3dM06 1280x1024)

    joebusby, Sep 7, 2007
    #10
  11. Ichigo

    Ichigo Notebook Evangelist

    Reputations:
    14
    Messages:
    463
    Likes Received:
    0
    Trophy Points:
    30
    You're 270Mhz shy of the GDDR3's stock speed.

    Ichigo, Sep 7, 2007
    #11
  12. jb1007

    jb1007 Full Customization

    Reputations:
    165
    Messages:
    1,230
    Likes Received:
    0
    Trophy Points:
    55
    My system hung in about 3 seconds when I clocked it at 625/550

    jb1007, Sep 7, 2007
    #12
  13. coriolis

    coriolis Notebook Nobel Laureate

    Reputations:
    2,319
    Messages:
    14,119
    Likes Received:
    1
    Trophy Points:
    455
    Rivatuner will say its DDR3, since it's not been updated to reflect the 8600GT in notebooks. What you want to check is the clock speed, the DDR2 is 400mhz and the GDDR3 is 700mhz.

    It's been repeated over and over again, there are about a hundred threads on this :p Though it'd be nice to have GDDR3, I guess the premium for it was not what Dell opted for. Dell made a mistake of saying it was GDDR3 a few weeks after release but quickly corrected themselves. At least Dell US did, cause alot of customers were trying to get freebies for them being 'misinformed'.

    coriolis, Sep 7, 2007
    #13
  14. win32asmguy

    win32asmguy Moderator Moderator

    Reputations:
    1,012
    Messages:
    2,844
    Likes Received:
    1,699
    Trophy Points:
    181
    It is definitely DDR2. I disassembled my machine and took a close look at the card. It has eight Hynix HY5PS561621A FP-25 chips, and according to this PDF these are DDR2 256 Megabit 2.5NS (400mhz) rated memory chips. Because there are eight bits in a byte, it is a 256MB video card. This should put to rest the guys who are saying it has 512MB too.

    win32asmguy, Sep 7, 2007
    #14
