    Inspiron 1720 Benchmarks

    Discussion in 'Dell' started by DR650SE, Feb 9, 2010.

  1. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    I was bored tonight so I ran some benchmarks on my 1720, Specs in Sig
    Only change was the GPU was overclocked.

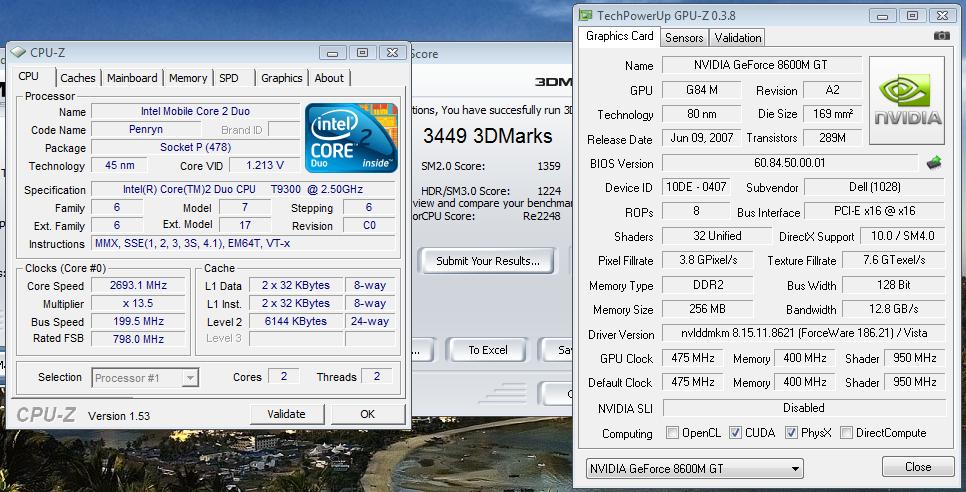

    1st Pic is 3DMark @ stock clocks.--------3449

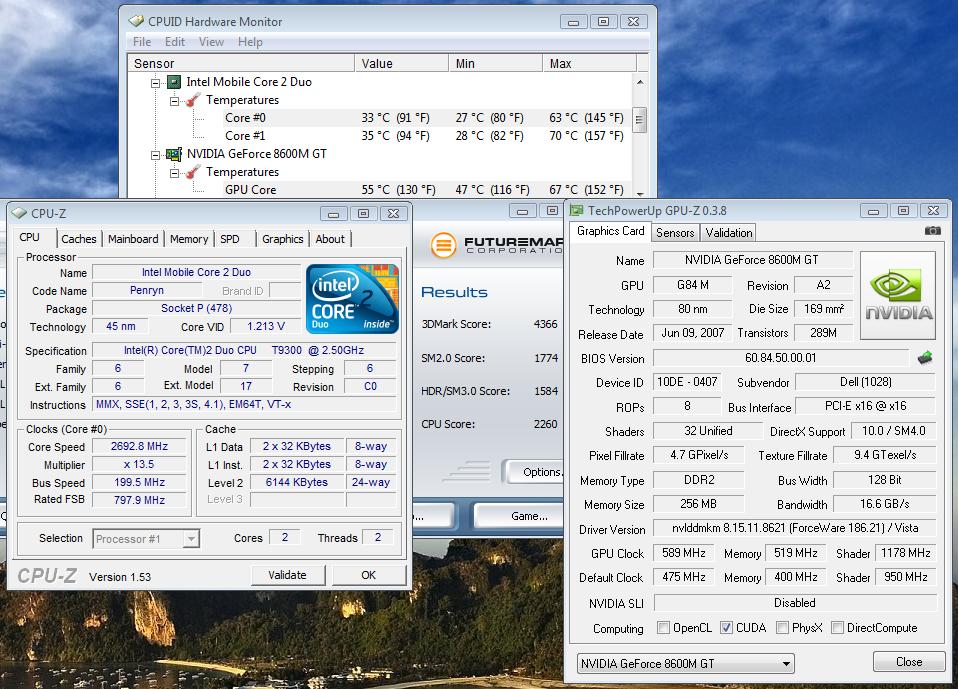

    2nd Pic is 3DMark Overclocked----------- 4366 Old 4259, 4271, 4280

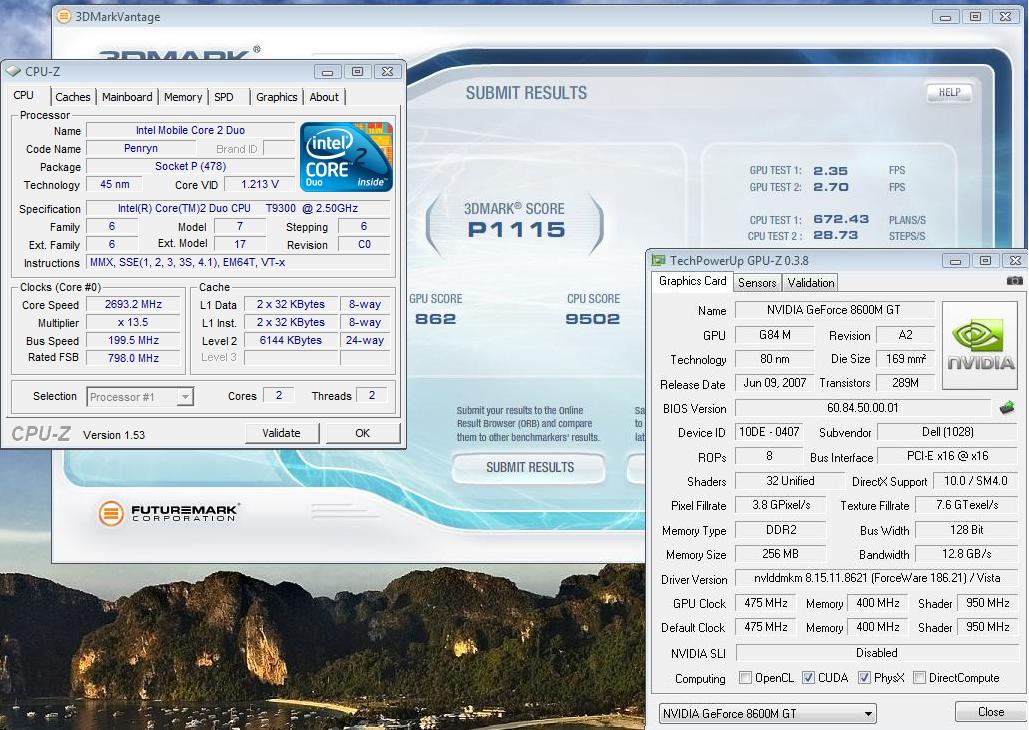

    3rd Pic is Vantage @ stock clocks--------P1115

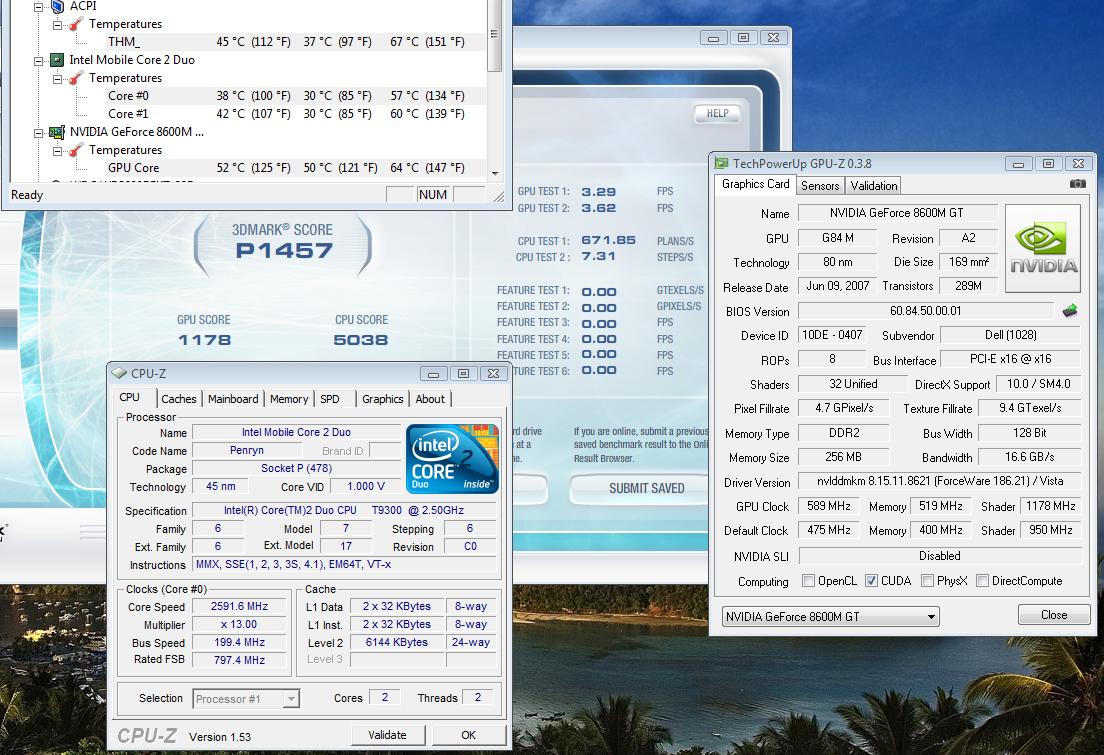

    4th Pic is Vantage Overclocked----------- P1457 Old P1410

    I didnt get time to finish a Vantage run on my last set oc clocks since it needed tweaking due to display driver crashes. GPU temps never reached higher the 67*C when overclocked


    Attached Files:

    DR650SE, Feb 9, 2010
    #1
  2. MujiXx

    MujiXx Notebook Geek

    Reputations:
    0
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    15
    can u tell me how to overclock the processor? and have the speedstep not interfere?

    MujiXx, Feb 10, 2010
    #2
  3. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    You can't overclock the processor. The BIOS doesn't support it. And you can't overclock by software means because the PLL isn't supported. :( The only thing I have overclocked is the GPU. Done through using nVidia system tools. Also I don't think you can get rid of the speed step. The only way to OC it would be through a pin mod which is link in the other thread.

    DR650SE, Feb 11, 2010
    #3
  4. MujiXx

    MujiXx Notebook Geek

    Reputations:
    0
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    15
    was it difficult doing the pin mod?

    MujiXx, Feb 11, 2010
    #4
  5. SomeFormOFhuman

    SomeFormOFhuman has the dumbest username.

    Reputations:
    1,037
    Messages:
    1,012
    Likes Received:
    0
    Trophy Points:
    55
    There aren't any PLL datasheets for our 1720 units unfortunately. Each notebook is different. GPU OC'ing only.

    SomeFormOFhuman, Feb 11, 2010
    #5
  6. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    Yea, I never did the pin mod. To be honest it's probably a lot of trouble and I don't want to mess with it. Especially by trial and error.

    DR650SE, Feb 11, 2010
    #6
  7. tryagain1990

    tryagain1990 Notebook Enthusiast

    Reputations:
    4
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Do you know how to overclock ATI cards?

    tryagain1990, Feb 11, 2010
    #7
  8. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    That I do ;) I'll PM you the instructions I used on my alienware. I'm guessing it would be the same.

    DR650SE, Feb 11, 2010
    #8
  9. MujiXx

    MujiXx Notebook Geek

    Reputations:
    0
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    15
    oh, my bad, i thought u did overclock it cuz of the inspiron in ur sig.

    MujiXx, Feb 11, 2010
    #9
  10. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    No prob, I just OCed the GPU

    DR650SE, Feb 11, 2010
    #10
  11. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    I updated the original post with my new 3DMark05 score.

    DR650SE, Feb 11, 2010
    #11
  12. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    New scores in this one man show ;)

    New 3DMark06 new high of 4366 up from 4280

    New Vantage high P1457 up from P1410

    Pics in original post :D Got a pretty good OC out of the GPU too, too bad I can't play with the CPU. Also GPU temps never went higher then 67*C when OCed.

    DR650SE, Feb 13, 2010
    #12
