    Intel 5300 into a Inspiron 1720

    Discussion in 'Dell' started by jdugan4859, Mar 18, 2011.

  1. jdugan4859

    jdugan4859 Notebook Enthusiast

    Reputations:
    0
    Messages:
    18
    Likes Received:
    0
    Trophy Points:
    5
    I have a 1720 and got a 5300 wifi card for it. I was wondering if anyone knows where to hook up the antenna wires. I the stock Dell card only had 2 wires, and the 5300 has 3, but there are a couple extra wires tucked away, and I would assume I could use one of those on this card.

    Anyone have an experience with this?

    jdugan4859, Mar 18, 2011
    #1
  2. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    In general, any of the wires should work.

    In theory, there should be a grey wire the same length as the main white and black WIFI wires, and that grey wire should be the third antenna. The last two should be for the WWAN, and should be a of a (slightly?) different length.

    Commander Wolf, Mar 18, 2011
    #2
  3. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    As stated above, the grey wire will be the 3rd antennae. Intel cards usually have a colored coded arrow to where each wire attaches.

    Tsunade_Hime, Mar 18, 2011
    #3
  4. jdugan4859

    jdugan4859 Notebook Enthusiast

    Reputations:
    0
    Messages:
    18
    Likes Received:
    0
    Trophy Points:
    5
    Everything goes in the same way it came out, but with gray wire in the middle.

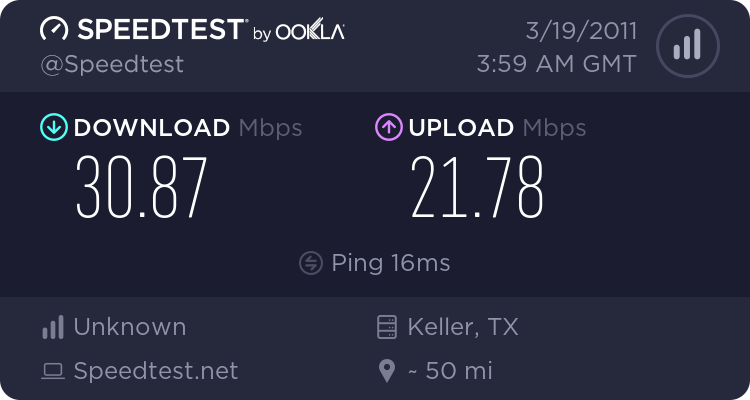

    I will take these speeds, over wifi.

    [​IMG]

    jdugan4859, Mar 18, 2011
