Pictures of D820 & D620 on Dell's Site

Dell's site update has them using a few pictures of the new Dx20 serise, for everyone who wanted a peak:

http://www1.us.dell.com/content/topics/reftopic.aspx/bsd/homepage/business?c=us&cs=04&l=en&s=bsd

Thats the D820 on the left, D620 on the right.



I like the new look a lot, the build is better and the look is much more professional IMHO.



Wow, looks very nice. Here's hoping they'll have specs up sometime real soon...



The new look is great



Sorry to dissapoint guys but the image shows 2 D410 notebooks side by side, neither of those are part of the new range.

Trust me.. i was playing with the new range at work on friday.

They do look and feel very nice and there are a few nice new features too.

You'll just have to wait a bit longer.



I hope the casing is black in the new series ;-)

The old grayish color scheme was really boring



I was going to say... they don't look like widescreens.



Cases are going to be styled like the D410, so it's sliver outside and black inside.



my exact thoughts.



The flash animation on the top of this page is reputed to be the D620.

http://www1.us.dell.com/content/topics/global.aspx/solutions/en/roadready_test?c=us&cs=04&l=en&s=bsd


And a review of the D620 here.

http://laptopmag.com/Review/Dell-Latitude-D620.htm



check the movie at the bottom of that Dell webpage..awesome and funny



More than just pictures. D620 Specs!

http://www.dell.com/downloads/emea/products/Latitude_D620_06-03.pdf

Before you ask, it's in german I beleive.
If you don't like it, try this Babelfish translation that I've massaged into a readable format.

Dell Latitude D620
The ideal mixture from
Technology and mobility

The LatitudeTM D620 sets new yardsticks for Business-notebooks by its innovative, new
Wide Aspect display, maximum reliability and more productivity for the whole enterprise
in a safe platform.
The Latitude D620 concentrates on achievement, mobility and practical use on the job
and is a solidly processed Notebook with a balanced mixture from modern
Technology and mobility - with a weight starting from 1,98 kg *.


Innovative Design:
for maximum control comfort develops
* Small, but oho!
* Newest mobility functions and Intel technology from tomorrow
* Particularly long Akkulaufzeit for real independence
* Simple adjustment with DellTM QuickSetTM

RoadReady quality:
processes solidly. ? Compromise lots quality for reliable enterprise for many years
* Fit for the rauen everyday life
* Intelligent protection of your investments from accidents and theft with
CompleteCareTM 11).

Intelligent safety functions:
Efficient, flexible safety package
* More user security with three speed Authentifizierung
* Avoidance of data larceny by data encryption
* Protection against viruses
* Security without high costs

HyperConnectedTM: Always in connection
* Does net search snap also without the Notebook to open with Dell WiFi Catcher
* On the way at any time productively its owing to mobile Broadband and WiFi
* Very fast synchronization with Bluetooth-mobile phone and PDA

Dell Latitude D620
NOW MORE SUCCESS.





Dell recommends Windows® XP Professional
Dell Latitude D620


Specifications
Dell Latitude D620

SYSTEM
Processor type Core™ Solo- und Duo-Prozessoren 667 MHz Front Side Bus & 2 MB Smart L2-Cache
Intel® core Duo processor T2300 (1.66 GHz) T2400 (1.83 GHz) T2500 (2.0 GHz) T2600 (2.16 GHz)
Operating systems Microsoft® Windows® XP Professional SP2, Microsoft® Windows® XP Home SP2
Chip set 945GM (667 MHz front Side bus) with Intel® Onboard graphics or 945PM with NVidia graphics
Memory Min 512 MB DDR2 Shared1 533 or 667 MHz/max: 4 GB2 DDR2 Shared1 or 667 MHz
Display Wide format 14.1"WXGA (resolution 1280 x 800, 185 Nit), or 14.1" WXGA+
(resolution 1440 x 900, 220 Nit)
external screen Maximum resolution WUXGA (1920 x 1200)
graphics chip Intel® Graphics Media accelerator 950 (up to 224 MB Shared MEMORY) or 256 MB NVIDIA® Quadro
NVS 110M with TurboCache3
Non removable disks 40, 60, 80 & 100 GB4)
Keyboard 87 keys (the USA), 88 keys (Europe), 91 keys (Japan), Tastenhub-2,5 mm;
key distance 19.05 mm
Showing equipment Touchpad - PS/2-compatible, TRACK-TICK - PS/2-compatible
Audio High definition audio codec, loudspeaker, 2 W (4 ohms), integrated microphone

VOLTAGE SUPPLY
Dimensions Height: 32 mm Width: 337 mm Depth: 238 mm
Weight Starting from 1,98 kg * with 4-Zellen-Akku and travel module, starting from 2,27 kg * with 6-Zellen-Akku and CD-ROM

PORTS
Power pack Power pack with 65 or 90 Watts with cable rolling
Akkus Primary left-ion-Akku (4 Zellen/35 Wh) with express load
Primary left-ion-Akku (6 Zellen/56 Wh) with express load
Hauptakku: Left-ion-Akku (9 Zellen/85 Wh) supports express load with 90-Watt-Netzteil
Secondary left-polymer-Akku (6 Zellen/56 Wh) with express load

EXPANDABILITY
cable width unit, internal Internal modem 56K v.925; 10/100/1000 Gigabit6-Ethernet-Netzwerkkarte
Wireless Mobile Broadband
WLAN Internally: Dell Wireless 5500 mobile Broadband 3G HSDPA (Cingular US)
WPAN Internally: Dell Wireless 5700 mobile Broadband CDMA EVDO (Verizon Wireless US)
Intel® PRO/Wireless 3945A/G (802.11a/g), Dell Wireless 1490 (802.11a/g),
Dell Wireless 1390 (802.11g)
Internal wl to map Dell TrueMobile 350 Bluetooth

SECURITY
PC Card A card location for type I or type II
Serial interfaces Serially, Docking connection, 4 x USB, VGA, headphone/loudspeaker exit, infrared haven,
RJ-11, RJ-45, power pack connection
Docking solutions D/Port, D/Dock, D/View Notebook owner, D/Monitorstaender
Module options 24x CD-ROM, 8x DVD-ROM7, 24x CDRW/DVD, 8x DVD+/-RW8 floppy disk drive, secondary 6
Cell Akku, 80 GB4 non removable disk or travel module
USB MEMORY stick 128 MB, 256 MB and 512 MB USB Sticks9 (optional)
Physical security Rope lock eyes, medium module and non removable disk locks
Security for users and system Integrated SmartCard reader, TPM 1,2 and optionally UPEK® finger mark reader. Dell Embassy® trust
Suite of Wave of system
Safety software
Network security 802.11 WiFi Protected ACCESS (WPA), VPN and 802.1x with EAP modes, compatibly with CCX 4,0


ADMINISTRATION
Dell open Manage Lowers total operating cost by administration and support of interlaced Notebooks.
OpenManageTM makes the installation and migration possible of software, hardware configuration and
System function control, inventory management and remote support. Further information finds
It in the InterNet under: www.dell.de/openmanage
Accessories New carrying bags and backpack for Latitude, external USB keyboard and mouse, CRT- and
Flat screens

SERVICE & SUPPORT
Service and support Service options can vary. Suburb service at the next Arbeitstag10 and/or sending in
Service can be offered.


Further information finds you under: www.dell.de
* Weight starting from 1,98 kg with travel module, 4-Zellen-Akku, integrated diagram and 14.1"WXGA display. Weight depends on inserted components and manufacturing tolerances.
1. Depending upon main memory capacity and other factors can be assigned up to 224 MB by the main memory than diagram memory. 2. The entire available main memory capacity can be smaller depending upon configuration.
3. The diagram map can use local and Shared memory up to 256 MB. The local memory is with the Latitude D620 64 MB, with the Latitude D820 128 MB. With the D620 main memories for the support of the diagram can be assigned up to 192 MB.
With the D820 main memories for the support of the diagram can be assigned up to 128 MB. Depending upon main memory capacity and other factors differently much memory can be assigned. 4. The actual capacity arranges
and is smaller after the installed programs and the operating system environment. 5. Uploadgeschwindigkeiten are limited to 53 Kbit/s. Uploadgeschwindigkeiten are smaller (approx. 30 Kbit/s). The speeds vary depending upon
Line quality and modem manufacturer. A similar voice grade channel and a similar service are necessary. 6. The designation Gigabit Ethernet does not mean the reaching of an actual speed of 1 Gbit/s. For
High-speed transmissions is necessary a connection for a Gigabit Ethernet server and an appropriate network infrastructure. 7. DVD Rome drive assemblies can have those writable hardware, over changes of firmware
one deactivated. 8. With this drive assembly burned CDs is not possibly compatible with some available drive assemblies and Playern. DVD+R data media offer highest compatibility. 9. with recordable data storage units MB means 1 million
Byte; the altogether available capacity depends on the used operating system. 10. Service achievements can be implemented by a third offerer.
Technicians are sent if necessary, after a telephone error's treatment took place. The service is subject to the availability of spare parts, geographical restrictions and the conditions of the service contract. It depends on
the time of day, at which the customer turns to Dell. Only the USA. 11. CompleteCare does not apply to theft, loss, by natural occurences caused fire and damages caused by water or vandalism. CompleteCare is not surface covering offered.
If necessary the equipment must be returned at Dell. Detailed information finds you under www.dell.de/servicecontracts. Dell, the Dell Logo, Complete Care, express load, HyperConnected, open Manage, TrueMobile and QuickSet are
Marks of the Dell GmbH Intel and Pentium are registered marks of the Intel corporation. Microsoft and Windows are registered marks of the Microsoft corporation. Other marks and trade name used in this document refer
on the owners and/or their products. Dell does not lay a claim on the marks and trade names of other enterprises.
© copyright 2006 Dell Inc. all rights reserve. Reproduction or passing on of each kind without express written permission by Dell Inc. strictly forbade.
Conditions: March 2006


Dell Latitude D620
NOW MORE SUCCESS.



Wow, that's a nice looking machine. Kinda resembles the HP Compaq NC6000 design I've long been in love with ever since I was hooked to Vampire: The Masquerade Bloodlines.

edit: Say, is there a pdf out there that shows the D820?



Do a search for Precision M65 and M90 and you will see pics of the precision M65 which uses the exact same case as the D820. This search would be on notebookforums.com



Notebookforum requires me to register and they don't accept yahoo and hotmail (the only e-mail services I use) addresses. Could you please post a direct link?

Thanks!



Here is the link to a Precision M65 which uses the chassis of the Latitude D820.

http://www.lesdelliens.com/index.php?name=Forums&file=viewtopic&t=215



Well, just an FYI, I have a review of the D620 but I can't post it until midnight tonight.

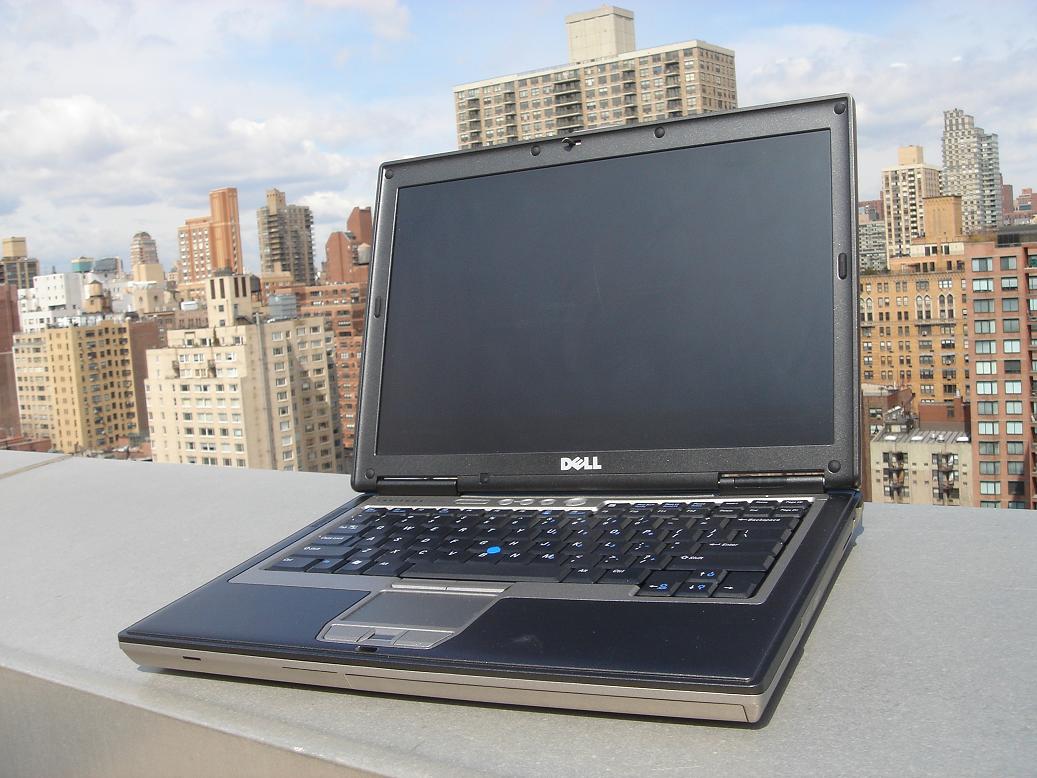

Here's a pic as a tease though:



abaxter:

Can you cheat a little and answer the following question...

How likely am I going to want to change my plans to order an HP nc8230 for a D820 instead??



Thanks NYCscorpio!

Is it just me or does the D620 look a lot better?



Australia have listed the M65 and M90 for preorders.

http://www1.ap.dell.com/content/products/compare.aspx/precn_m_au?c=au&l=en&s=lca

http://www.dell.com/downloads/ap/products/precn/brochure_m65.pdf
http://www.dell.com/downloads/ap/products/precn/brochure_m90.pdf

I can't find anything on the D820 as yet. Frustrating, cause that's what I'm interested in.



I'm assuming the M90 shares the exact same casing as the new XPS core duos?



This is killing me! I've heard rumors about the D620 for close to a month now! All I really want is for Dell to catch up to Toshiba, IBM & Sony, I've already bought and returned a 700M and a Z60M because I keep hearing the D620 is being released tomorrow! It's killing me!!:



D820 Spec sheet
http://www.dell.com/downloads/emea/products/latit/Latit_D820_Spec_Sheet.pdf


Some countries have the D620 and D820 now listed, including Norway, Sweden and Germany.

http://www1.euro.dell.com/content/products/compare.aspx/nb_performance?c=no&cs=nodhs1&l=no&s=dhs

Aparently though, they aren't providing them initially with the Nvidia Quadro, only the onboard Intel GMA 950.

I expect because there might be a short supply, since Dell overcommited themselves with the Nvidia 7800Go on the I9400, and have had to switch to the ATI X1400. Rumour is the NVidia are discontinuing the 7800 also.
