    Studio 15 motherboard

    Discussion in 'Dell' started by Dspr_02, May 31, 2009.

  1. Dspr_02

    Dspr_02 Notebook Evangelist

    Reputations:
    93
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    30
    Is it possible to replace my studio 1536's motherboard with that of a 1535 or 1537?

    Dspr_02, May 31, 2009
    #1
  2. Mastershroom

    Mastershroom wat

    Reputations:
    3,833
    Messages:
    8,209
    Likes Received:
    16
    Trophy Points:
    206
    It certainly is. Another member here, JohnByeBye, did exactly that; he replaced his 1536's motherboard with that of a 1535. ;)

    Mastershroom, May 31, 2009
    #2
  3. Dspr_02

    Dspr_02 Notebook Evangelist

    Reputations:
    93
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    30
    Oh thank god....I feel much better knowing that for about 300 cad (Shipping + Items) I can get a nice C2D and a better video card!

    Dspr_02, May 31, 2009
    #3
  4. Mastershroom

    Mastershroom wat

    Reputations:
    3,833
    Messages:
    8,209
    Likes Received:
    16
    Trophy Points:
    206
    Yeah, JohnByeBye was not impressed with the AMD-based 1536. Just make sure you get the motherboard with the ATi 3450 graphics card, because the 1535 also has a different motherboard with the Intel X3100 integrated graphics.

    For the record, you can also swap it for a 1537 motherboard, which is what I would do if I were you. The 1537 is also Intel-based, but on a newer platform (Intel Montevina w/PM45 chipset) than the 1535 (Intel Santa Rosa w/PM965 chipset). The 1535 can use up to 667MHz RAM and 800MHz FSB processors; the 1537 can do 800MHz and 1066MHz RAM and FSB, respectively.

    Mastershroom, May 31, 2009
    #4
  5. JohnByeBye

    JohnByeBye Notebook Evangelist

    Reputations:
    34
    Messages:
    367
    Likes Received:
    0
    Trophy Points:
    30
    Just here to say that Mastershroom is correct in his posts. :D

    I sold my 1536 Motherboard on ebay for 80 bucks. You may be able to get more since they are extremely rare.

    Also, you will have to purchase a new heatsink for the Intel motherboard, the AMD heatsink is not compatible.

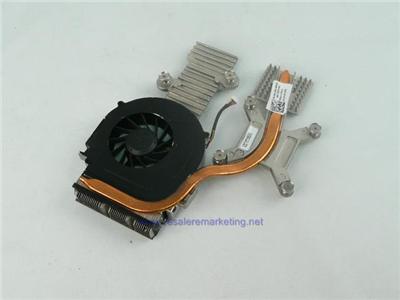

    If you plan on getting the ATI HD3450 graphics then this is heatsink that will you need:

    [​IMG]

    JohnByeBye, May 31, 2009
