    Tighten / Loosen screen inspiron 1520

    Discussion in 'Dell' started by millermagic, Dec 30, 2007.

  1. millermagic

    millermagic Rockin the pinktop

    Reputations:
    330
    Messages:
    1,742
    Likes Received:
    0
    Trophy Points:
    55
    How do I tighten or loosen the screen hinge on my inspiron 1520

    millermagic, Dec 30, 2007
    #1
  2. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    i really dont know of any way you can.

    nizzy1115, Dec 30, 2007
    #2
  3. n19htmare

    n19htmare Notebook Evangelist

    Reputations:
    39
    Messages:
    440
    Likes Received:
    0
    Trophy Points:
    30

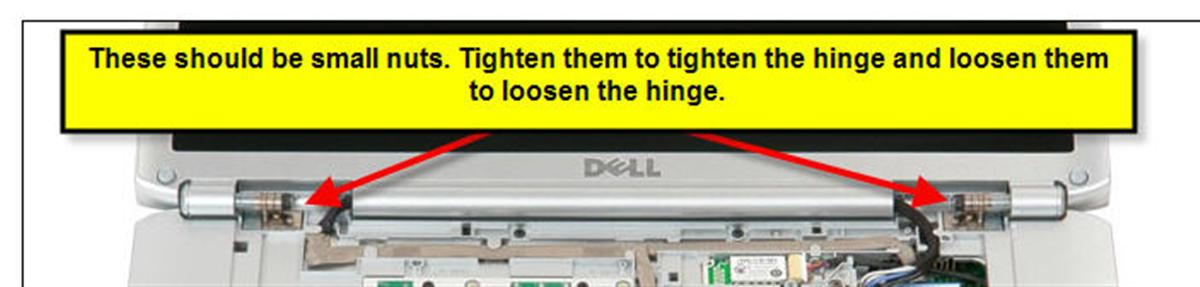

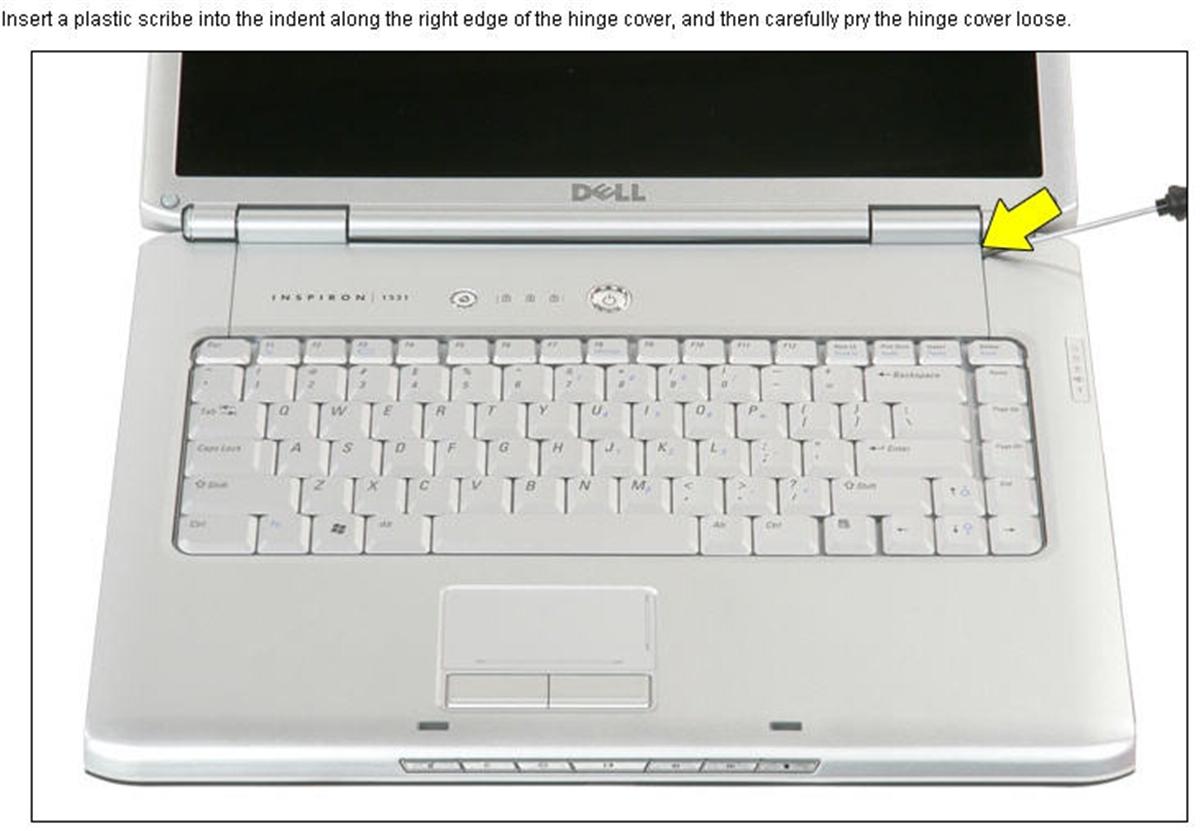

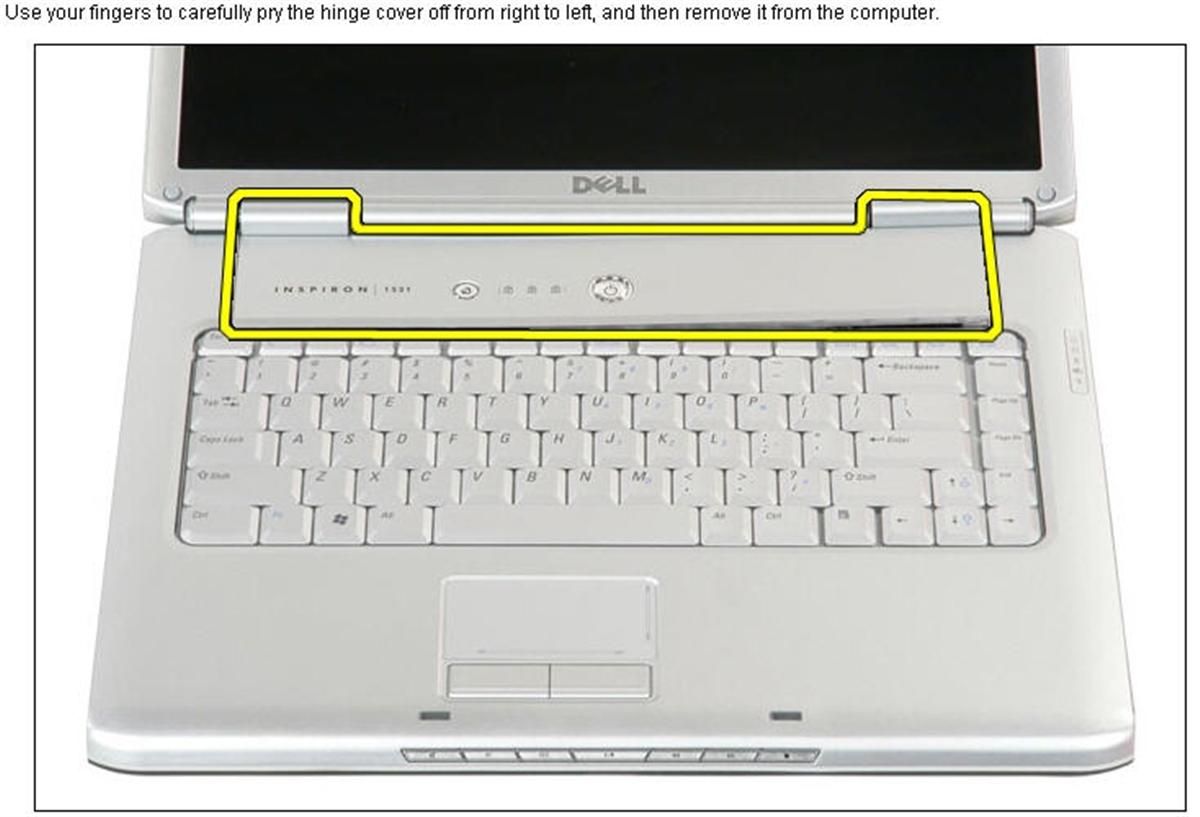

    remove the hinge cover after removing the cover plate above the keyboard.

    You should see nuts on the hinges, tighten them to tighten the hinges


    Attached Files:

    n19htmare, Dec 30, 2007
    #3
  4. B2TheEYo

    B2TheEYo Notebook Deity

    Reputations:
    141
    Messages:
    939
    Likes Received:
    0
    Trophy Points:
    0
    I've had those hinges before - you can't do tighten or loosen them because they will break into crums. Those hinges are garbage I got better ones sent to me from Dell.

    B2TheEYo, Dec 30, 2007
    #4
  5. millermagic

    millermagic Rockin the pinktop

    Reputations:
    330
    Messages:
    1,742
    Likes Received:
    0
    Trophy Points:
    55
    so I can't loosen them?

    millermagic, Dec 30, 2007
    #5
  6. n19htmare

    n19htmare Notebook Evangelist

    Reputations:
    39
    Messages:
    440
    Likes Received:
    0
    Trophy Points:
    30
    post a pic if you can.....

    Here's a pic for the 1400 series, and you can see the nut..... Not sure what hinges the 1500/1520 uses.
    [​IMG]

    n19htmare, Dec 30, 2007
    #6
  7. ananth20

    ananth20 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    is it the same way for the Vostro 1500 to fix the hinges as given for the dell inspiron

    ananth20, Jan 24, 2008
    #7
  8. millermagic

    millermagic Rockin the pinktop

    Reputations:
    330
    Messages:
    1,742
    Likes Received:
    0
    Trophy Points:
    55
    Tried playing with them but couldn't get them to budge :(

    millermagic, Jan 24, 2008
    #8
  9. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    Why would you want it looser? The lid would never stay open.

    nizzy1115, Jan 24, 2008
    #9
  10. millermagic

    millermagic Rockin the pinktop

    Reputations:
    330
    Messages:
    1,742
    Likes Received:
    0
    Trophy Points:
    55
    I want it looser so I don't wear out the hinges ... IM just strange like that..

    But the hinges are getting loser anyway. I close the laptop once a day if that.
