    What material is the lid made of?

    Discussion in 'Dell' started by jack53, Feb 27, 2008.

  1. jack53

    jack53 Dell XPS 9360 i7 Lover!

    Reputations:
    447
    Messages:
    2,398
    Likes Received:
    187
    Trophy Points:
    81
    I'm thinking of adding a little custom red to my lid.
    Anybody know what the lid is made of and the paint type so I can get the correct paint?
    Does doing something like this void the warranty?

  2. Prasad

    Prasad NBR Reviewer 1337 NBR Reviewer

    Reputations:
    1,804
    Messages:
    4,956
    Likes Received:
    10
    Trophy Points:
    106
    Cow dung and pine oil :p j/k ;) :cool:

  3. sly

    sly m1530 owner!!!

    Reputations:
    172
    Messages:
    1,403
    Likes Received:
    0
    Trophy Points:
    55
    it wont void the warrenty but i dont know the material

  4. jack53

    jack53 Dell XPS 9360 i7 Lover!

    Reputations:
    447
    Messages:
    2,398
    Likes Received:
    187
    Trophy Points:
    81
    Well... just because YOURS is made that way doesn't mean mine is ;)

  5. Prasad

    Prasad NBR Reviewer 1337 NBR Reviewer

    Reputations:
    1,804
    Messages:
    4,956
    Likes Received:
    10
    Trophy Points:
    106
    Well I don't HAVE a laptop ;) Either way, twas' a joke regardless of which notebook was mentioned.. :cool:

  6. jack53

    jack53 Dell XPS 9360 i7 Lover!

    Reputations:
    447
    Messages:
    2,398
    Likes Received:
    187
    Trophy Points:
    81
    And so was mine back... :D What notebook are you planning on getting?
    Read my review in my sig.

    AGAIN.... Does anyone know what material the lid is made of? Until I hear otherwise, I'm assuming it is plasic?

  7. BlackRussian

    BlackRussian Notebook Deity

    Reputations:
    239
    Messages:
    1,206
    Likes Received:
    0
    Trophy Points:
    55
    Its Plastic on the M1330

  8. snork

    snork Notebook Evangelist

    Reputations:
    27
    Messages:
    435
    Likes Received:
    0
    Trophy Points:
    30
    The lids are magnesium (definitely not plastic). They are cast magnesium alloy AZ91D to be exact ;) Also, they aren't painted, they are powder coated.

  9. crash

    crash NBR Assassin

    Reputations:
    2,221
    Messages:
    5,540
    Likes Received:
    13
    Trophy Points:
    206
    It depends what color you have. Red and blue are microsatin, white and black are a glossy plastic exterior. All the lids have a cast magnesium shell.

    Are you planning on painting over the existing lid, or sanding it down first?

  10. jack53

    jack53 Dell XPS 9360 i7 Lover!

    Reputations:
    447
    Messages:
    2,398
    Likes Received:
    187
    Trophy Points:
    81
    Now THAT is the info I needed! You will be repped. :D
    Now, what kind of paint should I use? Automotive paint? I was going to use model areosol paint, but not now. I'm thinking metalic ruby red. Since the notebook is new, I'll just lightly prep it and then paint.

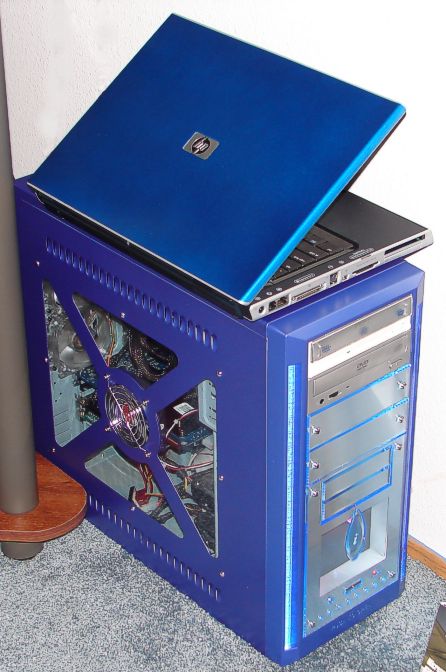

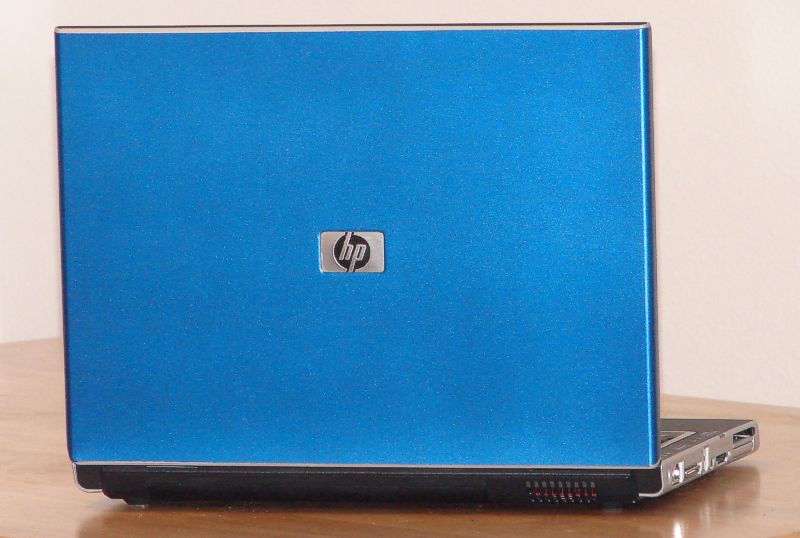

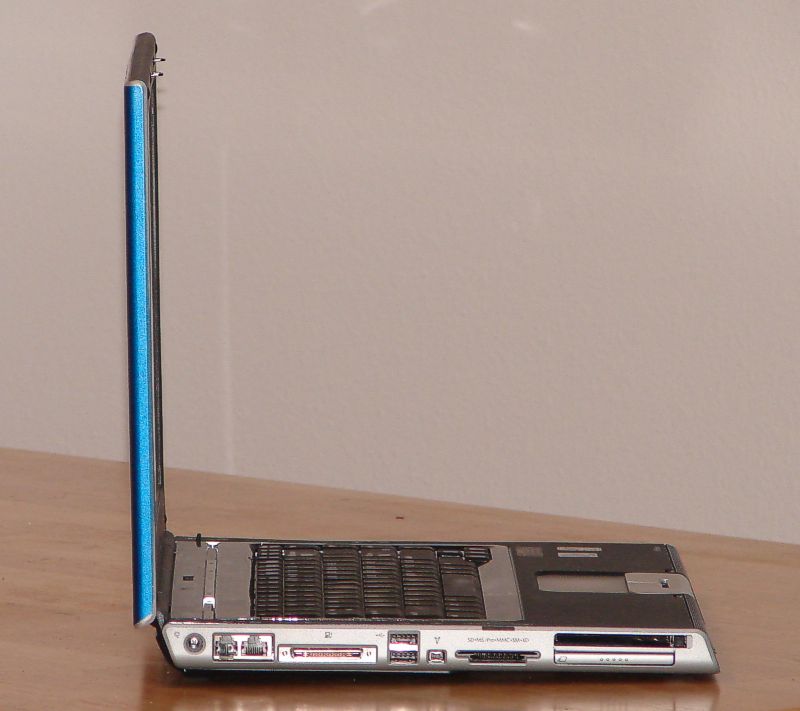

    It's not like I'm a novice when it comes to painting notebooks, Here is one of my notebooks I painted:

    [​IMG]

    [​IMG]

    [​IMG]

  11. snork

    snork Notebook Evangelist

    Reputations:
    27
    Messages:
    435
    Likes Received:
    0
    Trophy Points:
    30
    Nice, that HP laptop looks sweet. I dunno what would be the "best" paint, but I would assume a quality automotive paint should get the job done since that's what most of the boutique PC makers use for their custom colors.

    Worst case, I'd give it a light sanding before painting just to be sure it sticks. My crimson red with the microsatin finish is pretty rough, but anything I paint I always sand first as a rule of thumb.

  12. jack53

    jack53 Dell XPS 9360 i7 Lover!

    Reputations:
    447
    Messages:
    2,398
    Likes Received:
    187
    Trophy Points:
    81
    That was automotive paint I used on the HP. I'm thinking of finding automotive metalic ruby red, same as on the 40th aniversary Corvettes.

    With a notebook, masking real good is the secret. I plan on lightly sanding with 2,000 grit, then going over prep conditioner that cleans ALL grime of any kind off before the first primer coat. Next would be spraying several very light coats and letting it dry overnight between each coat. 4 primer, 4 base & 4 clear, (lightly sanding with 2,000 grit inbetween) then in 4 weeks, rub it out and wax it. I've painted several notebooks over the years with very good results. Always sold the notebook for more with the nice paint job too.

    Now, my XPS is going to be a tad different from the current red XPS's. The round Dell logo will stay black as well as the black strip where the chrome XPS logo is. Very similar to the way the red XPS 1710 were:
    Lots of very cool photos of that XPS here:
    http://images.google.com/images?hl=en&q=red+XPS+1710+photos&um=1&ie=UTF-8
    and NFR own review of it with pixs here:
    http://www.notebookreview.com/default.asp?newsID=2887&review=Dell+XPS+M1710

    And here are a lot of cool pixs of our current red XPS's
    http://images.google.com/images?um=1&hl=en&q=red+XPS+1530+photos&ie=UTF-8

  13. j4ck

    j4ck Notebook Guru

    Reputations:
    19
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    15
    Man that is one sweet blue colour on the HP.

  14. snork

    snork Notebook Evangelist

    Reputations:
    27
    Messages:
    435
    Likes Received:
    0
    Trophy Points:
    30

    Heh, you're obviously much more hardcore on painting than I am :p I sand w/ 1200/1600 grit, then 1 primer, 2 finish, 2 clear. And even just doing that much tests my patience:laugh: I haven't painted a laptop, but I've done a couple PC cases and I used to paint my old RC cars with some fancy masking/patterns (real ones that you actually gotta put together ;)).

  15. jack53

    jack53 Dell XPS 9360 i7 Lover!

    Reputations:
    447
    Messages:
    2,398
    Likes Received:
    187
    Trophy Points:
    81
    crash said that the lids are made of:
    cast magnesium alloy AZ91D

    Summary
    Magnesium and its alloys have high potential for application in automobiles, computer equipment, and portable tools. Recent progress in manufacturing impurity-free technology has dramatically reduced the corrosion damage that has been the main drawback in the use of magnesium and its alloys. We prepared samples by applying a die cast paint to a high-purity magnesium alloy and conducted different surface treatments, then evaluated the corrosion resistance of practical coating materials by subjecting samples to representative accelerated tests, such as the salt spray test and exposure to the atmosphere. An atmospheric galvanic corrosion test provided basic data on galvanic corrosion of magnesium alloys coupled to dissimilar metals and alloys.

  16. crash

    crash NBR Assassin

    Reputations:
    2,221
    Messages:
    5,540
    Likes Received:
    13
    Trophy Points:
    206
    Actually, that was snork :D

    I was saying that the interior shell was made of magnesium, not the outer covering that the user comes in contact with.

  17. snork

    snork Notebook Evangelist

    Reputations:
    27
    Messages:
    435
    Likes Received:
    0
    Trophy Points:
    30
  18. snork

    snork Notebook Evangelist

    Reputations:
    27
    Messages:
    435
    Likes Received:
    0
    Trophy Points:
    30
    From tinkering with my system. The lid, bottom cover and internal frame/chassis are magnesium. The sides of the LCD (silver parts) and the palm rests are aluminum, the rest is plastic.
