    Will this wifi card work with my 1520?

    Discussion in 'Dell' started by ps2cho, Jan 10, 2009.

  1. ps2cho

    ps2cho Notebook Evangelist

    Reputations:
    52
    Messages:
    485
    Likes Received:
    0
    Trophy Points:
    30
    ps2cho, Jan 10, 2009
    #1
  2. ps2cho

    ps2cho Notebook Evangelist

    Reputations:
    52
    Messages:
    485
    Likes Received:
    0
    Trophy Points:
    30
    bumping this thread.............

    ps2cho, Jan 11, 2009
    #2
  3. ScorpionSX

    ScorpionSX Notebook Geek

    Reputations:
    4
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    15
    It will works well, I've got the same card in my laptop.

    ScorpionSX, Jan 13, 2009
    #3
  4. SteveJonesy

    SteveJonesy Notebook Evangelist

    Reputations:
    50
    Messages:
    689
    Likes Received:
    0
    Trophy Points:
    30
    Me too. Works very well.

    SteveJonesy, Jan 13, 2009
    #4
  5. ps2cho

    ps2cho Notebook Evangelist

    Reputations:
    52
    Messages:
    485
    Likes Received:
    0
    Trophy Points:
    30
    I got it today...but I am having problems. My first question....I installed it and started up but it isn't recognizing the card? Do I have a dead one?

    Second....I am not sure which order the antennas plug into. I don't think this is the reason for not recognizing the card.

    Any ideas on what I can do to test if it is working or not?

    ps2cho, Jan 15, 2009
    #5
  6. ScorpionSX

    ScorpionSX Notebook Geek

    Reputations:
    4
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    15

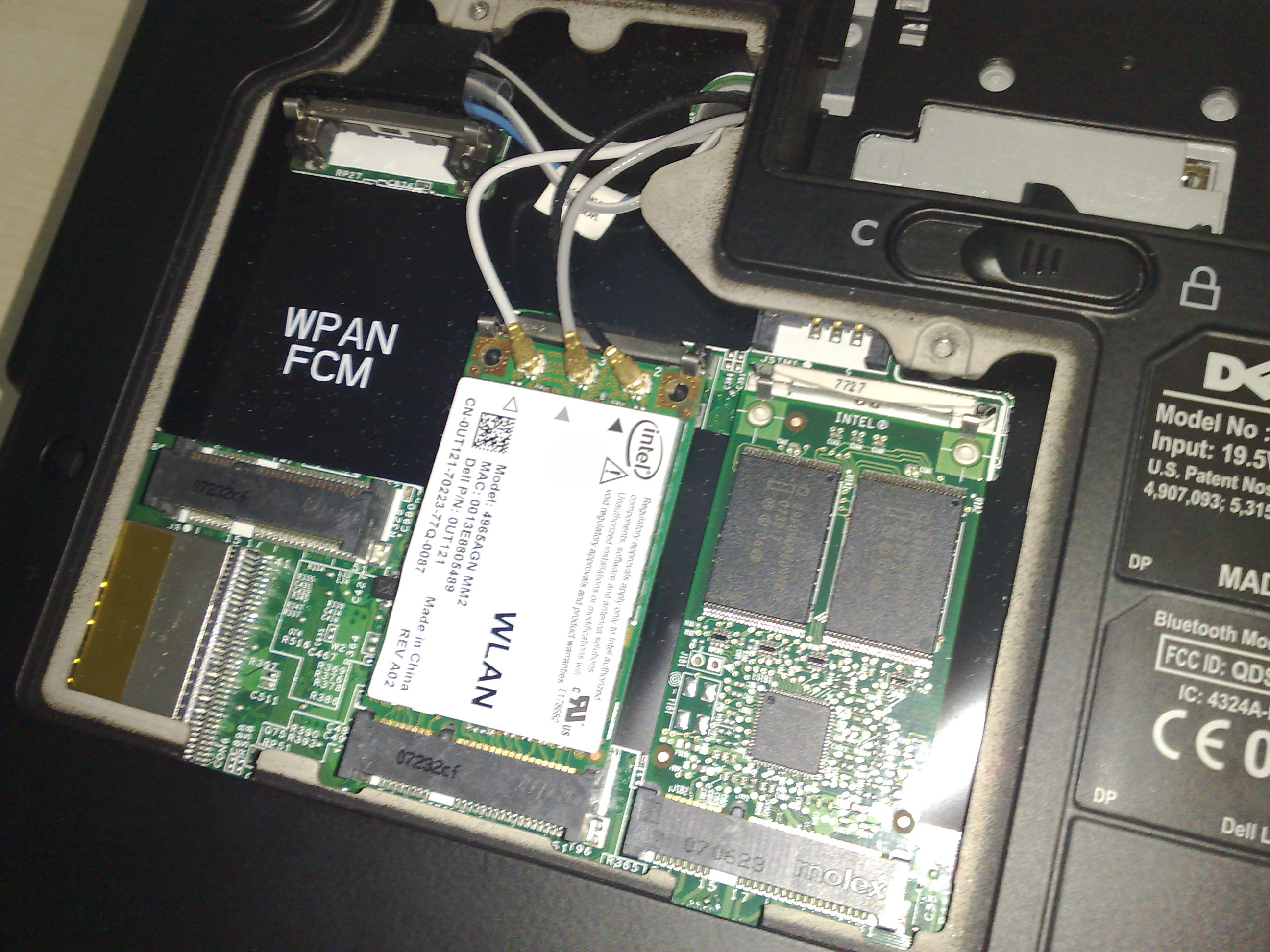

    Can you make a photo of it?? Or better, here is a picture of how it's connected right, do you have it like that??


    Attached Files:

    • 370.jpg
      File size:
      932.4 KB
      Views:
      138
    ScorpionSX, Jan 15, 2009
    #6
  7. ps2cho

    ps2cho Notebook Evangelist

    Reputations:
    52
    Messages:
    485
    Likes Received:
    0
    Trophy Points:
    30
    For some reason your picture doesnt load. I don't know why but only the top section loads then it stops. Weird....

    I have it in fine. Clips are down and all. My antennas may not be right...but that should only affect my wireless signal, it shouldn't affect if my card is recognized or not

    [​IMG]

    There are no unknown devices in the device manager either.

    ps2cho, Jan 15, 2009
    #7
  8. SteveJonesy

    SteveJonesy Notebook Evangelist

    Reputations:
    50
    Messages:
    689
    Likes Received:
    0
    Trophy Points:
    30
    Are you upgrading another WLAN card or is this the first time you've had a wireless card in there? If so go into the BIOS and make sure it's enabled under "Wireless".

    SteveJonesy, Jan 15, 2009
    #8
  9. ScorpionSX

    ScorpionSX Notebook Geek

    Reputations:
    4
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    15
    Your antennas seems to be connected wrong...the right order should be (left to right): light grey(or white..really don't know how to call that color...on your picture on number 3) then the dark grey (on your picture on number 2) and then the black one (on your picture is connected on number 1). Try to refresh the attachment, it doesn't load properlly for me too, but refreshing the page helps.
    But the wrong antennas conncetion shouldn't cause that your laptop don't recognize the card...anyway, try to re-connect them in order that i've written and try to look-up in the bios, there may be wireless disabled.

    ScorpionSX, Jan 15, 2009
    #9
  10. ps2cho

    ps2cho Notebook Evangelist

    Reputations:
    52
    Messages:
    485
    Likes Received:
    0
    Trophy Points:
    30
    Move the antennas to the correct position.

    Checked the BIOS and on the first page under Wi-F it says NONE.

    Gotta be busted if the BIOS doesn't even see the card. I'll ask for a replacement from the guy as it says 30day warranty for replacement.

    ps2cho, Jan 15, 2009
    #10
  11. ScorpionSX

    ScorpionSX Notebook Geek

    Reputations:
    4
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    15
    Yeah...the card seems to be really dead...btw, how much it costs?? Isn't it better to buy it from Dell?? And get a working card??

    ScorpionSX, Jan 16, 2009
    #11
  12. ps2cho

    ps2cho Notebook Evangelist

    Reputations:
    52
    Messages:
    485
    Likes Received:
    0
    Trophy Points:
    30
    I emailed the seller and he is sending me another free of charge. Hopefully this one works this time huh :D
    Cost me $25. Same one as the original link. Dell's are like twice the price.

    ps2cho, Jan 19, 2009
    #12
  13. ps2cho

    ps2cho Notebook Evangelist

    Reputations:
    52
    Messages:
    485
    Likes Received:
    0
    Trophy Points:
    30
    Got a new one. Works perfectly :)

    Guess I really did get a DOA. Very happy.

    ps2cho, Jan 21, 2009
    #13
