    Xp on m1330: extra PCI device listed

    Discussion in 'Dell' started by bgbop15, Nov 14, 2007.

  1. bgbop15

    bgbop15 Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    so, got all the drivers installed, including the UAA High Def Audio Bus (dunno how it works though... Now i have a pci device that i dont know what it is! Any ideas?

    EDIT:: wow.. im an idiot, forgot this step: "Entering XP, the system will discover a new PCI hardware, browse the driver to the "7kim06ww" folder to install the actual SATA driver."

    Problem solved, thanks for your help guys!

    bgbop15, Nov 14, 2007
    #1
  2. Samuel613

    Samuel613 Notebook Evangelist

    Reputations:
    35
    Messages:
    548
    Likes Received:
    0
    Trophy Points:
    30
    It would be helpful if you would list more information about the device. If it just says PCI Device, try downloading a program called Unknown Devices. It will read the IDs and tell you who makes the card, and some more info that might be helpful. Or, go in to device manager and go to the device's properties. If you look through the Details Tab, you may some information that sheds some light.

    Samuel613, Nov 14, 2007
    #2
  3. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Please provide a screenshot of the device manager with all tabs expanded!

    sinstoic, Nov 14, 2007
    #3
  4. bgbop15

    bgbop15 Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15

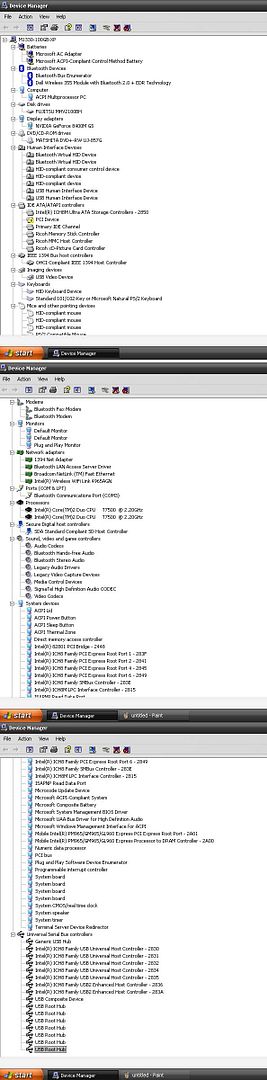

    [​IMG]

    thanks in advanced for any help you guys can give

    Please see attached image...

    i will go now to look for the unknown devices prog.

    NOTE: I installed windows xp sp2 by changing the bios setting of ahci to ata, then once everything was it was installed, i installed the intel storage drivers and switched it back to ahci, and it booted fine. But here we are

    bgbop15, Nov 14, 2007
    #4
  5. bgbop15

    bgbop15 Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    these are the instruction i loosely followed...

    http://www.dellcommunity.com/suppor...hread.id=253132&view=by_date_ascending&page=1

    specifically:

    "
    Step 1: Modify M14330 BIOS setting
    Since XP SP2 installation CD doesn't support SATA HDD at that moment, we need to disable M1330's SATA and set back to ATA mode for entire XP installation:
    1. Boot and press "F2" to enter BIOS setup menu
    2. Onboard Devices -> Flash Cache Module: Change to "Enabled" to "Off"
    3. Onboard Devices -> SATA Opteration: Change from "AHCI" to "ATA"
    4. System -> Boot Sequence: Move "CD/DVD/CD-RW" item up to the top
    5. Press "ESC" and choose "Save/Exit" to save and exit BIOS
    "

    "Step 5: Special handle of SATA driver
    To install Intel 82801GBM SATA AHCI Controller driver, execute kim06ww.exe to unpack the driver.
    Run install.com in \PREPARE, it installs a small program in c:\DRIVERS\WIN\IMSM\PREPARE and then run c:\DRIVERS\WIN\IMSM\PREPARE\install.cmd. Reboot the laptop.

    Press "F2" to enter BIOS menu again, enable the "FLASH CACHE MODEL" and change "ATA" to "AHCI", remember to SAVE and exit BIOS. Reboot the laptop again.

    Entering XP, the system will discover a new PCI hardware, browse the driver to the "7kim06ww" folder to install the actual SATA driver.
    "

    bgbop15, Nov 14, 2007
