    e1405 - Replacing LCD Inverter

    Discussion in 'Dell' started by jeffjeff, Jan 25, 2008.

  1. jeffjeff

    jeffjeff Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Does anyone have any instructions on how I should do this? I'm not sure how to remove the panels, so I'm kinda stuck.

    jeffjeff, Jan 25, 2008
    #1
  2. Kdawgca

    Kdawgca rotaredoM repudrepuS RBN

    Reputations:
    5,855
    Messages:
    8,609
    Likes Received:
    2
    Trophy Points:
    206
    The service guide is located here(support.dell.com).

    You should see the inverter once you remove the display bezel with the instruction linked above.

    Kdawgca, Jan 25, 2008
    #2
  3. jeffjeff

    jeffjeff Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for that link, now how can I remove the old inverter?

    jeffjeff, Jan 25, 2008
    #3
  4. Kdawgca

    Kdawgca rotaredoM repudrepuS RBN

    Reputations:
    5,855
    Messages:
    8,609
    Likes Received:
    2
    Trophy Points:
    206
    If its screw downed, then uncrew it. There should be cable plug (one on the side) that should disconnect(pull out).

    Edit It should look like this

    [​IMG]

    Kdawgca, Jan 25, 2008
    #4
  5. jeffjeff

    jeffjeff Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5

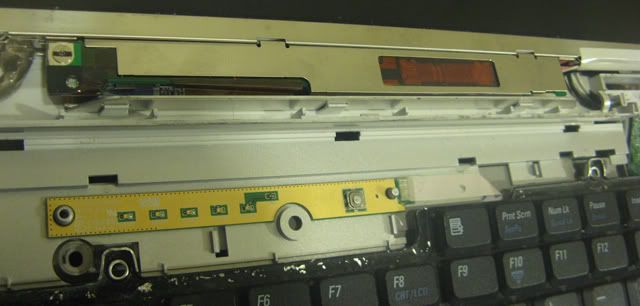

    [​IMG]

    I'm still trying to get behind this...

    jeffjeff, Jan 25, 2008
    #5
  6. Kdawgca

    Kdawgca rotaredoM repudrepuS RBN

    Reputations:
    5,855
    Messages:
    8,609
    Likes Received:
    2
    Trophy Points:
    206
    Well...in that case you will probably have to remove the Display Panel to gain access to the inverter from the other side.

    You might be able to pry the metal plate off the inverter but...

    Kdawgca, Jan 25, 2008
    #6
  7. jeffjeff

    jeffjeff Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    I just replaced the inverter...but the problem wasn't solved...does anyone have any idea on what the problem is?

    jeffjeff, Jan 25, 2008
    #7
  8. capntang

    capntang Notebook Guru

    Reputations:
    5
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    15
    I doubt anyone knows what the problem is, seeing as you haven't told us what sort of difficulty you're having. :D

    capntang, Jan 25, 2008
    #8
  9. jeffjeff

    jeffjeff Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    When I turn on my laptop, the light comes on for about half a second, and then turns off. I can still see everything on the screen if I put a bright light close to it. The laptop also makes a fizzley sound when the light goes out.

    jeffjeff, Jan 25, 2008
    #9
  10. jeffjeff

    jeffjeff Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Any help suggested?

    jeffjeff, Jan 26, 2008
    #10
  11. Kdawgca

    Kdawgca rotaredoM repudrepuS RBN

    Reputations:
    5,855
    Messages:
    8,609
    Likes Received:
    2
    Trophy Points:
    206
    After the interter was replaced, does the problem with the LCD look the same? If so then it might be a dead/pad LCD Panel or you got a bad inverter.

    Check by hooking up an external monitor(you may need to press FN+LCD/CRT key to display the image on the ext. monitor)

    Kdawgca, Jan 26, 2008
    #11
  12. jeffjeff

    jeffjeff Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    The LCD looks fine. When I hook up the laptop to another monitor, the picture looks normal. The only problem is that the backlights don't turn on, on the laptop screen.

    jeffjeff, Jan 27, 2008
