    e1505 Screen/Resolution Problem

    Discussion in 'Dell' started by BassKozz, Jun 11, 2006.

  1. BassKozz

    BassKozz Notebook Consultant

    Reputations:
    12
    Messages:
    107
    Likes Received:
    0
    Trophy Points:
    30
    e1505 Spec's
    Screen: WSXGA+
    Video Card: ATI Mobility Radeon X1400

    I am running my e1505 at the highest resolution (1680x1050)...
    And webpages are showing up blurry/distorted... everything looks real grainy.
    Any idea's on how to fix this?

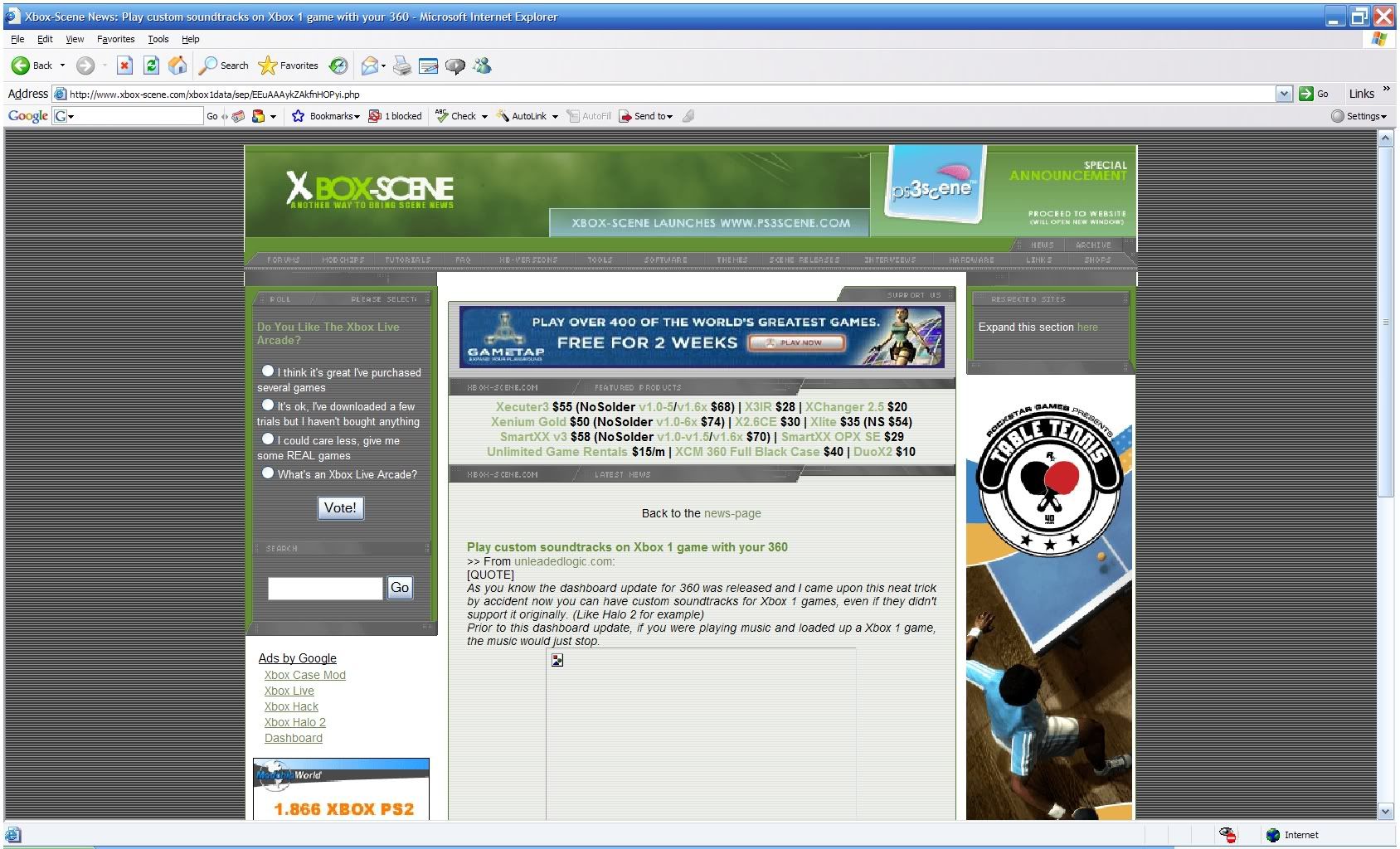

    Here is a screenshot sample (thumbnail... click to enlarge):

    [​IMG]

    Thanks,
    -BassKozz

    Last edited by a moderator: Feb 6, 2015
    BassKozz, Jun 11, 2006
    #1
  2. tony361

    tony361 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I have the same as you. I tried to update graphic driver but It didn't help. I don't know we need to have flash Bios or not

    tony361, Jun 11, 2006
    #2
  3. Amber

    Amber Notebook Prophet NBR Reviewer

    Reputations:
    1,659
    Messages:
    5,066
    Likes Received:
    0
    Trophy Points:
    205
    Check your display settings. Control Panel-->Display-->Settings.

    Your screen resolution should be 1680 x 1050 ( i believe). Also click on advance, and see what your DPI setting is (under General tab). By default, dell usually has it at 120, and normally you should have it at 96.

    Amber, Jun 11, 2006
    #3
  4. Mark

    Mark Desktop Debugger

    Reputations:
    1,288
    Messages:
    4,172
    Likes Received:
    0
    Trophy Points:
    105
    Yup, do what SG said, that should fix the problem for sure. Dell is lame and seems to put 120 dpi as the standard when the ship laptops and it looks horrible. Don't worry nothing is wrong with your hardware!

    Mark, Jun 11, 2006
    #4
  5. tony361

    tony361 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Thank you ---->SouthernGirl. I got you .. It is very clear now..eventhough, the icon look smaller..but I'm very happy with it...

    tony361, Jun 11, 2006
    #5
  6. BassKozz

    BassKozz Notebook Consultant

    Reputations:
    12
    Messages:
    107
    Likes Received:
    0
    Trophy Points:
    30
    Ahh, much better :D
    Stupid Dell :p

    Thanks SG & lmark84 :D

    BassKozz, Jun 11, 2006
    #6
  7. NOSintake

    NOSintake Notebook Evangelist NBR Reviewer

    Reputations:
    3
    Messages:
    519
    Likes Received:
    0
    Trophy Points:
    30
    why do they do that? is there any benefit to putting it to 120dpi?

    NOSintake, Jun 11, 2006
    #7
  8. Mark

    Mark Desktop Debugger

    Reputations:
    1,288
    Messages:
    4,172
    Likes Received:
    0
    Trophy Points:
    105
    Couldn't agree with you more redglare! : )

    Mark, Jun 11, 2006
    #8
  9. lng

    lng Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    Actually the solution is in Dell's QuickSet program. If the DPI is set to 120, then Internet Explorer Scaling option could be on. Go to QuickSet -> Display Settings and unselect the IE Scaling option. ;)

    lng

    lng, Jun 11, 2006
    #9
  10. stupid_nut

    stupid_nut Notebook Consultant

    Reputations:
    1
    Messages:
    101
    Likes Received:
    0
    Trophy Points:
    30
    Use Firefox or some other browser, works perfectly. IE sucks.

    stupid_nut, Jun 11, 2006
    #10
  11. Amber

    Amber Notebook Prophet NBR Reviewer

    Reputations:
    1,659
    Messages:
    5,066
    Likes Received:
    0
    Trophy Points:
    205
    The original poster was using FF - which is why i suggested the DPI method. As far as I know IE scaling utility only works on IE.

    Amber, Jun 11, 2006
    #11
  12. konstantine

    konstantine Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    Ohh nice I like that! But I'm also wondering about the 120 and 96 settings

    konstantine, Jun 14, 2006
    #12
  13. scollins

    scollins Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    I just got my 1505 and my screen looks washed out and grainy as well. I've tried the ideas listed, but none have seemed to help me. I have the problem in all software...not just IE.
    I set to 96 dpi, used quickset to turn IE scaling off, checked my resolution turned cleartype on/off ... all with no luck.
    I'm hoping someone has some new ideas ?
    Thanks,
    scollins

    scollins, Sep 20, 2006
    #13
