    flash cache module on Inpr. 1520

    Discussion in 'Dell' started by iamcanadian, Sep 9, 2007.

  1. iamcanadian

    iamcanadian Notebook Consultant

    Reputations:
    0
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
  2. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    yup, you got it! :spinny:

    Since Dell didn't help me very much, I researched it too.
    Was a tad tricky for me to get running at first(trial and error),but here's what worked.

    1) The FCM slot is accesed through the back of the machine-right where your WLAN card is, there are 2 additional pci-express slots, install into either one.

    2) By default-the Flash Cache module is turned off in bios

    3) Grab all three downloads under SATA-at Dell's site.
    http://support.dell.com/support/dow...D=INS_PNT_PM_1520&os=WLH&osl=en&catid=&impid=\

    4) boot to setup-f2-enable the Flash Cache Module

    5) Install all three dowloads

    NOTE:The system must be in AHCI mode-not SATA, for Intel Turbo Memory to function.

    I found the Intel Turbo Memory 1Gb card at Amazon-since I couldn't find it on Dell's site. 28.99$ U.S.


    Attached Files:

  3. iamcanadian

    iamcanadian Notebook Consultant

    Reputations:
    0
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    THANKS!!!


    Install???!!! it doesn't come installed??? do I have to buy the module too?



    I don't understand! How do I know what mode the system is under? and what's the difference?

    thank you

  4. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
  5. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    btw- looking at your system config in your sig-our HD's are the same-if ya buy the card-your good to go!! AND our HD is suhweeeet. It's supposedly "hybrid".
    :spinny:

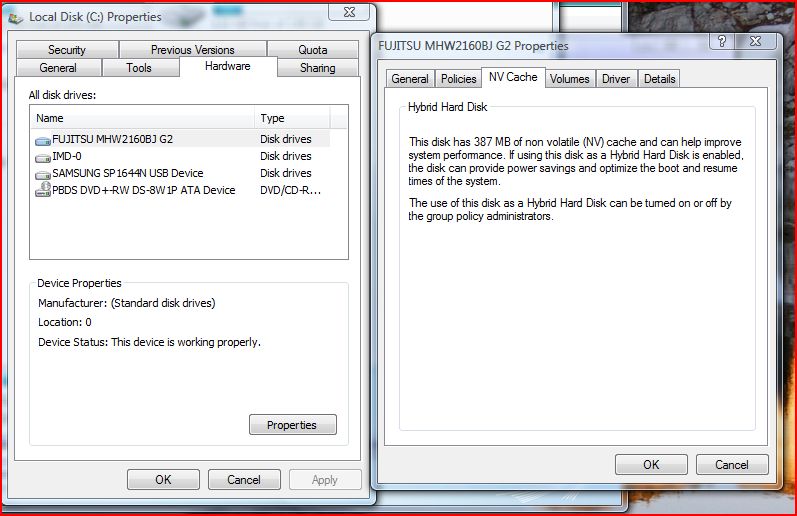

    Check this out-from HD properties in Vista.


    Attached Files:

    • nv.JPG
      File size:
      83.4 KB
      Views:
      323
  6. iamcanadian

    iamcanadian Notebook Consultant

    Reputations:
    0
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    Can it be easily installed...

    and the million dollars question: did you notice any difference?

  7. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    2 screws to get to the FCM slot, it's the cover with the Vista sticker on it.-and hmmm- at this point-only had it in a day, but definitely notice Office 2007 opening alot quicker.

  8. iamcanadian

    iamcanadian Notebook Consultant

    Reputations:
    0
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
  9. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    yup-thats the puppy! got mine from amazon.com

  10. iamcanadian

    iamcanadian Notebook Consultant

    Reputations:
    0
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    +1 rep :D

    thanks yo :)

  11. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
  12. Mr_Pat

    Mr_Pat Notebook Guru

    Reputations:
    0
    Messages:
    74
    Likes Received:
    0
    Trophy Points:
    15
  13. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    yup- but like i posted above, not sure how much a diff it really is,only had it in a day so far. I do notice faster speeds opening Office 2007:smile: , but there are articles all over the web saying it's not effective, but hey, Dell set up the hardware, and 30$ isn't too steep for me. I'm still out with the jury on this one tho!!:GEEK:

  14. dicecca112

    dicecca112 Notebook Consultant

    Reputations:
    44
    Messages:
    236
    Likes Received:
    0
    Trophy Points:
    30
    could we trouble you do run some benches?

  15. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    :eek2: lol-sure, if ya show me how!!

  16. capntang

    capntang Notebook Guru

    Reputations:
    5
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    15
    It's probably worth reading through the following article as well. They ultimately conclude that while the technology offers a lot of promise, it doesn't deliver too much at the moment. It also requires Windows Vista, so you're out of luck if you've grown tired of Vista's seemingly endless quirks and shortcomings and prefer to run Linux or XP.

    http://www.anandtech.com/cpuchipsets/intel/showdoc.aspx?i=3009

  17. billcsho

    billcsho Notebook Deity

    Reputations:
    39
    Messages:
    732
    Likes Received:
    0
    Trophy Points:
    30
    Make sure you reboot it twice after the installation. I've read the performance difference is very variable. Sometime it even run slower.

  18. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    umm, yup, I mentioned that earlier in the thread. umm X-what? XPee?:laugh:

  19. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    A noob benchmark!!!:laugh:

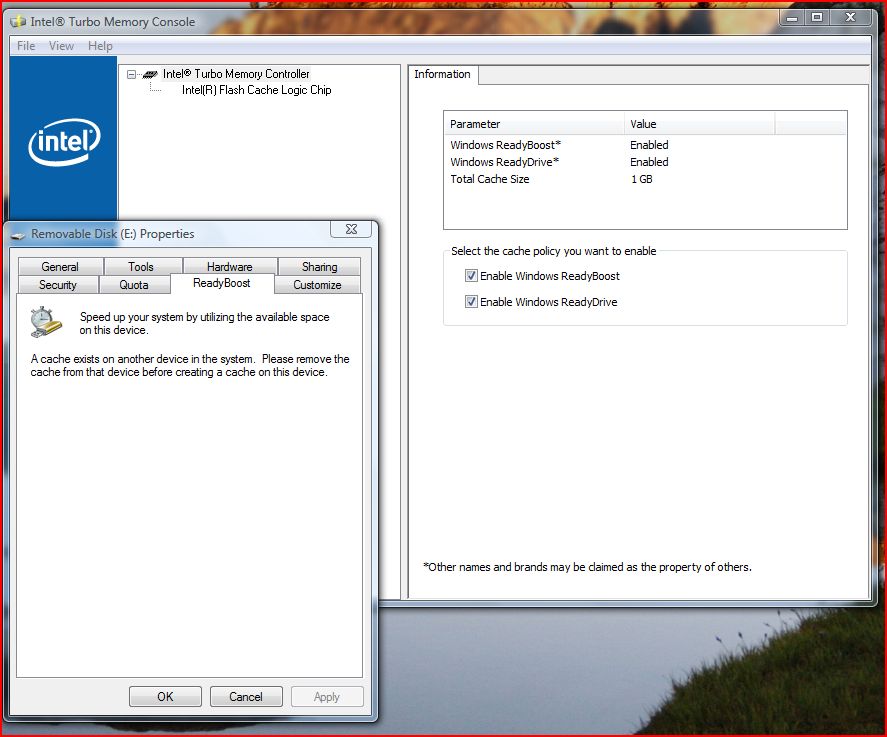

    I put in a usb flash and clicked on it's properties>Ready Boost.
    Here's the pic.

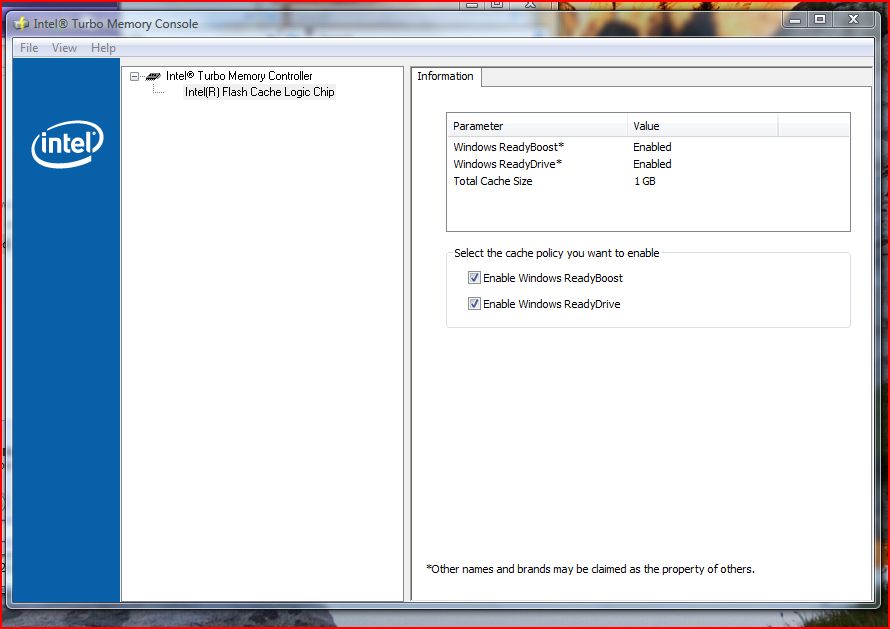

    And looked at the Ready Drive properties in the turbo boost console>Ready Drive


    Attached Files:

  20. capntang

    capntang Notebook Guru

    Reputations:
    5
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    15
    You mentioned the AnandTech article? I went back and read through the thread a few more times, but I'm just not seeing it.

    That particular article makes some important observations regarding installation and setup, especially pages 3 and 4.

    And I don't get the XP joke, either.

  21. Alemaker

    Alemaker Notebook Consultant

    Reputations:
    29
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    30
    lol ok- no I didn't mention the anandtech article directly-but did note there are lots of reviews and articles discussing it's effectiveness. about XPee-if ya don't get it,:laugh: just a play on the name XP:tongue:

  22. sinbad

    sinbad Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    15
    Where can you buy these Flash Cache Modules ? I didn't see them on the dell website? I reeelly want some

  23. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
  24. sinbad

    sinbad Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    15
    So you can install a max of two 1GB modules?

  25. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    no...i dont know where you got this from. you can only have 1.

  26. sinbad

    sinbad Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    15
    but there are two slots

  27. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    sir, if you dont believe me, by all means purchase 2 and find out the hard way yourself.

    just an fyi, you can stick more than just a flash cache card in those slots!

  28. sinbad

    sinbad Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    15
    Oh i didn't realize that. Sorry if my questions sounded skeptic.
