    intel turbo memory issue

    Discussion in 'Dell' started by vostro1400user, Sep 21, 2007.

  1. vostro1400user

    vostro1400user Notebook Deity

    Reputations:
    202
    Messages:
    1,064
    Likes Received:
    0
    Trophy Points:
    55
    after installing intel 1G turbo memory card(BIOS flash cache enabled, driver installed), i can't see any new drive. how to enable readyboost then?

    vostro1400user, Sep 21, 2007
    #1
  2. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,170
    Trophy Points:
    581
    Have you got AHCI enabled?

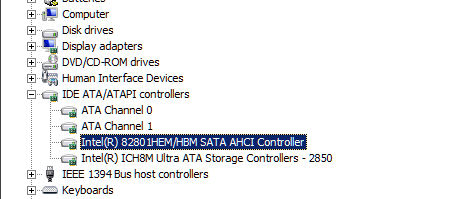

    Look in Device Manager. You should see something like the attached.

    If it is not, you can try following the instructions here to install the driver and you then need to enable AHCI in the BIOS.

    John


    Attached Files:

    John Ratsey, Sep 21, 2007
    #2
  3. vostro1400user

    vostro1400user Notebook Deity

    Reputations:
    202
    Messages:
    1,064
    Likes Received:
    0
    Trophy Points:
    55
    yes, ACHI enabled.

    vostro1400user, Sep 21, 2007
    #3
  4. thelazyone22

    thelazyone22 Notebook Evangelist

    Reputations:
    47
    Messages:
    365
    Likes Received:
    3
    Trophy Points:
    31
    Wait, the Turbo Memory can act as a drive? I was under the impression that it kind of just worked on its own in the background to speed things up. Are you looking to store files on it?

    Oh and check Device Manager in the Control Panel. I think it shows up there.

    thelazyone22, Sep 21, 2007
    #4
  5. vostro1400user

    vostro1400user Notebook Deity

    Reputations:
    202
    Messages:
    1,064
    Likes Received:
    0
    Trophy Points:
    55
    device manager shows two new items: intel turbo memory controller under Storage controllers; IMD-0 under Disk drives.
    but windows explorer shows no new drive.

    vostro1400user, Sep 21, 2007
    #5
  6. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,170
    Trophy Points:
    581
    Turbo memory is not a drive as such. Half is a non-volatile cache for the HDD and half is used as ReadyBoost.

    If you run HDTune you should be able to choose a 537MB drive which has impressive performance (I'm not convinced that it represents the reality).

    Also note that it takes several reboot cycles for Turbo Memory to start functioning properly. When it is, you should notice the HDD powering down more often when you are running on battery.

    John

    John Ratsey, Sep 21, 2007
    #6
  7. vostro1400user

    vostro1400user Notebook Deity

    Reputations:
    202
    Messages:
    1,064
    Likes Received:
    0
    Trophy Points:
    55
    537MB drive shows only maximum 37.9 MB/s which is even less than 45.8M/s of hard drive. something wrong here?

    vostro1400user, Sep 21, 2007
    #7
  8. vostro1400user

    vostro1400user Notebook Deity

    Reputations:
    202
    Messages:
    1,064
    Likes Received:
    0
    Trophy Points:
    55

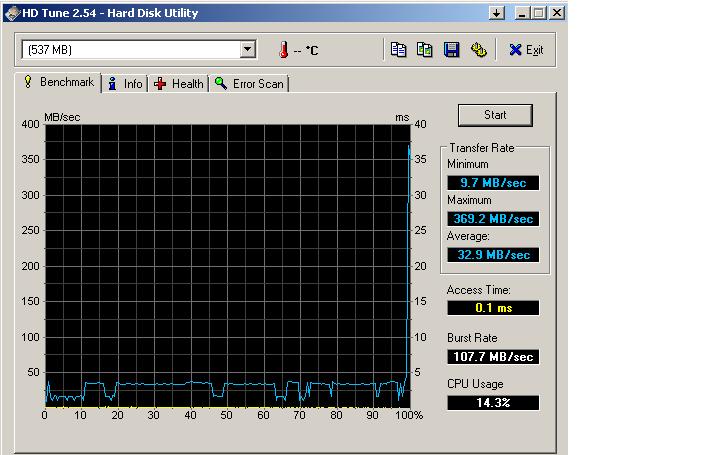

    this turbo cache's transfer rate got a jump in last a few sectors, see attached. is it normal?


    Attached Files:

    vostro1400user, Sep 21, 2007
    #8
  9. thelazyone22

    thelazyone22 Notebook Evangelist

    Reputations:
    47
    Messages:
    365
    Likes Received:
    3
    Trophy Points:
    31
    That's what I thought it was. To the OP, you're not getting a 1GB SSD if that's what you were trying to get at. It's a specialized bit of memory designed to speed up common boot programs which probably limits its functionality, sparking the debate as to whether it's just a gimmick or not.

    thelazyone22, Sep 21, 2007
    #9
  10. vostro1400user

    vostro1400user Notebook Deity

    Reputations:
    202
    Messages:
    1,064
    Likes Received:
    0
    Trophy Points:
    55

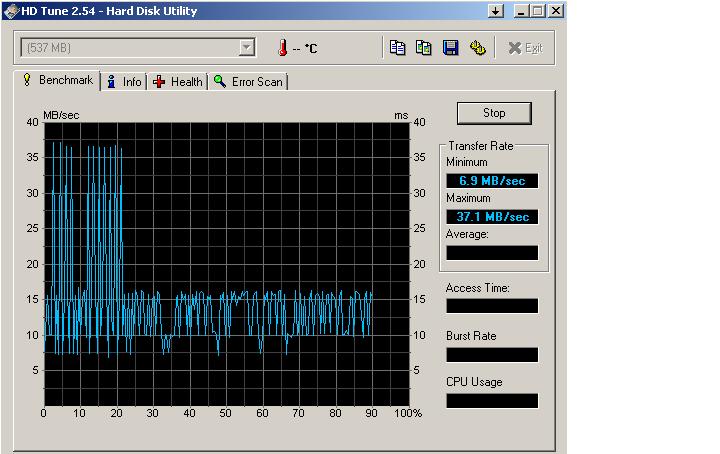

    see how slow this cache is (see attached)


    Attached Files:

    vostro1400user, Sep 21, 2007
    #10
  11. Raphie

    Raphie Notebook Consultant

    Reputations:
    4
    Messages:
    287
    Likes Received:
    0
    Trophy Points:
    30
    Did you install the Turbo Memory an Matrix Storage driver from Intel.com (newer version than on the Dell site) both are required to make this work properly in Vista

    Raphie, Sep 21, 2007
    #11
  12. vostro1400user

    vostro1400user Notebook Deity

    Reputations:
    202
    Messages:
    1,064
    Likes Received:
    0
    Trophy Points:
    55
    thanks, got it in program group. with this average 30MB/s transfer rate of cache, (even slower than hard drive's transfer rate) is it normal?

    vostro1400user, Sep 21, 2007
    #12
