    what does this A padlock light mean and what does it mean when flashing? Dell Latitude D630

    Discussion in 'Dell' started by ralphzak, May 9, 2019.

  1. ralphzak

    ralphzak Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    0
    Trophy Points:
    30

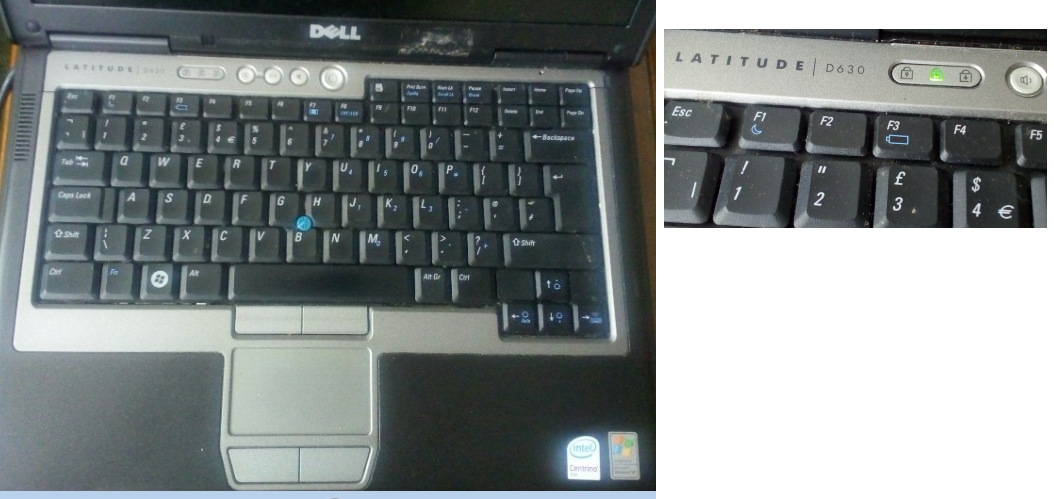

    what does this A padlock light mean and what does it mean when flashing? Dell Latitude D630


    [​IMG]

    ralphzak, May 9, 2019
    #1
  2. alexhawker

    alexhawker Spent Gladiator

    Reputations:
    500
    Messages:
    2,540
    Likes Received:
    792
    Trophy Points:
    131

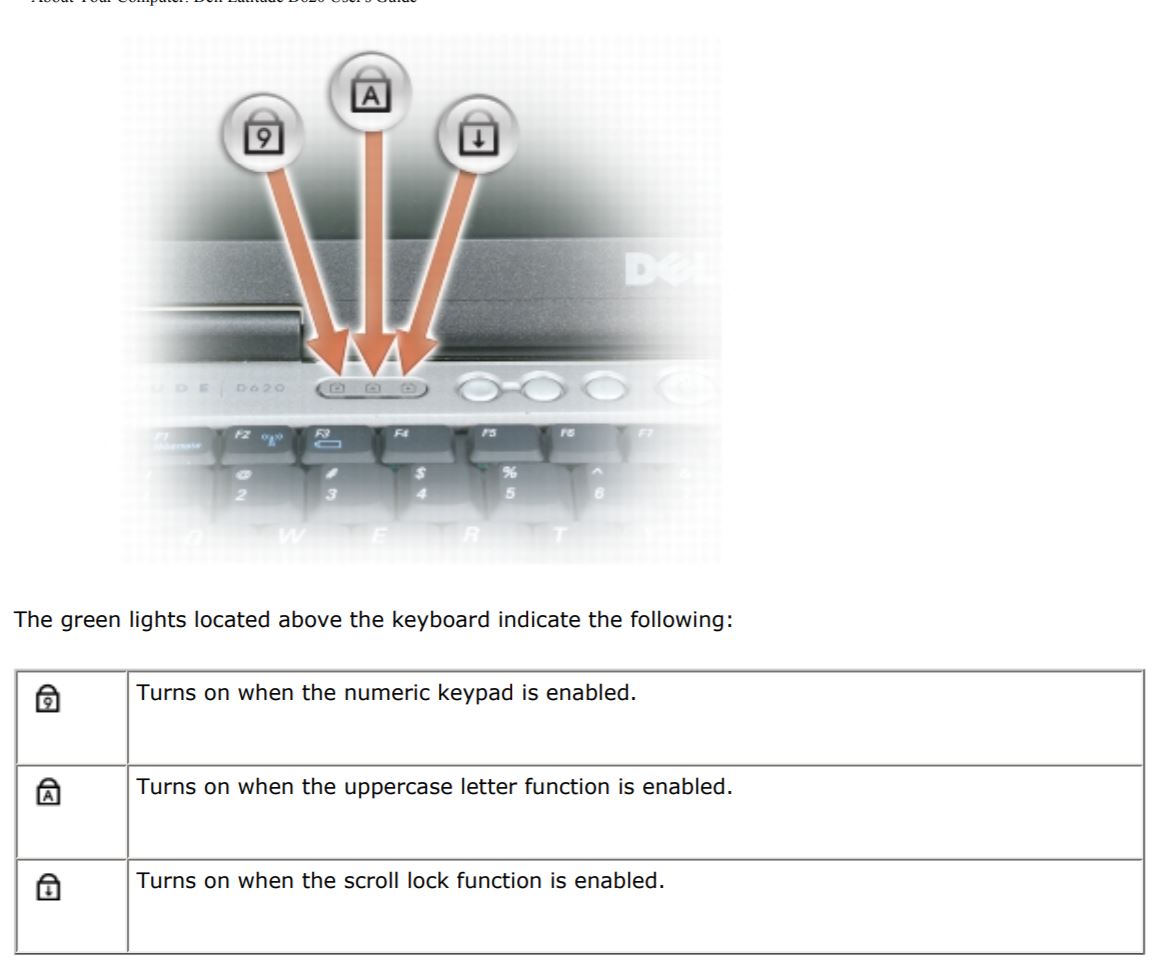

    Here you go. Screenshot of the relevant page is attached. I believe it's a caps lock indicator.


    Attached Files:

    alexhawker, May 9, 2019
    #2
    Mr. Fox likes this.
  3. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,344
    Likes Received:
    70,711
    Trophy Points:
    931
    Is the machine working correctly? If not, flashing caps lock on this model may suggest a memory problem. Reseating the memory might be enough to stop it. When booting and you see the Dell BIOS splash screen press F12 and run the diagnostic to see if anything fails.

    Google " latitude d630 flashing caps lock" for more info.

    Mr. Fox, May 9, 2019
    #3
