    Build a Mini PC with a Micro-STX MOBO and MXM Gpu

    Discussion in 'Desktop Hardware' started by sicily428, Jun 12, 2017.

  1. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    High End Gaming in your PALM - ASRock DeskMini GTX

    sicily428, Oct 12, 2017
    #51
  2. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331

    That's really cool. C'mon NVidia, don't let us down.

    Support.2@XOTIC PC, Oct 12, 2017
    #52
    sicily428 likes this.
  3. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

    sicily428, Oct 25, 2017
    #53
  4. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    Looks like a laptop with no built in screen. Not complaining mind you.

    Support.2@XOTIC PC, Oct 25, 2017
    #54
  5. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    ASRock DESKMINI GTX 1060

    sicily428, Nov 18, 2017
    #55
  6. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

    sicily428, Nov 25, 2017
    #56
  7. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

    sicily428, Nov 28, 2017
    #57
    Aroc likes this.
  8. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited: Jan 2, 2018
    sicily428, Dec 21, 2017
    #58
  9. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Asrock DESKMINI GTX 1060 MXM Review - Just HOW SMALL Can it GET?!

    sicily428, Jan 2, 2018
    #59
  10. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

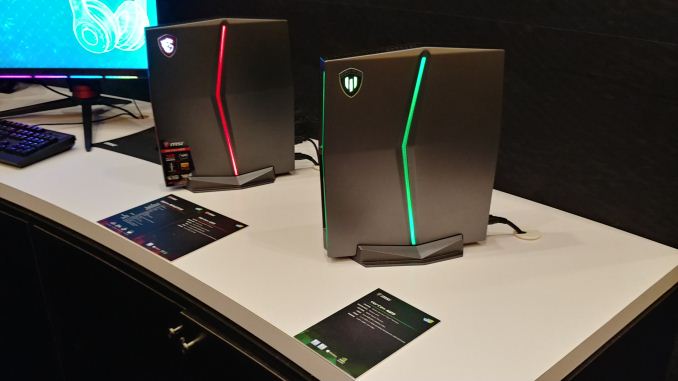

    MSI G25 Vortex Desktop Gaming PC Review

    sicily428, Jan 2, 2018
    #60
  11. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

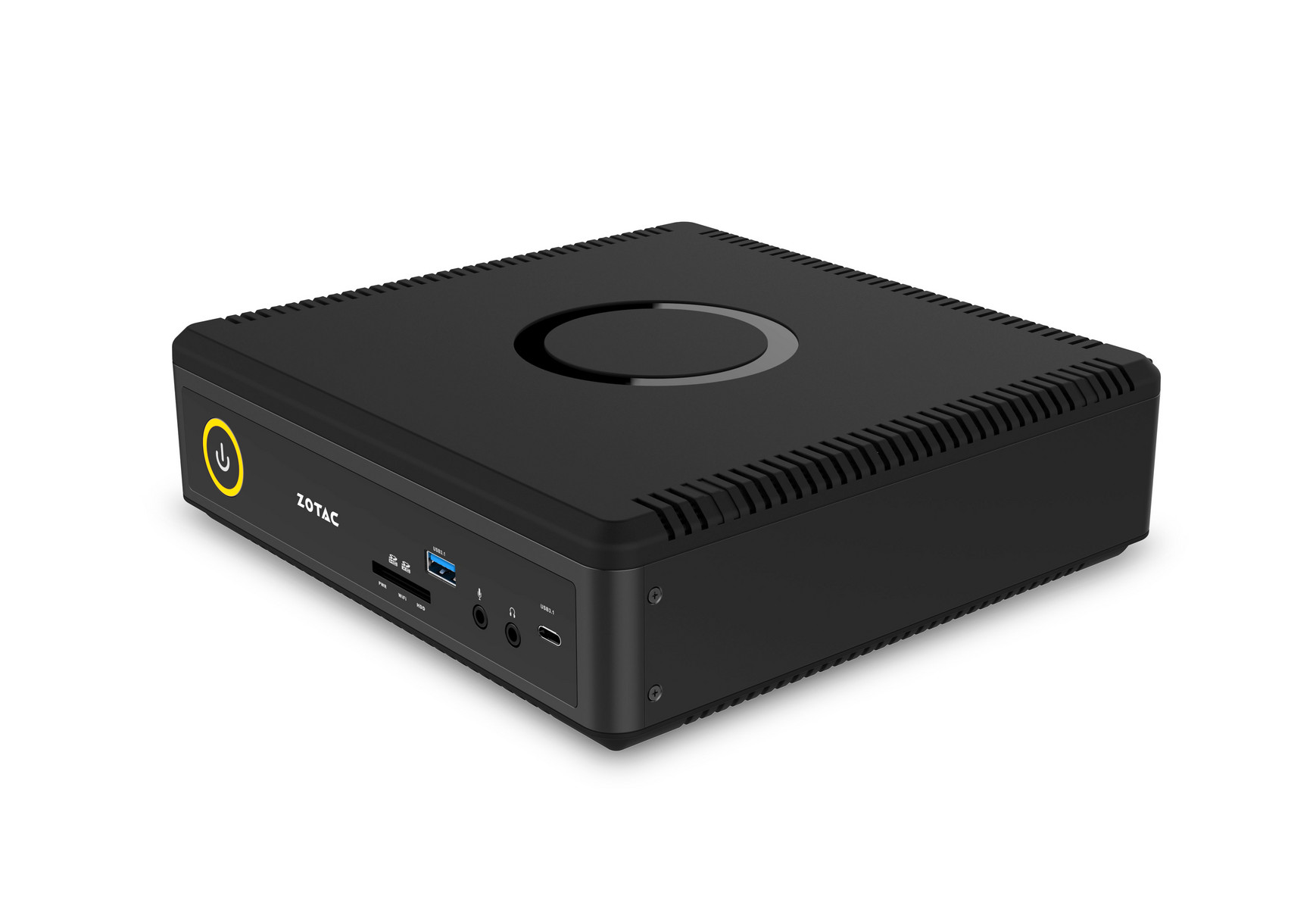

    ZOTAC Magnus and ZBOX C Gaming Desktops with 8th Gen Core Processors
    http://www.guru3d.com/news-story/zo...ng-desktops-with-8th-gen-core-processors.html

    Showcased for the first time are the new ZBOX Mini PCs that incorporate the new range of workstation-class NVIDIA Quadro graphics. From a range of Quadro P series graphics cards from P1000, P3000, and up to P5000 graphics, the high performance of enterprise desktop graphics is endorsed in a sleek and compact enclosure, providing a portable workstation for the creative and technical professionals.

    A world first for a Mini PC equipped with NVIDIA Quadro P series graphics hardware. The 8th generation Intel processer also infuses new life to a series of ZBOX Mini PC. The passive cooled mini PC C Series gets refined with an all-new chassis design in addition with more efficient heat dissipation and silent performance. With low power consumption it supports up to a 25W TDP solution and features a full range of connectivity for customizable expansion. In addition, the brand-new ZBOX Mini PCs introduces faster productivity performance with the latest multi-core Intel processor based on the Gemini Lake architecture. These low-powered yet capable workstations feature Gigabit Ethernet, DDR4 memory, native HDMI 2.0 support, and up to three displays.
    Also joining our top-of-the-line hardware are the new MAGNUS Gaming Mini PC and VR GO backpack PC. MAGUNS pairs up with the 8th generation Intel processor for the first time to bring a six-core processor to the Mini PC form factor. The VR GO backpack PC gets upgraded with a GeForce GTX 1080 graphics card, delivering unprecedented graphics performance and a truly mobile VR experience.

    AMP BOX Series Unveils Power to Transform
    The all-new Thunderbolt 3 expansion chassis, AMP BOX and AMP BOX Mini, can transform any Thunderbolt 3 capable systems with a GeForce GTX graphics card or NVMe PCIe x4 SSD to push beyond their limits.

    "Our users can easily take their Mini PC, Notebook, or Desktop to the next level by plugging them into these extremely portable and compact solutions, not to mention AMP BOX MINI is the smallest Thunderbolt 3 expansion dock available today," says Thomas Chow, Product Management of ZOTAC Technology.

    A new expansion box with improved headroom for larger graphics cards is also unveiled for the first time, bringing support for up to a 12-inch, 300W graphics card with Thunderbolt 3 connectivity.

    sicily428, Jan 4, 2018
    #61
    Starlight5 likes this.
  12. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

    sicily428, Jan 11, 2018
    #62
  13. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

    sicily428, Jan 14, 2018
    #63
    Aroc likes this.
  14. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jan 23, 2018
    #64
  15. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    Support.2@XOTIC PC, Jan 24, 2018
    #65
    sicily428 likes this.
  16. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    zotac magnus en1070

    sicily428, Feb 6, 2018
    #66
  17. ChanceJackson

    ChanceJackson Notebook Evangelist

    Reputations:
    39
    Messages:
    562
    Likes Received:
    231
    Trophy Points:
    56
    damn shame it was like our last hope at extending MXM in the consumer world

    ChanceJackson, Mar 23, 2018
    #67
    Aroc likes this.
  18. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Apr 7, 2018
    #68
  19. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Apr 9, 2018
    #69
    Aroc and jaug1337 like this.
  20. ChanceJackson

    ChanceJackson Notebook Evangelist

    Reputations:
    39
    Messages:
    562
    Likes Received:
    231
    Trophy Points:
    56
    While I was at pax east I saw a Zbox SKU with a 1050(not ti) in it seems an odd choice imo

    ChanceJackson, Apr 9, 2018
    #70
  21. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    I would think they'd at least bring the 1060 version mentioned.

    Support.2@XOTIC PC, Apr 11, 2018
    #71
  22. ChanceJackson

    ChanceJackson Notebook Evangelist

    Reputations:
    39
    Messages:
    562
    Likes Received:
    231
    Trophy Points:
    56
    they had one box in the glass case and they had 3 skus next to it 1050, 1060 and 1070

    ChanceJackson, Apr 11, 2018
    #72
    sicily428 likes this.
  23. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jun 2, 2018
    #73
    Aroc likes this.
  24. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jul 30, 2018
    #74
    Starlight5, Aroc and Bongripper666 like this.
  25. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

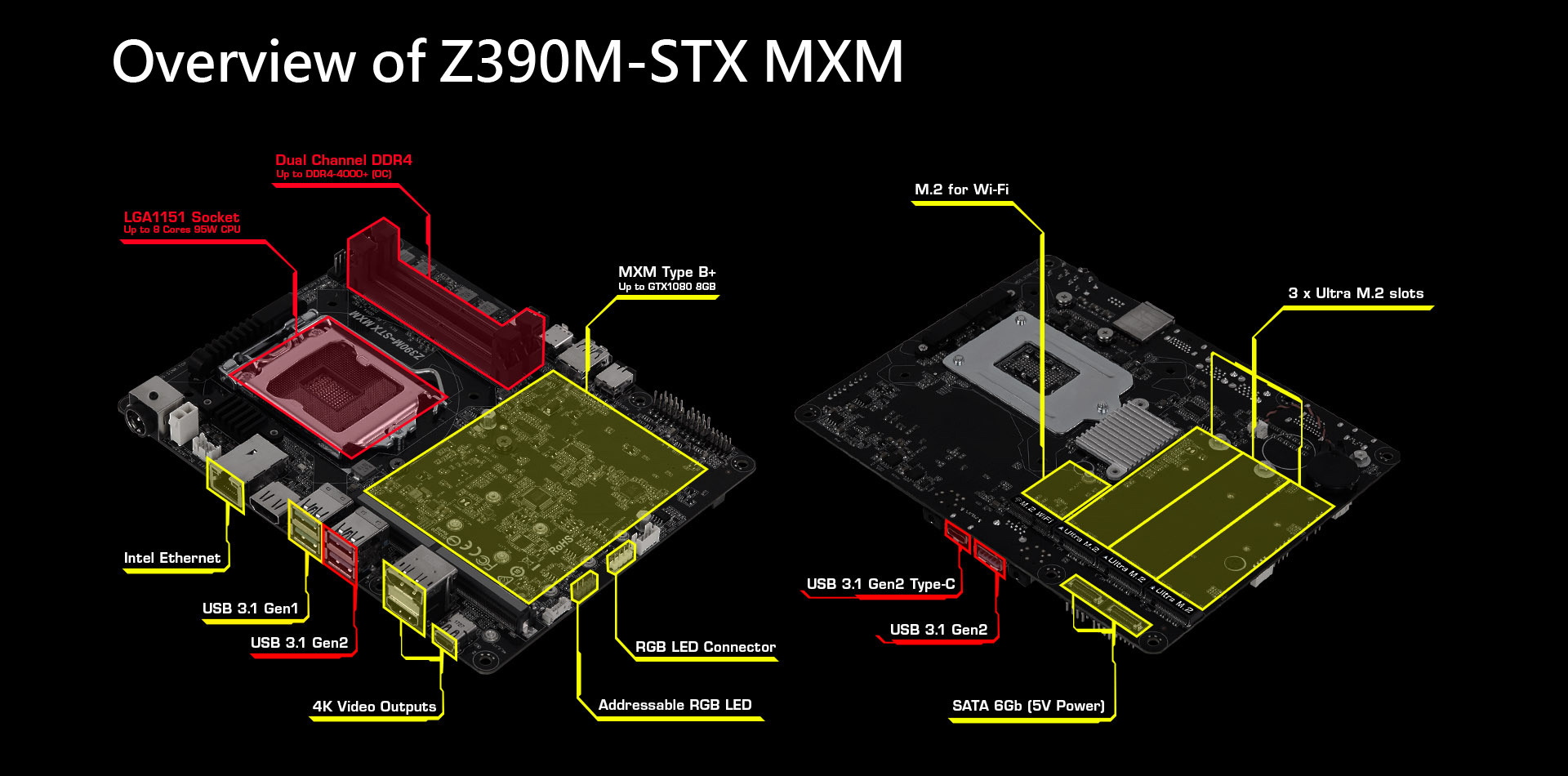

    ASRock Launches Z390 DeskMini GTX Series, Supports Intel 8-Core CPUs & up to 32 GB Memory


    [​IMG]

    sicily428, Nov 28, 2018
    #75
  26. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Apr 17, 2019
    #76
    thewizzard1 and sicily428 like this.
  27. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

    sicily428, Apr 22, 2019
    #77
  28. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    Last edited: May 16, 2019
    gnomKOLIN, May 6, 2019
    #78
  29. RMSMajestic

    RMSMajestic Notebook Consultant

    Reputations:
    121
    Messages:
    253
    Likes Received:
    213
    Trophy Points:
    56
    Just got my Replacement Deskmini Z370 with GTX 1080 in.

    Quick comment: Get the GTX 1060 version!

    RMSMajestic, May 18, 2019
    #79
    sicily428 likes this.
  30. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Dec 10, 2019
    #80
    sicily428 likes this.
  31. uugui shi

    uugui shi Notebook Consultant

    Reputations:
    68
    Messages:
    211
    Likes Received:
    117
    Trophy Points:
    56
    Hi guys! I was looking for a way to assemble a small pc using a mxm gpu and I've found this thread.
    Basically I have a GTX 770M mxm card (yes I know it's old and slow but it would be perfect for what I need), some RAM and an SSD that I'm not using from an old laptop, I don't want to sell them and I was wondering if it could be possible to assemble a PC using one of these motherboards that you have posted and see if you guys have any suggestions.

    uugui shi, Jan 20, 2020
    #81
  32. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    Hi!
    Here your possible ways:
    - Expensive but easyer way - is to buy branded mini PC with MXM slot. No guarantees that your card will work without any isues.
    - Very expensive - is to buy branded embeded industrial motherboard with MXM. No guarantees that your card will work without any isues, but best support.
    - Less expensive but more difficlt - is to find laptop or AIO motherboard with MXM slot make custom DIY case for it. Chances that your card will work will work well are higher.
    - Less expensive but less safe - is to buy noname embeded industrial motherboard with MXM from china. No guarantees that your card will work without any isues.

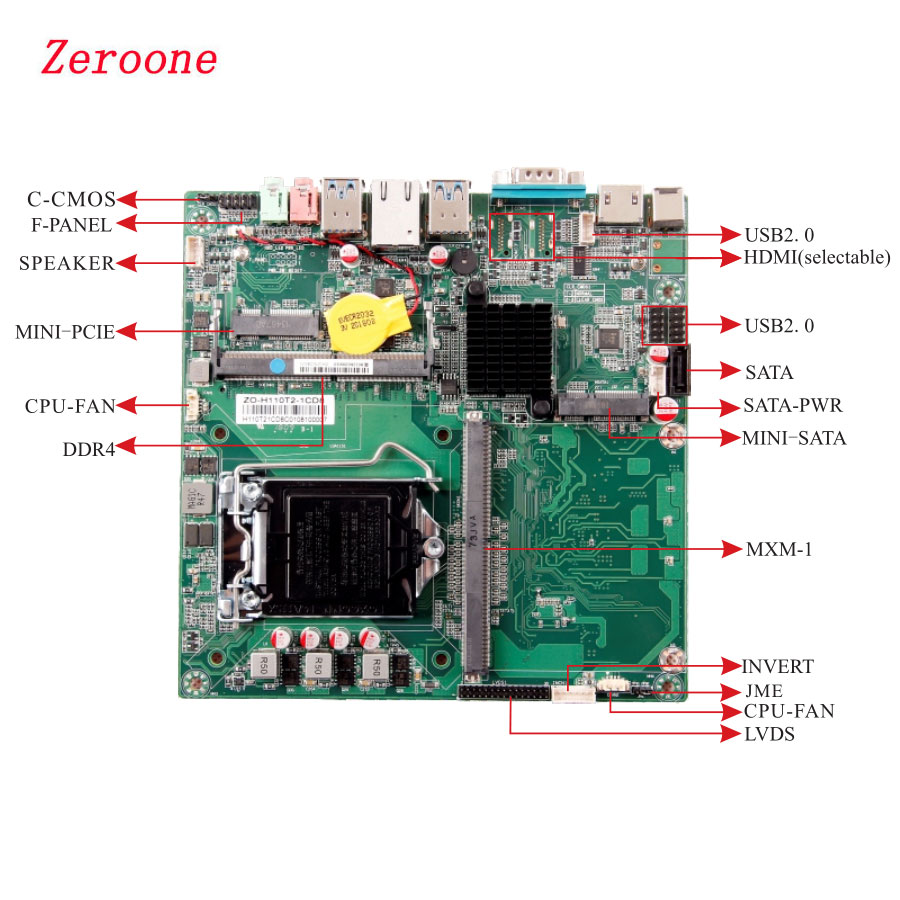

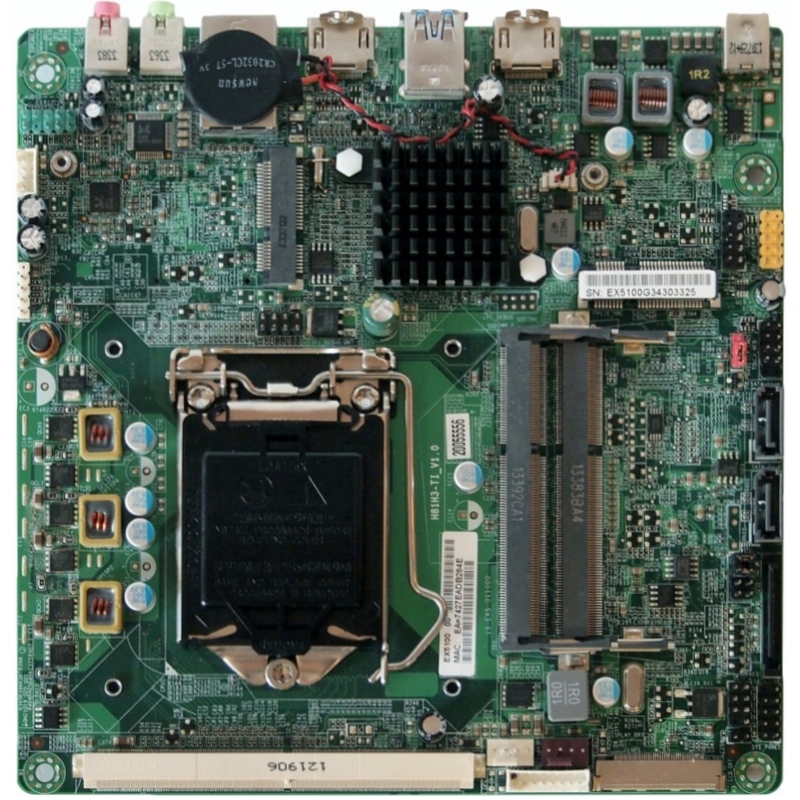

    I got ZO-H110T2-1CD8 and ECS h81h3-ti. Also I got 2 standard MXM cards Aetina 970m and Asrock HD7850m. Here what I noticed:
    - In h81h3-ti
    - HD7850m works fine without any issues.
    - 970m works only with compatible vbios (with incomatible - code 43), but I could not get switchable graphics to work (may be mod driver will solve problem, but I dont know how should I do it for this motherboard).
    - In ZO-H110T2-1CD8
    - HD7850m works fine without any issues.
    - 970m doesnt work with any vbios I've tryed. Or black screen, or code 43.

    What interesting - 970m works perfectley in clevo p751tm laptop, with ANY vbios I tryed.

    Sorry for my not perfect english.

    gnomKOLIN, Jan 20, 2020
    #82
    uugui shi likes this.
  33. uugui shi

    uugui shi Notebook Consultant

    Reputations:
    68
    Messages:
    211
    Likes Received:
    117
    Trophy Points:
    56
    Thanks for the help! I had considered al the options you mentioned but I didn't consider the possible problems that will require another vbios, and the card is pretty old already so that may cause even more problems, it is also hard to find people that will send stuff in italy (where I live). Maybe if I find one of those mini PC on ebay at a low price I could try.

    uugui shi, Jan 20, 2020
    #83
  34. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    If you have enough money, I'd suggest you to try Asrock IPC-h110 or Asrock IPC-q170
    But they realy expensive - around 450$ for h110 model without gpu.

    gnomKOLIN, Jan 20, 2020
    #84
    Rengsey R. H. Jr. and uugui shi like this.
  35. uugui shi

    uugui shi Notebook Consultant

    Reputations:
    68
    Messages:
    211
    Likes Received:
    117
    Trophy Points:
    56
    Yeah I don't want to spend alot as this is just to put these old components to use but I'll look into it, thanks!

    uugui shi, Jan 20, 2020
    #85
    Rengsey R. H. Jr. likes this.
  36. Rengsey R. H. Jr.

    Rengsey R. H. Jr. I Never Slept

    Reputations:
    1,084
    Messages:
    2,771
    Likes Received:
    1,020
    Trophy Points:
    181
    if you are interested , I might part with my MSI Vortex. You can run dual MXM GPU.

    it can pretty much take 7 series and above MXM GPU, and max out to a full blown GTX 1080.

    Rengsey R. H. Jr., Jan 28, 2020
    #86
  37. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Jan 31, 2020
    #87
  38. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Jan 31, 2020
    #88
    thewizzard1 likes this.
  39. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Mar 20, 2020
    #89
    thewizzard1, moral hazard and sicily428 like this.
  40. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Mar 23, 2020
    #90
  41. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Apr 18, 2020
    #91
    cdoublejj likes this.
  42. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    These all are quite interesting, but I'm having a hard time finding a good deal on one.

    Anyone spotted any bargains?
    Anything decent on AliExpress or taobao etc?
    Full size mxm3.0 would be good.

    moral hazard, Apr 25, 2020
    #92
    cdoublejj and Rengsey R. H. Jr. like this.
  43. Rengsey R. H. Jr.

    Rengsey R. H. Jr. I Never Slept

    Reputations:
    1,084
    Messages:
    2,771
    Likes Received:
    1,020
    Trophy Points:
    181
    A MSI Vortex G65 , has desktop CPU and Dual MXM 3.0 Slot for SLI.

    Rengsey R. H. Jr., Apr 25, 2020
    #93
    cdoublejj likes this.
  44. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    That MSI is one to keep an eye out for.

    moral hazard, Apr 25, 2020
    #94
    cdoublejj likes this.
  45. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Jul 6, 2020
    #95
    cdoublejj and ll_r1d0_ll like this.
  46. Rengsey R. H. Jr.

    Rengsey R. H. Jr. I Never Slept

    Reputations:
    1,084
    Messages:
    2,771
    Likes Received:
    1,020
    Trophy Points:
    181
    Rengsey R. H. Jr., Sep 26, 2020
    #96
  47. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Sep 26, 2020
    #97
  48. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    gnomKOLIN, Dec 13, 2020
    #98
  49. thewizzard1

    thewizzard1 Notebook Consultant

    Reputations:
    49
    Messages:
    122
    Likes Received:
    82
    Trophy Points:
    41
    I really wonder what products the majority of these boards end up occupying! Have we ever spotted one in the wild?

    thewizzard1, Dec 16, 2020
    #99
  50. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    I saw some of those boards used in AIO PC's, industrial mini-PC's, and POS terminals.

    gnomKOLIN, Dec 17, 2020
    #100
← Previous pageNext page →
