How to change UEFI Splash Screen Logo on the ASUS X-99 Motherboard

I scoured the net searching for a guide but in vain.....

I then called Origin PC who told me that it can be done through Ai Suite but I didn't find the option. Then another guy on a forum told me it can be done through EZ Update but EZ update which gets installed with AiSuite 3, when sitting in the taskbar s a green icon, if I double click it, it only gives me the option to check for software updates but nothing regarding the BIOS Splash Screen......

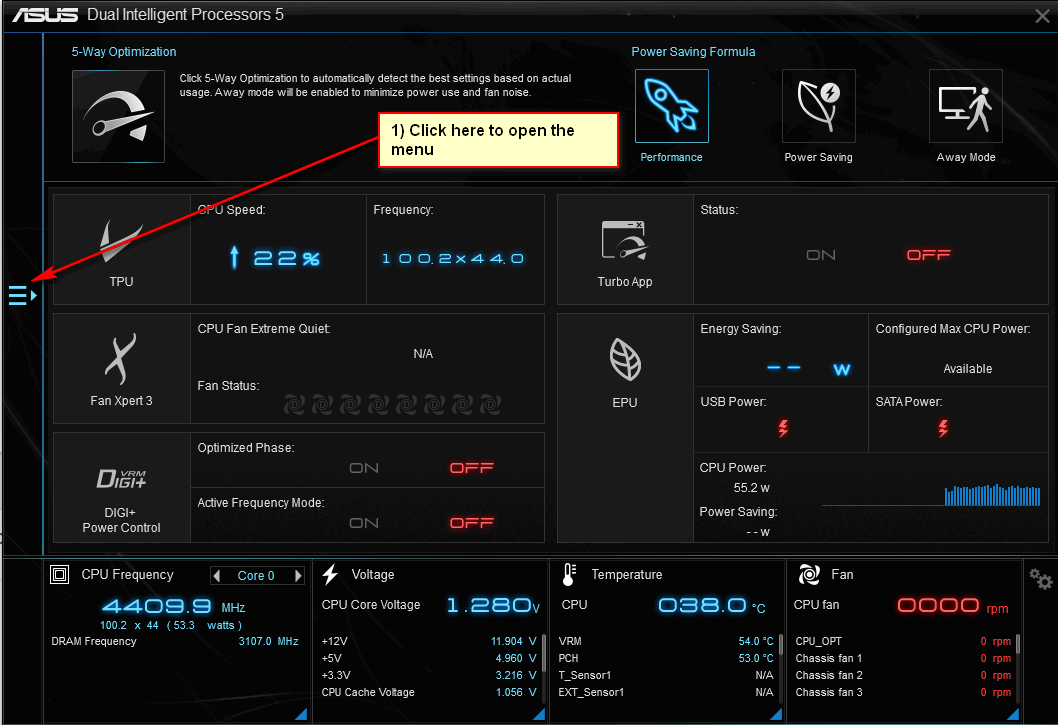

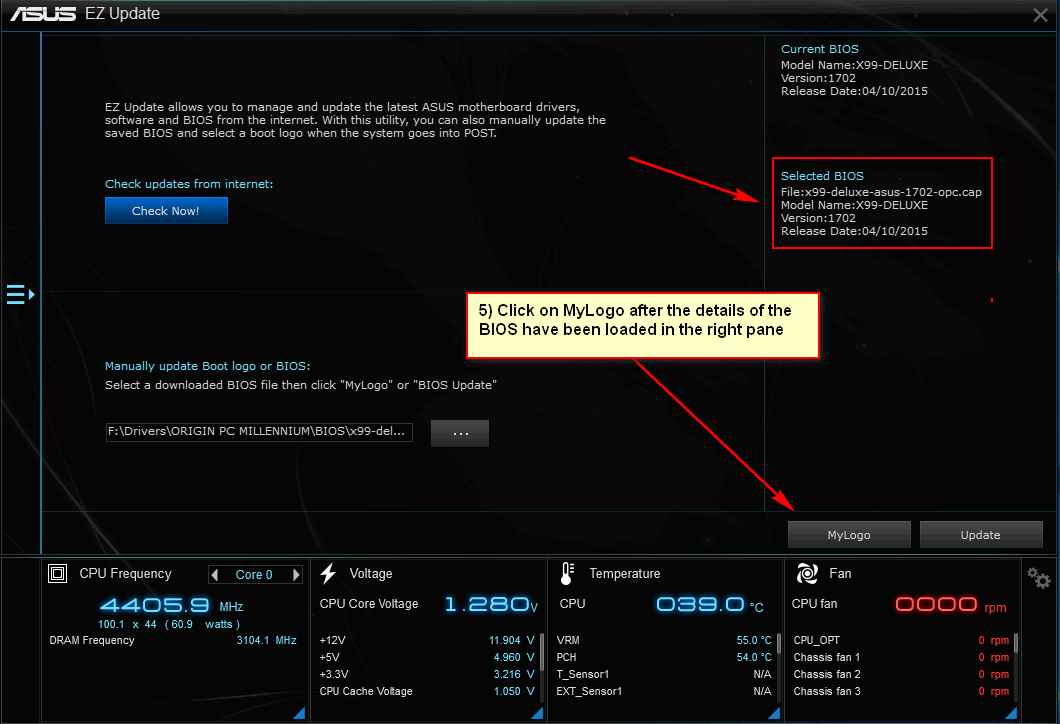

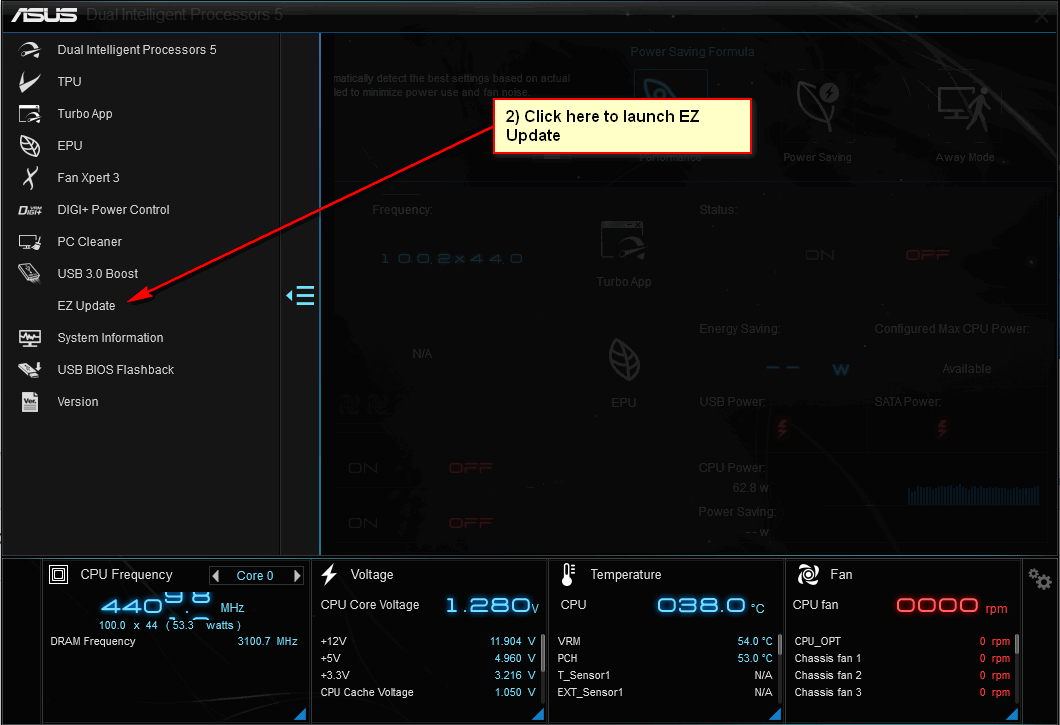

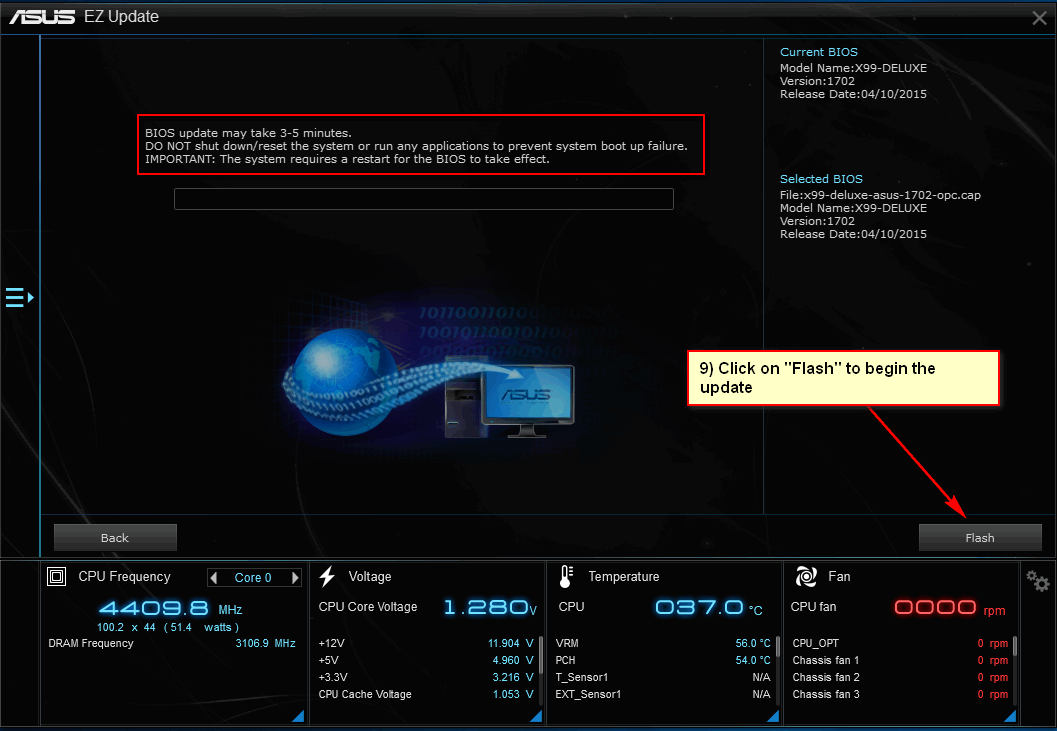

Then I did more tinkering around and found that in AiSuite there is a sub menu that you can open on the mid left section, when clicking it, I saw EZ Update and when launching it, it is a bit different than the one that was sitting in the taskbar and actually has the ASUS MyLogo in it which allows you to update the BIOS Splash Screen!

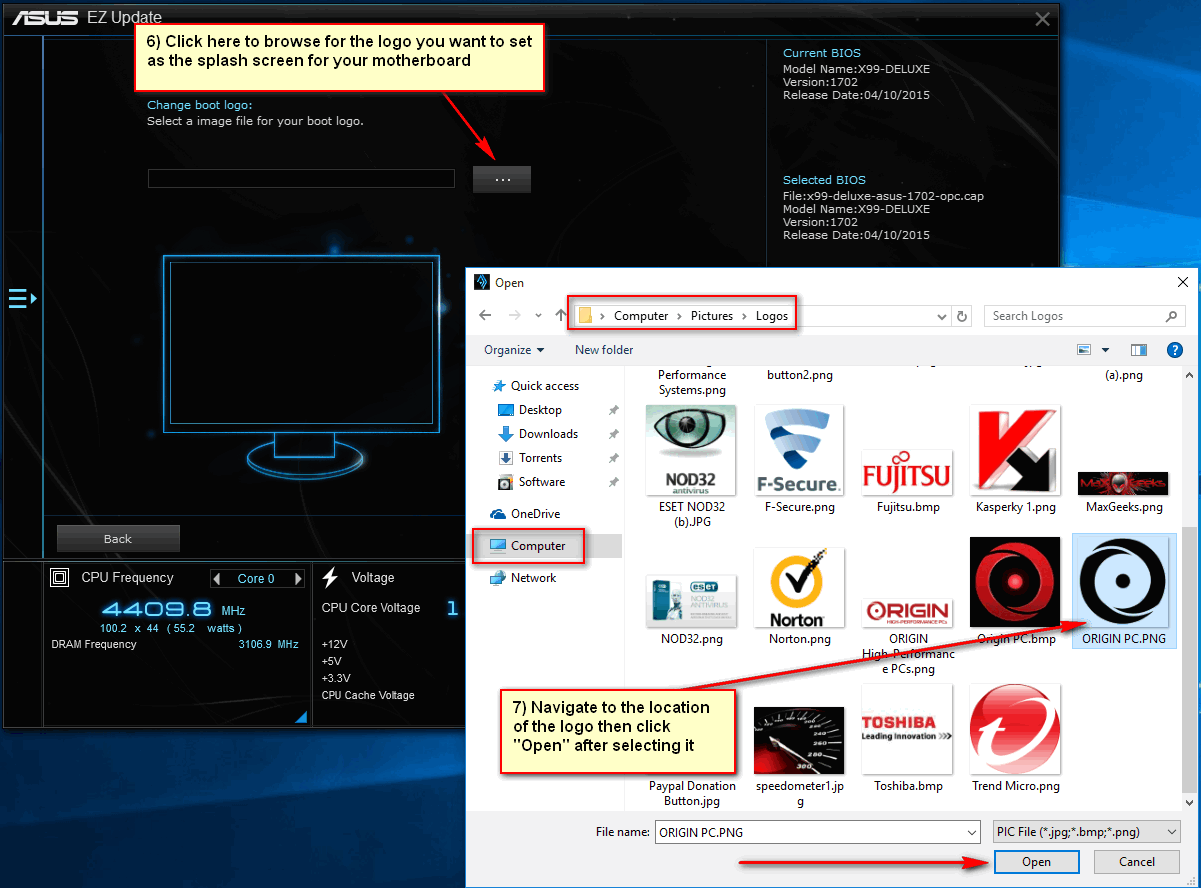

Here is a guide on how to do this, please do not choose a colorful image or it will look like crap. Choose a black and white image or a grey image which has a size of 360x360 and has blank background (no background that is)

In my case, this is the image I chose:



===================================================

















====================================================
