    Destroying OWC Mercury Helios thunderbolt PCIe 2.0 x4

    Discussion in 'e-GPU (External Graphics) Discussion' started by tunico5, Oct 11, 2012.

  1. tunico5

    tunico5 Notebook Guru

    Reputations:
    0
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    15
    Hi there,

    I was checking that the OWC Mercury Helios has a thunderbolt > PCIe 2.0 x4 inside it. The problem is that its case is too little to put a decent graphics card.
    Is it possible to take only the hardware inside it and use it like a TH05?
    If yes, it'll behave like a TH05 or it'll need more drivers or different ways to work?
    This is a link of the OWC that you can see its interior:
    OWC Mercury Helios PCIe Thunderbolt Expansion Chassis Review - Imagine 800MB/s and 150,000 IOPS - The SSD Review

    It would bring a lot of interesting things like
    Plug and Play...no drivers needed.* (Just like TH05)
    Automatically powers on/off with your computer.

    The problem is that it would need to cut the PCIe to support a 16x card, but would it work?

    The other possible way could be to wait for a mLink to come up in november and do the same thing, but it'll already have a x16 PCIe

    Or even an Echo express. The problem is that it's too expensive to tear down

    What's everybodys thoughts about it?

    Thank you

    tunico5, Oct 11, 2012
    #1
  2. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    cut it for sure. it will work without problems.

    __-_-_-__, Oct 15, 2012
    #2
  3. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131

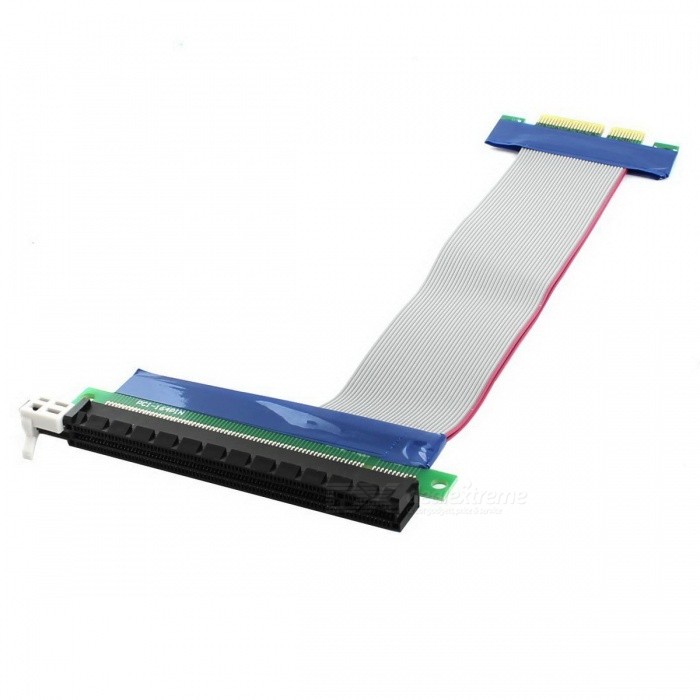

    Pretty sure there are pci cable/adapter kind of thing that will link a x16 to x4/e watever.

    However, keep in mind that OWC is in the same boat as sonnet when come in marketing. aka MAC and high price tag.

    Edit: 379.99 w/o GPU , ok but still...

    baii, Oct 15, 2012
    #3
  4. tunico5

    tunico5 Notebook Guru

    Reputations:
    0
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    15
    Yeah I know about the prices, just discussing about the idea if eventually a newer model of TH05 with 2.0 x4 doesn't appear on the market.

    tunico5, Oct 15, 2012
    #4
  5. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    __-_-_-__, Oct 15, 2012
    #5
  6. tunico5

    tunico5 Notebook Guru

    Reputations:
    0
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    15
    That won't have effect on bandwitdh?

    tunico5, Oct 15, 2012
    #6
  7. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    baii, Oct 15, 2012
    #7
  8. tunico5

    tunico5 Notebook Guru

    Reputations:
    0
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    15
    Yeah, but the adaptor itself could have some kind of bandwitdh

    tunico5, Oct 15, 2012
    #8
  9. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    there no "adapter" It is just a cable.

    baii, Oct 15, 2012
    #9
  10. tunico5

    tunico5 Notebook Guru

    Reputations:
    0
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    15
    Alright, thx

    tunico5, Oct 15, 2012
    #10
  11. tunico5

    tunico5 Notebook Guru

    Reputations:
    0
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    15
    tunico5, Oct 15, 2012
    #11
  12. Gordon1hd1

    Gordon1hd1 Notebook Geek

    Reputations:
    0
    Messages:
    83
    Likes Received:
    0
    Trophy Points:
    15
    Gordon1hd1, Oct 16, 2012
    #12
  13. tunico5

    tunico5 Notebook Guru

    Reputations:
    0
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    15
    Yeah I know, and I can't find anything about it... doesn't have a distinct commercial name

    tunico5, Oct 16, 2012
    #13
  14. EpicBlob

    EpicBlob Notebook Evangelist

    Reputations:
    49
    Messages:
    410
    Likes Received:
    16
    Trophy Points:
    31
    Their pci-e to expresscard expansion box is $470, so my guess is that the thunderbolt version will be at least $600

    EpicBlob, Oct 16, 2012
    #14
  15. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    it won't have any effect on bandwith.

    __-_-_-__, Oct 17, 2012
