Thunderbolt 3 eGPU solutions arriving 4th quarter 2015, mainstream in 2016

There's a list right there a few posts up

I've seen the aliens are 15 r2 for around 1k in open box

this is the greatest thing in the world

http://smile.amazon.com/gp/product/B001Q3LU22?psc=1&redirect=true&ref_=oh_aui_detailpage_o00_s00



still no news on this at all



im watching for something everyday

I want a setup that plays fallout 4 in uhd on my xps 15 internal screen.

Ideally using the desktop to laptop 980 in an external size i can put in my premiere backpack



Yeah I've been watching out for more announcements as well. I'm sure something will come up sometime this year. I ended up finding an Acer V15 Nitro Black Edition on eBay for $740, planning to use that when these egpu enclosures hit the market. In the meantime with a few minor upgrades its a good budget work/gaming laptop at only 5 lbs.



I have a similar machine yours actually may have a 4gb 960m mine has a 2 gb one

Mine has an awesome internal screen would love to have a 980 gtx to play witcher 3



There's a new story about amd support for the Razer core.

So its possible we may window shop an amd card



More on AMD’s XConnect Tech: Thunderbolt 3 for External Radeons
by Ryan Smith on March 10, 2016 9:00 AM EST
http://www.anandtech.com/show/10133/amd-xconnect-external-radeons

"Today then is the formal launch of AMD’s Thunderbolt 3 video card efforts, which they are branding XConnect. The first drivers for XConnect were released last night, and now AMD is qualifying the Blade Stealth as the first laptop ready for XConnect. That said, it should be noted that while the Blade Stealth has been shipping for some time, Razer’s accompanying Core chassis has yet to ship, so anyone looking to try out XConnect will need to wait to get their hands on a Core."



AMD Releases Radeon Software Crimson Edition 16.3 Hotfix: Support for Vulkan and TB3 Enclosures
by Daniel Williams on March 10, 2016 12:30 AM EST
http://anandtech.com/show/10130/amd-releases-radeon-software-crimson-edition-163-hotfix



And the mobile example was an amd card also.
I'm theory if this device ships with amd only
What is the name of the and desktop card that is like a 980 ti



AMD Fury X



AMD XConnect™ external GPU technology for Thunderbolt™ 3



what is the highest amd mobile car out now equivelent to. its like a 960m isnt it?



'Mobile' depends on the strength of the owners. Wikipedia's M3xx table says Amethyst / Tonga (config / design) GPUs like M390X, M395, M395X, W7170M have 125w TDP so they tend to appear in large desktop replacement notebooks or all-in-one systems which have space for larger cooling radiators than more mobile laptops. Notebookcheck's Mobile Graphic Cards benchmark table lists them above 965m and approaching or passing a 970m depending on the benchmark. It also lists Neptune / Pitcairn GPUs like M390, M290X, 8970M (100w) and Wimbleton / Pitcairn GPU 7970m below the 965m and above the 960m. It lists a Saturn / Bonaire GPU M6100 (~75w) above 960m, while slower clocked Strato / Bonaire M385X and M385 approach from below.

Speaking of lists, someone has started a TB3 eGPU laptop list (laptops with TB3 that have or might someday get BIOS ACPI extensions compatible with an XConnect eGPU chassis).

Acer has announced a smaller Graphics Dock to give ultraportables a mobile gaming GPU like the 960m. I wonder if it uses XConnect.



Seems like eGPU for P50/P70 mobile workstations was still uncertain but in active consideration in January.

I wonder who their "partners" are?
Intel & NVidia ? (no AMD workstation GPUs offered are offered on P50/P70.)
Or their ODMs? (original design manufacturer/assembly factories)
Or third party accessory companies?



An Intel and Inventec demonstration at the Intel Developer Forum in August featured two designs that appear to be earlier prototypes for the Razer Core (w/PCIe slot) and Acer Graphics Dock (w/builtin GPU). KitGuru via GLJ

Interestingly, one ODM, Inventec, appears to be involved in both designs.

I wonder if they were sponsored by Intel, so the expertise can be shared with other customers of Inventec, or if they were sponsored by Razer and Acer respectively, so the expertise is siloed in divisions for each customer.

Do docks need to go through a certification process before they can show the Intel Thunderbolt logo? (If so, a reason other docks all use proprietary connections might be to get to market quickly, avoiding an Intel certification bottleneck/gateway, where Intel can give priority to its favored customers.)



I just bought the Acer Predator which has a TB3 slot... do yall think im safe with this laptop of being able to use egpu? I spoke with a rep @ acer who says it is egpu capable.



If someone can confirm that it works, I'm in the market for a P70. Till then, seeing is believing.
On the one hand I wouldn't count on a sales rep who may not be familiar with the tech details. On the other hand, only when and if someone tries it and shows that it is / isn't possible will I, personally, take that as a confirmed / final word.
I think there are is just not enough people who have the P laptops, are into eGPU, and have the necessary dock to actually experiment.



well thats certainly true because there is no one that has a thunderboldt 3 egpu. So dont hold your breath on that particular review.....



Powercolor announced their Devil Box, an XConnect Thunderbolt3 external GPU enclosure with PCIe x16 slot. Has I/O ports so it can serve as a dock, just connect the TB3 cable and power. Tom's HW noted it should be large enough for most cards alone but not large enough for a radiator as on the Fury X.

[Update: Tom's HW has more pictures at Powercolor's Computex booth, dwarfing an Intel Skull Canyon and what looks like a Razor Stealth. There were two prototypes, one with a handle installed.]

• From the outside, looks wide enough for multiple cards (no CPU cooler to get in the way).

• The edges and corners look like they could be sharp (zombie fans might like bloody cases or ripped clothing or luggage).
• No case fan mentioned, to supplement the fans on the graphics cards to exhaust heat out of the case.
• No case handle visible on one prototype, so when moving a notebook off the desk carrying this eGPU may be a two-handed task. The other prototype has a handle installed but it is off-center at the top edge, so when you carry it, the bottom edge could dig into your leg.
• The extra rim lights might not be standard, but maybe a demo of what you can do, a customization for the showroom.
• The mesh side appears to have four feet. Maybe it can work with that side down. But then the logo would be sideways. Maybe it was designed so it can work that way when a card produces less heat (small GPU, in winter), and can be turned to expose the mesh when a card exhausts more heat (large GPU, in summer).
• No availability or prices have been announced, so they may be still feeling out the market.
  [update3: Tom's HW asked and PowerColor is uncertain but expecting to beat the lower $400 price of the Razer Core.]

[Update2: Tom's HW visited two other booths at Computex showing external GPU cases.

Gigabyte was showing two prototypes, one using Silverstone's nice-looking desk-space-saving vertical design with handle. (Maybe for popular midrange GPUs, maybe to expand their BRIX computers as well as their laptops.)

Asus was showing their XG Station 2, adding a USB-C style Thunderbolt3 socket in addition to their proprietary connection sockets. Now at 650 watts, with 100 watts for powering devices over the Thunderbolt3 cable.]



Dave2d has reviewed the razer core on its youtube channel and the dell/alienware laptops could use it but had to deal with disconnects. Acer predator laptop experienced a very flaky connection.

That thin HP laptop couldnt connect at all.



It's promising to see AMD XConnect expanding the market for desktop GPUs and VR, and the technology could work regardless of manufacturer. So far the two reviews have tested NVidia cards in the Razor Core. I wonder whether Radeon GPU drivers/firmware work any better (less disconnects) for AMD XConnect communications via imperfect Thunderbolt3 connections and the Razor Core.

Dave2D tried ( Yt) quite a few laptops besides the Razor Blade, and Derek configured ( UbR) a Dell XPS 15 in addition to the Razor Stealth. But both only tested NVidia GPU cards in the Razor Core. Dave2D connected to an NVidia 1080 and an NVidia 980Ti. Derek connected to an NVidia 970 (MSI). Dave2D says he'll have an updated review when the new AMD cards are available. (It could be months before they make it to the street, though articles may start to appear June 29th when an NDA lifts.)



there are new egpu announcements from gigabyte and powercolor that havent reached the site yet, last 4 days.

for me the powercolor is ridiculously large. im looking for something much smaller

over in the razer forum theres someone with a razer core a xps 15 and hes ordered a 1070. thats the set up that looks like me.



http://www.pcworld.com/article/3079...sb-c-for-easier-laptop-external-graphics.html



Reader beware: The Asus picture in that PCWorld report doesn't match the Gigabyte headline.



Bass at Lowyat says the Acer external graphics dock may come to Malaysia sometime in Q3. Fagot and Ngo at Notebookcheck estimate launch in Europe may be around September 2016.

The slim portable Acer external graphics dock was demonstrated with onboard NVidia 960M plus USB and monitor ports. It is expected to be around €350, including the on-board GPU. Notebookcheck links to their video ( Yt) from March 2016 at Cebit, where it is powering an Acer Aspire Switch 12-S.

• This dock looks like a nice solution to add gaming-laptop level GPU power to ultrathin laptops and convertibles, great for travelers like many journalists, salespeople, and distributor buyers at conventions who prefer not to carry around a full size gaming laptop for work.
• A traveler might use it while on a train or bus with power outlets. The short Thunderbolt3 cable might prevent putting the dock on the floor. The cable might reach to a net pocket behind the seat in front, or on top of a bag between the shins, if the dock can be positioned so the airways are clear and knees have space. Another natural position to try in cramped quarters is to place the laptop on top of the dock.
• Placing a laptop on top of the dock might end up preheating the laptop air, so its fans would run louder, disturbing other passengers. Maybe that's one reason that the Acer display table in the video shows the dock with the convertible Acer Aspire Switch 12-S, which puts the processor behind the screen rather than under the keyboard.
• The September date might be after next generation Radeon or GeForce mobile GPUs become available. They might offer more performance for less heat.



Notebookcheck has pictures of Gigabyte Thunderbolt3 dock ideas it is developing, one of which can house a desktop PCIe GPU card.

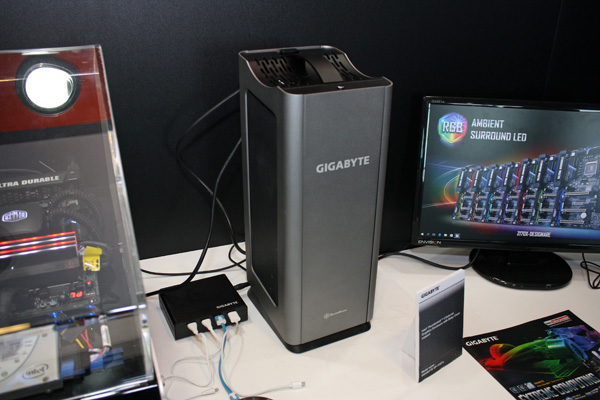

• GIGABYTE GP-T3GFx (This number seems to be used for multiple eGPU designs.)
  (The vertical Silverstone case.)
• GIGABYTE GP-T3x550-AT2
  (The dark horizontal windowed case.)
• GIGABYTE GP-TBT3
  (No GPU. Many ports, including slots for SD cards, PCIe M.2 SSDs, and WiFi.)
• GIGABYTE GP-T3U3.1 (USB 3.1 hub)
• GIGABYTE GO-T3M.2 (M.2 SSD slots)
• GIGABYTE GO-T3U.2 (U.2 SSD slots)
• GIGABYTE GP-TBT3 Bay
  (Not a dock. Adds a front Thunderbolt3 port to a desktop case via 5.25" bay.)

In this picture the dark windowed dock is shown with a 10GbE two-ported network card. A similar case has been shown with a GPU card before. Confusingly, it was also numbered GP-T3GFx.

One concern for the current vertical design, using the Silverstone case, is the location of the Thunderbolt3 port.

• The port appears to be located at the top of the case just inside the cable opening.
• This means it may be ~15in or ~38cm or so above the base. The plug points down, so the length of the plug is lost.
• Dave2D's Razer Core review revealed (Yt, 01:37) that the active Thunderbolt3 cable Razer used is only about ~20in or ~50cm long, to avoid signal degradation.
• This leaves only ~5in or ~12cm of cable to reach the laptop, assuming both are normally placed on the same surface. With diagonal routing a little more distance may be available. This may be enough to place it beside or behind the laptop, depending on what side of the laptop holds the TB3 port, but not much further.
• (A desk with a shelf or stand at the right height below the desktop might be used if the laptop TB3 port is near the edge of the desk. The short cable would still limit the position of the laptop keyboard relative to the route of the cable through the desktop or around the edge.)

(Some ideas:

• Redesign or use it as a horizontal case. This loses its unique desk-space-saving feature.
• Redesign or use it with the ports at the bottom. This might make it difficult to access the plugs and power switch.
• Redesign it so it can oriented either end up. Then people who need more than ~5 inches of cable can stand it with the cable opening at the bottom. This may work best with a symmetric logo, or a logo on a door or panel that can be flipped or rotated.
• Redesign it with the thunderbolt port on the outside. That will save a little cable when used on a desktop because it doesn't reverse direction to reach the laptop. It may have consequences for the signal paths on the circuitboard, however.

)



well im not sure what the price is on the acer

but if it has a gpu that is the class of a 980 gtx now, maybe what might be called a 1060m it would be ideal

i think that the egpu is outside of optimus so it could power the vr headsets



eGPU compability issue: Apparently Thunderbolt3/TB3 eGPUs with a newer TI83 controller might require that the laptop BIOS approves the eGPU (listed in a BIOS whitelist), whereas the older TI82 controller did not. (Some TI83 eGPUs have firmware that overrides this restriction.)
(Have I understood correctly?)

TI82	Razor Core
TI82	AKiTiO Thunder 3
TI83?	PowerColor DevilBox	eGPU firmware override
TI83	Asus XG Station 2
TI83	AKiTiO Node	eGPU firmware override

So buyers, who have or plan to purchase an eGPU with a TI83 controller without special override, will need the laptop brand to publish a list of which eGPU is approved for each laptop before they can plan to purchase the laptop.

Dell has said they will certify eGPUs for XPS laptops.

LInk:
Dell will begin certifying XPS notebooks for external graphics: Frank Azor [by Black at Notebookcheck]
(more source links on that page.)

(Is this more FUD slowing the market and encouraging buyers to purchase from the same manufacturer for eGPU and laptop?
Or is this some sort of security feature? Can users edit the whitelist?)



here a list of egpu thunderbolt3

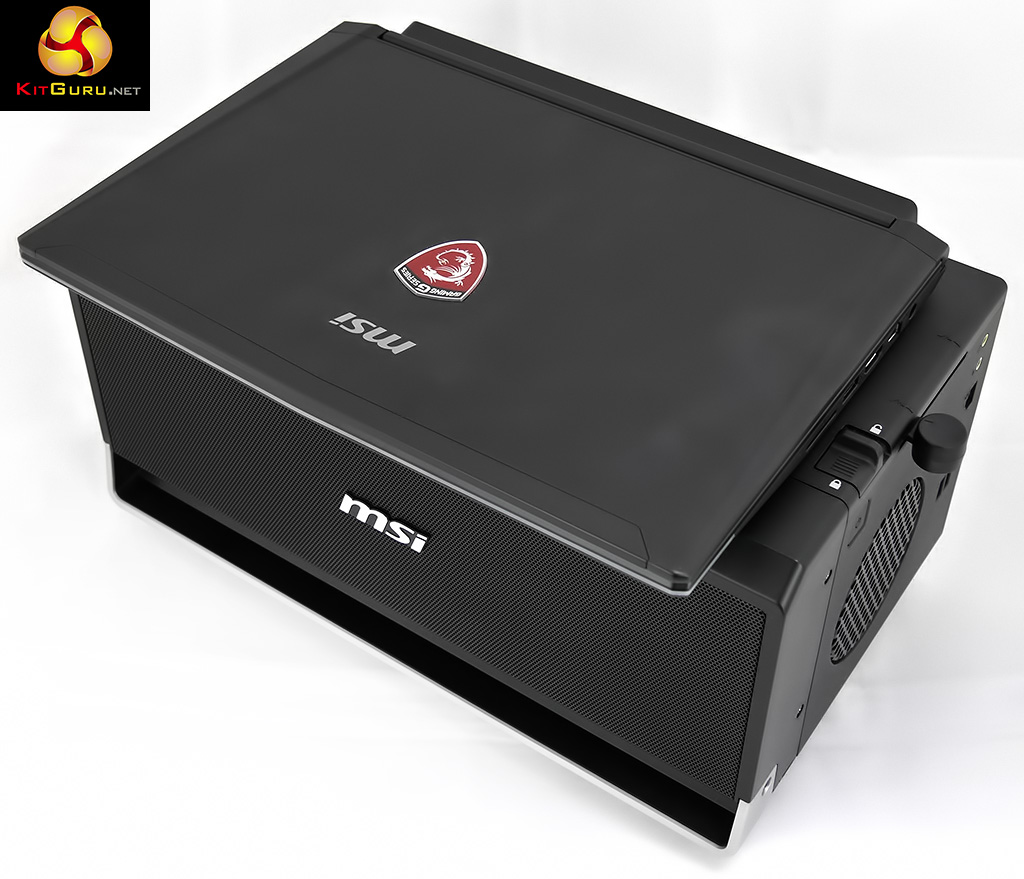

MSI GS30 Shadow with Gaming Dock

http://www.kitguru.net/desktop-pc/leo-waldock/msi-gs30-shadow-with-gaming-dock-review/

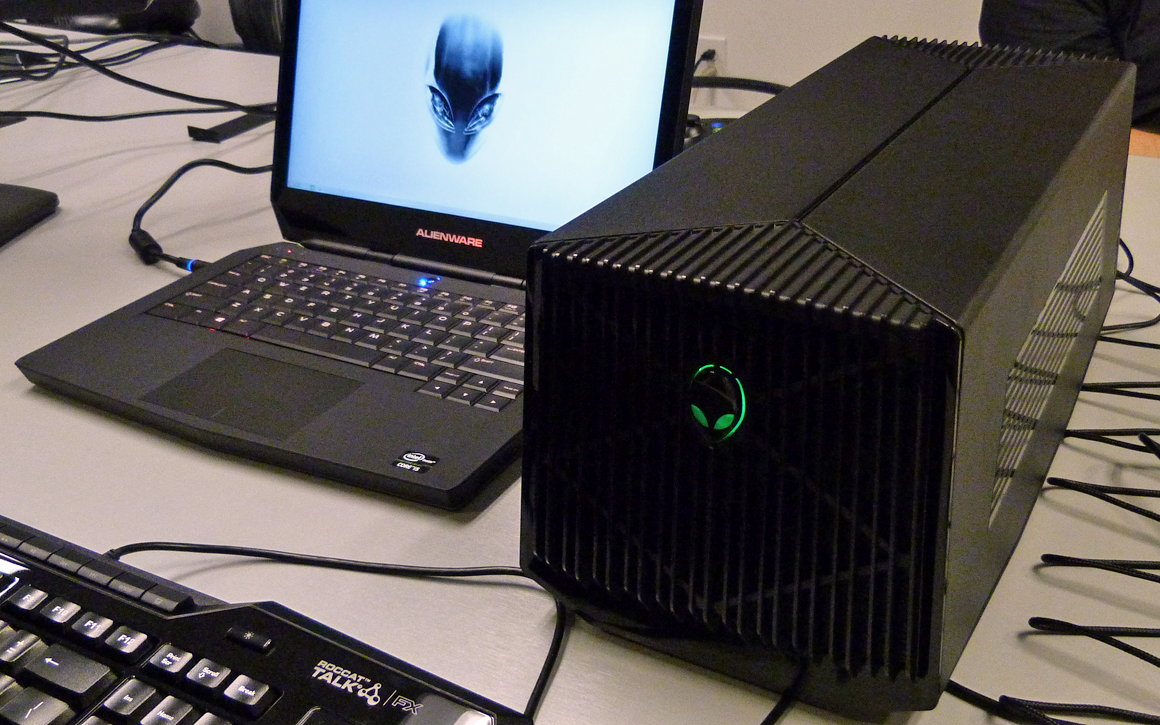

Alienware Graphic Amplifier(only with Alienware)



Razer core

http://www.ultrabookreview.com/10761-razer-core-review/

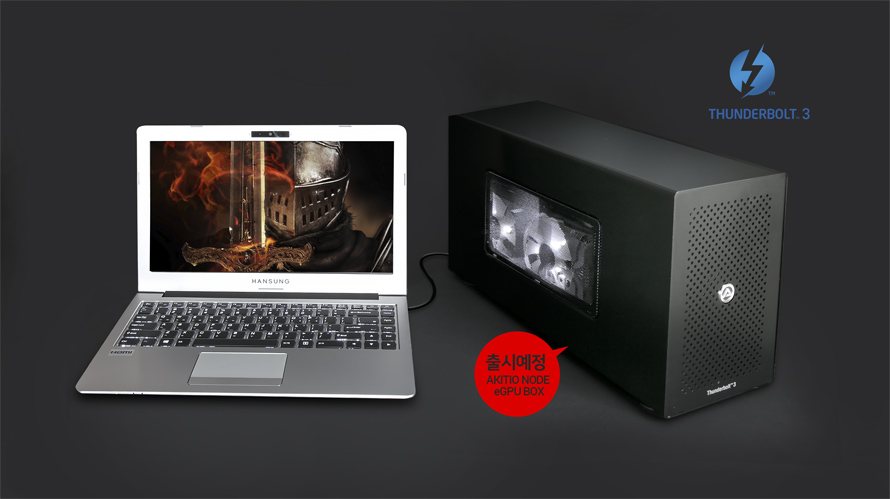

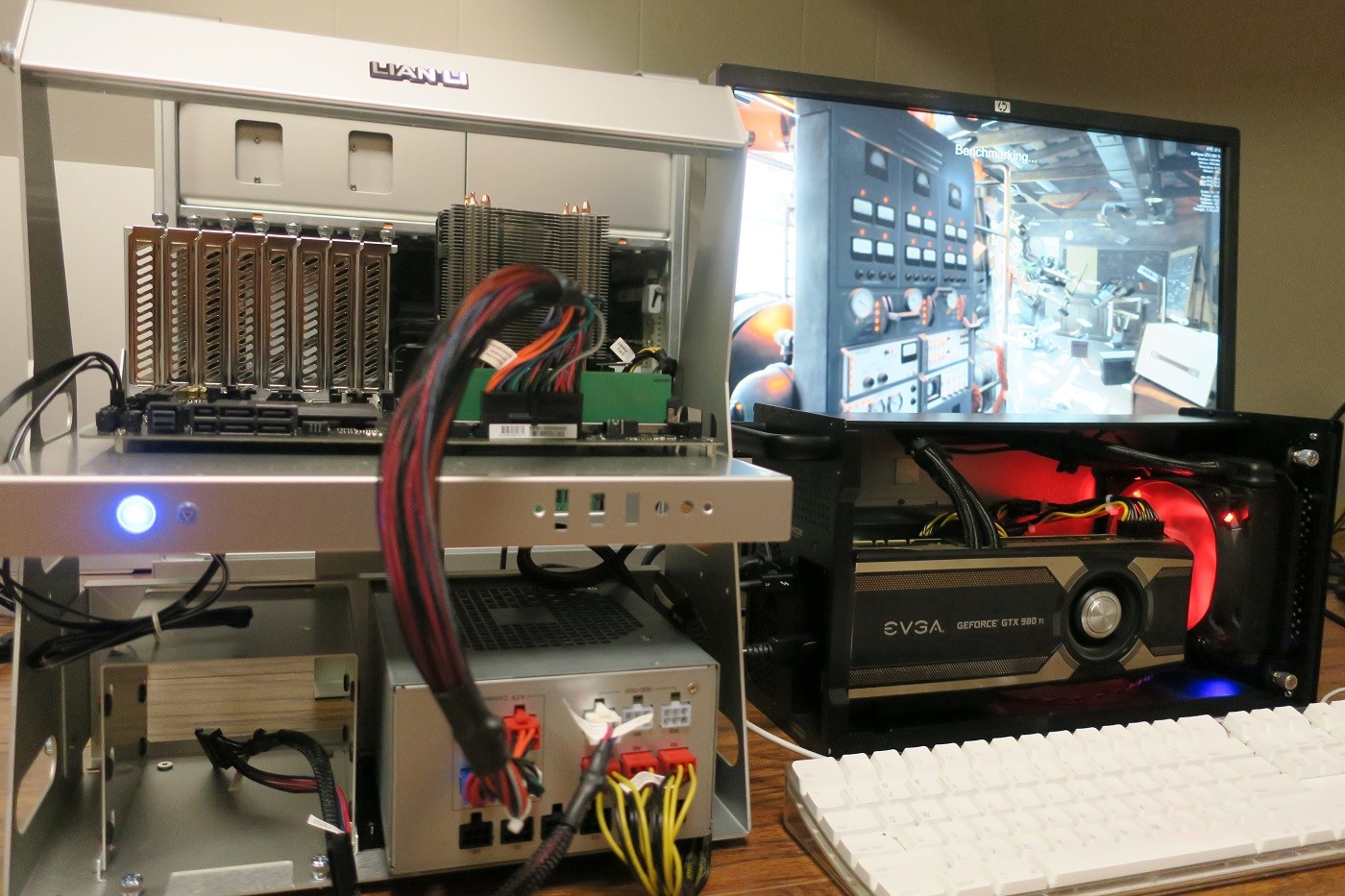

Akitio Node

https://egpu.io/akitio-node-review-the-state-of-thunderbolt-3-egpu/


Akitio Thunder3



Powercolor devil box

https://egpu.io/forums/mac-setup/unboxing-powercolor-devil-box-thunderbolt-3-egfx-enclosure/
http://www.overclockersclub.com/reviews/powercolor_devil_box_redux/

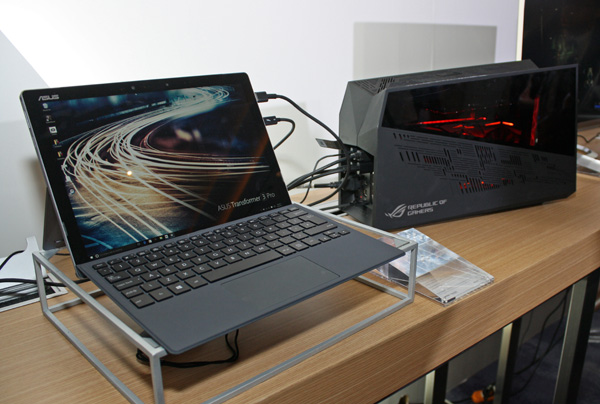

Asus XG Station 2



Acer Graphics Dock

https://www.notebookcheck.net/Acer-Graphics-Dock-with-Nvidia-GTX-960M-Review.175429.0.html
https://www.youtube.com/watch?v=TeWFT1R-LHA

Bizon BizonBox3



Mantiz Saturn EGPU

https://mymantiz.com/products/mz-01-saturn

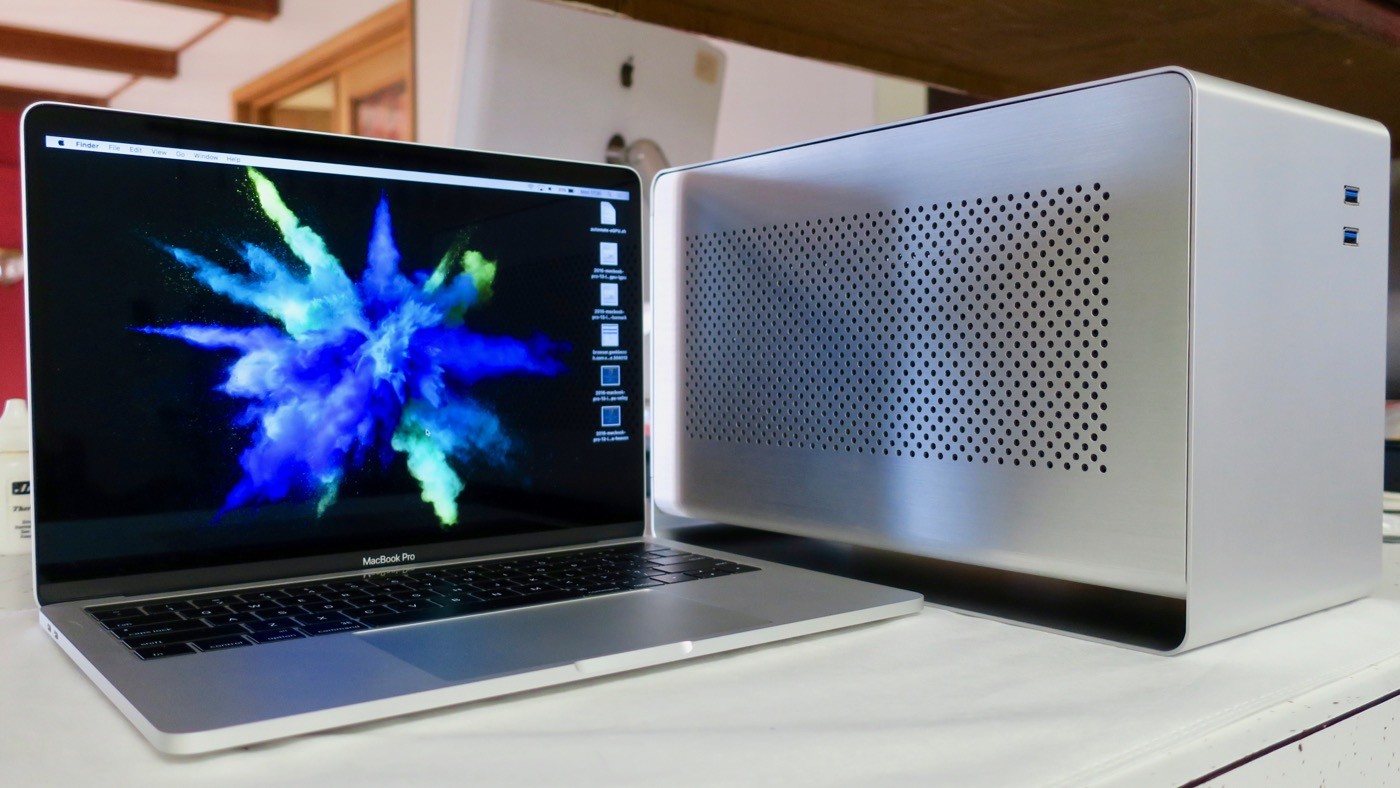

Mantiz Venus EGPU

https://egpu.io/mantiz-venus-review-thunderbolt-3-external-gpu-docking-station/


Aorus EGPU
http://www.tomshardware.com/news/gigabyte-aorus-gtx-1070-external-graphics-box,33876.html

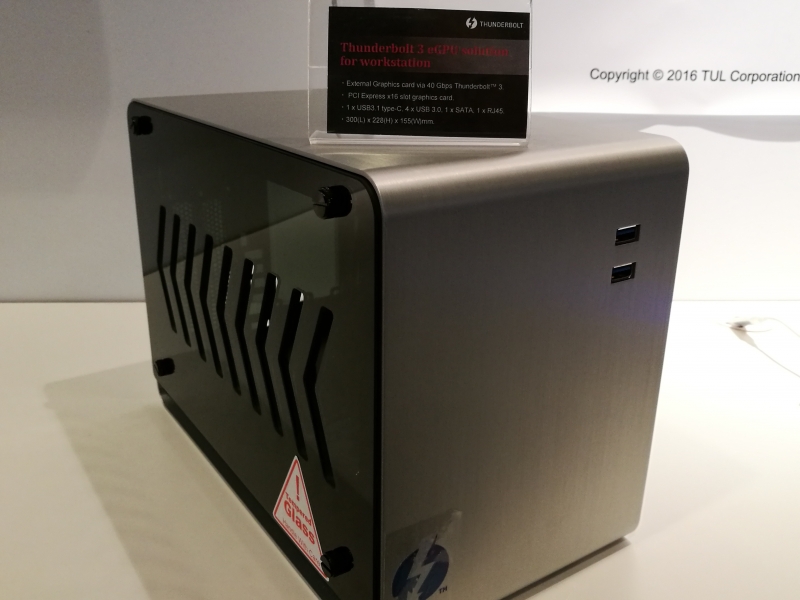

Tul EGPU
https://gtrusted.com/Tul-Shows-Off-External-Graphics-Thunderbolt-Docks-at-IDF-2016

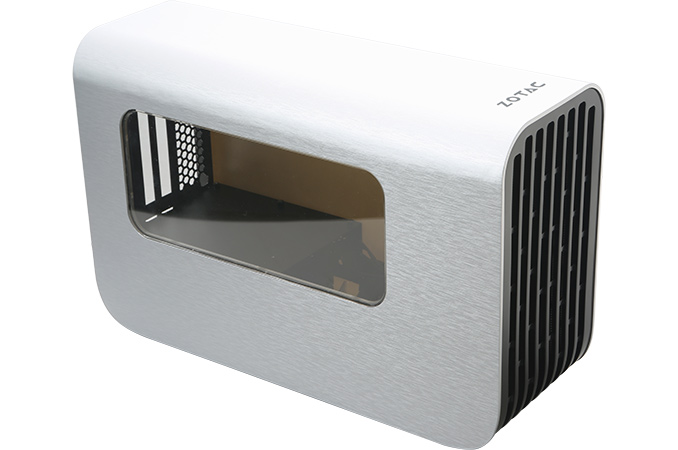

Zotac EGPU



http://www.anandtech.com/show/10949...al-gpu-enclosure-tb3-400-w-psu-due-in-q2-2017

Sonnet eGFX Breakaway Box
http://www.redsharknews.com/technology/item/4422-sonnet-to-roll-out-thunderbolt-3-external-gpu

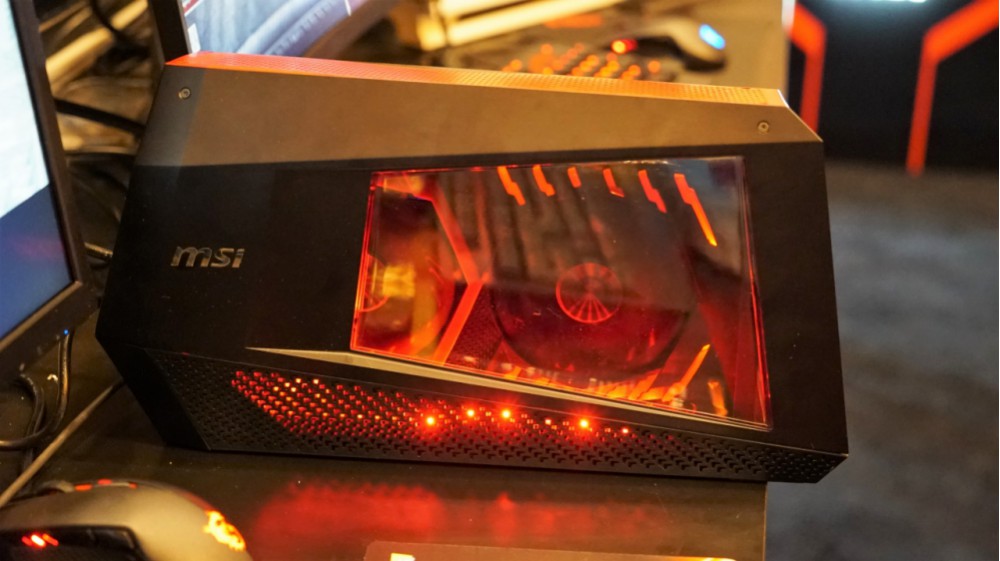

MSI Gus 2
http://hardware.hdblog.it/2017/01/06/MSI-GUS-dock-per-GPU-Thunderbolt-3--CES-2017/


Gigabyte GP-T3GFx
http://notebookitalia.it/gigabyte-g...cking-scheda-grafica-esterna-foto-video-23761

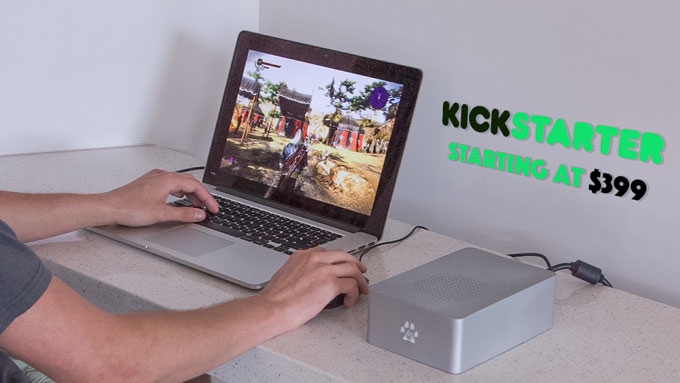

The Wolfe EGPU
https://www.journaldulapin.com/2016/09/05/the-bait-of-the-egpu-and-the-wolfe-on-kickstarter/




egpu buyers guide
https://egpu.io/external-gpu-buyers-guide-2017/



Hi, i would like to buy a laptop with a tb3 port and also an Egpu. i'm searching on the web infos about tests and this is a list of laptops with tb3 port and some laptop was tested with egpu by people. may be this could be useful

LAPTOP with CPU 4-core and thunderbolt3 (work in progress...)


-Acer VN7-592g (1575 x4) tested with akitio node
-Acer VN7-792g (1575 x4) tested with akitio node
-Acer VN7-593g (x4)
-Acer VN7-793g (x4)
-Acer Predator g5-593
-Acer Predator g5-793
-Acer Predator g9-592 (x4) old drivers/firmware
-Acer Predator g9-792 (x4) old drivers/firmware
-Acer Predator g9-593 (x4)
-Acer Predator g9-793 (x4)
-Alienware 13 (x4) tested with alienware graphic amplifier
-Alienware 15 (x4) tested with alienware graphic amplifier
-Alienware 17 (x4) tested with alienware graphic amplifier
-Aorus x5 V7
-Aorus x7 V7
-Apple MBP 15 2016 (x4) tested with razer core/akitio node/akitio thunder3/powercolor devilbox/asus xg station 2
-Asus UX501VW (1575 x4) tested with razer core/akitio thunder3
-Asus G501VW (1575 x4) tested with akitio thunder3
-Asus GL502VM skylake (x2) tested with asus xg station 2
-Asus GL502VM kabylake
-Asus GL702VT
-Asus GL702VM skylake (x2) tested with asus xg station 2
-Asus GL702VM kabylake
-Asus G752VT
-Asus G752VL tested with akitio node
-Asus G752VY
-Asus G752VM
-Asus G752VS
-Asus G701VI
-Clevo P750DM (x?) tested with razer core
-Clevo P770DM (x?) tested with akitio thunder3
-Clevo P870DM
-Clevo P750DM2-g (x4)
-Clevo P775DM3-g (x4)
-Clevo P870DM3-g (x4)
-Dell XPS 9550 (1575 x2) tested with razer core/akitio node/powercolor devilbox
-Dell XPS 9560 (x2) tested with razer core/asus xg station 2/powercolor devilbox
-Dell Latitude 5480 con 940m (x4)
-Dell Latitude 5570 con 930m (x4) tested with razer core
-Dell Latitude 5580 con 940mx(x4)
-Dell M3510 (x4)
-Dell M3520 (x4)
-Dell M5510 (x2)
-Dell M5520 (x2)
-Dell M7510 (1575 x4) tested with akitio node
-Dell M7520 (x4)
-Dell M7710 (x4) tested with razer core
-Dell M7720 (x4)
-Fujitsu Celsius H760
-Fujitsu Celsius H970
-Gigabyte P56
-Hp Zbook G3 15 (x4) tested with razer core/akitio node
-Hp Zbook G3 17
-Hp Zbook G4 15
-Hp Zbook G4 17
-Lenovo Thinkpad P50 (x4) tested with akitio node
-Lenovo Thinkpad P51
-Lenovo Thinkpad P70
-Lenovo Thinkpad P71
-Lenovo IdeaPad Y900
-Lenovo Ideapad Y910
-Lenovo Legion Y720
-Lenovo Yoga 720 15 (x2) tested with akitio node
-MSI GS30 (pcie x16)
-MSI GS40 6QE Phantom (x?) tested with razer core
-MSI GS60 6QE Ghost Pro 4K
-MSI GS43VR 6RF(x?) tested with razer core
-MSI GS43VR 7RF
-MSI GS63VR 6RF(1575 x4) tested with razer core/akitio node
-MSI GS63VR 7RF(x?) tested with asus xg station 2
-MSI GS63 7RE
-MSI WS63
-MSI GS73VR 6RF(x4) tested with razer core/asus xg station 2
-MSI GS73VR 7RF
-MSI GT72VR
-MSI GT73VR
-MSI GT83VR
-MSI 16L13/Eurocom Tornado F5
-Razer Blade (x4) tested with razer core/powercolor devilbox
-Razer Blade Pro (x4) tested with razer core/akitio node
-Samsung Odissey 17

without dgpu
-Hp g3 studio 15 (x4) tested with akitio node

LAPTOP with CPU 2-core and thunderbolt3 (work in progress...)

-Acer Aspire Switch 12S
-Acer Aspire R13
-Apple MBP13 2016 (x4) tested with akitio node/akitio thunder3/powercolor devilbox/razer core/bizonbox3/mantiz venus
-Asus Trasformer 3 Pro (x?) tested with razer core/powercolor devilbox/akitio thunder3
-Asus Transformer 3
-Asus Zenbook 3 Deluxe UX490UA
-Clevo N130BU/ Santech LV4 (x?) tested with akitio node
-Dell xps 9350 (x2) tested with razer core/akitio node/akitio thunder3

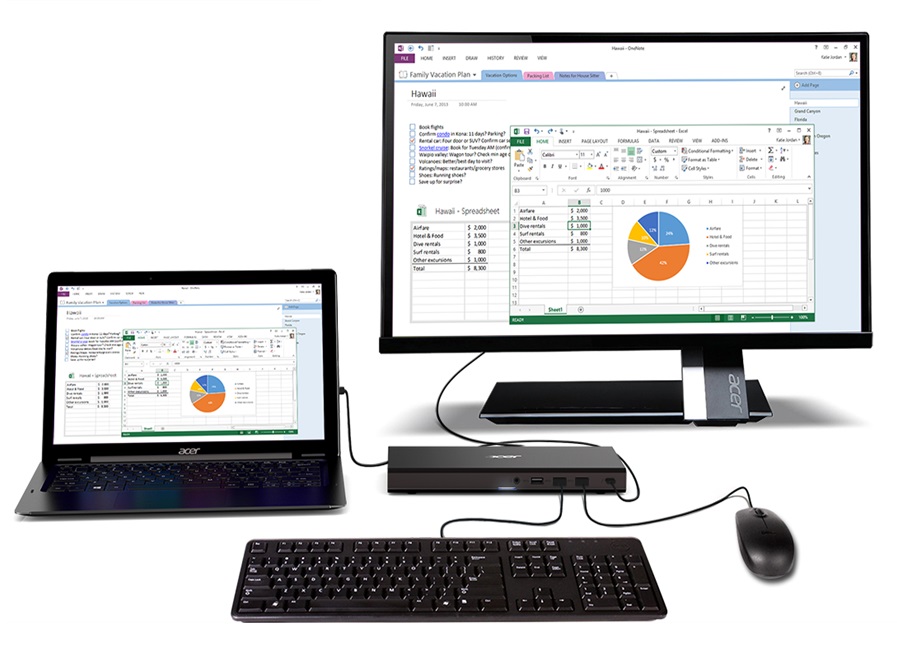

-Dell xps 9360 (x2) tested with razer core/acer graphic dock
-Dell xps 9365 (x4) tested with akitio node/mantiz venus
-Dell Latitude 7275 (x4)
-Dell Latitude 7370 (x4)
-Dell Latitude 7280 (x4)
-Dell Latitude 7480 (x4)
-Hp Spectre x360 13 (x4) tested with razer core/akitio node/akitio thunder3
-HP Elitebook x360 13
-HP Spectre x360 15
-Lenovo Thinkpad x1 Carbon 2017 (x4)
-Lenovo Thinkpad T470
-Lenovo Yoga 720 13 (x4) tested with akitio node
-Razer Blade Stealth
-Toshiba Portégé X20W (x?) tested with mantiz venus

https://egpu.io/external-gpu-implementations-table/
http://www.dell.com/support/article/en/en/frdhs1/QNA44089/thunderbolt-3的40gbps数据传输速率?lang=EN

http://www.hwupgrade.it/forum/showthread.php?t=2792614



on Geizhals.at there are tech spech with infos about tb3 (x2 or x4)
https://geizhals.at/

Apple MacBook Pro 13.3" (ohne Touch Bar) (MLL42D/A) (Z0SW) [Late 2016]
CPU: Intel Core i5-6360U, 2x 2.00GHz • RAM: 8GB DDR3L • HDD: N/A • SSD: 256GB M.2 PCIe/NVMe (proprietär) • Optisches Laufwerk: N/A • Grafik: Intel Iris Graphics 540 (IGP) • Display: 13.3", 2560x1600, glare, IPS/IGZO • Anschlüsse: 2x Thunderbolt 3 (PCIe x4), 1x Klinke • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.2 • Cardreader: N/A • Webcam: 0.9 Megapixel • Betriebssystem: macOS 10.12 Sierra • Akku: Li-Polymer, 54.5Wh, 10h Laufzeit • Gewicht: 1.37kg • Besonderheiten: beleuchtete Tastatur, Force Touch Trackpad, USB-C Ladeanschluss (alle Ports) • Herstellergarantie: ein Jahr


Apple MacBook Pro 15.4" (MLH42D/A) (Z0SH) [Late 2016]
CPU: Intel Core i7-6820HQ, 4x 2.70GHz • RAM: 16GB DDR3L • HDD: N/A • SSD: 512GB M.2 PCIe/NVMe (proprietär) • Optisches Laufwerk: N/A • Grafik: AMD Radeon Pro 455, 2GB • Display: 15.4", 2880x1800, glare, IPS/IGZO • Anschlüsse: 2x Thunderbolt 3 (PCIe x4), 2x Thunderbolt 3 (PCIe x2), 1x Klinke • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.2 • Cardreader: N/A • Webcam: 0.9 Megapixel • Betriebssystem: macOS 10.12 Sierra • Akku: Li-Polymer, 76Wh, 10h Laufzeit • Gewicht: 1.83kg • Besonderheiten: beleuchtete Tastatur, Force Touch Trackpad, USB-C Ladeanschluss (alle Ports), Touch Bar (mit Fingerprint-Reader) • Herstellergarantie: ein Jahr


HP Spectre x360 13 (1JN14EA#ABD)
CPU: Intel Core i7-7500U, 2x 2.70GHz • RAM: 16GB DDR3L • HDD: N/A • SSD: 1TB M.2 PCIe/NVMe (2280/M-Key Slot) • Optisches Laufwerk: N/A • Grafik: Intel HD Graphics 620 (IGP) • Display: 13.3", 3840x2160, Multi-Touch, glare, IPS • Anschlüsse: 2x Thunderbolt 3 (PCIe x4), 1x USB-A 3.0 • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.2 • Cardreader: N/A • Webcam: 2.0 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 3 Zellen, 57.8Wh, 16h Laufzeit • Gewicht: 1.32kg • Besonderheiten: beleuchtete Tastatur, Convertible, Gyroskop, Kompass, Stylus • Herstellergarantie: zwei Jahre


xps 9360-3714
CPU: Intel Core i7-7500U, 2x 2.70GHz • RAM: 8GB DDR3L • HDD: N/A • SSD: 256GB M.2 PCIe/NVMe (2280/M-Key Slot) • Optisches Laufwerk: N/A • Grafik: Intel HD Graphics 620 (IGP) • Display: 13.3", 1920x1080, non-glare, IGZO • Anschlüsse: 2x USB-A 3.0, 1x Thunderbolt 3 (PCIe x2) • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: SD/SDHC/SDXC • Webcam: 0.9 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 4 Zellen, 13h Laufzeit • Gewicht: 1.20kg • Besonderheiten: beleuchtete Tastatur, Slim Bezel, USB-C Ladeanschluss • Herstellergarantie: zwei Jahre


xps 9350-4907
CPU: Intel Core i7-6500U, 2x 2.50GHz • RAM: 16GB DDR3L • HDD: N/A • SSD: 1TB M.2 PCIe/NVMe (2280/M-Key Slot) • Optisches Laufwerk: N/A • Grafik: Intel HD Graphics 520 (IGP) • Display: 13.3", 3200x1800, Multi-Touch, glare, IGZO • Anschlüsse: 2x USB-A 3.0, 1x Thunderbolt 3 (PCIe x2) • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1, Miracast • Cardreader: SD/MMC/MS • Webcam: 1.3 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 56Wh • Gewicht: 1.29kg • Besonderheiten: beleuchtete Tastatur, Slim Bezel, USB-C Ladeanschluss


xps 9550-0412
CPU: Intel Core i7-6700HQ, 4x 2.60GHz • RAM: 8GB DDR4 • HDD: N/A • SSD: 256GB M.2 PCIe/AHCI (2280/M-Key Slot) • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 960M, 2GB GDDR5, HDMI • Display: 15.6", 1920x1080, non-glare, IGZO • Anschlüsse: 2x USB-A 3.0, 1x Thunderbolt 3 (PCIe x2) • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1, Miracast • Cardreader: SD/MMC/MS • Webcam: 1.3 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 56Wh • Gewicht: 1.78kg • Besonderheiten: beleuchtete Tastatur, Slim Bezel, USB-C Ladeanschluss • Herstellergarantie: zwei Jahre


xps 9560-4575
CPU: Intel Core i7-7700HQ, 4x 2.80GHz • RAM: 16GB DDR4 (2x 8GB, 2 Slots) • HDD: N/A • SSD: 512GB M.2 PCIe/NVMe (2280/M-Key Slot) • Freie Slots: N/A • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 1050 (Mobile), 4GB GDDR5, 1x HDMI • Display: 15.6", 1920x1080, non-glare, IGZO • Anschlüsse: 2x USB-A 3.0, 1x Thunderbolt 3 (PCIe x2) • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: SD/SDHC/SDXC • Webcam: 0.9 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 56Wh • Gewicht: 1.80kg • Besonderheiten: beleuchtete Tastatur, Slim Bezel, USB-C Ladeanschluss • Herstellergarantie: ein Jahr (Vor-Ort)


Precision 5510-3MH3G
CPU: Intel Core i7-6820HQ, 4x 2.70GHz • RAM: 8GB DDR4 • HDD: 500GB • SSD: N/A • Freie Slots: 1x M.2 PCIe/NVMe (2280/M-Key) • Optisches Laufwerk: N/A • Grafik: NVIDIA Quadro M1000M, 2GB, HDMI • Display: 15.6", 3840x2160, Multi-Touch, glare, IGZO • Anschlüsse: 2x USB-A 3.0, 1x Thunderbolt 3 (PCIe x2) • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: SD/SDHC/SDXC • Webcam: N/A • Betriebssystem: Windows 7 Professional 64bit (vorinstalliert) inkl. Windows 10 Pro 64bit • Akku: Li-Ionen, 3 Zellen, 56Wh • Gewicht: 1.80kg • Besonderheiten: beleuchtete Tastatur, Slim Bezel • Herstellergarantie: ein Jahr (Vor-Ort)


Precision 7510-M5W7W
CPU: Intel Core i7-6820HQ, 4x 2.70GHz • RAM: 16GB DDR4 • HDD: 1TB • SSD: N/A • Freie Slots: 2x M.2 PCIe/NVMe (2280/M-Key) • Optisches Laufwerk: N/A • Grafik: NVIDIA Quadro M1000M, 2GB • Display: 15.6", 1920x1080, non-glare • Anschlüsse: 2x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4) • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth • Cardreader: SD/SDHC/SDXC • Webcam: 0.9 Megalpixel • Betriebssystem: Windows 7 Professional 64bit • Akku: Li-Ionen, 3 Zellen, 56Wh • Gewicht: 2.79kg • Besonderheiten: Pointing Stick • Herstellergarantie: ein Jahr (Vor-Ort)


VN7-592G-70JW
CPU: Intel Core i7-6700HQ, 4x 2.60GHz • RAM: 8GB DDR4 (2x 4GB) • HDD: 1TB • SSD: 256GB M.2 SATA/AHCI (2280/M-Key Slot, NVMe-Support) • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 960M, 4GB GDDR5, HDMI • Display: 15.6", 1920x1080, non-glare, IPS • Anschlüsse: 2x USB-A 3.0, 1x USB-A 2.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.0 • Cardreader: 5in1 • Webcam: 1.3 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 3 Zellen, 4605mAh, 52.5Wh, 6h Laufzeit • Gewicht: 2.30kg • Besonderheiten: Nummernblock, beleuchtete Tastatur • Herstellergarantie: zwei Jahre (Pickup&Return)


VN7-593G-74FW
CPU: Intel Core i7-7700HQ, 4x 2.80GHz • RAM: 8GB DDR4 • HDD: 1TB • SSD: 256GB • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 1060 6GB (Mobile), 6GB, HDMI, USB-C mit DisplayPort • Display: 15.6", 1920x1080, non-glare, IPS • Anschlüsse: 2x USB-A 3.0, 2x USB-A 2.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth • Cardreader: SD • Webcam: 0.9 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Polymer, 4 Zellen, 4450mAh • Gewicht: 2.60kg • Besonderheiten: Nummernblock, beleuchtete Tastatur, Fingerprint-Reader (Touchpad) • Herstellergarantie: zwei Jahre (Pickup&Return)


VN7-793G-738J
CPU: Intel Core i7-7700HQ, 4x 2.80GHz • RAM: 16GB DDR4 (2 Slots) • HDD: N/A • SSD: 512GB • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 1060 6GB (Mobile), 6GB, HDMI, USB-C mit DisplayPort • Display: 17.3", 3840x2160, non-glare, IPS • Anschlüsse: 2x USB-A 3.0, 2x USB-A 2.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth • Cardreader: SD • Webcam: 0.9 Megapixel • Betriebssystem: Windows 10 Home 64bit • Gewicht: 3.10kg • Besonderheiten: Nummernblock, beleuchtete Tastatur, Fingerprint-Reader (Touchpad) • Herstellergarantie: zwei Jahre (Pickup&Return)


G9-592-73W6
CPU: Intel Core i7-6700HQ, 4x 2.60GHz • RAM: 16GB DDR4 • HDD: 2TB • SSD: 512GB M.2 SATA/AHCI (2280/M-Key Slot, NVMe-Support) • Freie Slots: 1x M.2 PCIe/NVMe (22110/M-Key) • Optisches Laufwerk: Blu-ray (BD-R/RE), DVD+/-RW DL • Grafik: NVIDIA GeForce GTX 970M, 6GB GDDR5, HDMI, DisplayPort • Display: 15.6", 1920x1080, non-glare, IPS • Anschlüsse: 4x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: 5in1 • Webcam: 1.3 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 8 Zellen, 6000mAh, 6h Laufzeit • Gewicht: 3.40kg • Besonderheiten: Nummernblock, beleuchtete Tastatur, NVIDIA G-Sync (mit externem Monitor) • Herstellergarantie: zwei Jahre (Pickup&Return)


G9-792-76MM
CPU: Intel Core i7-6700HQ, 4x 2.60GHz • RAM: 64GB DDR4 (4x 16GB) • HDD: 2TB • SSD: 512GB M.2 PCIe/AHCI (2280/M-Key Slot) • Freie Slots: 1x M.2 PCIe/NVMe (22110/M-Key) • Optisches Laufwerk: DVD+/-RW DL • Grafik: NVIDIA GeForce GTX 980M, 8GB GDDR5, HDMI, DisplayPort • Display: 17.3", 3840x2160, non-glare, IPS • Anschlüsse: 4x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: 5in1 • Webcam: 1.3 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 8 Zellen, 6000mAh, 7h Laufzeit • Gewicht: 4.20kg • Besonderheiten: Nummernblock, beleuchtete Tastatur, NVIDIA G-Sync (mit externem Monitor) • Herstellergarantie: zwei Jahre (Pickup&Return)


G9-593-76D7
CPU: Intel Core i7-7700HQ, 4x 2.80GHz • RAM: 16GB DDR4 • HDD: 1TB • SSD: 256GB M.2 SATA/AHCI (2280/M-Key Slot, NVMe-Support) • Freie Slots: 1x M.2 PCIe/NVMe (22110/M-Key) • Optisches Laufwerk: DVD+/-RW DL • Grafik: NVIDIA GeForce GTX 1060 6GB (Mobile), 6GB, HDMI, DisplayPort • Display: 15.6", 1920x1080, non-glare, IPS • Anschlüsse: 4x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: 5in1 • Webcam: 1.3 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 8 Zellen, 6000mAh, 6h Laufzeit • Gewicht: 3.40kg • Besonderheiten: Nummernblock, beleuchtete Tastatur, NVIDIA G-Sync (mit externem Monitor) • Herstellergarantie: zwei Jahre (Pickup&Return)


G9-793-718K
CPU: Intel Core i7-7700HQ, 4x 2.80GHz • RAM: 16GB DDR4 (4 Slots) • HDD: 1TB • SSD: 256GB M.2 SATA/AHCI (2280/M-Key Slot, NVMe-Support) • Freie Slots: 1x M.2 PCIe/NVMe (22110/M-Key) • Optisches Laufwerk: DVD+/-RW DL • Grafik: NVIDIA GeForce GTX 1070 (Mobile), 8GB GDDR5, HDMI, DisplayPort • Display: 17.3", 1920x1080, non-glare, IPS • Anschlüsse: 4x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: 5in1 • Webcam: 1.3 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 8 Zellen, 6000mAh, 7h Laufzeit • Gewicht: 4.20kg • Besonderheiten: Nummernblock, beleuchtete Tastatur (RGB), NVIDIA G-Sync (mit externem Monitor) • Herstellergarantie: zwei Jahre (Pickup&Return)

Razer Blade RZ09-01952G72-R3G1
CPU: Intel Core i7-6700HQ, 4x 2.60GHz • RAM: 16GB DDR4 • HDD: N/A • SSD: 512GB M.2 PCIe/NVMe (2280/M-Key Slot) • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 1060 6GB (Mobile), 6GB, HDMI 2.0 • Display: 14", 1920x1080, non-glare, IPS • Anschlüsse: 3x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Klinke • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: SD/SDHC/SDXC/MMC • Webcam: 2.0 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 70Wh • Gewicht: 1.89kg • Besonderheiten: beleuchtete Tastatur • Herstellergarantie: zwei Jahre


Razer Blade RZ09-01953G71-R3G1
CPU: Intel Core i7-7700HQ, 4x 2.80GHz • RAM: 16GB DDR4 • HDD: N/A • SSD: 256GB M.2 PCIe/NVMe (2280/M-Key Slot) • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 1060 6GB (Mobile), 6GB, HDMI 2.0 • Display: 14", 1920x1080, non-glare, IPS • Anschlüsse: 3x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Klinke • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: SD/SDHC/SDXC/MMC • Webcam: 2.0 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 70Wh • Gewicht: 1.86kg • Besonderheiten: beleuchtete Tastatur • Herstellergarantie: zwei Jahre


Lenovo IdeaPad Y900-17ISK (80Q1000CGE)
CPU: Intel Core i7-6700HQ, 4x 2.60GHz • RAM: 32GB DDR4 • HDD: N/A • SSD: 512GB M.2 PCIe/AHCI (2280/M-Key Slot) • Freie Slots: 1x M.2 PCIe/AHCI (2280/M-Key) • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 980M, 4GB GDDR5, HDMI 2.0, DisplayPort • Display: 17.3", 1920x1080, non-glare, IPS • Anschlüsse: 3x USB-A 3.0, 1x USB-A 2.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.0 • Cardreader: SD/SDHC/SDXC/MMC • Webcam: 0.9 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Polymer, 6 Zellen, 90Wh, 5h Laufzeit • Gewicht: 4.60kg • Besonderheiten: beleuchtete Tastatur, mechanische Tastatur, Nummernblock • Herstellergarantie: zwei Jahre


Alienware 15 R3 (A15-3998)
CPU: Intel Core i7-6700HQ, 4x 2.60GHz • RAM: 8GB DDR4 (2 Slots) • HDD: 1TB • SSD: N/A • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 1060 6GB (Mobile), 6GB GDDR5, HDMI, Mini DisplayPort, USB-C mit DisplayPort • Display: 15.6", 1920x1080, non-glare, IPS • Anschlüsse: 1x USB-C 3.0, 2x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: N/A • Webcam: 0.9 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 8 Zellen, 62Wh, 8h Laufzeit • Gewicht: 3.49kg • Besonderheiten: beleuchtete Tastatur, Dockinganschluss (Alienware Graphics Amplifier) • Herstellergarantie: zwei Jahre


Alienware 17 R3 (A17-0930)
CPU: Intel Core i7-6700HQ, 4x 2.60GHz • RAM: 8GB DDR4 • HDD: 1TB • SSD: N/A • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 970M, 3GB GDDR5, HDMI 2.0, Mini DisplayPort • Display: 17.3", 1920x1080, non-glare, IPS • Anschlüsse: 3x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.1 • Cardreader: 9in1 • Webcam: 2.0 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 8 Zellen, 6.5h Laufzeit • Gewicht: 3.78kg • Besonderheiten: beleuchtete Tastatur, Nummernblock, Dockinganschluss (Alienware Graphics Amplifier) • Herstellergarantie: zwei Jahre


Clevo p750dm2-g (XMG U507)
CPU: Intel Core i7-6700K, 4x 4.00GHz • RAM: 16GB DDR4 • HDD: 1TB • SSD: 256GB M.2 PCIe/NVMe (2280/M-Key Slot) • Freie Slots: 1x M.2 PCIe/NVMe (2280/M-Key) • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 1070 (Mobile), 8GB GDDR5, HDMI 2.0, 2x Mini DisplayPort 1.3 • Display: 15.6", 1920x1080, non-glare, IPS • Anschlüsse: 1x USB-C 3.1, 3x USB-A 3.0, 1x USB-A 2.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.0 • Cardreader: 6in1 • Webcam: 2.0 Megapixel • Betriebssystem: N/A • Akku: Li-Ionen, 82Wh, 2h Laufzeit • Gewicht: 3.40kg • Besonderheiten: Nummernblock, beleuchtete Tastatur, Fingerprint-Reader • Herstellergarantie: zwei Jahre (Pickup&Return)



Clevo p775dm3-g (XMG U717)
CPU: Intel Core i7-7700K, 4x 4.20GHz • RAM: 16GB DDR4 • HDD: 1TB • SSD: 256GB M.2 PCIe/NVMe (2280/M-Key Slot) • Freie Slots: 1x M.2 PCIe/NVMe (2280/M-Key) • Optisches Laufwerk: N/A • Grafik: NVIDIA GeForce GTX 1080 (Mobile), 8GB GDDR5X, HDMI 2.0, 2x Mini DisplayPort 1.4 • Display: 17.3", 1920x1080, non-glare, IPS • Anschlüsse: 1x USB-C 3.1, 4x USB-A 3.0, 1x Thunderbolt 3 (PCIe x4), 1x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.0 • Cardreader: 6in1 • Webcam: 2.0 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 82Wh • Gewicht: 3.90kg • Besonderheiten: Nummernblock, beleuchtete Tastatur, Fingerprint-Reader, NVIDIA G-Sync • Herstellergarantie: zwei Jahre (Pickup&Return)


Clevo p870dm3-g (XMG U727)
CPU: Intel Core i7-7700K, 4x 4.20GHz • RAM: 32GB DDR4 • HDD: 2TB • SSD: 512GB M.2 PCIe/NVMe (2280/M-Key Slot) • Freie Slots: 1x M.2 PCIe/NVMe (2280/M-Key) • Optisches Laufwerk: N/A • Grafik: 2x NVIDIA GeForce GTX 1080 (Mobile) (SLI), 8GB GDDR5X, HDMI 2.0, 2x Mini DisplayPort 1.4 • Display: 17.3", 3840x2160, non-glare, IPS • Anschlüsse: 5x USB-A 3.0, 2x Thunderbolt 3 (PCIe x4), 2x Gb LAN • Wireless: WLAN 802.11a/b/g/n/ac, Bluetooth 4.2 • Cardreader: 6in1 • Webcam: 2.0 Megapixel • Betriebssystem: Windows 10 Home 64bit • Akku: Li-Ionen, 89Wh • Gewicht: 5.50kg • Besonderheiten: Nummernblock, beleuchtete Tastatur, Fingerprint-Reader, NVIDIA G-Sync • Herstellergarantie: zwei Jahre (Pickup&Return)



13R3 – GTX1060 dGPU / 13R3 – GTX1060 eGPU / XPS9365 – GTX1060 eGPU (akitio node)

Unigine Valley 2,368 2,408 2,067
Unigine Heaven 1,431 1,363 1,188
Unigine Superposition 2,085 2,073 2,164
3DMark Time Spy 3,537 3,677 3,507
3DMark Fire Strike 11,326 11,005 9,292

Metro Last Night Redux 83 FPS 71 FPS 58
Rise of the Tomb Raider 54.28 FPS 47.83 FPS 43.13
Tom Clancy’s The Division 49.9 FPS 40.8 FPS 39.1

so there is only a loss of fps between 20%(tom clancy/ rise of) and 30% (metro last) for dell 9365. i think it is a good result for a cpu like Intel Core i7-7Y75 1.3 GHz and without plug (only battery)



https://www.notebookcheck.net/Razer-Core-External-GPU-and-Razer-Blade-Laptop-Review.213526.0.html



Sounds like a rip-off. I hope they do a similar dedicated review of the Alienware Graphics Amp which has a better bandwidth in theory.



http://www.techspot.com/review/944-a...ier/page5.html

http://www.pcworld.com/article/29079...-graphics.html

http://forum.notebookreview.com/thr...and-benchmark-thread-all-13-15-and-17.770323/



Thanks, but I know about these. I'm hoping the same guys from notebookcheck would do one so the results can be directly comparable.



review kitguru for Razer Blade (Kaby Lake Core i7) with Razer Core / GTX 1080
http://www.kitguru.net/lifestyle/mo...e-kaby-lake-core-i7-with-razer-core-gtx-1080/



The NODE Gets Water Cooled



Sapphire egpu
https://egpu.io/forums/thunderbolt-enclosures/sapphire-e-gfx/#post-9679



Akitio node pro
https://egpu.io/forums/thunderbolt-enclosures/akitio-node-pro-2/#post-9678



mantiz portable egpu 2.5" Bay + RX570 MXM
https://www.reddit.com/r/eGPU/comments/66augw/mxm_egpu_the_portable_egpu/

https://egpu.io/forums/thunderbolt-enclosures/mantiz-portable-egpu-2-5-bay-rx570-mxm/

Posted by: Mymantiz_John


Still under development.

Then need to go through Intel Cert. again.

it is going to take months.



sonnet breakaway box review
https://egpu.io/sonnet-breakaway-box-review-cool-quiet/



Razer core review
http://www.laptopmag.com/reviews/accessories/razer-core



Alienware 15 R2 + graphic amplifier



Lenovo Yoga 720 13+Akitio node+gtx1070





Lenovo Yoga 15+Akitio node
https://www.youtube.com/watch?time_c...&v=NTHvPmrt9CU



Razer Blade stealth+ Razer Core



Alienware Graphics Amplifier (x4 3.0 CPU) versus Razer Core (TB3) comparison



Acer VN7-792g+akitio Node+gtx1070
https://egpu.io/forums/implementati...nitro-black-editionakitio-nodegtx1070-win-10/



https://egpu.io/forums/thunderbolt-...ng-the-thunderbolt-effect/paged/6/#post-12146



Comparison




i7-6700k
Z170X Test Bench x16 PCIe 3.0 x4 - PCH PCI 3.0 x4- Thunderbolt 3 x4 eGPU Razer Core with GTX 980 Ti

Unigine Valley 95.1 FPS 90.3 FPS 83.7 FPS
Unigine Heaven 90.7 FPS 87.6 FPS 79.0 FPS
Unigine Superposition 93.2 FPS 91.7 FPS 86.9 FPS
3DMark Time Spy 36.0 FPS 35.1 FPS 33.5 FPS
3DMark Fire Strike 88.2 FPS 84.7 FPS 71.7 FPS

Rise of the Tomb Raider 60.0 FPS 60.0 FPS 58.5 FPS
Tom Clancy's GhostRecon 87.9 FPS 69.2 FPS 56.6 FPS
Shadow of Mordor 128.5 FPS 113.4 FPS 97.3 FPS



HP gets in on the external GPU hype with a pretty, large box

https://www.theverge.com/circuitbrea...ries-announced



https://egpu.io/forums/thunderbolt-...ng-the-thunderbolt-effect/paged/6/#post-12826

thanks to theitsage for these numbers

i7-6700k
Z170X Test Bench x16 PCIe 3.0 x4 - PCH PCI 3.0 x4- Thunderbolt 3 x4 eGPU Razer Core with GTX 980 Ti

Test Bench @ 1080p x16 PCIe 3.0 x4 - PCH PCIe 3.0 eGPU x4 - TB3

Unigine Valley 95.1 FPS 90.3 FPS 83.7 FPS
Unigine Heaven 90.7 FPS 87.6 FPS 79.0 FPS
Unigine Superposition 93.2 FPS 91.7 FPS 86.9 FPS
3DMark Time Spy 36.0 FPS 35.1 FPS 33.5 FPS
3DMark Fire Strike 88.2 FPS 84.7 FPS 71.7 FPS

Rise of the Tomb Raider 60.0 FPS 60.0 FPS 58.5 FPS
Tom Clancy's GhostRecon 87.9 FPS 69.2 FPS 56.6 FPS
Shadow of Mordor 128.5 FPS 113.4 FPS 97.3 FPS

Test Bench @ 1440p x16 PCIe 3.0 x4 - PCH PCIe 3.0 eGPU x4 - TB3

Unigine Valley 58.1 FPS 56.3 FPS 53.9 FPS
Unigine Heaven 57.1 FPS 55.6 FPS 52.2 FPS
Unigine Superposition 62.5 FPS 62.0 FPS 59.7 FPS

Rise of the Tomb Raider 60 FPS 59.2 FPS 58.3 FPS
Tom Clancy's GhostRecon 66.0 FPS 53.7 FPS 45.9 FPS
Shadow of Mordor 89.2 FPS 82.3 FPS 73.6 FPS

Test Bench @ 2160p x16 PCIe 3.0 x4 - PCH PCIe 3.0 eGPU x4 - TB3

Unigine Valley 26.6 FPS 26.1 FPS 25.6 FPS
Unigine Heaven 24.5 FPS 24.3 FPS 23.8 FPS
Unigine Superposition 31.9 FPS 31.9 FPS 31.2 FPS

Rise of the Tomb Raider 46.8 FPS 45.6 FPS 46.0 FPS
Tom Clancy's GhostRecon 37.8 FPS 33.2 FPS 30.1 FPS
Shadow of Mordor 51.4 FPS 50.3 FPS 46.3 FPS
