Im ordering a bluetooth module for my P8020 laptop that didnt come with the laptop config R0T1E1E538801002.
the part number is correct "CP395063" and I opened the laptop from the bottom and I do see a small plug that could be where the module cord plugs in..
Does anyone know or have had thier laptop apart with blue tooth that can verify if its the correct plug or where it may be?
-
Attached Files:
-
-

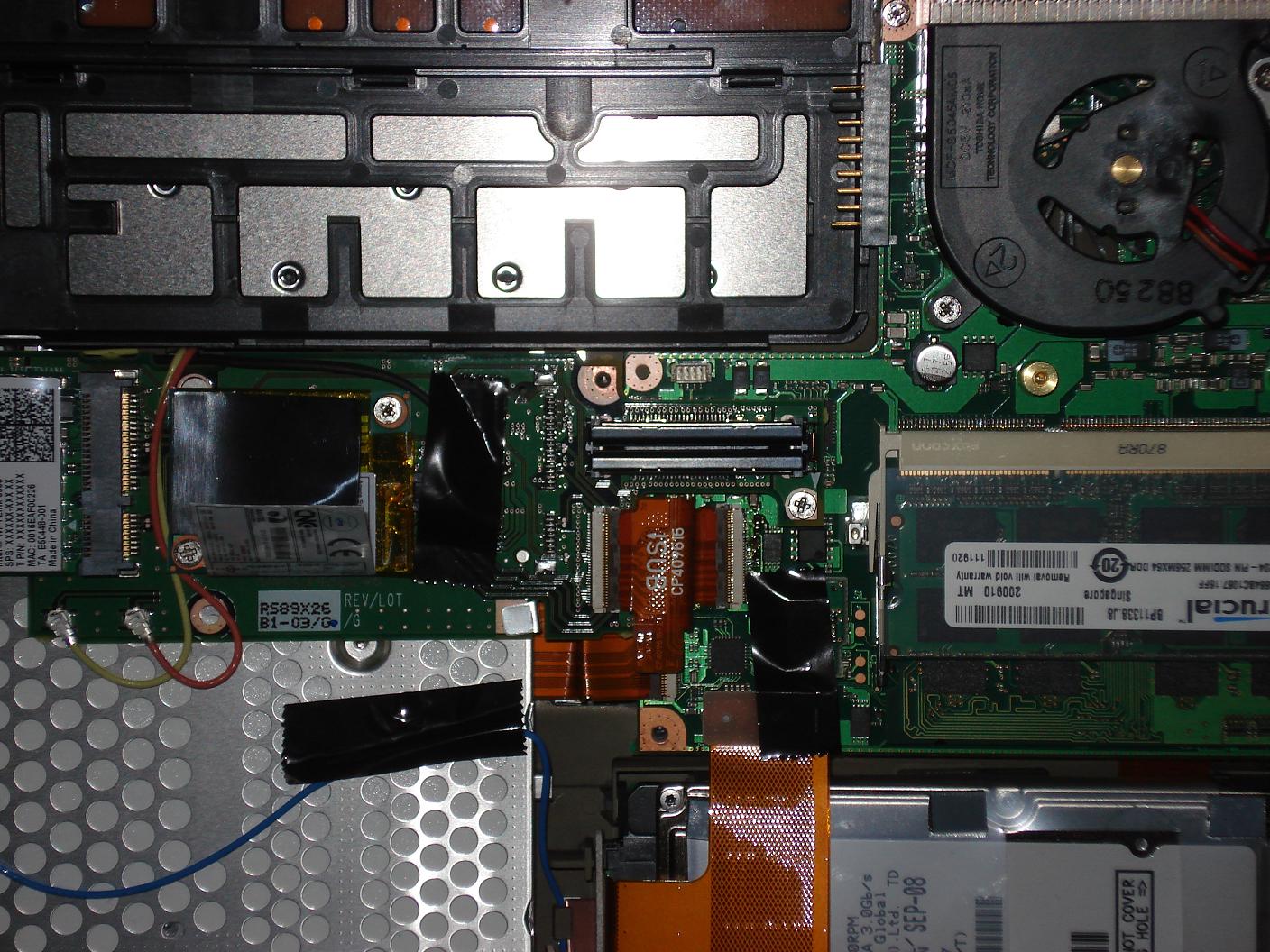

By looking at the first picture in this link it looks like the bluetooth module is seated right beside the HD to me on this P8010. The P8020 might be the same.
Edited to add:
It is the same as here are the pictures for the P8020.
http://www.notegear.com/Content/con...opage=1&TNum=843&kind=2&SearchString=&Search= -
I dont see the bluethooth module, I do see there is a plug plugged in where mine doesnt have the plug thats plugged in and the plud looks like it leads to the other side under the keyboard. http://www.notegear.com/Content/con...opage=1&TNum=843&kind=2&SearchString=&Search=
-
upperking i was looking at the P8010 bluetooth module on ebay and it looks like what is parked beside the HD.
http://cgi.ebay.co.uk/ws/eBayISAPI....Category=31534&_trkparms=algo=LVI&its=I&otn=2 -
you were right, that was where the bluetooth module went, works like a charm, plug was there and it was ready for module install. costed me only 75.00 for the bluetooth upgrade..
thank you for pictures.. -
now to see if I can add the camera board in the top screen bezel
Adding bluetooth module to P8020 myself
Discussion in 'Fujitsu' started by upperking, Apr 14, 2009.
