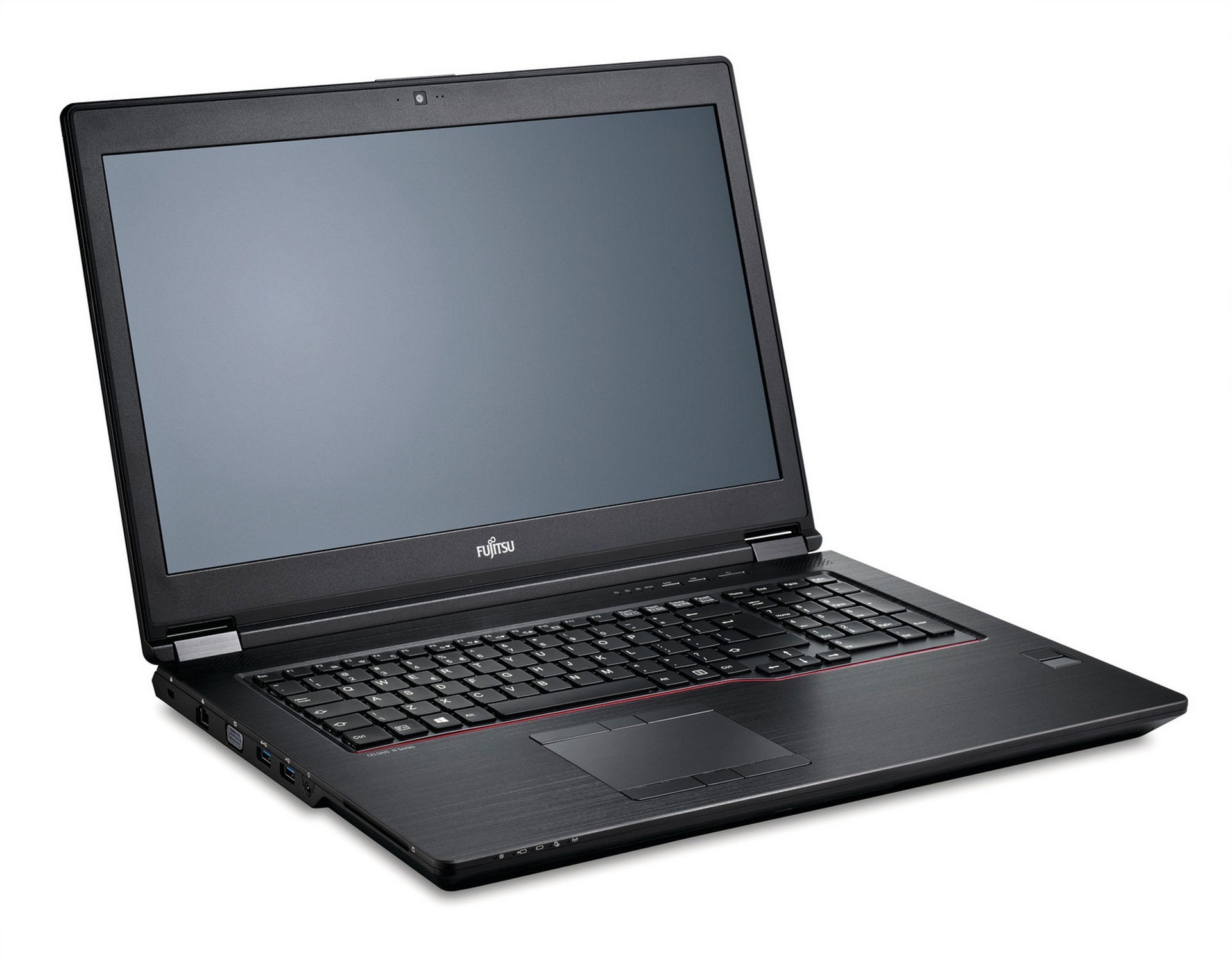

    Fujitsu CELSIUS H970

    Discussion in 'Fujitsu' started by sicily428, Mar 30, 2017.

  1. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited: Mar 30, 2017
    sicily428, Mar 30, 2017
    #1
  2. Maru

    Maru Notebook Consultant

    Reputations:
    136
    Messages:
    235
    Likes Received:
    89
    Trophy Points:
    41
    Maru, Apr 2, 2017
    #2
    triturbo and sicily428 like this.
  3. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

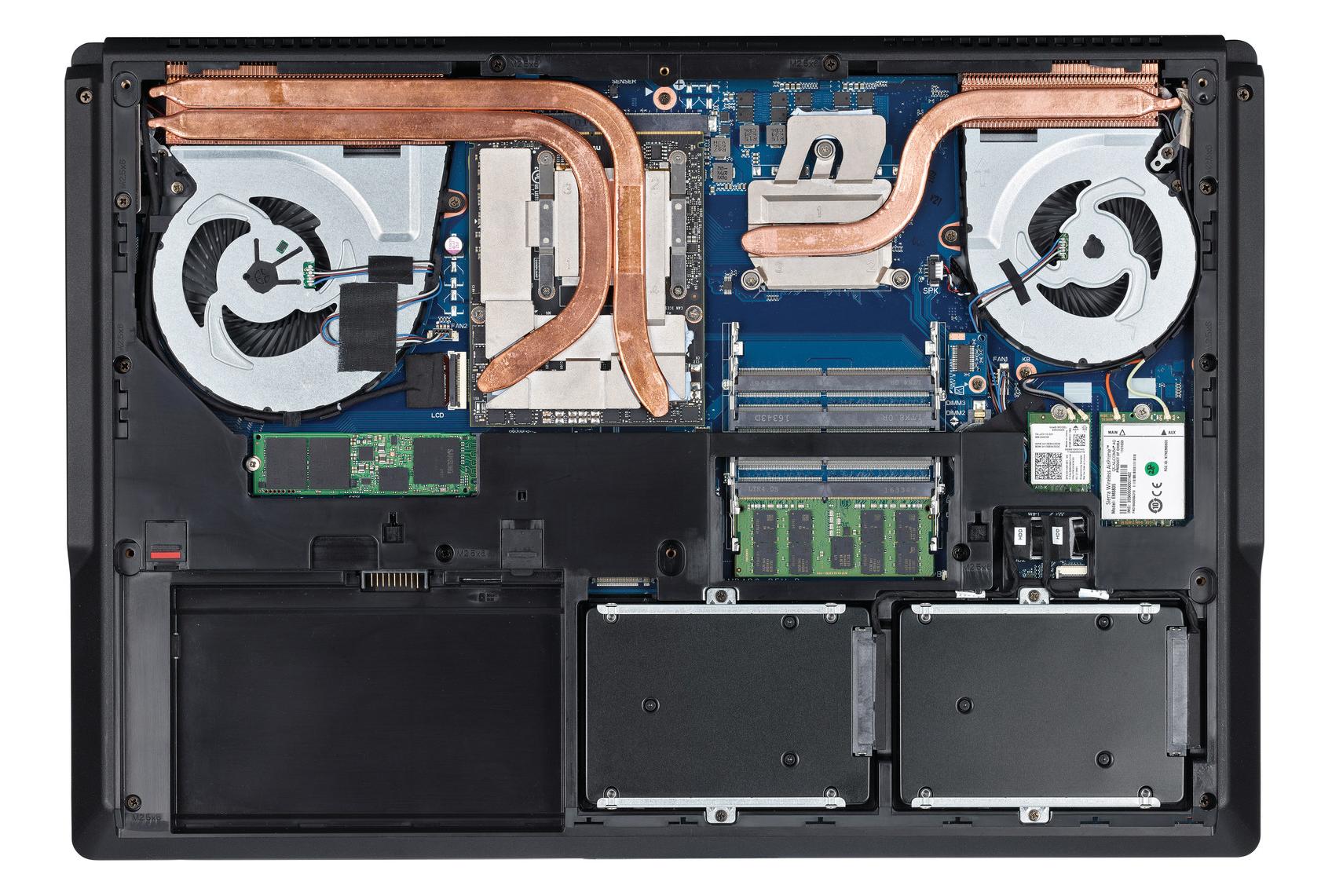

    Hey guys, this trashbook doesn't have adequate VRM cooling.

    The VRM is not even covered by the heatsink, I would recommend to avoid like bga crap.

    [​IMG]

    Mobius 1, Apr 5, 2017
    #3
    Mr. Fox, Starlight5 and sicily428 like this.
  4. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Mobius 1, Apr 6, 2017
    #4
  5. Starlight5

    Starlight5 Yes, I'm a cat. What else is there to say, really?

    Reputations:
    826
    Messages:
    3,230
    Likes Received:
    1,643
    Trophy Points:
    231
    @Mobius 1 *summoned*. I don't know, workstation with LTE and some battery life is always nice. (= But very low contrast ratio in datasheet is confusing, or I'd rather say alarming. Still, I'd like to see an actual review of the machine before going forward with conclusions.

    Starlight5, Apr 6, 2017
    #5
  6. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    I want to see the firework of that $3K P5000 bursting in to flames due to the VRM being completely uncooled

    Mobius 1, Apr 6, 2017
    #6
    Starlight5 likes this.
  7. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    It is atm the only 15" with a mxm 3.0b gpu card nvidia quadro p3000/p4000/p5000
    do you know reviews?

    Last edited: May 24, 2017
    sicily428, May 23, 2017
    #7
  8. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jun 11, 2017
    #8
  9. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

    Attached Files:

    sicily428, Jun 18, 2017
    #9
  10. ijozic

    ijozic Notebook Deity

    Reputations:
    122
    Messages:
    877
    Likes Received:
    186
    Trophy Points:
    56
    15"? No, it's not :)

    ijozic, Jun 18, 2017
    #10
  11. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    My bad! You are right. It is a 17"

    sicily428, Jun 18, 2017
    #11
  12. ijozic

    ijozic Notebook Deity

    Reputations:
    122
    Messages:
    877
    Likes Received:
    186
    Trophy Points:
    56
    Yeah, unfortunately, all the "proper" business workstations (e.g. Dell Precision series, HP ZBook, Lenovo P, Fujitsu Celsius) seem to limit their 15" models to MXM 3.0A only.

    But, I don't mind the looks of this latest Fujitsu model at all. I'll check the reviews, certainly.

    Though, I'm not sure my Ivy Bridge Precision warrants replacing. Perhaps it's better to wait for some bigger CPU architectural jump which Intel might be finally forced to do now that the AMD released some competitive products finally (absence of which allowed Intel to sell the same product over and over for like 7 generations, just slightly refined). Of course, that depends if one can find these new Quadros for upgrade at a relatively decent price.

    Last edited: Jun 18, 2017
    ijozic, Jun 18, 2017
    #12
    sicily428 likes this.
  13. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Wait for a Notebookcheck Review
    https://www.notebookcheck.net/
    Upcoming Reviews

    • Apple iPad Pro 12.9 (2017)
    • Amazon Fire 7 (2017)
    • Amazon Fire HD8 (2017)
    • BlackBerry KEYone
    • Blackview A9 Pro
    • Blackview P2
    • HTC U11
    • LG K4 Dual (2017)
    • Oukitel K6000 Plus
    • Sony Xperia XA1
    • Sony Xperia XZ Premium
    • Xiaomi Mi 6
    • Apple MacBook Air 13.3" 1.8 GHz (2017)
    • Apple MacBook 12 (2017)
    • Apple MacBook Pro 13.3" (2017)
    • Apple MacBook Pro 15.4" (2017)
    • Asus Zenbook UX3430UQ 940MX
    • Acer Aspire V17 Nitro BE VN7-793G
    • Acer Chromebook 14 CP5-471
    • Acer Swift 1 SF113-31 13-Zoll
    • Chuwi LapBook 12.3
    • Cube i35 "Thinker"
    • Dell XPS 13 FHD Intel Iris GPU
    • Fujitsu Celsius H970
    • Lenovo ThinkPad L470
    • Lenovo ThinkPad P51
    • Lenovo ThinkPad P71
    • Lenovo ThinkPad X1 Yoga IPS
    • MS Surface Pro i5 8GB 256GB
    • MSI GL72 7RDX
    • Panasonic Toughbook CF20

    sicily428, Jun 19, 2017
    #13
  14. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jun 21, 2017
    #14
  15. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    here a review (german)
    https://www.notebookcheck.com/Test-Fujitsu-Celsius-H970-E3-1535M-v6-P4000-Workstation.229800.0.html


    17.3 Zoll 16:9, 1920x1080 Pixel 127 PPI, LP173WF4-SPF3, IPS LED, spiegelnd: nein

    X-Rite i1Pro 2
    Maximal: 379 cd/m² Durchschnitt: 360.1 cd/m² Minimum: 37.5 cd/m²
    Ausleuchtung: 91 %
    Helligkeit Akku: 373 cd/m²
    Kontrast: 1227:1 (Schwarzwert: 0.3 cd/m²)
    ΔE Color 6.4 | - Ø
    ΔE Greyscale 7.2 | - Ø
    84.4% sRGB (Argyll) 55.5% AdobeRGB 1998 (Argyll)
    Gamma: 2.02
    ICC Datei (X-Rite i1Pro 2)


    [​IMG]

    [​IMG]


    Attached Files:

    sicily428, Jul 9, 2017
    #15
  16. ijozic

    ijozic Notebook Deity

    Reputations:
    122
    Messages:
    877
    Likes Received:
    186
    Trophy Points:
    56
    The thickness of only 30 mm is rather surprising given the socketed CPU and GPU, which helped with the weight as well - 3 kg is pretty good for a 17" workstation. Pretty good battery life given the battery size, thanks to Optimus, which doesn't bother me if the display port connection is directly connected to the GPU (for e.g. G-Sync external monitor, VR, etc.).

    Shame the CPU cooling is so anemic with only a single heatpipe!? What the hell happened there? Was it so hard to add another one at the very least? A mind numbing decision..

    ijozic, Jul 9, 2017
    #16
    sicily428 likes this.
  17. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    intel says 99c is tjmax

    so they cut production cost and went with 1 pipe

    Mobius 1, Jul 21, 2017
    #17
  18. ijozic

    ijozic Notebook Deity

    Reputations:
    122
    Messages:
    877
    Likes Received:
    186
    Trophy Points:
    56
    On a $5000 workstation?

    ijozic, Jul 21, 2017
    #18
  19. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    magic

    Mobius 1, Jul 21, 2017
    #19
  20. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Aug 20, 2017
    #20
  21. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231



    sicily428, Nov 20, 2017
    #21
  22. Maru

    Maru Notebook Consultant

    Reputations:
    136
    Messages:
    235
    Likes Received:
    89
    Trophy Points:
    41
    Maru, Oct 27, 2018
    #22
  23. TheQuentincc

    TheQuentincc Notebook Evangelist

    Reputations:
    86
    Messages:
    683
    Likes Received:
    223
    Trophy Points:
    56
    it might be a little bit late, but can someone dump the vbios of the P4000 mounted on the H970 using GPU-Z ?
    Thanks

    TheQuentincc, Aug 15, 2019
    #23
  24. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    Lol had the same issue. Never fixed. Just sold it for that reason. I mean same thing

    Wyoming88!, Aug 24, 2019
    #24
