    S6410 - What is this used for?

    Discussion in 'Fujitsu' started by david2201, Apr 30, 2009.

  1. david2201

    david2201 Newbie

    Reputations:
    3
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Hi Guys,

    I have a S6410 and I was just wondering does anyone know what port this is and what it can be used for? It is next to the Bluetooth Module and near the Mini PCI-E Card Slots.


    Thanks!

    david2201, Apr 30, 2009
    #1
  2. aidil

    aidil Notebook Evangelist

    Reputations:
    311
    Messages:
    490
    Likes Received:
    0
    Trophy Points:
    30
    It's for Intel Turbo Memory/Robson card (CMIIW).

    My friend has it in his S6410, but it's not in mine.

    aidil, May 1, 2009
    #2
  3. david2201

    david2201 Newbie

    Reputations:
    3
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    I thought that all Intel Turbo Memory Cards used the MiniPCI-E Slot?

    david2201, May 1, 2009
    #3
  4. aidil

    aidil Notebook Evangelist

    Reputations:
    311
    Messages:
    490
    Likes Received:
    0
    Trophy Points:
    30
    I also thought the same. Cause mine doesn't come with ITM. I thought it's because mine has built-in 3.5G which occupied the mini PCI express slot.

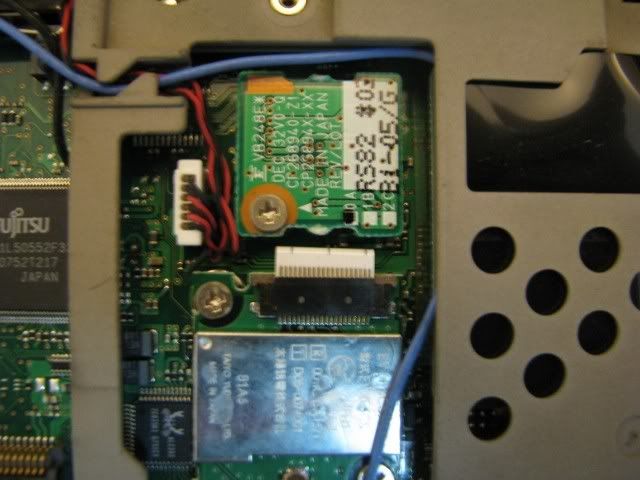

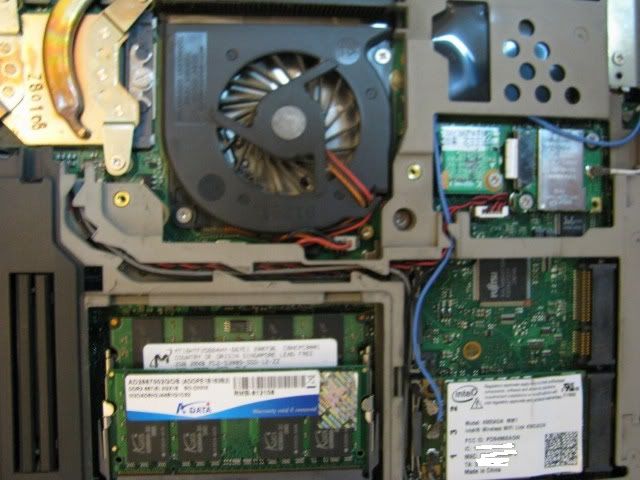

    But then a friend who also owns a S6410 but with ITM post inside pictures of his notebook which include the robson card:
    [​IMG]
    [​IMG]
    Pictures are courtesy of enry_tzu.

    aidil, May 2, 2009
    #4
  5. david2201

    david2201 Newbie

    Reputations:
    3
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the reply and for the pic!

    I did a quick search on the part number of that chip and it looks like CP268940-Z1 is actually a TPM Security Board.

    Are you sure your friend has Robson?

    I also have the 3G Version, so all my PCI-E slots are taken.

    david2201, May 2, 2009
    #5
  6. aidil

    aidil Notebook Evangelist

    Reputations:
    311
    Messages:
    490
    Likes Received:
    0
    Trophy Points:
    30
    Ahhh, bingo!!! I guess that explains. I also thought the robson card should've come in the mini PCI-e slot. And mine doesn't have it cause it's filled with the 3G card. But then this friend of mine said that his S6410 has ITM and he gave me these pictures.

    aidil, May 2, 2009
    #6
