    Crysis + 8800MGTX + Tweaking

    Discussion in 'Gaming (Software and Graphics Cards)' started by Doxie, Apr 10, 2008.

  1. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    I've been using the following tweaks when playing crysis:

    Code:
    e_particles_thread=1
    e_vegetation_static_instancing=1
    es_OnDemandPhysics=1
    e_hw_occlusion_culling_objects=1
    e_hw_occlusion_culling_water=1
    r_MultiGPU=0
    r_GeomInstancing=1
    e_decals_life_time_scale=1
    r_ShadowJittering=1
    e_shadows_max_texture_size=768
    r_ShadowMaskResolution=1
    r_UseEdgeAA=0
    r_TexturesStreaming=0
    e_lods=1
    e_particles_lod=0.6
    e_proc_vegetation=0
    e_water_ocean_fft=0
    r_sunshafts=1
    r_TexMaxAnisotropy=4
    r_SSAO=0
    d3d9_TextureFilter=bilinear
    r_UseParticlesRefraction=0
    r_WaterUpdateFactor=0.4
    q_Renderer=3
    r_colorgrading=1
    g_radialBlur=0
    r_ColorGradingDOF=0
    g_dofset_maxscale=1.5
    e_view_dist_ratio_vegetation=48
    e_cull_veg_activation=70
    e_vegetation_sprites_distance_ratio=1.5
    r_VSync=0
    d3d9_TripleBuffering=0
    r_ssao_quality=1
    r_ssao_amount=0.4
    r_SSAO_darkening=1.5
    r_TerrainAO_FadeDist=1
    e_vegetation_min_size=1.5
    e_lod_ratio=8
    e_terrain_lod_ratio=0.6
    e_detail_materials_view_dist_xy=4096
    e_detail_materials_view_dist_z=256
    e_max_entity_lights=20
    es_MaxPhysDist=300
    es_MaxPhysDistInvisible=35
    r_BeamsMaxSlices=250
    r_DetailDistance=12
    r_EyeAdaptationBase=0.15
    e_view_dist_ratio=80
    r_HDRLevel=0.8
    Performance and Game Settings

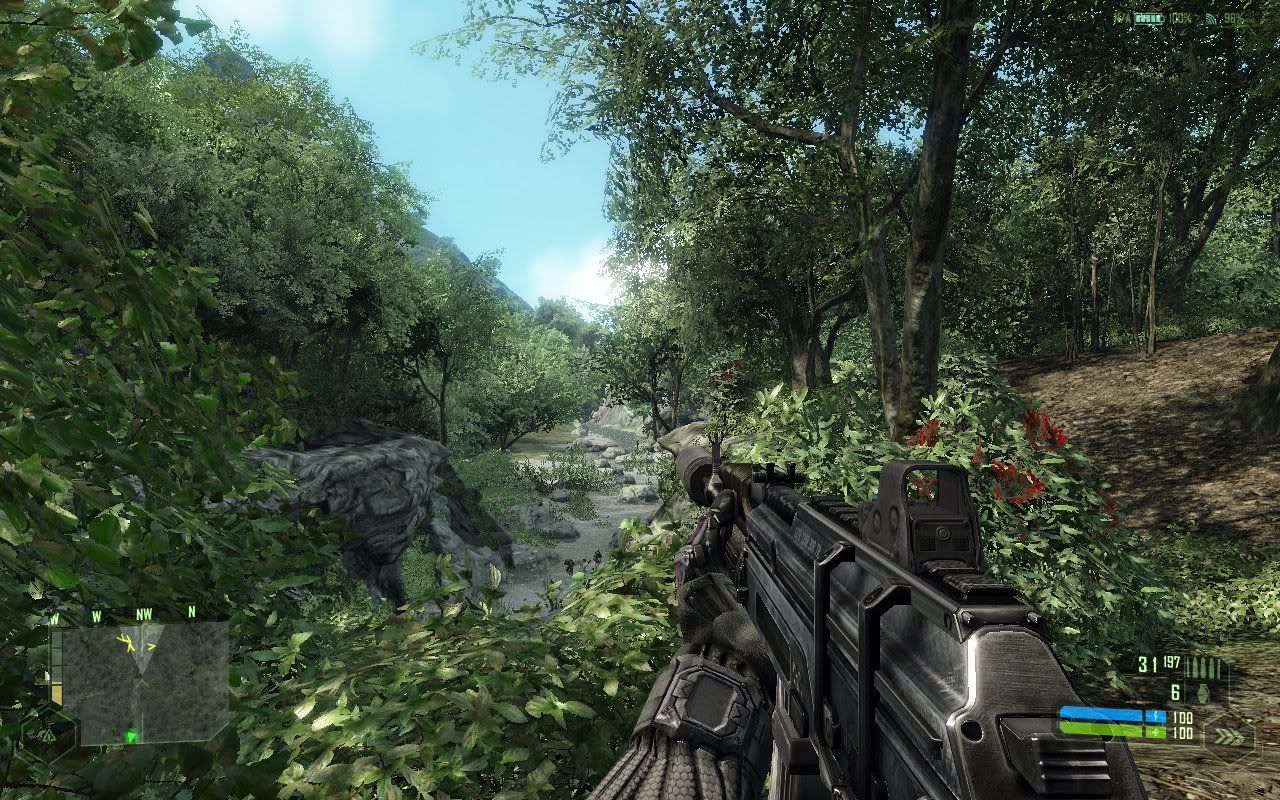

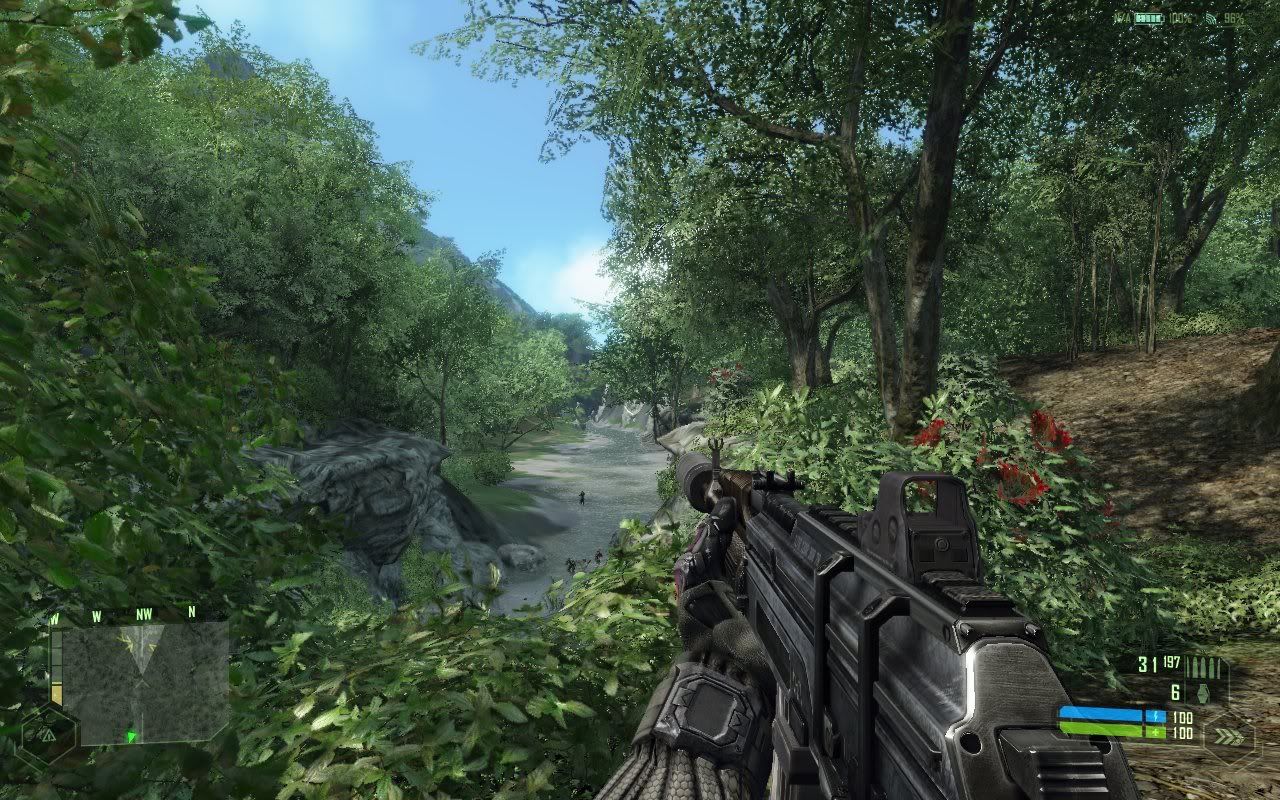

    It makes me lose 5-10 fps, BUT before you say that sucks take a look at the comparison screenshots: Untweaked | tweaked

    Untweaked = 25 fps in screeshot
    Tweaked = 30 fps in screenshot
    Whilst playing the lowest ive reach is 25 fps when everything is stressed out. (I stressed test my config -heavy firefight)

    My system is in my signature
    Driver used: 174.82
    reccomened driver: 174.16+ as it seems nvidia has optimised this game well with the 174 series.
    crysis patched to 1.2

    Game settings: 1280x800 all high bar shadows and particles (set to medium)

    What the Tweak affects

    The custom config turns on optimisations to the game engine.
    Turns on some very high effects.
    Improves general sharpness of the game.
    Shadow optimisations making it sharper and less performance impact.
    Eliminates pop ups of trees and rocks in levels as you move.
    Higher level of detail on distant textures

    Short Vid
    How to install the tweak

    Open up notepad and copy and paste the code above into it.
    Save the file into your crysis install folder and call it System.cfg

    *Not tested with the Natural Mod for crysis as it contains its own command variables.

    Performance tips

    if you find the config kills your system. Just change the following lines in the code above to reduce some quality

    Code:
    e_shadows_max_texture_size=512
    r_TexMaxAnisotropy=2 or 0
    e_particles_lod=0.3
    r_sunshafts=0

    delete these:
    q_Renderer=3
    r_colorgrading=1

    if on multigpu setup set:
    [b]r_MultiGPU=1[/b]
    experiment and reduce values in the code and settings in game. Massive improvements will be seen at medium shader settings

    **** Tweaking done with guidance from Tweakguides.com and own experimentation****

  2. guigz

    guigz Notebook Consultant

    Reputations:
    4
    Messages:
    118
    Likes Received:
    14
    Trophy Points:
    31
    nice ;) do you think i should use that tweak?
    I dont know if my 8700sli ll handle this....

  3. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    playing on lower resolution like 1280x800 would be fine on 8700SLI i should think.

    it doesnt hurt to try :p

    make sure to play dx9 mode for max performance

    oh if u on SLI turn set:

    r_MultiGPU=1

  4. naticus

    naticus Notebook Deity

    Reputations:
    630
    Messages:
    1,767
    Likes Received:
    0
    Trophy Points:
    55
    trying this now...

  5. naticus

    naticus Notebook Deity

    Reputations:
    630
    Messages:
    1,767
    Likes Received:
    0
    Trophy Points:
    55
    This is a good config, though your drivers i guess really help the FPS as mine can get down to about 15. I wish i could get this downclocking issue fixed. Aywya the shadows seem a little pixelated, how do u fix that?

  6. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    yeah 167.43/44 sucks for crysis
    anything above 174.16 is good.
    plus being on vista kill performance in this game ( i know - i had vista)

    shadows look pixelated due to the following commands:

    Code:
    r_ShadowJittering=0 : set to 1 to make it blur, or remove the line alltogether
    r_ShadowMaskResolution=1: set to 0 for maximum shadow LOD at distance, reduces performance though
    i recommend turning shadow jittering to 1 or 0.5, setting it to 0 is fastest

    also be sure to check the performance tips.
    The config still looks great with in game setting set to medium shaders

  7. link1313

    link1313 Notebook Virtuoso

    Reputations:
    596
    Messages:
    3,470
    Likes Received:
    0
    Trophy Points:
    105
    wow thats a big difference there. textures look way better.

  8. naticus

    naticus Notebook Deity

    Reputations:
    630
    Messages:
    1,767
    Likes Received:
    0
    Trophy Points:
    55
    Yeah this is really nice man! thx a bunch, repd you!

  9. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    glad u like it, after using those tweaks i find it hard to play crysis on its default.

  10. troyman21

    troyman21 Notebook Consultant

    Reputations:
    1
    Messages:
    196
    Likes Received:
    0
    Trophy Points:
    30
    Good differences I guess, but its kinda in need of anti-aliasing more...

  11. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    yeah, u cant have it all- if u set antialiasing on, it kills performance.

    another thing to try is

    r_UseEdgeAA=0

    set to 1 or 2 - not as much performance impacts as AA from Control panel settings.

    crysis's engine means it cant AA around edges of foliage and trees.

    using:

    r_UseEdgeAA=1 or 2
    means AA to those edges but perf hits

  12. troyman21

    troyman21 Notebook Consultant

    Reputations:
    1
    Messages:
    196
    Likes Received:
    0
    Trophy Points:
    30
    Yea, that's what I meant. Anything that gets rid of the edges or "jaggys" and still allows good performance would be better...

  13. Lite

    Lite Notebook Deity

    Reputations:
    342
    Messages:
    1,398
    Likes Received:
    0
    Trophy Points:
    55
    Lol call me stupid , but i like the look of the "jaggys" , to me it just makes it look better almost (well it does on the leaves and trees i think)

  14. Jlbrightbill

    Jlbrightbill Notebook Deity

    Reputations:
    488
    Messages:
    1,917
    Likes Received:
    0
    Trophy Points:
    55
    Call me cynical but with the exception of improved textures, I think this is regressing in graphic design.

    It's fairly clear the draw distance is tweaked which is why you see such detailed trees in the distance, but I think that's going against what the developers intended. It all looks sharper, but sharper does not mean more realistic. Shadows look better in some areas but worse in others.

  15. Magnus72

    Magnus72 Notebook Virtuoso

    Reputations:
    1,136
    Messages:
    2,903
    Likes Received:
    0
    Trophy Points:
    55
    Actually Vista does not kill performance of Crysis. DX10 in Crysis works wonders now. I am running 1920x1200 DX10 all High and get a 33-34 fps average, running it in DX9 I get almost the same, this in Vista of course. Haven´t tried XP yet though I don´t think I will dual boot my XPS, we'll see if it´s worth it. Personally I have very good performance in Vista, could be because I have disabled useless junk myself that it´s on par with XP in performance.

  16. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    true, its all a matter of taste :)

    i did the config based on my taste, i had to make a sacrifice somewhere, and shadows is one of the main performance hits.
    plus the tweak reduces popping of objects which i find enhances the experience.

    no one is forced to use all the config, spend time with each line and take bits and peices out of the tweaks, change the values to your own taste ;)

  17. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    i gain 10-20 fps when i moved back to xp o_0

  18. Dman7

    Dman7 Notebook Consultant

    Reputations:
    3
    Messages:
    230
    Likes Received:
    0
    Trophy Points:
    30
    Zomg, post some pics, I'm curious as to how this looks and runs on a single 8800m GTX :)

  19. Magnus72

    Magnus72 Notebook Virtuoso

    Reputations:
    1,136
    Messages:
    2,903
    Likes Received:
    0
    Trophy Points:
    55
    Nah no problem Doxie glad it runs great for you, I have my own config to run with so :)

  20. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    yeah thats cool.
    anychance you can post what configs you are using?
    id like to see if i can combine what i posted with yours and hopefully improve.

  21. Magnus72

    Magnus72 Notebook Virtuoso

    Reputations:
    1,136
    Messages:
    2,903
    Likes Received:
    0
    Trophy Points:
    55
    Yes sure will do that, I think I have a few tweaks to help you with some additional fps, we´ll see. I´ll post it when I get home from work.

  22. Doxie

    Doxie Notebook Consultant

    Reputations:
    63
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    ok thanks, i look forward to it
