GT 650m GTX 660M overclocking result database

650m, MSI GE60

I ran my overclocks almost half a year ago now. I hit i think around 1160MHz @ 60C° max LOL. My cooling in the GE60 seems to be really good.. When i tried pushing it further my screen would go black prolly cuz it wasnt having enough volts. Pitty because i felt there was enough room left for a higher clock..

I usualy only use the +135MHz OC. Temps are fine and will never be higher than 60C°.



Now that I finally figured how to go above the +135 Mhz overclock thanks to some advice from daCM here are my numbers:


Card Maker: HP

Model: GT 650M

Bios Version: Stock 80.07.35.00.2B

Stock Core speed: 745mhz/835mhz with boost

Stock Memory speed: 2,000mhz

Overclocked Core speed: 1,100mhz

Max Overclocked Core speed: 1,150mhz

Overclocked Memory speed: 3,100mhz

Max Overclocked Memory speed: 3,135mhz

Are these clocks your every day use clocks?: When running games

Are these your Max Clocks?: No

System: HP dv6t 7000

Max Temps: 85c Load



This happily kills your laptop. While you have 85C on GPU die, you have much-much more on GPU Memory chips.



1195Mhz core, 3000Mhz, memory. Did passmark 3d test (strugeling with 3dmark with my OC ram)



this score is higher than the average 670m scores..



did some fine tuning and the max i can run without any mods is Clock@ +135 Mhz and Memory@ +280 Mhz if i do 300 Mhz i get artifacts...

i get 1840 3D Points at the PerforamanceTest 8.0 with it

Driver 331.82 WHQL



Maybe so, this laptop is 2 years old and I'm willing to take the risk. I replace my laptops every two years anyway so I'm will to gamble with it. Thanks for the warning though. If I do kill my dedicated graphics card within the next year I will gladly come back here and let you all know. I ran folding at home on the 9 month old laptop this one replaced running it for 24/7 for 6+ months undisturbed along my desk before I got bored with it and retired it from the grueling torture test. During that time the CPU was at 100c-105c and the GPU at 90c+ at ALL times. My son know uses that HP envy laptop and it works just fine. Granted, I may have been lucky with the ENVY making it through but the 1 or 2 hours a week I overclock and run this Dv6t laptop hot while playing a game I feel won't harm it to much in comparison....and if does, I will have my excuse to replace it.

On edit:
James D,
I didn't mean to sound as if I don't believe or trust your opinion. I totally believe, and understand what you are saying. As it looks as if you have far more knowledge in this area vs my random poking around at things has given me. I just meant it as it's a risk I was willing to take and if/when things do go belly up, I will be prepared to accept it. As it is, this overclock on the GPU is giving this laptop some extra life in my eyes anyway. If I wasn't able to do it I would be replacing it as things where getting to slow on some newer games. This gave it that extra little umph that makes me OK with keeping this laptop around for another 6+ months. It has been a great (but very warm) laptop after all and personally I am bummed HP doesn't have a comparable replacement for it to take it's place. I will just have to move on to a different company.



I was going to say fine and go away but as long as you wrote this I will give another try. Check what fps you get in different games, lower memory OCing from 3300 to 2750 and look at the difference in fps.
Then realize that your GPU diode shows die's temperature (core) and not memory chip's which can go far, far above 100C.

Nice thing to google is fried vRAM.



3̶D̶M̶A̶R̶K̶ ̶1̶1̶ ̶s̶c̶o̶r̶e̶:̶ ̶<̶a̶ ̶h̶r̶e̶f̶=̶"̶h̶t̶t̶p̶:̶/̶/̶w̶w̶w̶.̶3̶d̶m̶a̶r̶k̶.̶c̶o̶m̶/̶3̶d̶m̶1̶1̶/̶7̶6̶8̶3̶8̶6̶1̶"̶>̶4̶2̶3̶4̶<̶/̶a̶>̶

G̶P̶U̶-̶Z̶:̶ ̶[̶I̶M̶G̶]̶h̶t̶t̶p̶:̶/̶/̶g̶p̶u̶z̶.̶t̶e̶c̶h̶p̶o̶w̶e̶r̶u̶p̶.̶c̶o̶m̶/̶1̶3̶/̶1̶2̶/̶1̶9̶/̶n̶n̶.̶p̶n̶g̶[̶/̶I̶M̶G̶]̶

C̶a̶r̶d̶ ̶M̶a̶k̶e̶r̶:̶ ̶L̶e̶n̶o̶v̶o̶

M̶o̶d̶e̶l̶:̶ ̶G̶T̶X̶ ̶6̶6̶0̶M̶

B̶i̶o̶s̶ ̶V̶e̶r̶s̶i̶o̶n̶:̶ ̶2̶.̶0̶7̶ ̶(̶U̶n̶l̶o̶c̶k̶e̶d̶,̶ ̶b̶y̶ ̶s̶v̶l̶7̶ ̶,̶ ̶w̶h̶i̶c̶h̶ ̶w̶a̶s̶ ̶t̶h̶e̶n̶ ̶m̶o̶d̶i̶f̶i̶e̶d̶ ̶a̶g̶a̶i̶n̶ ̶t̶o̶ ̶i̶n̶c̶r̶e̶a̶s̶e̶ ̶6̶6̶0̶m̶ ̶v̶o̶l̶t̶a̶g̶e̶ ̶f̶r̶o̶m̶ ̶1̶.̶1̶0̶0̶ ̶t̶o̶ ̶1̶.̶1̶5̶0̶ ̶(̶b̶y̶ ̶E̶r̶Y̶a̶n̶i̶ ̶

S̶t̶o̶c̶k̶ ̶C̶o̶r̶e̶ ̶s̶p̶e̶e̶d̶:̶ ̶8̶3̶5̶ ̶M̶H̶z̶

S̶t̶o̶c̶k̶ ̶M̶e̶m̶o̶r̶y̶ ̶s̶p̶e̶e̶d̶:̶ ̶2̶5̶0̶0̶ ̶(̶1̶2̶5̶0̶ ̶ ̶M̶H̶z̶

O̶v̶e̶r̶c̶l̶o̶c̶k̶e̶d̶ ̶C̶o̶r̶e̶ ̶s̶p̶e̶e̶d̶:̶ ̶1̶3̶0̶0̶ ̶M̶H̶z̶

O̶v̶e̶r̶c̶l̶o̶c̶k̶e̶d̶ ̶M̶e̶m̶o̶r̶y̶ ̶s̶p̶e̶e̶d̶:̶ ̶3̶0̶5̶0̶ ̶(̶1̶5̶2̶5̶ ̶ ̶M̶H̶z̶

A̶r̶e̶ ̶t̶h̶e̶s̶e̶ ̶c̶l̶o̶c̶k̶s̶ ̶y̶o̶u̶r̶ ̶e̶v̶e̶r̶y̶ ̶d̶a̶y̶ ̶u̶s̶e̶ ̶c̶l̶o̶c̶k̶s̶?̶:̶ ̶H̶e̶l̶l̶ ̶Y̶E̶A̶H̶!̶!̶

A̶r̶e̶ ̶t̶h̶e̶s̶e̶ ̶y̶o̶u̶r̶ ̶M̶a̶x̶ ̶C̶l̶o̶c̶k̶s̶?̶:̶ ̶C̶a̶n̶ ̶g̶e̶t̶ ̶u̶p̶ ̶t̶o̶ ̶1̶3̶5̶0̶/̶3̶1̶0̶0̶ ̶(̶1̶5̶5̶0̶ ̶ ̶w̶i̶t̶h̶ ̶m̶i̶n̶o̶r̶ ̶a̶r̶t̶i̶f̶a̶c̶t̶s̶,̶ ̶w̶h̶i̶c̶h̶ ̶o̶n̶l̶y̶ ̶a̶p̶p̶e̶a̶r̶ ̶i̶n̶ ̶3̶D̶M̶A̶R̶K̶ ̶1̶1̶/̶V̶A̶N̶T̶A̶G̶E̶,̶ ̶I̶ ̶m̶a̶i̶n̶l̶y̶ ̶p̶l̶a̶y̶ ̶D̶O̶T̶A̶ ̶2̶ ̶a̶n̶d̶ ̶g̶e̶t̶ ̶n̶o̶n̶e̶ ̶i̶n̶ ̶t̶h̶e̶r̶e̶ ̶e̶x̶c̶e̶p̶t̶ ̶f̶o̶r̶ ̶r̶a̶r̶e̶ ̶s̶c̶r̶e̶e̶n̶ ̶f̶l̶i̶c̶k̶e̶r̶i̶n̶g̶ ̶w̶h̶i̶c̶h̶ ̶i̶s̶ ̶c̶a̶u̶s̶e̶d̶ ̶b̶y̶ ̶a̶ ̶c̶o̶m̶b̶i̶n̶a̶t̶i̶o̶n̶ ̶o̶f̶ ̶m̶y̶ ̶s̶c̶r̶e̶e̶n̶ ̶r̶e̶s̶o̶l̶u̶t̶i̶o̶n̶ ̶(̶e̶m̶u̶l̶a̶t̶e̶d̶ ̶1̶9̶2̶0̶x̶1̶0̶8̶0̶ ̶ ̶o̶n̶ ̶m̶y̶ ̶7̶2̶0̶p̶ ̶T̶V̶ ̶a̶n̶d̶ ̶a̶n̶t̶i̶ ̶a̶l̶i̶a̶s̶i̶n̶g̶ ̶s̶e̶t̶t̶i̶n̶g̶s̶.̶ ̶H̶o̶w̶e̶v̶e̶r̶,̶ ̶j̶u̶s̶t̶ ̶t̶o̶ ̶b̶e̶ ̶s̶a̶f̶e̶,̶ ̶I̶ ̶t̶o̶n̶e̶d̶ ̶i̶t̶ ̶d̶o̶w̶n̶ ̶t̶o̶ ̶t̶h̶e̶ ̶a̶b̶o̶v̶e̶ ̶f̶o̶r̶ ̶e̶v̶e̶r̶y̶ ̶d̶a̶y̶ ̶u̶s̶a̶g̶e̶.̶

S̶y̶s̶t̶e̶m̶:̶ ̶L̶e̶n̶o̶v̶o̶ ̶Y̶5̶8̶0̶

M̶a̶x̶ ̶T̶e̶m̶p̶s̶:̶ ̶7̶2̶°̶ ̶C̶ ̶m̶a̶x̶i̶m̶u̶m̶ ̶d̶u̶r̶i̶n̶g̶ ̶3̶D̶M̶A̶R̶K̶ ̶1̶1̶,̶ ̶m̶e̶a̶s̶u̶r̶e̶d̶ ̶b̶y̶ ̶N̶V̶I̶D̶I̶A̶ ̶I̶n̶s̶p̶e̶c̶t̶o̶r̶ ̶s̶e̶n̶s̶o̶r̶ ̶m̶o̶n̶i̶t̶o̶r̶i̶n̶g̶.̶

Invalid result, see: http://forum.notebookreview.com/gam...erclocking-result-database-8.html#post9589503

Let me keep the Like XD



I knew that lenovo was a monster i knew it !



It's probably worth mentioning, I recently had an RMA for this laptop and had its mobo replaced (wrong BIOS setting... oops) which means the GPU was replaced as well since it's soldered, along with some other parts which I scratched/torn/broke (even though the warranty sticker was nearly 100% worn out lol). Anyway, on the RMA website where you view updates, it said they were short on parts and had to wait to order new ones which may mean I got one of the newer made 660ms ? IDK, but I'll tell you one thing for sure, IIRC, my max OC clocks at 1.125 V were 1150/2500, and driver would crash nonstop with the 1.15 vbios.



Do you have SLI?



No.. It also says on the benchmark page I don't

EDIT: Although, I'd be interested in knowing how to on my y580 if it's possible (which I don't think it is).



2nd card instead of optical drive.
What GPU-z says about quality of your chip?



Initially, I had a HDD I moved from the standard sata slot to the optical drive via caddy, but then I bought an mSATA SSD (SX300), it's 256 GB, so that's the only storage/drive in my laptop, and using the HDD as an external HDD via USB. So, I never put the optical drive back in and now it's just empty. Does that answer your question..

And, I'm not sure what you mean by "quality of chip."

EDIT: Wait, are you saying I CAN put a second GPU in the optical drive?? Also, I just noticed that there is a a third msata/pcie slot which isn't being used (excluding mSATA, and wifi card) and after looking at some pictures of what mobile GPUs look like, the slot seems similar... so they're the same? How would you put a heat sink on it and since it'd be using more power would a higher wattage power adapter be needed or further adjustments?



the y580 cant be moded with a second gpu in the optical bay
only the y500 and the y510p



Really? Then I gave him false hope.

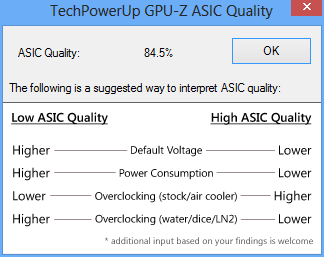

@blowntaha Read ASIC quality.



lol i kinda already figured I couldn't. Where is ASIC quality? Isn't that a type of bitcoin miner

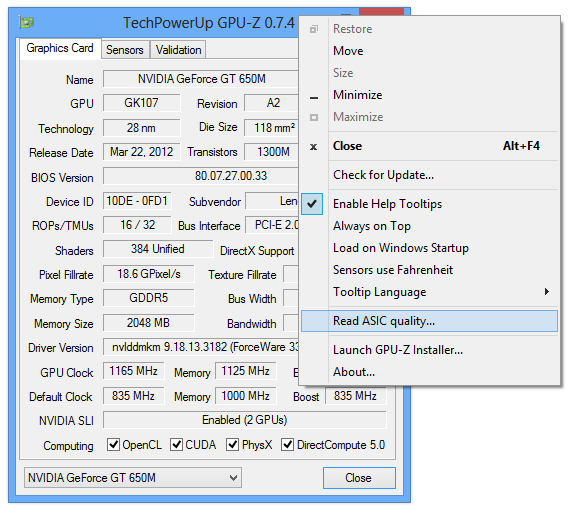

It's in GPU-Z when you right-click on the title bar. Tell us what percentage you get.



Mine reads at 77.5% What exactly does this number mean?



nice chip, it's quality of your gpu, the more high it is, the best it is



thanks,

so an ASIC reading of 77.5% is a nice one? Would it have been 100% when I first receive it or is that number static and never changing. Do different voltage setting changes (via BIOS flashing) affect this number?

Also, sort of an off-topic question, but I was looking to buy a new charger for my laptop (to keep in two different locations in case I forget to bring it) and I came across an ASUS G75 charger which is 150W. Standard chargers for y580 are rated at 120W. I know it fits because G75 can fit in ASUS K-series, and K-series will fit in y580. So, my question is, if I get this one, will it be able to provide better stability at higher voltages? I was also thinking about bumping my voltage to 1.175 or 1.15 for everyday use (I brought it down to 1.125 coz of some weird glitches).

Here is the link for the charger: Asus G75 G75VW TS71 G75VW TS72 G75VW RS72 19 5V 7 7A 150W AC Adapter Cord | eBay



if you got glitches try to lower your memory clocks
and the number is static ASIC quality is pure chance
The charger should work but be wareful you cant OV as you want to



They're both 19.5 V, but the ASUS one is 7.7A, where as the y580 one is 6.15A. So that makes the ASUS one (19.5) X (7.7) = 150 W. From what I've researched, whenever you use different chargers, you have to make sure the voltage is the same and amperage has to be same or higher since the system will only pull what it is needed.

But, what I'm asking is would it contribute to better system stability if I were to increase voltage from 1.125 V to 1.175 V && AND && use throttlestop to lock the CPU multiplier to stay in turbo mode (or rather keep it in turbo mode for a longer duration and more frequent bursts).

What I noticed from the 1.175 V and the 1.15 V was whenever I'd use throttlestop for skyrim/benchmarking/etc in addition to light OCing (e.g. 1250-1300 core 2800-3100 mem), I'd get driver crashes and had a few BSODs (all of which were the ones where something timed out for the GPU, I forgot the exact message).



Just an update, yes it does provide better stability, xD



3DMARK 11 Graphic score: 3267

Card Maker: Lenovo

Model: GTX 660M

Bios Version: 2.07 (Unlocked, by svl7), overvolted using erYani mod to 1.125V
Stock Core speed: 835 MHz
Stock Memory speed: 2500 (1250) MHz

Overclocked Core speed: 1290 MHz
Overclocked Memory speed: 2850 (1425) MHz

Are these clocks your every day use clocks?: If it isn't above 80 C during game, might lower it a bit.

Are these your Max Clocks?: Yes, it has some artifacts during 3Dmark11 but no problem during game (Borderlands 2)
System: Lenovo Y580

Max Temps: 84° C maximum during 3DMARK 11, 78° C maximum during Borderlands 2 (+-80% GPU load)

ASIC Quality 82%


I love this laptop and GPU Thanks to modders, we can OC this card to its maximum potential.
I wish I could reach as far as Blowntaha (1300/3050) but my temp is reaching outside of my comfortable zone so I think I will stop at 1.125V and be grateful to what I got



3DMARK 11 score: 3983.

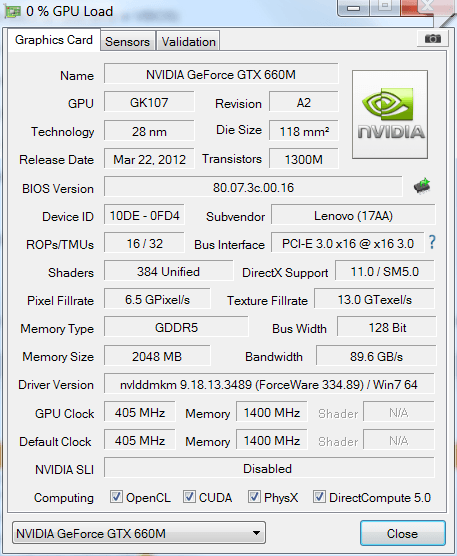

GPU-Z:
.

System: Lenovo Y580

Card Maker: Lenovo.

Model: NVIDIA GeForce GTX 660M.

Bios Version: I modified svl7's 2.07 unlocked BIOS by increasing voltage in VBIOS by ~10.23%. e.g. 1.10 V ==> 1.2125 V (reads as 1.2120 V in GPUZ && NV Inspector which I assume is actual).

Stock Core speed: 835 MHz (changed base clock to 1200 MHz in VBIOS).

Stock Memory speed: 2500 MHz (changed base clock to 2800 MHz in VBIOS).

Overclocked Core speed (Benchmarking/Everyday): 1400 / 1385-1390 MHz

Overclocked Memory speed (Benchmarking/Everyday): 2800 / 2800 MHz

Are these clocks your every day use clocks?: See above ^.

Are these your Max Clocks?: See above ^.

Temps: Temps for these applications =

• Idle: 42°-50° (if my window is open )
• 3DMARK 11: 68°-70° C.
• Skyrim: 74°-75° C.
• Crysis 3: 76° C.
• Dota 2: ~73° C.
• Absolute max temp I saw was 82 but this was because: (A) My window was closed; (B) I forgot to take my laptop's bottom cover off; (C) It was a hot day.
• TLDR; 42°-82° C.

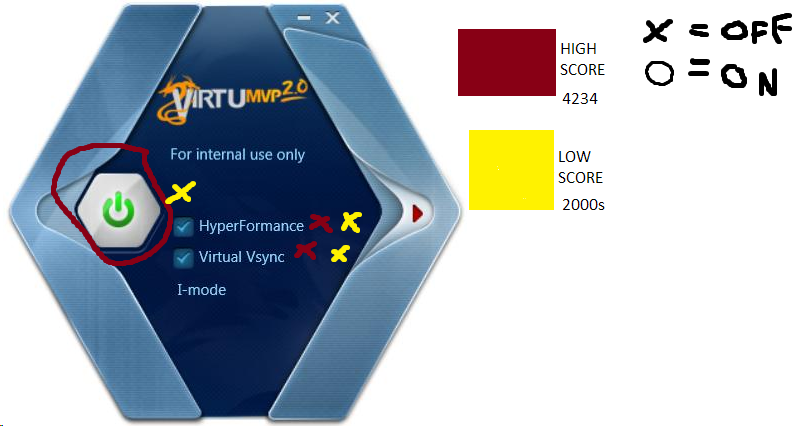

Please ignore my earlier benchmark of 4234. It should, by all means, be considered false due to virtu MVP. Now, when I ran this benchmark, both "Hyperformance" and "Virtual V-Sync" were BOTH OFF but virtu MVP 2.0 was still "enabled." For those of you who don't know, this program actually changes how graphics are rendered and sort of combines optimus and SLI; and works great for the 3% of games it actually supports (Don't believe their "supported games" list). Anyway, I wanted to try out virtu mvp once again to (A) give it another chance and (B) to see if it influenced my 3dmark 11 score. I turned off both h-performance and virtu-vsync and then turned off virtu mvp 2.0 via control panel -> restarted and my score was really ty. Then I repeated those steps, only this time I didn't disable virtu mvp itself.
