    Graphic Issues: ATI Xpress 200M

    Discussion in 'Gaming (Software and Graphics Cards)' started by bbmonster, Jan 5, 2006.

  1. bbmonster

    bbmonster Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5

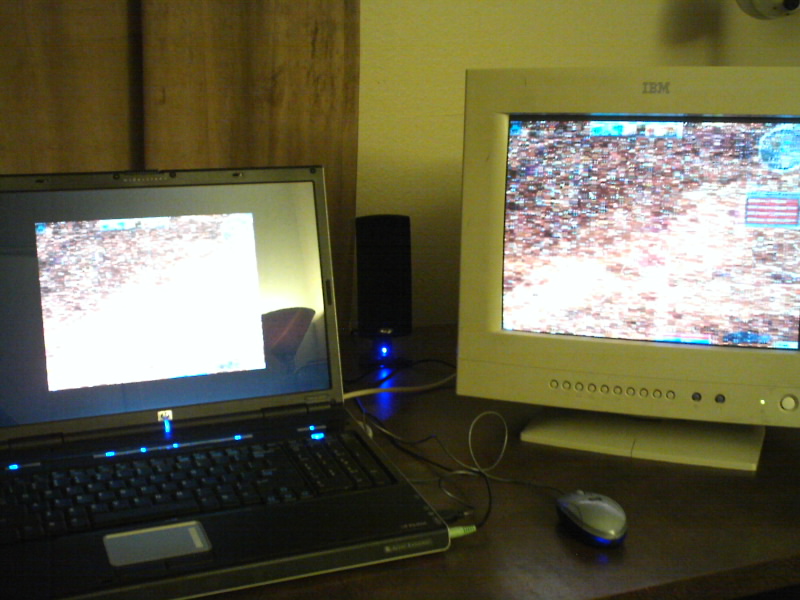

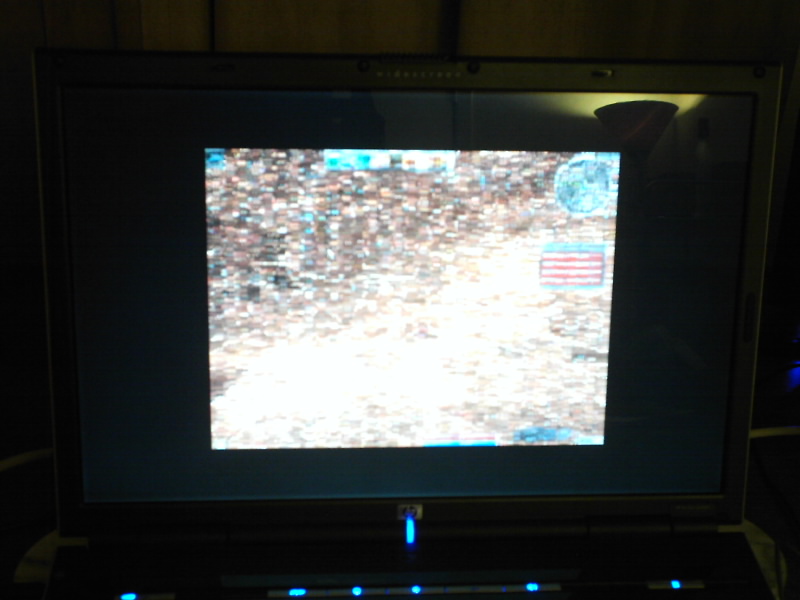

    I recently bought a dv8000 with an ATI Xpress 200M graphics card. So far I've been impressed by the card's ability to run games such as Guild Wars and Half Life 2 w/ all graphic options enabled. But, during gameplay and seemingly at random, the graphics will go haywire (examples in the attached images). I don't use 2 monitors regularly, I was just testing to see if it was a problem with the LCD...

    Can anyone explain this? Is it just overheating (I have not done any overclocking)? Also, why would the card's core speed only be 300MHz, when ATI's specs clearly state it has a 350MHz core?

    Anyway, thanks for any insight you can provide.


    Attached Files:

  2. USAFdude02

    USAFdude02 NBR Reviewer & Deity NBR Reviewer

    Reputations:
    762
    Messages:
    2,025
    Likes Received:
    0
    Trophy Points:
    55
    It might be overheating, but it could be the card too. Do you have it overclocked, if so what are you settings. The other thing is try to reinstall the drivers etc to see if that will help out. At least if it doesn't you can eliminate that option.

  3. bbmonster

    bbmonster Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    The card is not overclocked. I ran PowerStrip and ATI Tool just to see what it was running at, right now it's default at 300:250 (although ATI's specs say it should be 350:x)...

    [edit]So technically, the card is underclocked. Would overheating still be possible? What's a good program to run to check GPU/CPU temps?[/edit]

    I reinstalled drivers (5.10) and the problems persisted. It's still under warranty and HP is telling me to send it back, but just wanted to check here to see what any one else might think it is...

    [edit]I'll probably install the 5.13 drivers tonight and see if that helps any, but for some reason I'm thinking it's not a driver issue...[/edit]

  4. phinsup

    phinsup Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    yup same problem here on my dv8000, i dot even have to be playing a game for it to happen

  5. waffler

    waffler Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Mabye it's a driver problem...have you tried using an older/newer driver set? Also try out the Omega drivers.

  6. phinsup

    phinsup Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    i have tried old drivers, newest omega, nothing works, i am thinking it might be an overheat issue,, but wut do i know.

  7. phinsup

    phinsup Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    figured i would pass this along,, only thing i hadnt already done wus the bios update.... but i willl give it a try


  8. Skixis

    Skixis Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    lmao, looks like you reformatted your laptops hard drive and didnt install your display drivers but compensated by turning up to the highest screen covering setting. is your screen on laptop always that size?

    think im going to wait and see your response to the above help before i add to this.

  9. delite

    delite Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I have exactly same problem with my HP Pavilion dv 8140 us ( Ati xpress 200m video card ), if anyone know how to solve it please let me know.

    Thank you.

  10. bbmonster

    bbmonster Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Update your BIOS. I don't know about the other poster that mentioned this, but updating to the latest BIOS version fixed the problem on my dv8000z.

    dv8140us BIOS Drivers

    Release Date: 2006-03-03 Version: F.33 A



    Description

    This package contains the WinFlash utility and a BIOS image for the listed operating systems. The WinFlash utility is used to locally flash the System BIOS (ROM) on notebooks operating in a Microsoft Windows environment.

    PURPOSE: Critical

    OPERATING SYSTEM(S):
    Microsoft Windows XP Professional
    Microsoft Windows XP Home Edition
    Microsoft Windows XP Media Center Edition



    Fixes

    # Fixes issue where the notebook stops responding (hangs) while the "Windows is shutting down..." message is displayed after a user clicks Start and then clicks Shut Down.
    # Resolves issues with "Driver Lock" error message, which is occasionally displayed after resuming from Hibernation mode.



    Enhancements

    # Improves Video Firmware settings to enhance system performance.
    # Adds support for Microsoft Media Center Edition (MCE) Remote Controller.
    # Adds support for SoftThinks Recovery function in BIOS.
    # Adds support for new HP QuickPlay 2.0.
