    Gtx 560m 88~90c...

    Discussion in 'Gaming (Software and Graphics Cards)' started by mrblings, Mar 15, 2013.

  1. mrblings

    mrblings Notebook Consultant

    Reputations:
    0
    Messages:
    117
    Likes Received:
    0
    Trophy Points:
    30
    its been about 1 year and about 4 months since i got this laptop

    the specs:

    gtx 560m
    i7 2670QM
    500HDD
    8 gb

    yesterday i was playing tera and for some reason the the fans were loud and checked the cpuid hardware and it was 90C... i cleaned the inside and i played today.

    today it was little bit down but i still get 85~88. sometimes 90C... do i need to repaste? I didnt touch any of the heatsink or w/e

    mrblings, Mar 15, 2013
    #1
  2. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    Ya, repaste and clean the vents (make sure you check the positioning of GPU pads). Also one little observation, IC Diamond is better on CPU than PK-1 (imo).

    maxheap, Mar 16, 2013
    #2
  3. mrblings

    mrblings Notebook Consultant

    Reputations:
    0
    Messages:
    117
    Likes Received:
    0
    Trophy Points:
    30
    what do you mean positioning of gpu pads? my cpu is fine right now. what should i use for gpu tho?

    mrblings, Mar 16, 2013
    #3
  4. failwheeldrive

    failwheeldrive Notebook Deity

    Reputations:
    1,041
    Messages:
    1,868
    Likes Received:
    10
    Trophy Points:
    56
    PK-1 should be fine for the GPUs. From my experience most aftermarket paste is fine as long as you properly apply it. Don't use too much, but make sure it covers the GPU die after the heatsink is applied.

    failwheeldrive, Mar 16, 2013
    #4
  5. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131

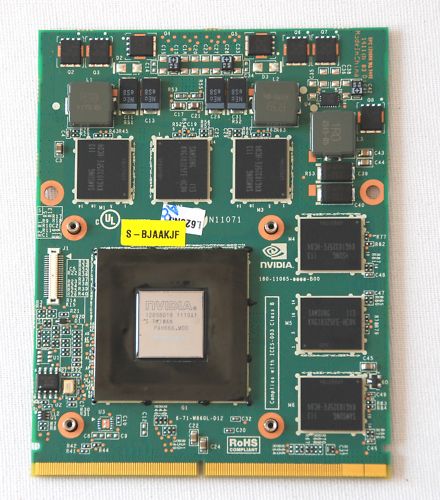

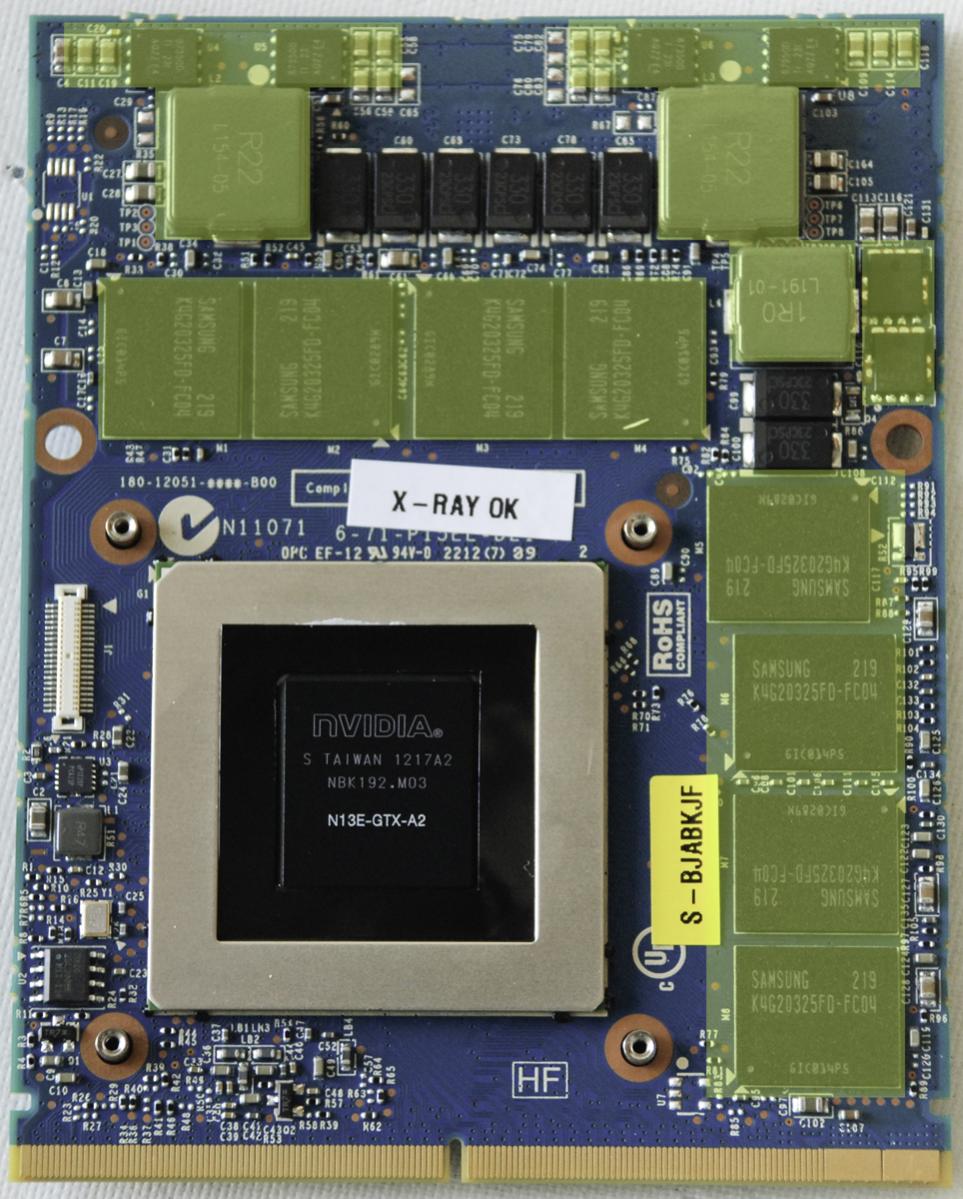

    I didn't find a picture for 560m thermal pad positions but the following pictures would be enough. The first one is 680m, the second one is your card 560m, make sure the same parts (vram and those transistors) are covered by thermal pads and is NOT touching the heatsink.


    Attached Files:

    maxheap, Mar 16, 2013
    #5
  6. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,878
    Trophy Points:
    931
    I recommend reapplying thermal paste, give the heatsinks some good time with the compressed air, and you'll likely be good to go. Heck after 6 months my CPU temps in my Sager NP9150 started to shoot up. Just a few blasts with compressed air got out the dust bunnies and temps are nice and cool again.

    HTWingNut, Mar 17, 2013
    #6
  7. nakednakedguy

    nakednakedguy Notebook Guru

    Reputations:
    8
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    15
    Agree with the above, clean gpu die and heatsink with isopropyl and put on a small amount of new thermal paste, if it doesn't get better maybe replace the thermal pads aswell.

    nakednakedguy, Mar 17, 2013
    #7
  8. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    btw instead of compressed air (the correct way to do it) I am lazy enough to take out the heatsink, and use vacuum cleaner on it :D (*** NBR Disclaimer: you may damage your product if you do this ***)

    maxheap, Mar 17, 2013
    #8
