    Mobile med-end GTX 460M = Desktop low-end Geforce GTS 430 ? MSI-GT760 laptop

    Discussion in 'Gaming (Software and Graphics Cards)' started by mitsuhide, Jul 7, 2010.

  1. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    (Fermi GF100 core)Desktop GeForce GTX 465 = 352 SP =Mobile GTX 480M

    (Fermi GF104 core)Desktop GeForce GTX 460 = 240 SP =Mobile GTX 470M ?

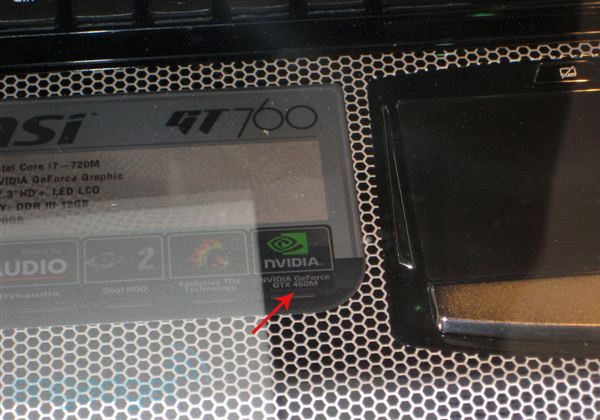

    (Fermi GF104 core)Mobile med-end GTX 460M = 192 SP = Desktop low-end Geforce GTS 430 ?

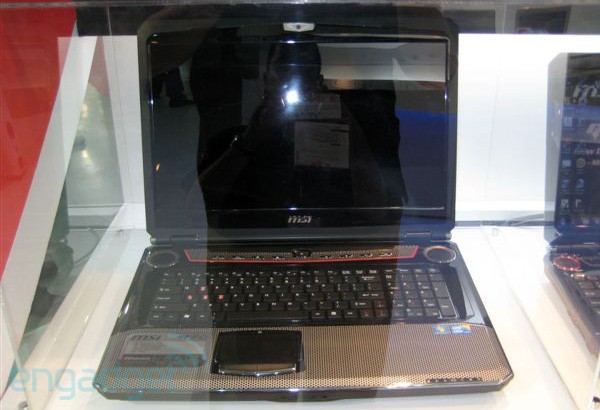

    MSI-GT760 laptop

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    mitsuhide, Jul 7, 2010
    #1
  2. mobius1aic

    mobius1aic Notebook Deity NBR Reviewer

    Reputations:
    240
    Messages:
    957
    Likes Received:
    0
    Trophy Points:
    30
    Seems like a pretty good machine. I'm going to suspect that your presumption is close to spec, it makes sense. Honestly I'm more interested in smaller machines, and I'd like to see what could be done in a 14 inch machine.

    mobius1aic, Jul 7, 2010
    #2
  3. Phinagle

    Phinagle Notebook Prophet

    Reputations:
    2,521
    Messages:
    4,392
    Likes Received:
    1
    Trophy Points:
    106
    GTX 460M is based on the GF106 GPU. From the looks of things the GTX460M will be a 192 core/192-bit GPU (as seen in the ASUS Lambo VX7) but GF106 could still have potential derivatives in the 144 core to 240 core range. For desktop cards GF106 could have model numbers 430 thru 455.

    The desktop GTX 460 is using the GF104 GPU which has 336 CUDA cores (cut down from 384) and my guess is that GF104 won't show up in mobile form unless Nvidia has to fire back at ATi with a GTX 485M.

    There's also GF108 that's been spotted with 96 cores in the MSI FX700 which is looking like the GTS 430M right now.


    The GT760 thread in the MSI forums: http://forum.notebookreview.com/msi/488538-msi-gt760-shown-computex.html

    Phinagle, Jul 7, 2010
    #3
  4. sean473

    sean473 Notebook Prophet

    Reputations:
    613
    Messages:
    6,705
    Likes Received:
    0
    Trophy Points:
    0
    laptop looks ok but i don't get anything else.......

    sean473, Jul 7, 2010
    #4
  5. battousai10k

    battousai10k Notebook Evangelist

    Reputations:
    90
    Messages:
    596
    Likes Received:
    22
    Trophy Points:
    31
    so what would the GTX 460m be equal to in terms to ATI mobility cards? the 5870m?

    battousai10k, Jul 7, 2010
    #5
  6. IKAS V

    IKAS V Notebook Prophet

    Reputations:
    1,073
    Messages:
    6,171
    Likes Received:
    535
    Trophy Points:
    281
    I highly doubt that since the 480M GTX barely beats a 5870.
    If we are lucky I would hope for at least 5850 performance.

    IKAS V, Jul 7, 2010
    #6
  7. rschauby

    rschauby Superfluously Redundant

    Reputations:
    865
    Messages:
    1,560
    Likes Received:
    0
    Trophy Points:
    55
    I am guessing a 460M will come in below a 5850, hopefully greater than the 5670.

    rschauby, Jul 7, 2010
    #7
  8. Riddhy916

    Riddhy916 Notebook Deity

    Reputations:
    35
    Messages:
    756
    Likes Received:
    87
    Trophy Points:
    41
    gt 415m/425m/435m are all dx 10 rebrands i think gts naming will be dx11

    Riddhy916, Jul 7, 2010
    #8
  9. Magnus72

    Magnus72 Notebook Virtuoso

    Reputations:
    1,136
    Messages:
    2,903
    Likes Received:
    0
    Trophy Points:
    55
    That is almost like a desktop GTX 260 the older one, at least with the number of stream processors.

    Magnus72, Jul 7, 2010
    #9
  10. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    Gtx 480m > Hd 5870 > Hd 5850 > Gtx 285m > Gtx 460m > Gtx 260m

    mitsuhide, Jul 16, 2010
    #10
  11. trvelbug

    trvelbug Notebook Prophet

    Reputations:
    929
    Messages:
    4,007
    Likes Received:
    40
    Trophy Points:
    116
    wow thats just gonna be like the 280m i already have, with tesselation which it will probably have difficulty handling

    trvelbug, Jul 16, 2010
    #11
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    A new 485M will be faster than the current GTX 465 based 480M if it based off the current 460 desktop chip since the 460 is more efficient per W and so it could be clocked higher.

    Meaker@Sager, Jul 16, 2010
    #12
  13. Botsu

    Botsu Notebook Evangelist

    Reputations:
    105
    Messages:
    624
    Likes Received:
    0
    Trophy Points:
    30
    Indeed. Why nvidia decided to launch their new mobile GPU flagship on the GF100 half-failure (or full depending on where you stand) is beyond me when they had the GF104 which is obviously so much better in the TDP / Performance ratio.

    Botsu, Jul 16, 2010
    #13
  14. notyou

    notyou Notebook Deity

    Reputations:
    652
    Messages:
    1,562
    Likes Received:
    0
    Trophy Points:
    55
    Because, if you build it, fanboys will come.

    notyou, Jul 16, 2010
    #14
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    That sentance, works both ways.

    As does mine.

    Meaker@Sager, Jul 16, 2010
    #15
  16. bstapley

    bstapley Notebook Consultant

    Reputations:
    60
    Messages:
    275
    Likes Received:
    5
    Trophy Points:
    31
    I have a 460m myself (upgraded from an 280m overclocked to the 285m's clocks) and I can tell you that the 460m is quite a bit better. I am able to get a 3dmark vantage GPU only score of 8450 with some overclocking (with a combined score of over 10400). As for real world gaming performance I am averaging probably 10-15 FPS HIGHER with the same settings on most games with the exception of Crysis and Metro 2033. So...my recommendation would be this:

    Gtx 480m > Hd 5870 > Gtx 460m ≥ Hd 5850 > Gtx 285m > Gtx 260m.

    The 5850 and 460m are very comparable and in some cases the 460m outshines the 5870. Overall I am very pleased with my upgrade.

    bstapley, Nov 10, 2010
    #16
