    New GTX 680M world record overclock!

    Discussion in 'Gaming (Software and Graphics Cards)' started by Cloudfire, Aug 29, 2012.

  1. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    And this is with a Dell 680M. So much for Dell 680Ms dragging behind Clevo/MSI :rolleyes:
    (EDIT: GPU-Z shows 4GB. Dell are only offered with 2GB. Perhaps Clevo 680M inside an alienware?)

    Alienware M17x, 680M, 3920XM. Custom VBIOS, overvolted to 1.075V

    Results speak for themselves... :rolleyes:

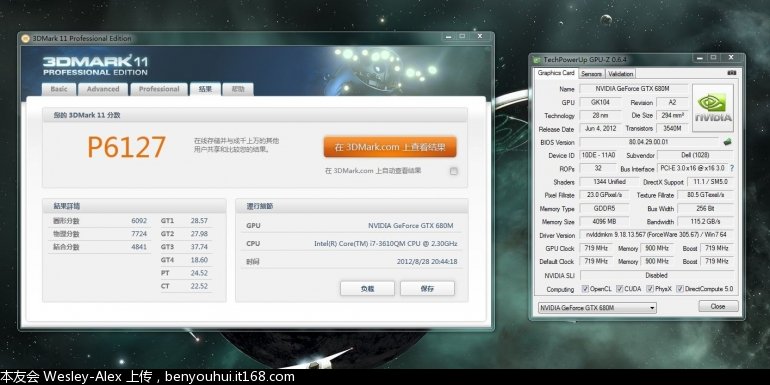

    Stock Dell VBIOS with stock clocks
    [​IMG]

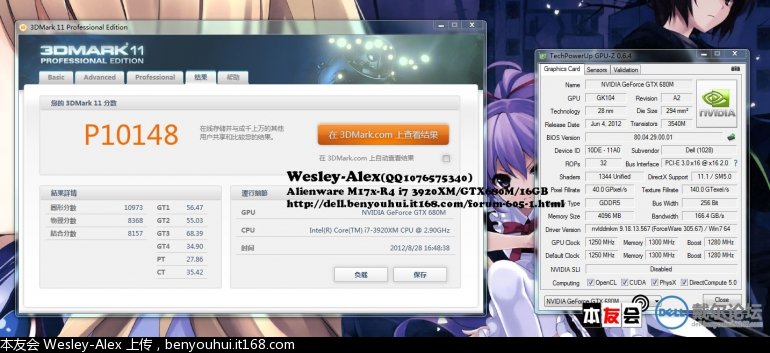

    1.075V VBIOS and world record :D
    [​IMG]

    Source: http://dell.benyouhui.it168.com/thread-2427792-1-1.html

    Cloudfire, Aug 29, 2012
    #1
  2. AlphaMagnum

    AlphaMagnum Notebook Consultant

    Reputations:
    19
    Messages:
    117
    Likes Received:
    1
    Trophy Points:
    31
    Looks like it's definitely on par with a desktop GTX 670 even if the latter is overclocked. Very impressive! I wonder how high his temperatures got with those clocks...1250MHz represents more than a 70% overclock, which is simply insane.

    AlphaMagnum, Aug 29, 2012
    #2
  3. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    Why the hell did the BUS change? from 3.0 to 2.0...

    jaug1337, Aug 29, 2012
    #3
  4. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,878
    Trophy Points:
    931
    Here is the laptop before the run:
    [​IMG]

    And after:

    [​IMG]

    HTWingNut, Aug 29, 2012
    #4
  5. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Yeah I don`t think we are talking cool temperatures here. :D But apparantly good enough to run a 3DMark11 bench with it.
    Too bad no temperatures is mentioned

    EDIT: He made a quiz

    Cloudfire, Aug 29, 2012
    #5
  6. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    I bet it'd break 95C without cooling support :D.

    hackness, Aug 29, 2012
    #6
  7. pau1ow

    pau1ow Notebook Deity

    Reputations:
    1,336
    Messages:
    1,181
    Likes Received:
    84
    Trophy Points:
    66
    That's a Clevo 4GB :) When you put the Clevo in any Dell or MSI laptops, the subvendor actually shows Dell (1028) or MSI (1462), whatever vbios or card you're using (same apply with the Dell 2GB 680M in MSI NB)!

    Very impressive though!

    pau1ow, Aug 29, 2012
    #7
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    Well he got a golden sample then because mine only runs at 1087mhz at that voltage....

    Not much I can do against that sort of chip :eek:

    Very nice scores.

    Bus goes down to 2.0 when not loaded.

    Meaker@Sager, Aug 29, 2012
    #8
    jaug1337 likes this.
  9. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,878
    Trophy Points:
    931
    Mine doesn't go much past 1050, so you should be happy. :p

    Remarkably I can do 920MHz at stock voltage and runs < 75C with fan clearance holes and foil mod. I'll take that :) I always know I have a little overclock potential in the future though in 12-18 months should I find I need to go OV.

    HTWingNut, Aug 29, 2012
    #9
  10. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    is this an unsubmitted score? it is not showing in 3dmark11 680m benchmarks

    maxheap, Aug 29, 2012
    #10
  11. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    SALTIUS that's AWESOME! ;)

    Prema, Aug 29, 2012
    #11
  12. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Is it Saltius that made the vbios? :)

    Cloudfire, Aug 29, 2012
    #12
  13. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    It is always the Chinese cause they get all the cheap parts to burn !.(not racist-cant racist against self.., just a fact ~~)

    baii, Aug 29, 2012
    #13
  14. joluke

    joluke Notebook Deity

    Reputations:
    1,040
    Messages:
    1,797
    Likes Received:
    1,211
    Trophy Points:
    181
    In next week i will buy a similar system and i am able to beat the world record! Eat it :D

    (see signature) :D

    joluke, Aug 29, 2012
    #14
  15. 5482741

    5482741 5482741

    Reputations:
    712
    Messages:
    1,530
    Likes Received:
    17
    Trophy Points:
    56
    I want that vBIOS.

    5482741, Aug 29, 2012
    #15
  16. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    Looks like it wasn't done by Saltius this time:

    PS: 不是我做的vbios，我做过的蓝天版680M的vbios，最高只预设到954MHz。TechInferno的svl7另外做过一些各类680M的修改版vbios。

    PS: That vbios wasn't done by me. For the Clevo GTX680M vbios I have done, the highest default clock was only 954MHz. svl7 at TechInferno has done vbios modding for other brands' GTX680M.

    hackness, Aug 29, 2012
    #16
  17. long2905

    long2905 Notebook Virtuoso

    Reputations:
    2,443
    Messages:
    2,314
    Likes Received:
    114
    Trophy Points:
    81
    [​IMG]
    If it's not made by saltius or svl7, who could that be??? It will stay on top for quite a while I think.

    long2905, Aug 29, 2012
    #17
  18. littleone562

    littleone562 Notebook Deity

    Reputations:
    1,417
    Messages:
    993
    Likes Received:
    59
    Trophy Points:
    66
    Saltius did it, he is from and lives in China btw.

    littleone562, Aug 30, 2012
    #18
  19. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,878
    Trophy Points:
    931
    Good luck with that... don't turn your $3000 baby into a $3000 toaster.

    HTWingNut, Aug 30, 2012
    #19
  20. Kiol

    Kiol Notebook Consultant

    Reputations:
    23
    Messages:
    200
    Likes Received:
    0
    Trophy Points:
    30
    Indeed, and I doubt you can do any real long gaming session with that kind of OC aside from benchmarks.

    Brave man! or deep pockets

    Kiol, Aug 30, 2012
    #20
  21. CROSSFIRE_GTI

    CROSSFIRE_GTI Notebook Consultant

    Reputations:
    166
    Messages:
    110
    Likes Received:
    4
    Trophy Points:
    31
    LOL Most of the time it ends like that....a toaster!!!! :D

    CROSSFIRE_GTI, Aug 30, 2012
    #21
  22. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    Living in China doesn't mean he's done OP's vbios. In the original thread 331099989 asked Saltius if he did that vbios, Saltius clearly said he didn't mod that vbios.

    hackness, Aug 30, 2012
    #22
  23. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    There are lots of people in china lol.

    Meaker@Sager, Aug 30, 2012
    #23
  24. cr0bar

    cr0bar Notebook Geek

    Reputations:
    4
    Messages:
    75
    Likes Received:
    0
    Trophy Points:
    15
    I want this vBIOS, for reasons.

    cr0bar, Aug 30, 2012
    #24
  25. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    Does anyone of you guys remember the "virtual shader" stuff for the 6900m series?? Was posted by the same guy... I don't really trust this stuff blindly.

    Anyway, you can't crank up your card like this just with a modified vbios, this card might have a perfect chip on it, but even then it's unlikely, this board is not designed for such clocks, just look at the relatively simple power supply circuits.
    I can't really see this working with the vbios version displayed in the screenshot. Even though I don't have a 680m myself (yet), I did a lot of stuff with the vbios, and this particular version doesn't seem to work nicely when cranked up. So I have a lot of doubts when it comes to this.
    By disabling some protection / throttling functions which are apparently present in the Clevo vbios it might be able to get about 1GHz stable on most cards, but 1.2+GHz is just so unlikely.

    svl7, Aug 30, 2012
    #25
  26. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Aug 30, 2012
    #26
  27. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581

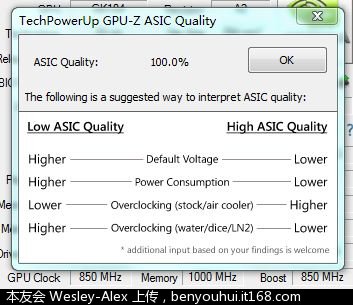

    No temperatures readings from him yet or what vbios he used. But he did post his ASIC in his review thread
    Alienware M17x-R4

    Not exactly a bad 680M...

    [​IMG]

    Cloudfire, Aug 30, 2012
    #27
  28. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    I just read the 1st post of the original post in Chinese, it seems like he's saying that through the modded vbios + driver modding + reg tweaking created under the new idea he came up with he's able to combine both cards' shaders 960 + 960 and lets windows think that it's only 1 card so it became a virtual card with 1920 shaders total.

    Maybe he's worked with AMD before?

    hackness, Aug 30, 2012
    #28
  29. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    I've only read the first 12 pages and it seems that he was just trolling.

    BTW I'm pretty sure that if GPUz is showing 100% then it's not reading the asic correctly.
    Probably needs an update to support the new GPU.

    I know that around the time the asic test just came out, my 540m was over 100%.
    Then after an update to GPUz, it went down below 80% iirc.

    moral hazard, Aug 30, 2012
    #29
  30. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Somebody release this vBIOS for the MSi and clevo 680M's @_@

    Mobius 1, Aug 30, 2012
    #30
  31. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    Is the reported voltage even higher than what SVL7 & Saltia did before :confused:

    Prema, Aug 30, 2012
    #31
  32. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    I`m not 100% shure, but I think Meaker have tested his 680M with the same voltage (1.075V) which SVL made for him

    Cloudfire, Aug 30, 2012
    #32
  33. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    and higher............

    Meaker@Sager, Aug 30, 2012
    #33
  34. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581

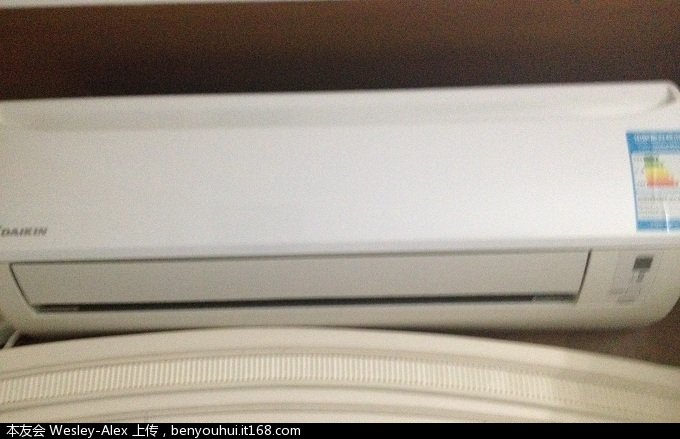

    LOL well the overclocker have just revealed more information about how he managed to pull this off :D
    Anyone want to try and beat him? Freezer next? Dry ice? Helium? Liquid nitrogen? :D
    Source: http://dell.benyouhui.it168.com/forum.php?mod=redirect&goto=findpost&ptid=2427792&pid=24939627

    [​IMG]

    Cloudfire, Aug 30, 2012
    #34
  35. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    You guys should take this with more than just a grain of salt... some cards manage to get almost 1100MHz on the core, true, a 'golden' sample might manage to squeeze some more MHz simply due to die quality, but a difference of almost 200MHz at the same temps and voltage... come on.
    Don't get me wrong, it'd be fantastic if it was true, and I'd love to see the vbios, especially since the Clevo version seems to have issues at higher clocks, but I can't believe it, especially after this "virtual shader" vaporware which came from the same user. Why isn't there an official 3dMark11 link? It's too easy to fake a score. It's also really easy to create a vbios that shows 1500MHz or whatever, without the actual clock being that high.
    Keep in mind that users like 5150 Joker or Meaker cranked up their cards to the max, and it's distinctly lower.

    svl7, Aug 30, 2012
    #35
  36. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    But no one of them used air conditioner LOL :D :D

    Cloudfire, Aug 30, 2012
    #36
  37. extide

    extide Notebook Deity

    Reputations:
    296
    Messages:
    701
    Likes Received:
    0
    Trophy Points:
    30
    extide, Aug 30, 2012
    #37
  38. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    That is not entirely correct. Perhaps for that 680 model yes, but not 670.

    GTX 670 runs @ 1.162V and it can be overclocked to 1263MHz with that voltage.
    AnandTech - NVIDIA GeForce GTX 670 Review Feat. EVGA: Bringing GK104 Down To $400

    However its a bit strange that our overclocker can each 1250MHz with 1.075V though...

    Cloudfire, Aug 30, 2012
    #38
  39. extide

    extide Notebook Deity

    Reputations:
    296
    Messages:
    701
    Likes Received:
    0
    Trophy Points:
    30
    Yeah, I still call BS, 1.075 is way too low. I will have to look into that AT review some more, but not sure if those cards in that review are actually hitting those clocks or if that is just a 'specified max'.

    extide, Aug 30, 2012
    #39
  40. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    I feel you.

    Something about this isn't right.

    jaug1337, Aug 30, 2012
    #40
  41. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    Maybe he crashed multiple times trying to get his GTX680M to complete the 3DMark tests, that'd be funny.

    hackness, Aug 30, 2012
    #41
  42. Killerinstinct

    Killerinstinct Notebook Evangelist

    Reputations:
    633
    Messages:
    539
    Likes Received:
    119
    Trophy Points:
    56
    Laptop components are of higher quality than desktop , which means they are more efficient when it comes power usage which is why gtx 680m can OC like a champ and go above 1000+ core on voltage of 1.037

    Killerinstinct, Aug 30, 2012
    #42
  43. extide

    extide Notebook Deity

    Reputations:
    296
    Messages:
    701
    Likes Received:
    0
    Trophy Points:
    30
    Not necessarily, I mean yeah generally laptop parts are picked to be lower leakage, but there are plenty of graphics card manufacturers that bin their chips and make high end overclocking cards too.

    Plus, compared to desktop cards, 1,000Mhz on 1.037v is nothing special. That's about run of the mill honestly.

    extide, Aug 30, 2012
    #43
  44. imglidinhere

    imglidinhere Notebook Deity

    Reputations:
    387
    Messages:
    1,077
    Likes Received:
    59
    Trophy Points:
    66
    I showed this thread to all the guys over at OCN. :D Desktop users... eeewwww... *waves to any OCN user reading this post* HIII!!! :D

    imglidinhere, Sep 6, 2012
    #44
  45. sunster168

    sunster168 Notebook Consultant

    Reputations:
    66
    Messages:
    174
    Likes Received:
    9
    Trophy Points:
    31
    Nice benchmark numbers!

    sunster168, Oct 21, 2012
    #45
  46. x32993x

    x32993x Notebook Evangelist

    Reputations:
    124
    Messages:
    473
    Likes Received:
    0
    Trophy Points:
    0
    I bet he pissed off alot of gtx680 sli owners.

    pretty amazing to break 10000 single card. wonder what he would get in crysis? 100 fps maxed?

    x32993x, Oct 21, 2012
    #46
  47. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    I still don't think desktop graphics card manufacturers use chips binned higher by nvidia for laptops which have entirely different chipset numbers.

    niffcreature, Oct 21, 2012
    #47
  48. LeoVainio

    LeoVainio Notebook Evangelist

    Reputations:
    127
    Messages:
    645
    Likes Received:
    0
    Trophy Points:
    30
    Whatever this is... by god, I want it!!!

    My M17x 680M arriving in a couple days, looking to overclock it :p but dno how to mess with bios stuff

    LeoVainio, Nov 6, 2012
    #48
  49. MKEGuy

    MKEGuy Notebook Evangelist

    Reputations:
    37
    Messages:
    342
    Likes Received:
    14
    Trophy Points:
    31
    He should put that card on eBay. I bet iff he advertised for a couple weeks then put it up for a week, it would generate enough interest that a few people would create a bidding war!!!

    MKEGuy, Nov 7, 2012
    #49
  50. cj_miranda23

    cj_miranda23 Notebook Evangelist

    Reputations:
    334
    Messages:
    567
    Likes Received:
    537
    Trophy Points:
    106
    Can anybody confirm if this is real or not. If this kind of score can achieved by a single 680m, theoretically it can be doubled when in sli mode, I'm I correct or wrong?

    Guys check this out & watch the video.
    ORIGIN Gensis Overclocked Quad SLI Gaming PC Review - Dual GTX 690s | PC Perspective

    on 6:18 mark is showed the benchmark score of a dual 690 gtx desktop which is 23872P on 3dmark 11, so by any means if we can over clock the 680m to achieved a 10000P score doubling it would cause a 20000P in sli mode :eek:. ............. I'm I dreaming or just misunderstood the video review?

    cj_miranda23, Nov 8, 2012
    #50
 Next page →
