PSA: You can now overclock your laptop monitor [intel/intel+optimus]

Yes, but why.



If you have a 120hz paired with a 1070, in some games on high/ultra settings, you aren't coming close to 120fps. I like to lock my FPS in at whatever my display is and you couldn't do that with games that don't hit 120FPS.

Sent from my SM-G955U using Tapatalk



You should do a google search and maybe read through some monitor review websites because I can slightly recall that some people didn't recommend underclocking the monitor but I'm not certain.



guyss can u please help me? im stuckk with this 48 refresh rate for 2 years. i got msi laptop with 4k screen (ge62 2qf apache pro) i cant create a custom resolution with intel hd software or cru-1.3.1, i try every resolution with atleast give me 60hz refresh rate but ''the custom resolution exceed the maximum bandwitch capacity'' on intel hd software. and for the cru i think it doesnt work. i follow every step on but it doesnt work

Model : MSI GE62 2QF Apache Pro
CPU : Intel Core i7 4720HQ
GPU : HD 4600 + GTX 970M
Screen model based on HWINFO: SDC 4852

Any kind of help really appreciated



What resolution is your monitor?



MSI GE72 6QD Apache Pro 17.3 Inch Skylake with the Chi Mei CMN1735

Got it to 108hz stable with no artifacts or anything. This is with reduced timings.



Hello everyone,
I've tried my best to make it work on my razer blade but the settings I enter in CRU don't show up neither in window's adapter settings nor in intel graphic settings even if the pixel clock of the settings I enter are way under the maximum capacity. I've downloaded and installed the drivers, ran CRU as administrator, refreshed the drivers and rebooted the computer but I still can't manage to make the settings I register in CRU appear anywhere... Can you guys help me please ?

Specs : Razer blade 2016
CPU : Core i7 Skylake
RAM : 16Go
GPU : Nvidia 1060
Screen : 3200x1800 multi touch display
Storage : 512Go Pcle SSD
Windows 10

Here are some screenshots : https://imgur.com/a/27fO6



I managed to overclock my FHD blade only to 63, I suppose 5% is better than nothing. Not sure though why CRU isn't sticking on yours.

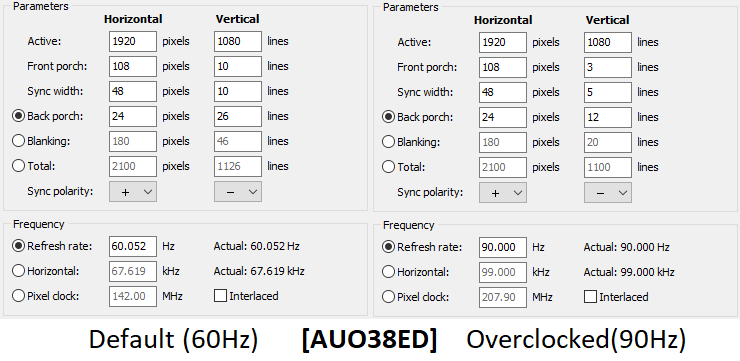

I took a jab with my laptop. It's an early Dell Inspiron 15 7567 with a crappy AUO38ED (B156HAN03.8) panel. With default timings, the screen has an almost unnoticeable artifacting affecting a pixel's red subpixel. It constantly flickers. Adjustments toward the timings fixed it. It doesn't seem to like going above 208MHz.



I'm not going to squeeze a bit higher as 90Hz is just 30fps*3. I have a 72Hz mode as well for those pesky 24fps films under SVP.

Try to match your timings to the default resolutions? Especially the sync polarity.



I am very happy to announce that I succesfully swapped my old Dell 7559's display with my new Dell 7577's display and viseversa. So that means that I now have an overclocked 7577 100hz screen! It's a perfect fit! Gaming looks so much better on a higher refreshrate. Why waste the capacity of the gtx1060 on 60hz gaming right? Used the settings in the OP for the 7559 screen. No artifacts whatsoever.



Be gone my piss poor AU Optronics B156HAN03.8 TN display! Say hello to my newly purchased, elusive Samsung LTN156HL06-C01 PLS panel with its superior 85Hz over- ...wait what?

Oh well, it's better than nothing.



Looking for solution. Can't seem to add any CRU setting on the laptop display. Followed all the steps. CRU seems not working.

Illegear Z7
AUO 109D 1920x1080 17"3 Display
i7 7th gen
intel 630 (laptop display) & gtx 1050 ti

Any help with be much appreciated.



Great post. Will deffo give this a go!



Hi, i've tested several refresh rates and the maximum i got was 100Hz on a AUO105C 1366x768 using the LCD Reduced timing set, but the artifacting is a lot, you can't even see the desktop at all, but these were true 100Hz, best i got without artifacting a lot is 1366x768 70Hz LCD Reduced, you can see just a little of it on the left side of the screen, I am using a Intel Pentium N3700 (Braswell) with the 15.40.32.64.4568 (20.19.15.4568) driver version, and Windows 10. It's an Acer Aspire R3 11,6"

I have to ask the same thing most people ask, is this going to harm the monitor over use?

PS: I did an account just to reply this xD, I can confirm that overclocking works on Braswell. (and because looks interesting people getting mentioned by his goals on the OC xD)

EDIT: I forgot to mention this screen has the 120MHz limit



Hey guys. My overclock was fully working, I went from 60 hz to 96 hz on my msi ge62 2qd apache pro, but this morning I formatted and reinstalled windows 10 and overclock isn't working anymore, I can't even overclock to 65 or 70 hz. What the hell happened? Can anyone help me?

EDIT: I've just tried 61 hz and it doesn't work. wtf?



Someone try to overclock 4k panel of the tornado f5?



THIS IS WHAT FIXES EVERYTHING IF YOU HAVE PROBLEMS INSTALLING. Thanks a bunch! But you really have to look for it.



That's not possible simply because 4K/60 completely saturates the bandwidth of the DisplayPort 1.2 interface that the panel uses.



Thanks to everyone that reported results, I updated the main post. Maybe a google spreadsheet eventually is a good idea.
Sorry for people whose questions were missed, if you are having trouble feel free to post again here or maybe ask over in the official CRU thread.

Yes, as the other user said this has been tested and it does work.

It seemed like you were doing everything correctly, hope you figured it out.

Glad it worked for you!
In case anyone else with a LGD04B9 finds this, the max overclock I managed to achieve was 104.200Hz with custom timings. https://s9.postimg.org/qqpa18sbz/screenshot_7.png
Can't guarantee 100% stability for either of those settings since the left one seems to draw a white line on the right side of the every 0.000001% of the time. The right one should be fine since I've used it for at least a couple weeks but I wrote down last year that it didn't work so I dunno.

Thanks for confirming this works on braswell. I can say with some confidence that this shouldn't harm your display when done properly, but the artifacting is kind of concerning. I had an unstable overclock at one point that drew a purple line on the bottom of my screen and I just left it there for a while before switching my settings back. The purple line sort of burned into the display and gradually disappeared over the next couple hours. Maybe consider dropping the overclock? I

DDU your drivers, reinstall drivers directly from intel. Maybe download shutup10 and disallow windows from updating drivers. Try rebooting, grab the latest version of CRU for Win10 (1.3.1). Doublecheck pixel clock is below the limit. Reboot more. That's all I got lol.
Edit: maybe also reset the edid profiles (go into CRU and click delete next to all the times your monitor shows up, or use reset.exe included with CRU.), then try overclocking agin. there, now that's all I got



Hi guys,

i'm still getting the "exceeds bandiwidth" error message while i'm running the last drivers.
Even putting full hd at 30hz or 50hz says "exceeds bandiwidth". I don't get it.

I'm using a Gigabyte aero 15 X



i got the same error...but you need to put the custom resolution into the custom resolution tool aka CRU program linked by the original poster.

from there make a custom resolution refresh rate and then reboot windows...open display adapter settings from desktop right click and load the refresh rate you created....

i tested 90 and it works...pretty rad



Chance you could help me get a hold of one of these? I'd like to make something similar to this and at 120Hz it'd be amazing for a lan party in a bag:



okay



Hi! Thank you for the guide! Here's my results:

Laptop: MSI GS70 6QE Stealth Pro (17.3", 1080p, Skylake)
Display: CMN N173HGE-E11 - 60Hz (140.00 Pixel clock)

Using my monitor's stock timings for 100Hz (233.33 Pixel clock) everyday.
"Reduced" doesn't work even with 80-90Hz (black screen).
Maximum stable refreshrate i can achieve is 105Hz with manual timings and at 106Hz it begins to artifact.
"Success 60 -> 105"



alienware 15 R1 90hz refresh rate 1080p without problems thanks



Acer Nitro 5, 15.6", AN515-51, 1080p 100hz, lowered pixel clock and darker screen with "lines" on colored areas



i got an AW 17 R3 with the 1080p eDP 1.2 Samsung screen, model number LTN173HL01-202

Any tips or previous tests on this one?



i get this error when installing driver.

win 10 64bit, AW 17 R3 FHD LCD



Laptop: Alienware 17 R3
CPU: Skylake 6700hq
Display: Samsung LTN173HL01-202 (1080p 60hz)
Driver: Dell OEM Intel driver 22.20.16.4836
Overclock: 1080p 65hz stable (black screen with artifacting at 70hz)



Laptop: Dell Inspiron 15 7567
Display: originally came with the LGD053F, but i asked for screen replacement hoping to get the AUO63ED one, but instead got a BOE06CB
Overclock: 1080p 80Hz stable with custom timing, anything more than that (more than 200MHz pixel clock) will cause the screen to lose its color, like a grayish, grainy screen.

I was wondering if anyone could give me tips on how to overclock it with different lower resolution, because i can't seem to get it to work. Putting it to the default LCD Native timings, with different resolution only gives a black screen.

Edit:
Also, anyone got recommendation for good 15.6 FHD (1920x1080) screen that is overclockable or has high refresh rate, TN or IPS really doesnt matter, as long as its decent looking.
(30 pin eDP)
Thanks.



Generally, TNs will fare much better than IPS models and most will do 90Hz+ without a hiccup.

A great choice for your system would be the N156HHE-GA1; TN, crazy response time, 120Hz minimum (binned, actually), low blacks and a good sRGB coverage. Really, it was designed with fast-paced shooters in mind and the nice image is just a bonus. Only disadvantage is the premium; $50-60 is a fair price, but the GA1 is about $125.



Yeah, I can't seem to find any cheap 120Hz panel without going over $90 D:



edt



My Dell 7577 stock 15.6" UHD panel ( AUO20EB - F2TW2_B156ZAN ) got a massive +3Hz more OC from 59Hz(stock, wtf? lol) to 62Hz(auto-standard) not messing with any timings manually. My external monitor (ASUS VW266H) went from 60Hz to 71Hz. Better than nothing.



Hi thanks for this

Successful overclock to 95hz using monitor default timings..no problems so far

Alienware 17r3
I7 6820hk gtx 980m
LGD0459 60hz display
Dunno pixel clock limit



Hi. HP Omen 17 without Optimus, the CPU iGPU is disabled and the system runs with the 1070 graphics card. What driver must I install for my laptop? I have the i7 7700HQ CPU. Thanks.



directly oc monitor from nvidia control panel custom resolution



But refresh rate??



Up to you but start slow to be safe. Something like 65Hz to begin with. Thanks for all who reported their results, main post is updated.



My screen is 75Hz factory but want to increase it to 90 or 100Hz? I don't have Optimus and my i7 7700HQ has the integrated graphics disabled. What do I install sir?? Thanks for your help and assistance



Edit after someone very politely pointed out that I misread your post:

You may download CRU https://www.monitortests.com/forum/Thread-Custom-Resolution-Utility-CRU or simply use the Nvidia Control Panel to create a custom resolution. However in my experience I have found that those don't always play as nicely and CRU works best IMO. Go into the CRU program and add a custom resolution with the refresh rate you want. Reboot and select the refresh rate from the display options. If the refresh rate doesn't work properly or black screens don't worry just go back to the old one. It may take some trial and error since you have to reboot each time to use the new custom refresh rates you create.



Umm, wtf? You are both clearly out of your depth.

1.) Why would GreatD need an Intel integrated graphics driver when he just said his is disabled?

2.) For me, current stock Intel graphics drivers will allow OCs now, so it isn't 100% necessary to use those older modded drivers, but that's besides the point here.

3.) GreatD has already been told (a few posts up) to perform the OC directly from his NVIDIA control panel- it's not that hard.

4.) There is no guarantee you will hit 90+Hz successfully.



Wow brother you need to relax, I misread his post and thought it said he had Optimus. It was pretty early in the morning well before I had my coffee. Seriously there is no need to be rude and most don't tolerate that type of nonsense around here. Thanks for the correction though!



Apologies to you. Sorry, it was early indeed. There's just something about ______ asking for help that refuse to take the advice of others who already set them straight that pisses me off. We can only help ______ people so much when they aren't willing to actually listen to what others are telling them in order to solve their problem.

No f***s were given in the writing of this post. That's just who I am and I'm not changing any time soon. I think the vast majority of the world are f***ing idiots who are just too stupid for their own good- but that's another conversation entirely. Good day.



Thank you sir. I saw it on my Nvidia Control Panel. Much appreciated.



hei what timings did u use ?



hey, tried to overclock my monitor, but it didn't work at all.
every time i set it on a higher rate it goes smth like this and moves around, changing colors.

here are my specs etc:
i5-6200u
geforce 940mx
windows 10
Driver Version: 21.20.16.4614

thanks in advance!



That means its unstable OC, I reckon 61-63Hz would be an ideal choice for testing.



Success: Surface Laptop 2017 i5 4GB (13.5", 2256x1504, Kabylake) MEI96A2 - VVX14T092N00
60Hz -> 75 Hz [LCD reduced, stable]

Anything above creates artifacts (popping black horizontal lines and colourful vertical lines). I also tested 96 Hz with some artifacts but still was able to experience the fluidity. Anything above created more heavy artifacts taking over the whole screen. Played a little around in CRU with LCD reduced etc, no changes in the result. Used a 3d vision monitor for a year, I am missing the 120hz fluidity with my other devices. The 75Hz is noticeably better compared to the 60Hz, so I will keep it, 90Hz was a little bit more satisfying but it still is missing the subjectively infinite fluid animations of +120Hz. I am waiting for an edge to edge ultrabook (like the Huawei Matebook X Pro) with a high refresh rate. notebooks like the Aero 15X (144Hz) still look bulky to me, and I have no use for the specs of a gaming device.



nah, it didn't work, and when i installed this version again (i reverted it back on stable) my realtek lan driver just disappeared. tried to install it again, not working.

edit: it came back after a couple of reboots, strange lol.
