Powermizer Switch - get the most out of your video card

This application easily switches PowerMizer off and on, I made it based on the tutorial here :
http://forum.notebookreview.com/showthread.php?t=261929 (thanks to kenside34)

If you don't know what PowermMizer is, you might be familiar with it's effect

​

Now what is PowerMizer :

This might be handy, saving you more battery life ... but at the same time it downclocks your GPU .. so u might feel that gaming on battery is alot slower than on A/C .. if you want to play games on the go, this is the application for you ...

Note: this app only changes some registry values and is completely reversible and safe, if you don't want it just choose "PowerMizer on" .. and restart

I am not responsible for any damages caused by the use of this application .. use at your own risk ..

Download v1.2: http://www.box.net/shared/v7jpoateoq

Hope you enjoy it .. this app is tested on XP, Vista, Windows7 and working 100%

Knows issues:
- Does not work with UAC turned on. Solution: Rightclick & "Run as Administrator"
- Nothing seems to change. Solution: Restart



nice work mr.xmile i like the new layout .. more n00b friendy ..

u saved the lifes of many n00bs here .. god bless you



Doesn't Vista already do this through its power plans? Keep the computer on performance mode and it won't downclock the GPU on battery?



No, it doesn't on my notebook. And additionally I have read many posts confirming that.
You can try and see yourself with GPU-Z. It monitors the clock rate and temperature.



thanx m8
rep point added



even if ur power plan was "god mode" lol vista will downclock when you're on battery .. so if u wanna play games on battery u will be very much pissed off



Its a great proggie guys. Great work to xsmile



I don't even use Vista, but you still get some Rep from me. Great job support our little community



do you have to reboot after you apply changes?



yes u must reboot for the changs to take effect . coz the registry stays locked until u reboot i guess



i figured that. thnk anyhow



ur welcome anyhow



this is interesting because somehow even after i altered the registry (according to kenside34) it still downclocks for no reason (on AC not battery)



Thanks! I'm pretty sure it will work with XP (in case you use windows at all .
My application changes only some registry entries and the path to them should be equal both in Vista and XP.

Did you reboot after the changes? I also noticed GPU-Z needs some time to display the new clock values ..
Which driver version are you using? To look it up do a rightlick on your desk -> NVIDIA Control Panel -> Help -> System information



that's weird coz after the tweak it's constant at 400mhz here ..

on all power modes

8400m gs latest nvidia drivers forceware 175

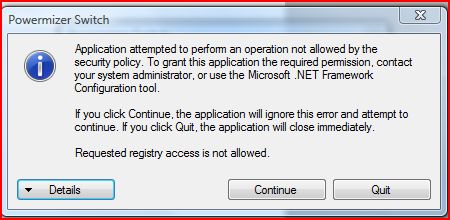

Has anyone got this error before? I get it when I click "max power on AC"



r u using vista .. if u are try disabling the uac .. if that didnt work try right clicking the powermizer switcher tool and choose run as administrator



That did the trick. Thank you.



you're welcome



something is wrong my powermizer is still working for some reason ==, it was even on 2222 instead of 3322. Man this is frustrating



u might wanna update to latest nvidia drivers like the 175.x forceware..
might fix ur problem

although if its on 2222 it should work fine ..



when alex comes back from vacation he might be of more help .. so please be patient



I have the same problem!



As soon as I open the program, it says, "Powermizer Settings Not Found", then closes.

Any ideas on why this is happening?



i think u either don't have a card that supports powrmizer .. oor the nvidia driver that u have installed doesn't have powermizer registry values in it .. that's why the tool can't find the strings to change . i would recommend u to go to laptop2go site and get the latest nvidia drivers from there (i just updated to 177.x drivers .. really imrpove performance btw)

hope this works for u .. if it didnt maybe someone has a solution for ur prob or u can wait for the developer of the app to come back from vacation and help u out

have a nice day



@badadee & alexlm :
I cant help you without any details. Maybe we could locate the problem though if you follow the instructions I wrote on the second page for badadee.

@Kevin_Jack2.0:
My app checks if it can find "PerfLevelSrc" in your registry because it seems to be some essential part of PowerMizer. If its not there, you can try to search it manually and otherwise do what bAsem said - new drivers & check your video card specifications for PowerMizer

@bAsem:
Thanks for helping

Good luck!



Thanks for the advice. Your app was working perfectly for me, but then somehow my driver (175.19) became corrupt and I had to reinstall it. The first thing I did was to look for "PerfLevelSrc", and it is indeed no longer in the registry.

I guess I'll try another uninstall -> clean -> reinstall. The driver has been great for months, and I don't know what happened to mess things up.

Cheers.



the 177 driver's is very good dude .. maybe it's a chance for u to update

i tested powermizer and its working on 177 version


peace out



So mine won't work for some reason... I'm using Vista 32-bit with the 177.72 Driver that just came out.

I want Powermizer OFF when I have A/C plugged in, but I want Powermizer ON when A/C isn't plugged in. For some reason, everytime I hit "Max Performance on A/C" in the powermizer switch, I re-start my laptop and nothing happens, it still says "ON". I ended up following the guide to disable it, and now both A/C and battery just have a "-" below them.

How do I get this switch to work and/or how do I get it so that I disable Powermizer for A/C but enable it for battery? What does the Powermizer Switch actually change?

Thanks



well if u just can't get it to work then just follow the manual disable tuto .. this is just an easier replicate of it ..

if u want it off on a/c and on on battery just make "[perflevelsrc=3322]"
and the rest from the manual disable tuto



No luck for me also i have been using the regedit method and the switcher to turn off the poweroptimizer and the clock boost from 170 to 475 as shown by GPU but after a few matches with PES 2008 it automatic downclock the clock to 225 as shown in GPU and make the game lag.



I ended up switching drivers, and it's working perfectly now.



Which drive u using now?



177.70 from laptopvideo2go. It's a great, wonderful driver. Maybe the best I've ever used.



You solved it, good

alexdino, whats your status now?



I Try 177.73 but it still downcloak my GPU to 275 after a few minutes on PES2008, By the way the digital vibrance reset itself to 0 every time my laptop restart.

i will test out the new 177.79 and report back

THX



ok i solve the issue of digital vibrance getting reseted by adjusting 3d application in nvidia control penal to "use my emphasizing" rather than "let 3d application decide"

But the downclock issue still happen, Any ideaS?



Hmm, I would suggest you to try another driver version



I encountered the downclocking issue not long ago but after following these instructions it seems to be gone:
http://www.laptopvideo2go.com/forum/index.php?showtopic=19850&st=80&p=86110&#entry86110



Hi, I'm from Chile, your app for powermizer is awesome, but I want to know if there's a way to force the system to be in low-power 3d performance over windows vista instead of always running at performance 3d. I've a HP Pavilion DV6921la with the Geforce 7150m, I think performance 3D gets the best of aero, but also I think that with low-3d performance (250 mhz) woul be enough for aero too, my concern of this is because the heat is noticeable, 60°C when performance 3d is always on with your app.

Thanks again.



Hi Magentic!
Thanks. You can force performance levels with RivaTuner. The linked page in my previous post describes how to to this.



Hi again, thanks for the quick replay.

Well, I don't like Riva Tuner, so I was wondering doing the change in the registry.

I have tryed several times, modifying the config in the registry entries below PerfLevelSrc.

The entries and values I've found are:

PowerMizerDefault 3
PowerMizerEnable 1
PowerMizerLevel 3
PowerMizerLevelAC 1

Well, I've done the following changes,firts the 3322 in PerfLevelSrc, and then in powermizerlevelac I've put 2, but the system with ac stays in Low-3d Performance, but if an application that needs powerfull 3d power is active the system doesn't goes to performance level, it stays only in low 3d.

Anyone that knows which values coul make low 3d performance de stable profile in vista with ac, and if an appz requires more power the powermizer automatically turns up the frecuency in the gpu.?



Oh, I hope I understood you correctly, this is the standard Powermizer setting. You do not even need my app then
Just click the lowest button (Enable all).



Hi Again, well enable all it's not what I want to do.

Let me explain better, the gpu 7150m has 3 differents modes (core speeds) (100/250/425 Mhz)= (Standard 2d/ Low 3d Performance / Performance 3d).

Whit the settings of enable all, my core goes to 100 Mhz in vista, and that causes lag in aero, and in other things, when I apply max performance with ac, the core keeps always at 425 Mhz (I think it's too much for windows, and the notebook gets hotter), so I want to have a medium balanced config, I want that in windows vista, with ac the default core speed stays at 250 mhz (lo2 3d performance), but if an appz needs more power, automatically it turns to 425 mhz, but never to 100 mhz. This with ac, with battery, I jsut need the standard config.

Thanks



bump

i think this thread deserves one

and thanks



I just downloaded this 'app' and now even when i am plugged in and on high performance my graphics card is downclocking to 200/100. I cant figure out how to get it back to normal.. i just want this thing off on my computer. Any help would be great.



Try system restore, start>all programs>accessories>system tools>system restore and choose to restore system config how it was before installing.



thankyou xsmile for the updated version.
Wil include this in my next driver release

thanks for setting and updating it to my specs.



What's new in 1.1?



The layout changed a bit and I use following settings now:

Powermizer on:

HKR,, PerfLevelSrc, %REG_DWORD%, 0x3333
HKR,, PowerMizerEnable, %REG_DWORD%, 0
HKR,, PowerMizerLevel, %REG_DWORD%, 0
HKR,, PowerMizerLevelAC, %REG_DWORD%, 0

Powermizer off:

HKR,, PerfLevelSrc, %REG_DWORD%, 0x2222
HKR,, PowerMizerEnable, %REG_DWORD%, 0
HKR,, PowerMizerLevel, %REG_DWORD%, 0
HKR,, PowerMizerLevelAC, %REG_DWORD%, 0

Powermizer off AC/ On battery:

HKR,, PerfLevelSrc, %REG_DWORD%, 0x3322
HKR,, PowerMizerEnable, %REG_DWORD%, 0
HKR,, PowerMizerLevel, %REG_DWORD%, 0
HKR,, PowerMizerLevelAC, %REG_DWORD%, 0
