    Protective plastic over laptop GPU

    Discussion in 'Gaming (Software and Graphics Cards)' started by eliasI, Jul 16, 2017.

  1. eliasI

    eliasI Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5

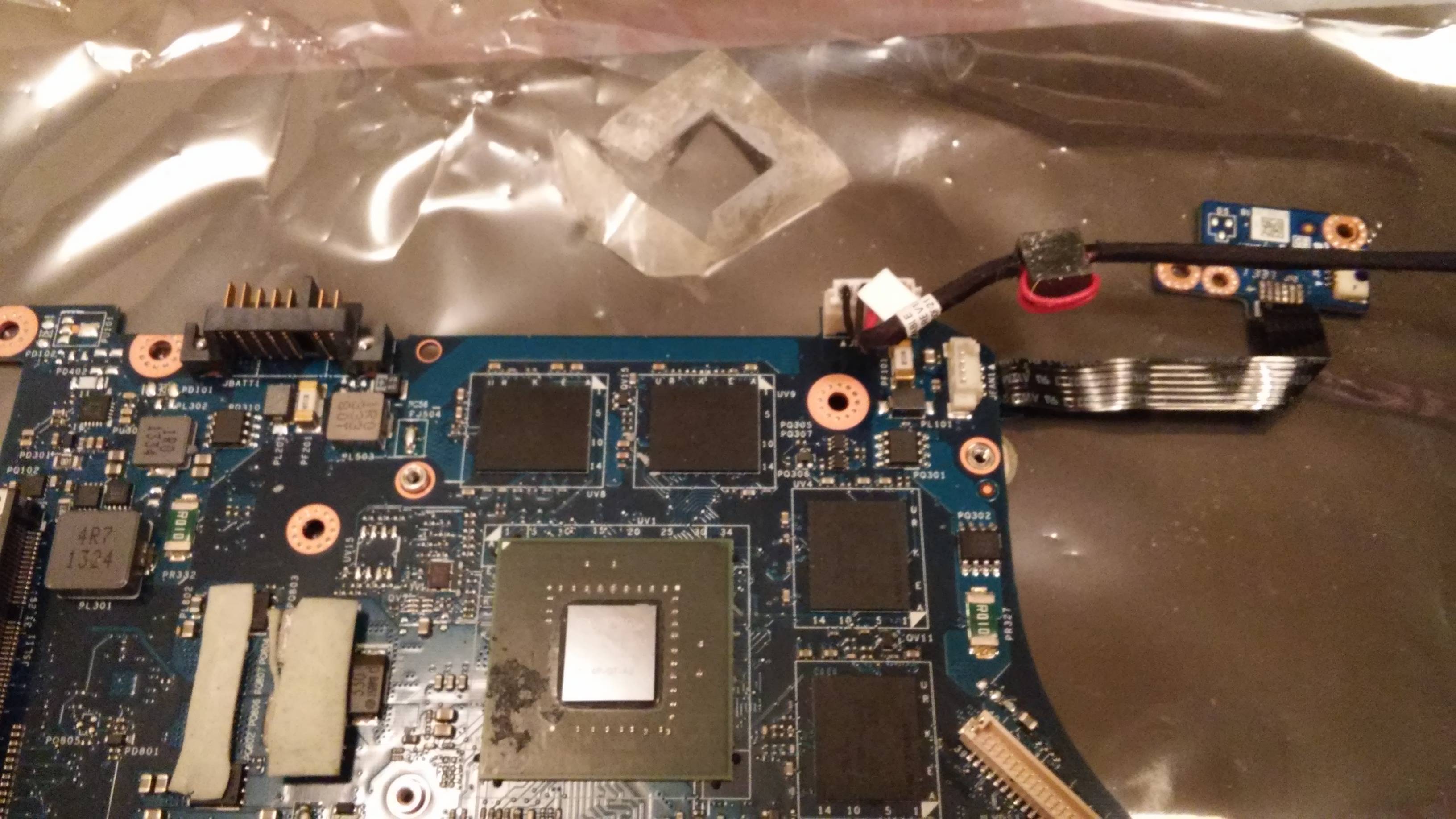

    I am trying to repair my laptop's motherboard (Lenovo Y510P) that had some milk spilled onto it. When I took the heatsink off the gpu (GTX 750m) and cpu, I saw there was a thin plastic layer surrounding the chip. Lots of thermal compound was under it, so I removed this thin layer to clean it. It's shown below, removed.
    [​IMG]

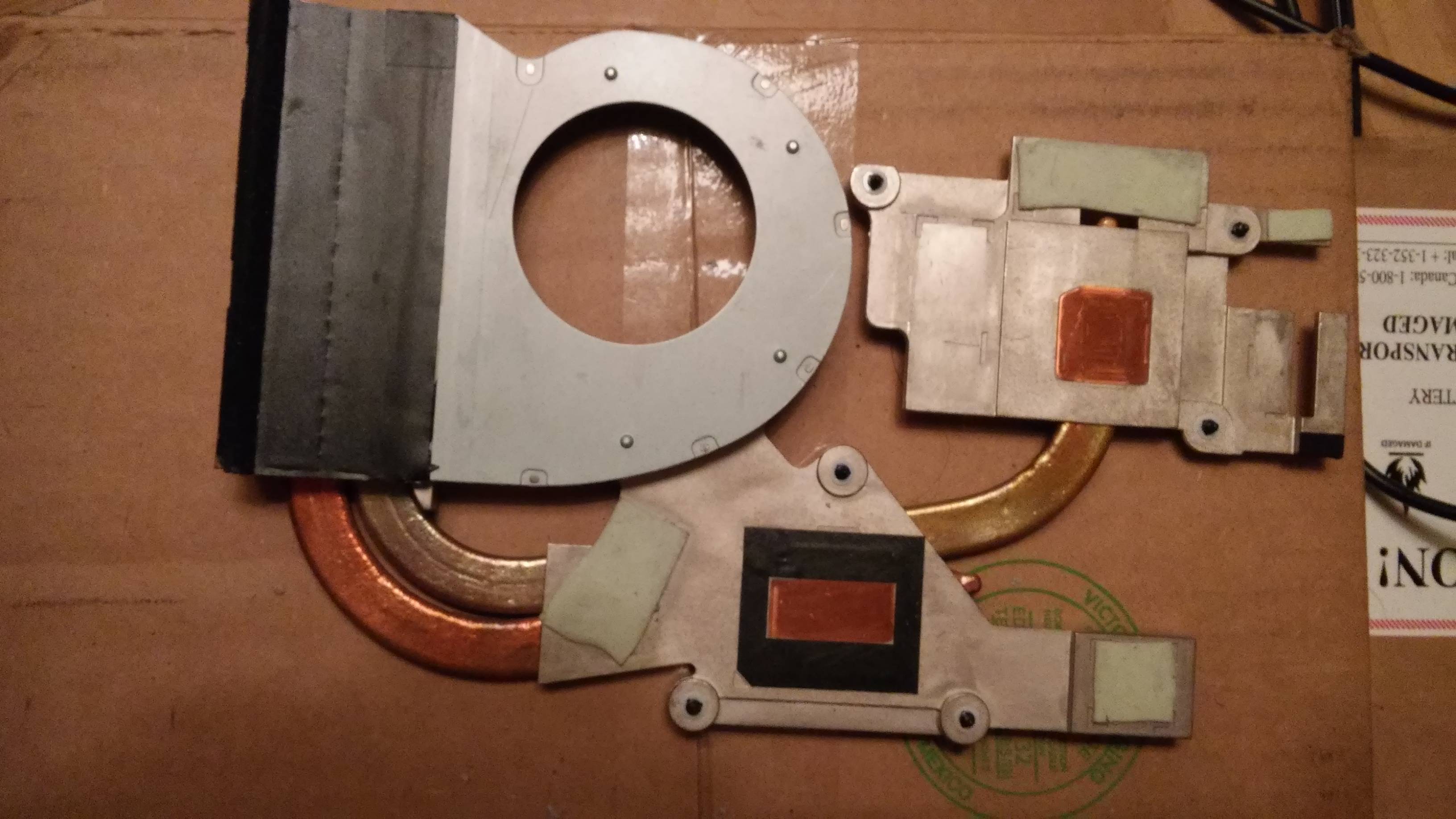

    And here is the heatsink (GPU connects to the top right pad)
    [​IMG]

    After some google searches, it seems this plastic layer is to prevent shorting from the heatsink to the small components that surround the chip. If I reattach the heatsink without this plastic, is there going to be a risk of shorting? The plastic is now non-sticky and torn, so I'm trying to think of the best way to do this without risk of frying the 750m.

    eliasI, Jul 16, 2017
    #1
  2. MahmoudDewy

    MahmoudDewy Gaming Laptops Master Race!

    Reputations:
    474
    Messages:
    1,654
    Likes Received:
    744
    Trophy Points:
    131
    Replace that with 105C temperature rated insulating tape.

    MahmoudDewy, Jul 16, 2017
    #2
    Ionising_Radiation, eliasI and ChanceJackson like this.
