Radeon HD 7690M? Info please?

still a bit lower score than XT



after analyzing all results, fps and every single test, my conclusion is: the better card is the card with came with highest standard clocks on his bios, because the vbios are designed for!
maybe if we have an possibility of exchange our vbios to you use mine vbios, the results could be the same !



Just to point out this was done with OLD drivers so I am looking just at clocks.

If you are hitting around 875 or 900mhz you are at 1.1v.



Still within the margin of error. P6932 vs P7048 at same clocks is only ~1.6% difference. Yours has 2GB VRAM while mine has 1GB VRAM. If VRAM usage exceeds 1GB, then my 7690M will incur a performance penalty. Results are not conclusive to indicate that chips are of different quality.

In essence, 7690M is a rehashed 6750M @1.00V and 7690M XT is a rebranded 6770M @1.05V. If all 4 Whistler chips are at the same clocks with same voltage, they will perform similarly. Remember that AMD does binning, so the same chip can be used in many different parts.



for now:

Generic VGA video card benchmark result - Intel Core i7-2670QM Processor,Hewlett-Packard 17FA score: P8549 3DMarks

900-1000 voltage stock at 1,05

[/div]



Looks to me that 7690M has nearly identical performance to XT up to a certain point when XT can overclock further. There is about 5% difference to Lenovo card, but perhaps that can be attributed to drivers.



Ok i will promisse this is my last run LOL! my computer crash after that one, thats the reason i didnt submit, sorry

900-1100 voltage stock at 1,05

[/div]

you guys are right, its the same chip, same card, same components but the vbios its different and make some differences



see my all results ppl, and you will see how CPU start break power and the WATTage are less,



Wow. 900 / 1100? That thing can OC like crazy. You got lucky with the RAM too, usually you can't push it that far. I expected the GPU to do a little better since it's a die shrink, but RAM.



The 7690m/7690m XT aren't even die shrinks. Still 40nm. Maybe AMD did some optimizations to the chip, but why would they still be calling it Whisler if that's the case..? I'm just thinking he just got lucky with the binning/the card isn't fully stable at those speeds.



True, could be stable for the bench but not for gaming.



its not stable at all, in game peformance is too poor, but i didnt try 900/110 with another voltage, maybe thats d problem.
the most stable at stock voltage (1.05) is 900/1000, i was test all game i have; GTA4, BF3, DIRT3, COD MW3 and i See about 10 FPS boost on each game



Please can someone confirm this configuration support AMD Dual Hybrid CrossFireX for Mobile Platform

APU A8-3550MX [GPU HD 6620G] + AMD Radeon HD 7690M Discrete Graphics (Mobile) = Dual Graphics Solutions (AMD CrossFireX) ????



It will do, it will be identical in performance to 3550MX + 6750M (if non-XT)



Can someone verify this once and for all?

1. Is the 7690m a rebranded 6750m or 6770m?

2. Is the 7690m and the 7690m XT exactly the same card with same clocks?



7690m is rebranded 6750m.

They are different cards, one is 6750m and another 6770m. They have different stock clocks and the latter one can be overvolted and reach higher overclock figures. However at the same clocks they perform nearly the same.



At the same clocks they will perform exactly the same.



the 7690 looks decent, especially with a $850 setup on the hp dv6t, but something about HP turned the interest off for me. Not too many videos on youtube of people playing with a 7690; pretty sure it's only 1 user right now that has uploaded videos



7690m has JUST BEEN RELEASED. Very few people have these machines yet. It's basically the 6750m / 6770m (XT).



I posted these benches in another thread in the lenovo section, but i think it is worth posting here as well. These tests were all taken in the y470p with an i7 2670qm, 8gb ram, and 7690m

Stock scores are when GPU clocks are at:
725mhz core clock
900mhz memory clock

O/C scores are when GPU clocks are at:
800mhz core clock
1000mhz memory clock
(I found these clocks to be the most stable.)

Stock 3dmark11 - 1360
O/C 3dmark11 - 1484

Stock 3dmark Vantage - 5707
O/C 3dmark Vantage - 6343

Stock 3dmark06 - 9493
O/C 3dmark06 - 10334

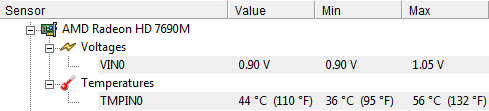

And here is a pic of the temps while running all 3 O/C benchmarks according to HWmoniter



thankyou for this bench's.
Are you sure you arent in battery while testing? or maybe using a low performance profile.
your scores its too low.
you have same cpu As i mine, your gpu its 100mhz stock above than my. You did Stay with HWmonitor opened while running the test's? 56 ºc its too low for a GPU temp on notebook, are you sure have a notebook ? LOL



I just got my laptop of 7690m Xt
im getting fps on Flight simulator X.
I set BIOS to fixed graphics btw so im sure im using Radeon graphics.
Yet ty , im getting like 15 fps! I use to get that on same settings with my 4650 HD!
I dont know what's wrong. Can any one help.



did you set for fixed and save?
try to go on catalyst manager and seleect gpu



i actually did. The problem was that i havent updated Service packs of the game. With service pack one and tested i got around 25fps. Still nto what i expect because in comparision with the 1gb 4650HD that had vista and 4 gigs ram (3 gigs effective) ran actually smoother. But that had Service pack 2. So im now installing Sp2. And will give it a go and update you if any improvements occur.

TO be honest i was expecting 60+ Frames.
With double the ram. Double the video card of 7000 series comapred to 4000 series and Strong Core i7 2670 QM , there are no excuses for that to occur.
On the other hand. im suffering from inability to Update my windows as well. I've got this laptop for a couple of days now and every single day this error comes up as i check for updates , 80072efe...It could probably explain why graphic card may not run very smooth with the current system?
Im not sure .



all tests were taken while plugged in, high performance, and HWmoniter was open while taking all three O/C tests.

while O/C, the highest temp i've seen in game is 59*C

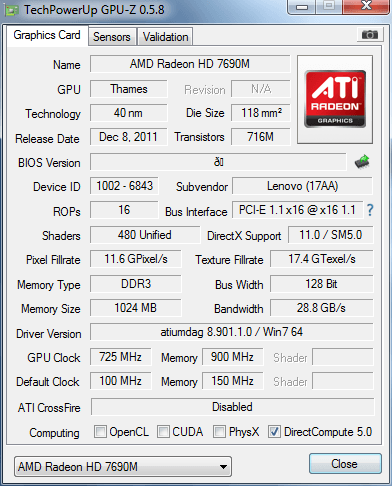

very nice temp' can you post gpuz screen to see all specs. i think you get low score. maybe something are thrttling cpu and gpu. thays why you get such low temp



really i dont know. i have sme system you have. i dont have any complain about performance. run some bench and see if you notebook has underperforming



thnkss. yours is ddr3 thats why i thougt yours get less score on bench. mine is gddr5



They're all gddr5. Its a bug with GPU-z.



according to notebookcheck exist ddr3 too.
i see the device id its different than mine. but i thinking about that because the results are not the same. so make some sense it be really ddr3. or maybe you are right



Generic VGA video card benchmark result - Intel Core i7-2670QM Processor,Hewlett-Packard 17FA score: P1535 3DMarks

this is my result on 3dm11!
can you tell me if this is good or bad?



That's showing 16 ROPs for yours vs 8 posted earlier on the HP models. Is that correct?



thats because pc1 vs pci2 can you se?



From DV6 thread



Generic VGA video card benchmark result - Intel Core i7-2670QM Processor,Hewlett-Packard 17FA score: P6999 3DMarks

http://3dmark.com/3dm11/2718982

My results on the 3d vantage and 3dm11 test respectively.

My Computer : Hp Dv6-6c65ee
Processor
Core i7 2670QM (2.2Ghz)
Memory
8GB RAM
Storage
750GB HDD
Display
15.6-inch
Graphics
AMD Radeon HD 7690M XT (2 GB DDR5 dedicated)
Software
Windows 7 Premium
Sound
Beats™ Audio



i have been tryed other drivers that the results:

3dmark vantage stock drivers stock clocks:
[/div]

3dmark vantage stock drivers clocks 900/1000:
[/div]

3dmark vantage Leshcat package 12.1 v2.7 900/1000:
[/div]

3dmark vantage DNA package 12.2 900/1000:
[/div]

I think it is good for a quick comparision



Thats really intestesting comparison, mate.



Hello Really need help! Requires a standard video card on vBios 7690m XT. I do not know where else to turn. The last hope for you! Thanks in advance, I will wait for a response.
