    VBIOS flash without change of device ID??

    Discussion in 'Gaming (Software and Graphics Cards)' started by niffcreature, Jan 8, 2011.

  1. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116

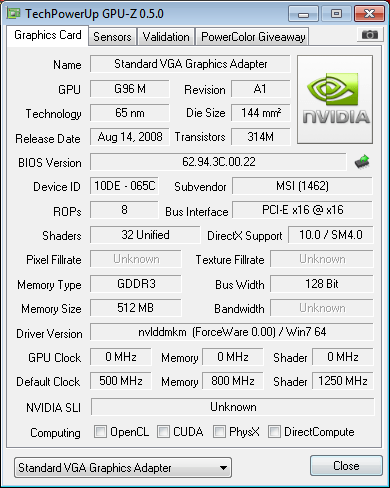

    OK, so, whats wrong with this picture?

    [​IMG]

    Its not obvious so I'll tell you.
    065C is the device ID of the quadro FX 770m. But the BIOS, 62.94.3C.00.22 is that of a 9600m GT.

    How is this even possible?

    BIOS attached. Any advice appreciated.


    Attached Files:

    niffcreature, Jan 8, 2011
    #1
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Funny, I opened the bios with nibitor, it shows the device ID as 0649.

    Try updating the system bios with that new card in there, I read that sometimes the vbios is shadowed into the system bios and that could be causing the problem.

    Maybe the system had an FX 770m at some point.

    moral hazard, Jan 8, 2011
    #2
  3. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    Yep, thats what I thought. Its preventing me from installing drivers which is the weirdest part. I'll try making 065C specifically 0649 with the modded inf in a second.
    Yes it did have an fx 770m in it right before I flashed it lol. I guess it could be some kind of a bad flash.

    I believe the VBIOS is always 'shadowed' at bootup but maybe sometimes it doesn't reshadow it at every startup. Its definitely not embedded which is probably what you were thinking of.
    This is a GX630. Do you know where I can find the latest BIOS?
    thanks

    niffcreature, Jan 8, 2011
    #3
  4. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Jan 8, 2011
    #4
  5. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    Thanks.
    1.0p is newer than 1.06 right?

    I got the drivers installed, just hadn't restarted enough times I guess.
    Installed as a fx 770m tho :rolleyes:
    Now my temps are way higher while im holding the laptop on its side... only 1 side lol... guess i have work to do.

    niffcreature, Jan 8, 2011
    #5
