    graphics card upgrage ¿?

    Discussion in 'Gaming (Software and Graphics Cards)' started by ballarin91, Oct 20, 2014.

  1. ballarin91

    ballarin91 Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    I would like to upgrade my graphics card Nvidia GT 740m. I have a Toshiba L50-A-18R. Getting a GT 860M for example would be great.

    ((( i7 4700mq / chipset intel hm86 )))

    So, ¿it this posible? thank you

    ballarin91, Oct 20, 2014
    #1
  2. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    It depends on your laptop, if 740m is soldered on your mobo then the answer is no, otherwise you need to have a card with the same connection to mobo and you need cards that either support the same heatsink or chassis that can fit the heatsink of the new card (it is not simple, for example 460m heatsink didn't fit 7970m and I burned a card, although everything was in place and there was absolutely no contact). I am pretty sure 860m is using MXM 3.0, notebookcheck says 740m also uses the same (though I am not sure). Problem is Toshiba doesn't produce laptops that are upgradable (most of the time). Most probably your gpu is not even removable. Did you try opening the back of laptop and taking a look yet?

    maxheap, Oct 20, 2014
    #2
  3. LTBonham

    LTBonham Notebook Evangelist

    Reputations:
    182
    Messages:
    347
    Likes Received:
    52
    Trophy Points:
    41
    I am pretty certain there were no MXM versions of the 740m. You would need to buy a new laptop.

    LTBonham, Oct 20, 2014
    #3
    moviemarketing likes this.
  4. ballarin91

    ballarin91 Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    Ok, so problems can be mobo suport, mxm port, and if the graphics card is soldered or not. Im gonna open it and see. Thanx man

    ballarin91, Oct 21, 2014
    #4
  5. ballarin91

    ballarin91 Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    No money... ¿are you sure of that?

    ballarin91, Oct 21, 2014
    #5
  6. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,878
    Trophy Points:
    931

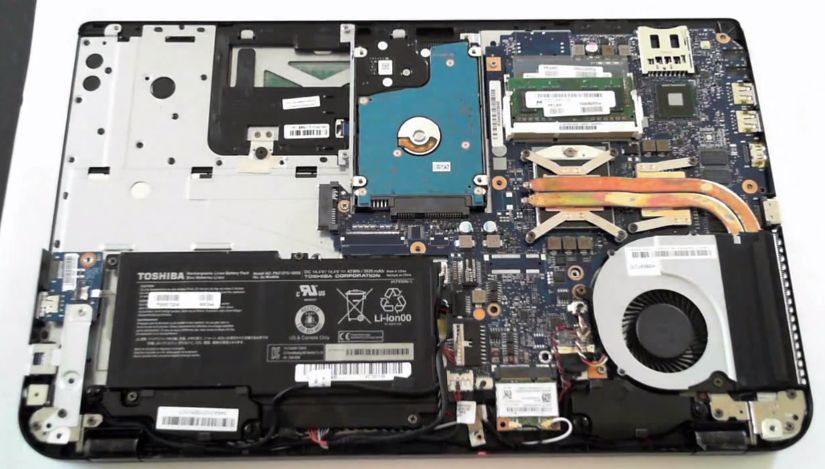

    HTWingNut, Oct 21, 2014
    #6
  7. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    ^^ Yupp u never believe Notebookcheck!

    maxheap, Oct 21, 2014
    #7
  8. ballarin91

    ballarin91 Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    Ok, thanx all.

    ballarin91, Oct 21, 2014
    #8
