    my gpu Seriously is throttling.

    Discussion in 'Gaming (Software and Graphics Cards)' started by hemanlam, Feb 4, 2016.

  1. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    when i normaly Play CS:GO i get 160~fps but suddenly it throttle my laptop to 60 fps max and sometimes it even worst. i need help.
    Here are my specs.
    Intel I7 4710HQ 2.50 4 cores
    8Gb of DDR3 ram
    Windows 10 64 bit
    GTX 850m
    1Tb of HDD

    I need help my laptop is not even running half the speed sometimes
    UPDATE: i will post a picture my my laptop throttling
    [​IMG]

    http://imgur.com/7USqjkM

    Last edited by a moderator: Feb 4, 2016
  2. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    767
    Messages:
    3,242
    Likes Received:
    2,675
    Trophy Points:
    231
    Download GPU-Z and monitor the Sensors tab - look closely at the GPU Core Clock and GPU Memory Clock readings, as well as the PerfCap Reason, when it throttles:
    Then post a screenshot here. You can use the little camera icon at the top right to take a screenshot, save it as a file and upload the saved .gif image. I get a feeling your overclock is not stable and the GPU driver is crashing, then reverts to a low-power mode.

  3. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    okay ill do it now

    why does it say Intel 4600 and not my GTX 850?

    Last edited by a moderator: Feb 4, 2016
  4. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    767
    Messages:
    3,242
    Likes Received:
    2,675
    Trophy Points:
    231
    Bottom left - click the drop-down box and change the GPU. Also, try not to make multiple posts. If you want to add something to your current post, just click the Edit button near the bottom-left.

  5. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    Last edited by a moderator: Feb 4, 2016
  6. TBoneSan

    TBoneSan Laptop Fiend

    Reputations:
    4,460
    Messages:
    5,558
    Likes Received:
    5,798
    Trophy Points:
    681
    What are your temps when it throttles? Simple overlooked solution.. Have you cleaned the dust from the vents and heatsinks?

  7. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    65 degrees

    and no. im still very noob at pc's and laptops i got it fixed my heat sink about 4 month ago in factory.

    Last edited by a moderator: Feb 7, 2016
  8. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    767
    Messages:
    3,242
    Likes Received:
    2,675
    Trophy Points:
    231

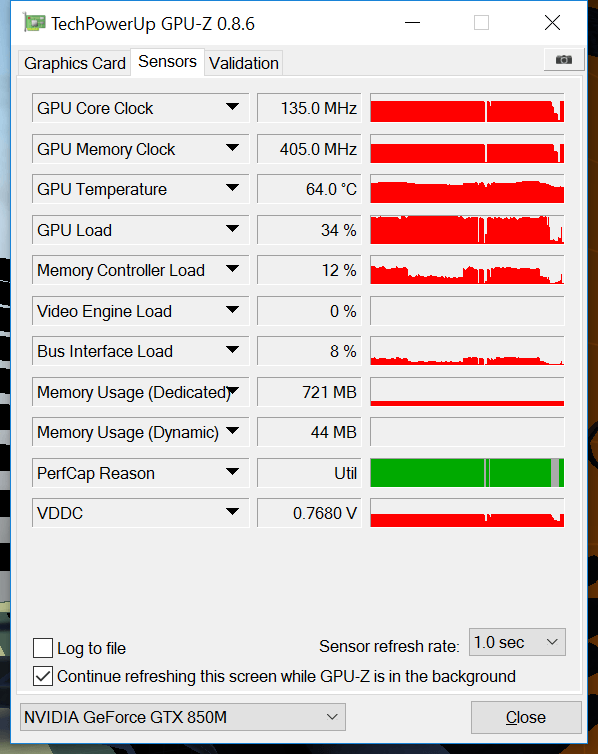

    Yep, your overclock is unstable. You see that your GPU is stuck at 135 MHz That's not supposed to happen. Remove your overclock settings, reboot and play the game, see if it throttles.

  9. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    but does removing my overclock make it worst

  10. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    767
    Messages:
    3,242
    Likes Received:
    2,675
    Trophy Points:
    231
    No, your overclock makes your GPU driver unstable and the GPU driver crashes. Then your GPU is stuck in a low-power mode (135 MHz), and that's what is causing the low framerate in your games. You can try it: remove your OC (delete any start-up profiles as well), reboot and see how the game plays. Plus, your overclock settings are mild - you wouldn't notice much difference.

  11. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    what if i want to "truly overclock" how can i do that

    but i dont understand.
    if my so called 'overclock are mild' how is it unstable?
    if im massively overclocking then i understand why my gpu and cpu cant handle it but as u said my overclock is mild,then how is it affecting my laptop gpu and cpu

    Last edited by a moderator: Feb 7, 2016
  12. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    767
    Messages:
    3,242
    Likes Received:
    2,675
    Trophy Points:
    231
    By 'mild' I mean you have not increased your core clock and memory clock offsets by a lot. However, some GPUs are just of lower quality than others, and they are very unstable even at stock clocks. Your GTX 850M may be in that low-quality group (just bad luck, cannot fix it in any way). In my opinion, you don't need the overclock to play CS GO. If you are not playing Witcher 3 or GTA or Tomb Raider, then you really don't need the overclock, since there is no point in going from 110 FPS to 115 FPS in CS GO. It doesn't make a difference.

  13. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    yeah i know what you mean but i want the throttling to stop

  14. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    767
    Messages:
    3,242
    Likes Received:
    2,675
    Trophy Points:
    231
    Then get rid of your overclock. Simple.

  15. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    i did

  16. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    767
    Messages:
    3,242
    Likes Received:
    2,675
    Trophy Points:
    231
    Alright, so have you tried playing CS GO?

    Reboot your laptop. Then firstly, launch GPU-Z, and monitor your clock speeds. Open CS GO, play for a while, and when it throttles, Alt+Tab to GPU-Z, take a screenshot. Upload here. This will take at least a few minutes, if you respond within 30 seconds of me sending my reply I know you will not have done it.

    TBoneSan likes this.
  17. hemanlam

    hemanlam Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    okay it stop throttle the lowest was 978 so im good thank alot for the support

    i_pk_pjers_i and TBoneSan like this.
  18. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    767
    Messages:
    3,242
    Likes Received:
    2,675
    Trophy Points:
    231
    Happy to help.

    Papusan and i_pk_pjers_i like this.
  19. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    OP if you want to OC you have to do it in small increments. No GPU is the same. This way you find the limits safely and easily.

  20. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    More like the NVIDIA drivers + stock vBIOS is throttling it lol..
