    7801_7915 LCD question

    Discussion in 'Gateway and eMachines' started by JR_PRO, Feb 10, 2010.

  1. JR_PRO

    JR_PRO Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    I have a 7801 with the 1920 X 1200 LCD screen and my wife wants a new 7915 FX but does not game much and likes the lower resolution just for work purposes. Question is can I put the 1920 X 1200 LCD off of my 7801 onto her new 7915 and will it work? Since she does not game I would like the new NVIDIA GTX 260 graphics card but also really like my 1920 X 1200 LCD screen. Anyone know if this swap will work? I have not bought the 7915 yet so that is why I am asking. Thanks!

    JR_PRO, Feb 10, 2010
    #1
  2. Maverick79

    Maverick79 Notebook Evangelist

    Reputations:
    17
    Messages:
    376
    Likes Received:
    0
    Trophy Points:
    30
    Gateway says the inverters (for the screens) used on both are different. Not sure if thats true.

    Maverick79, Feb 10, 2010
    #2
  3. Conda

    Conda Notebook Guru

    Reputations:
    10
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    15
    it true, just take the inverters with the screens it come with the plug are the same it will work

    Conda, Feb 11, 2010
    #3
  4. JR_PRO

    JR_PRO Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the heads up...I have changed screens before but where are the inverters located and what do they look like?

    JR_PRO, Feb 11, 2010
    #4
  5. Maverick79

    Maverick79 Notebook Evangelist

    Reputations:
    17
    Messages:
    376
    Likes Received:
    0
    Trophy Points:
    30
    I think its like screen connected to the inverter and inverter to the motherboard. Inverter should already be there on the wire that connects the motherboard. Just google.

    Edit : Is the inverter compatible with the motherboard ? Thats what i have no idea of. Or it doesn't matter ?

    Maverick79, Feb 11, 2010
    #5
  6. Conda

    Conda Notebook Guru

    Reputations:
    10
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    15

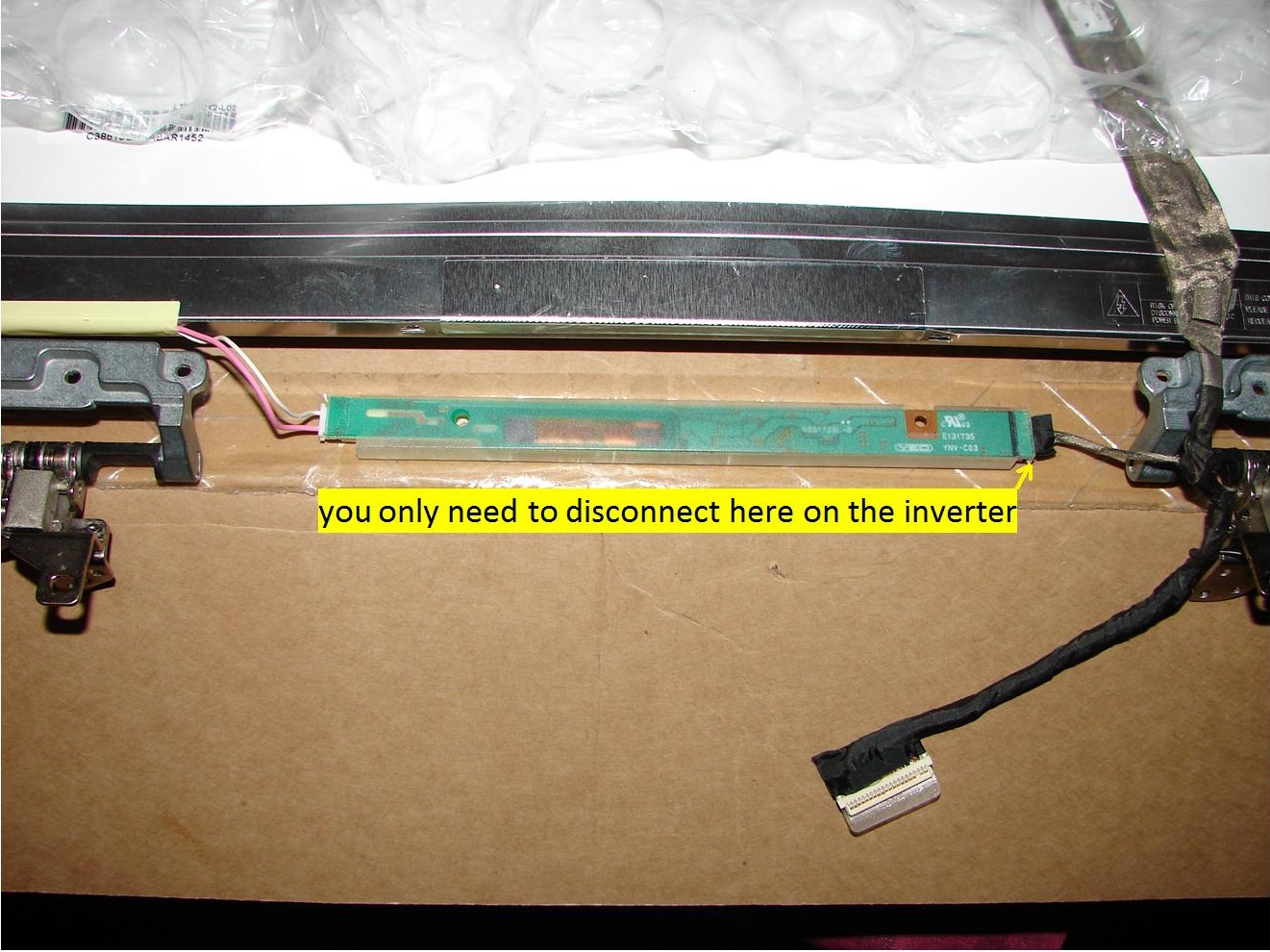

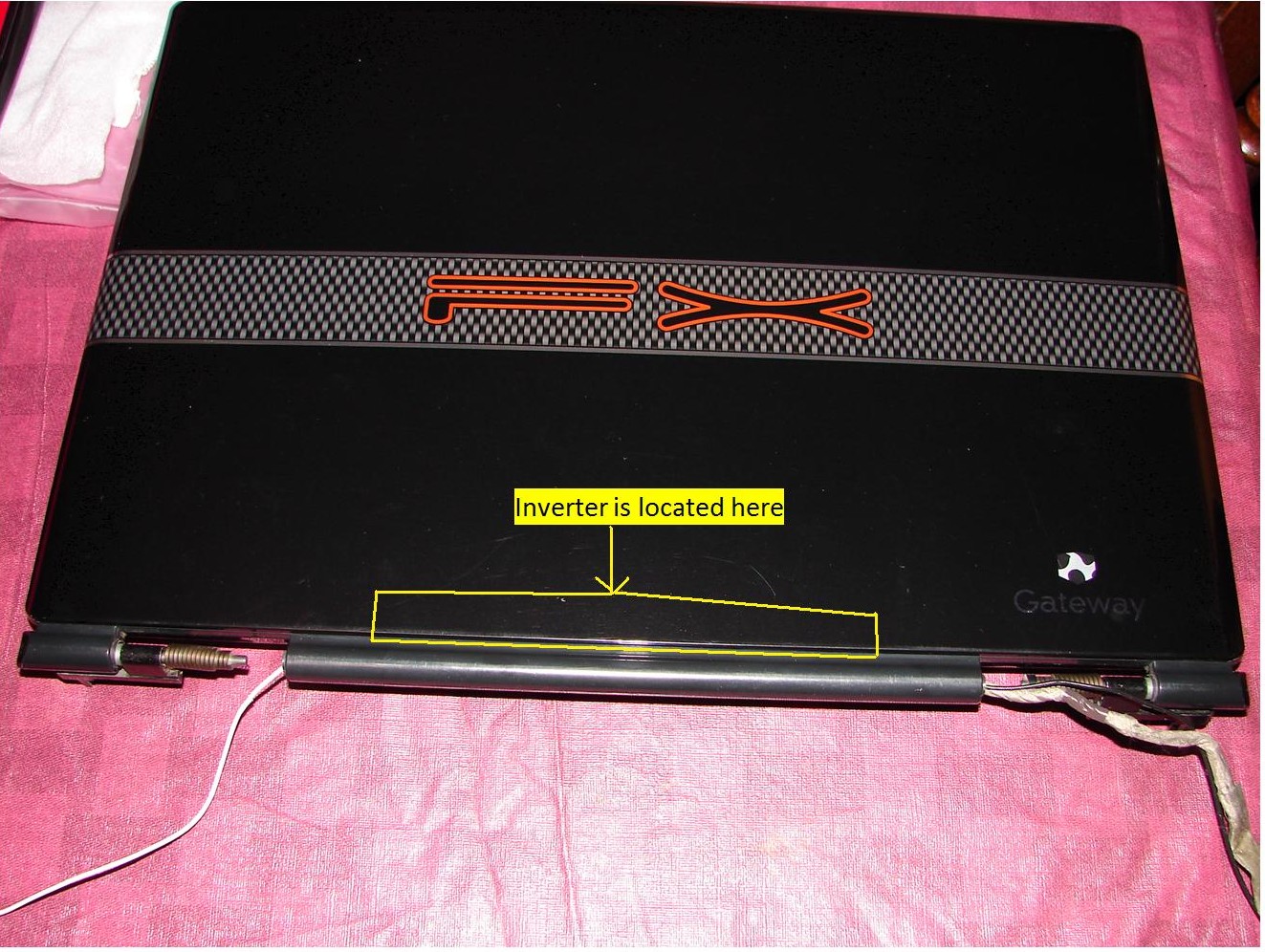

    This is what it look like, and where it located.
    hope this help :)


    Attached Files:

    Conda, Feb 12, 2010
    #6
  7. JR_PRO

    JR_PRO Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    So the inverter is inside the back/bottom side of the LCD screen itself? If so the inverter stays with the LCD screen which is nice. Do I have it correct?

    JR_PRO, Feb 12, 2010
    #7
  8. Maverick79

    Maverick79 Notebook Evangelist

    Reputations:
    17
    Messages:
    376
    Likes Received:
    0
    Trophy Points:
    30
    Excellent work.

    Maverick79, Feb 12, 2010
    #8
  9. Conda

    Conda Notebook Guru

    Reputations:
    10
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    15

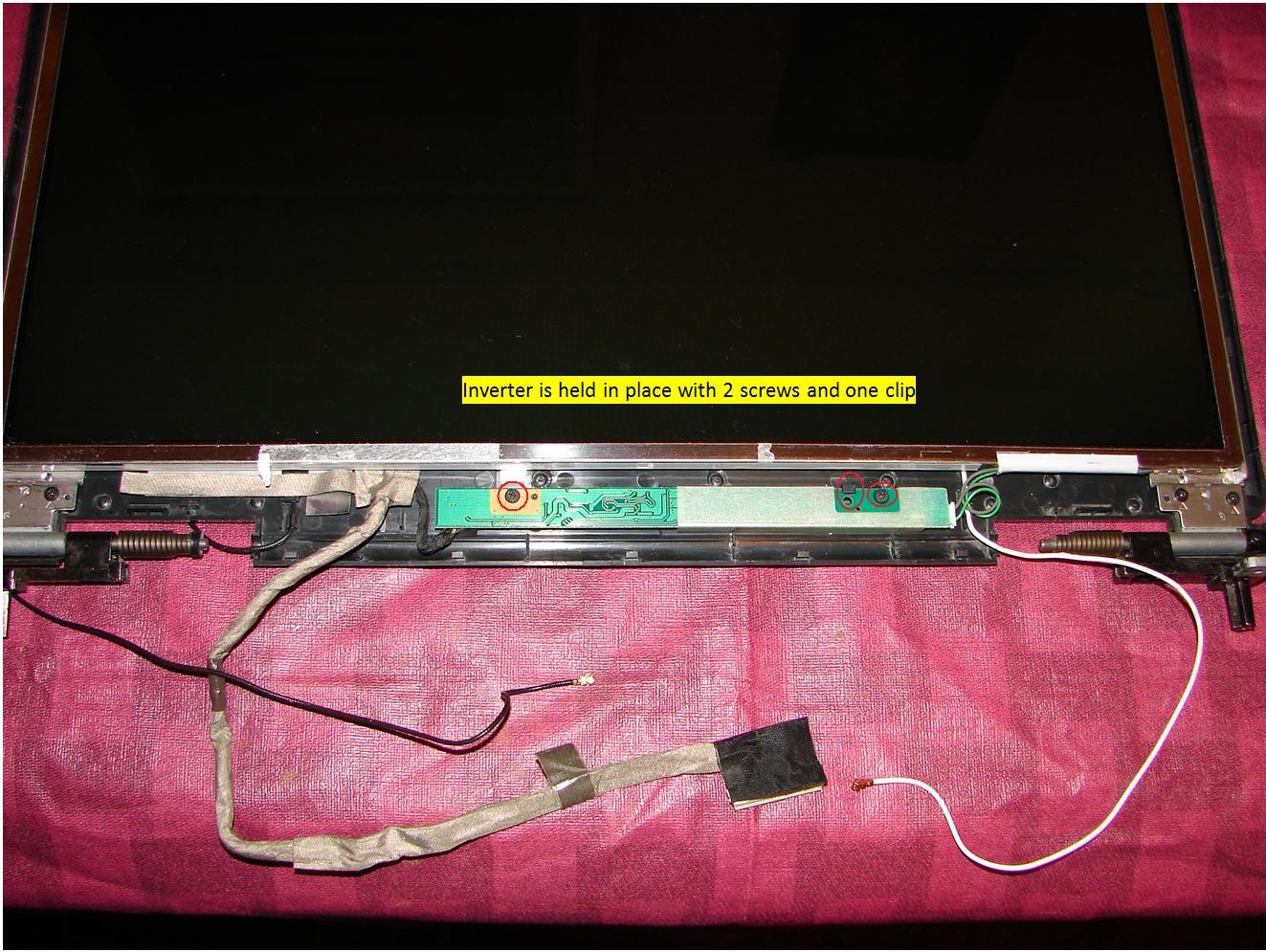

    correct :yes: take a look actual pictures of the gateway FX screen


    Attached Files:

    Conda, Feb 12, 2010
    #9
