    FX-7811 esata port and external drive problem

    Discussion in 'Gateway and eMachines' started by thefudd, Oct 14, 2009.

  1. thefudd

    thefudd Notebook Enthusiast

    Reputations:
    15
    Messages:
    41
    Likes Received:
    0
    Trophy Points:
    15
    I have an external enclosure with 2 1.5tb drives. When I plug the enclosure in via usb, the computer sees both drives just fine. When I plug it in via esata, I can only see one drive.

    Intel matrix manager pops up saying only one drive will be visible because of a port multiplier or something to that effect.

    does this mean i'll be better off getting an expresscard to esata adapter and forget about the built in port esata port on the FX-7811?

    tia

    thefudd, Oct 14, 2009
    #1
  2. SeekthetrutH

    SeekthetrutH Notebook Enthusiast

    Reputations:
    0
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    5
    Are they in raid mode?

    SeekthetrutH, Oct 14, 2009
    #2
  3. thefudd

    thefudd Notebook Enthusiast

    Reputations:
    15
    Messages:
    41
    Likes Received:
    0
    Trophy Points:
    15
    no just JBOD..

    in RAID mode it's even worse, the comp only sees about 400gb of the whole 1.5tb(Raid1) via esata, via usb everything is fine

    thefudd, Oct 14, 2009
    #3
  4. SeekthetrutH

    SeekthetrutH Notebook Enthusiast

    Reputations:
    0
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    5
    In bios maybe you can change AHCI mode or something? And also you can update intel matrix storage manager and chipset drivers.

    SeekthetrutH, Oct 14, 2009
    #4
  5. thefudd

    thefudd Notebook Enthusiast

    Reputations:
    15
    Messages:
    41
    Likes Received:
    0
    Trophy Points:
    15
    it is in AHCI mode, and I did update to the latest chipset and matrix drivers...

    I guess the port just can't handle an enclosure with a port multiplier?

    thefudd, Oct 14, 2009
    #5
  6. SeekthetrutH

    SeekthetrutH Notebook Enthusiast

    Reputations:
    0
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    5
    SeekthetrutH, Oct 15, 2009
    #6
  7. BlackSheep5

    BlackSheep5 Notebook Consultant

    Reputations:
    3
    Messages:
    165
    Likes Received:
    0
    Trophy Points:
    30

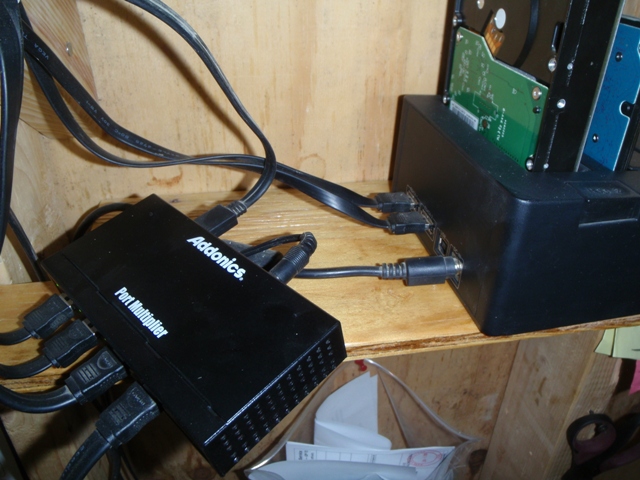

    Does the enclosure have 1 or 2 eSATA ports on it? I have a HDD dock that has 2 eSATA and 1 USB, if I plug in the USB I see both drives. But eSATA is for 1 drive, so I have a eSATA port multiplier so I can use both drives.


    Attached Files:

    BlackSheep5, Oct 24, 2009
    #7
