    Fried Mosfet P-7805u Need Markings plz

    Discussion in 'Gateway and eMachines' started by a4htec, Jun 7, 2011.

  1. a4htec

    a4htec Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5

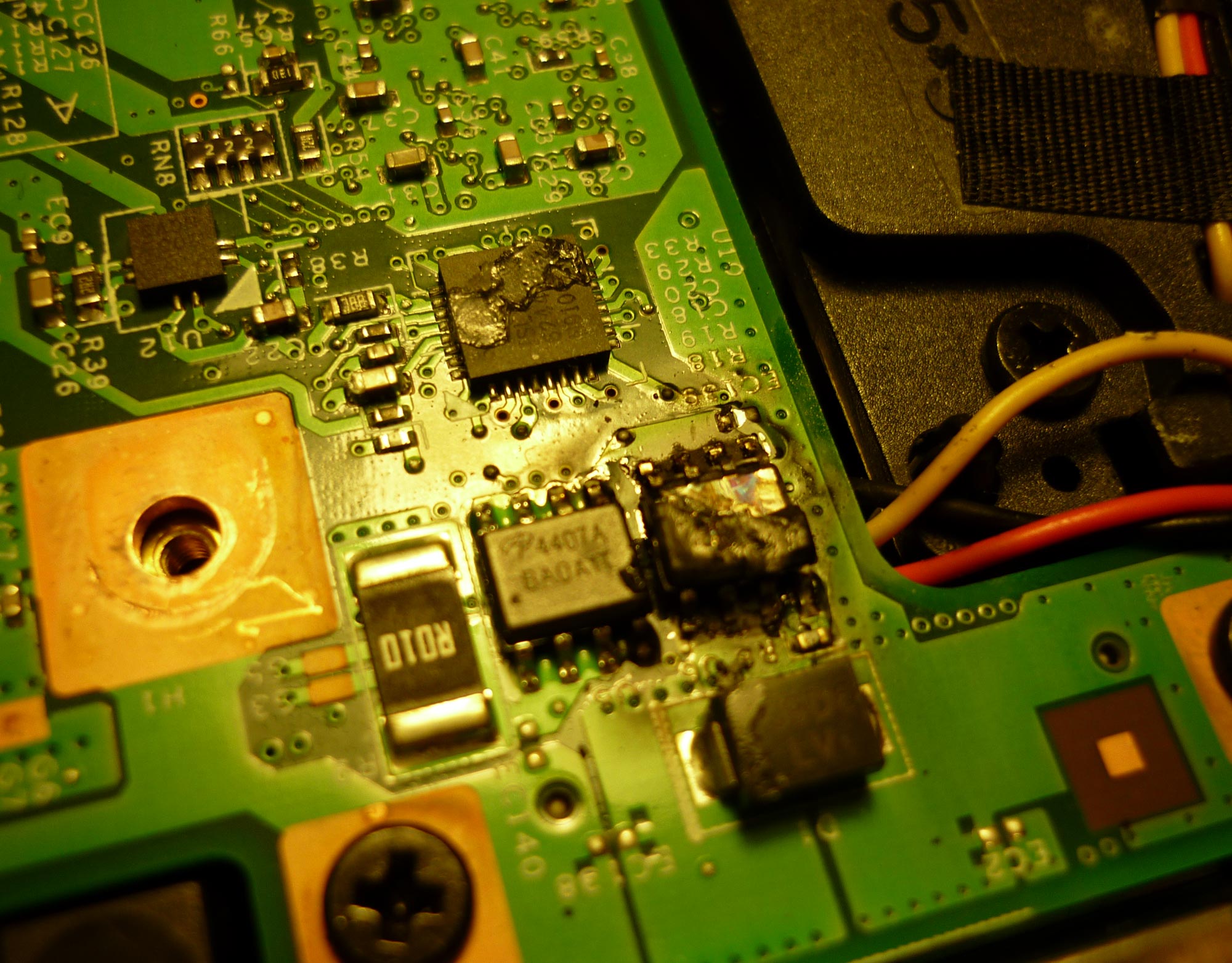

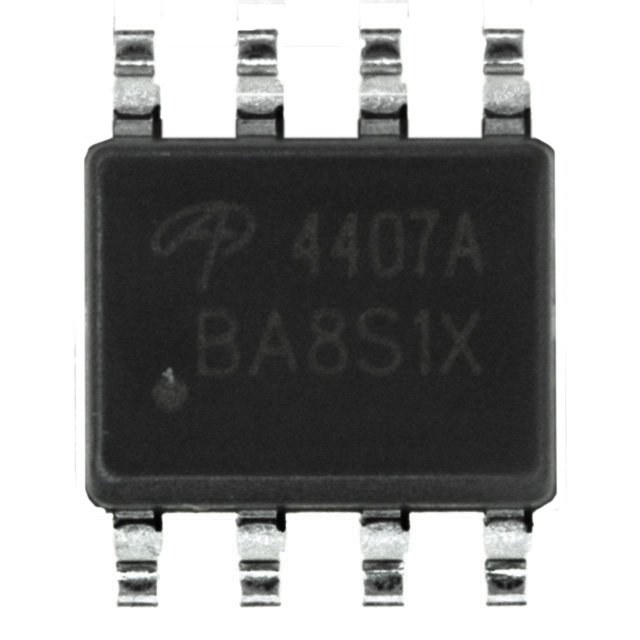

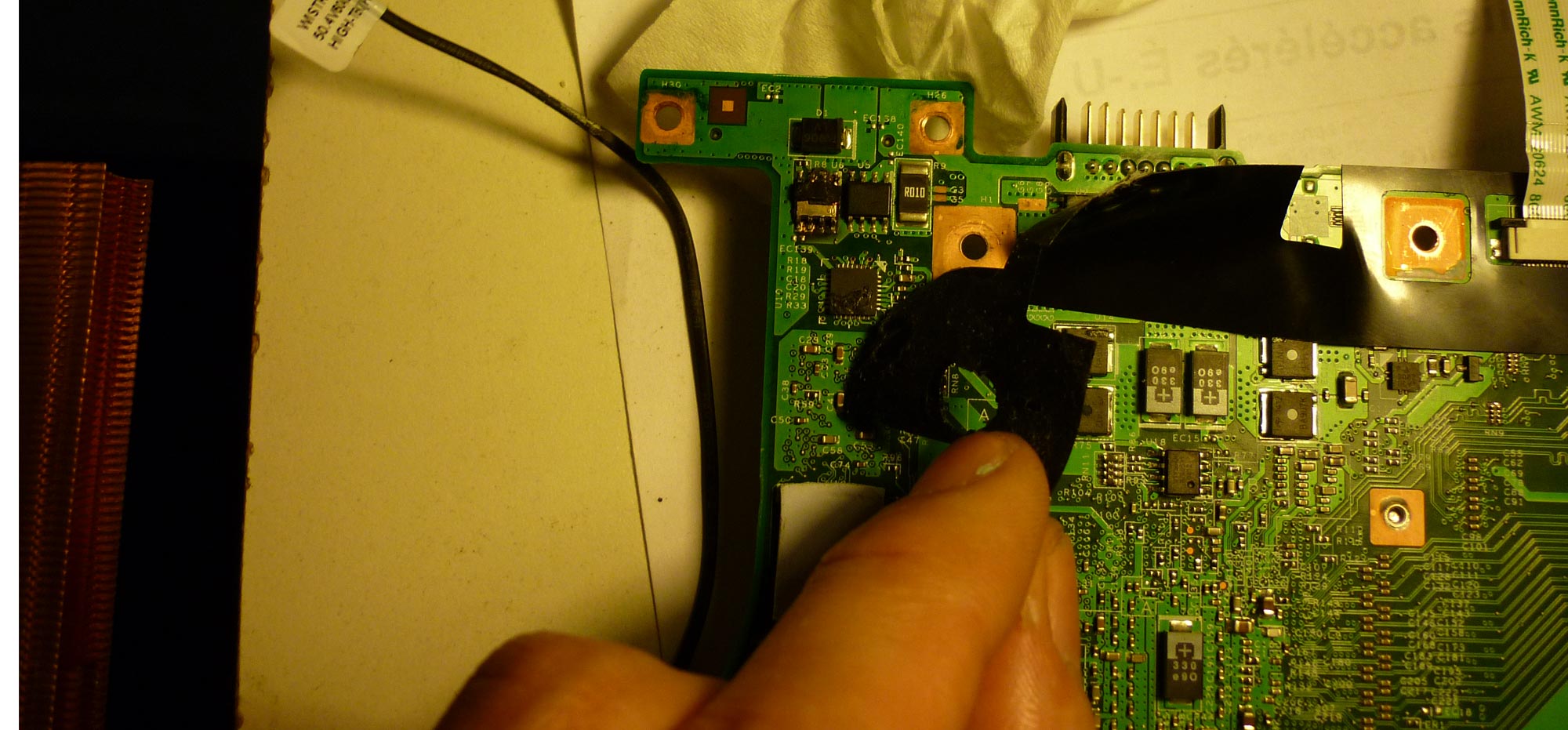

    Hello, I am hoping that someone could help me out. Just fried my motherboard. It is a Gateway FX P-7815u which is a MS2232 same as probably P-7805u P-7809u. The location of this fried mosfet is the bottom side need the GPU FAN is under the black vinyl tape. there is a mosfet next to it that I found out is a AO4407A a - MOSFET P-CH -30V -12A 8-SOIC
    if anyone can find out or can tell me what the burnt mosfet markings on it is so I can order a replacement that would be really helpful. and can you tell me which direction it should be mounted the same way or opposite as the mosfet next to it. a PIC if possible would be really helpful if it is not too much trouble.

    my email is [email protected]

    Regards,

    Van


    Attached Files:

  2. TreeTops Ranch

    TreeTops Ranch Notebook Deity

    Reputations:
    330
    Messages:
    904
    Likes Received:
    124
    Trophy Points:
    56
    Probably made in China somewhere. Also the first photo shows a lot of damage to adjacent parts. Are you sure that that one chip is the only one damaged?

    I wouldn't know where to start. Maybe contact a chip maker in Taiwan?

  3. a4htec

    a4htec Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    just the one chip on the right of the 4407A is damaged and 1 capacitor on the other side of the board. the one square chip has glue residue thats all.
    so I'm just wondering if the burnt chip with the 8 legs is just another 4407A
    with I already ordered 4 of from digikey. its a AO4407A hopefully they are both the same chip so I can just replace the fried one but just need confirmation that it is in fact 2 of the 4407A in that area


  4. a4htec

    a4htec Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5

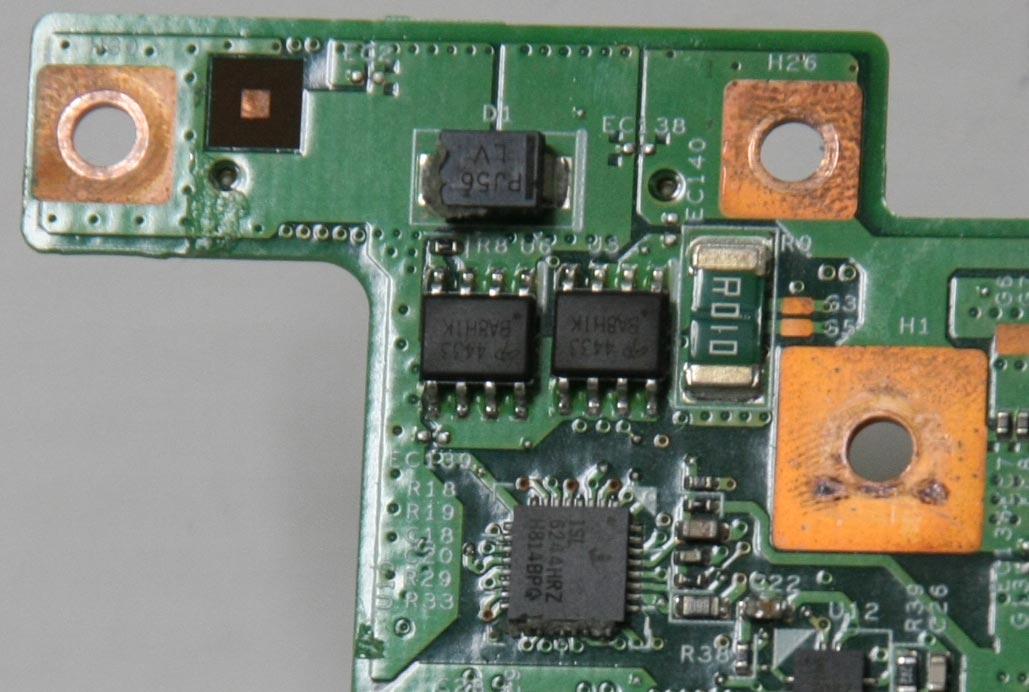

    I just got someone to send me a pic of a P-7811u board which is the Nvidia 9800 GTS 512MB version board. its got 2 x AO4433 mounted there same specs as my AO4407A so thats what I'm gonna do when I get my 4 chips tomorrow hopefully I will get power back to my motherboard. Will let u guys know if u run into the same problem.


    Attached Files:
