    [Image] Can you locate my cpu/Heatsink?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Undertaxxx, Jun 28, 2009.

  1. Undertaxxx

    Undertaxxx Notebook Consultant

    Reputations:
    33
    Messages:
    264
    Likes Received:
    0
    Trophy Points:
    30
    pic :

    [​IMG]

    could anyone locate my cpu?

    I'm not really sure, and about to apply some thermal paste..

    thx.

    Undertaxxx, Jun 28, 2009
    #1
  2. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,740
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    It should be in the center of the picture in the area i have marked red , most likely between the 4 screws , one is covered.

    [​IMG]

    Tinderbox (UK), Jun 28, 2009
    #2
  3. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216

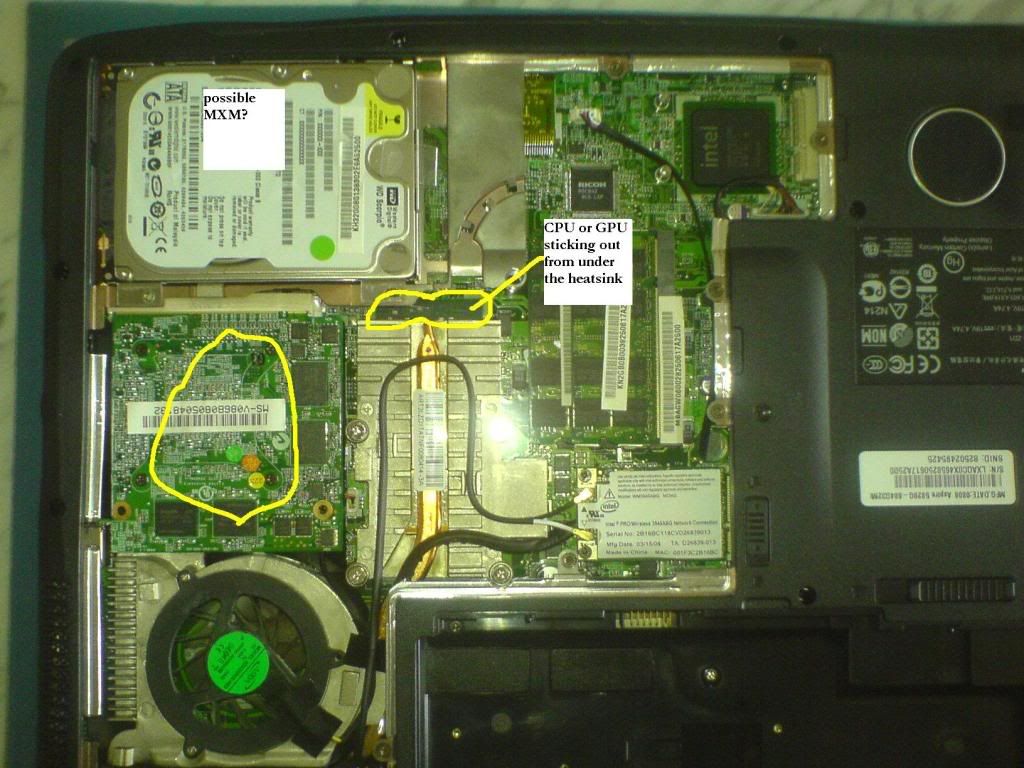

    yes that is the same as what I think, also you can see part of the GPU sticking out from under the heatsink. ( look at the end of the heat pipe, it's just there).

    Edit: or maybe that's part of the CPU stciking out, I originally thought that both the CPU and GPU were under that heatsink, but now I think it looks like you have an MXM GPU or another type of removable GPU.

    Here is a photo:
    [​IMG]

    Last edited by a moderator: Feb 6, 2015
    moral hazard, Jun 28, 2009
    #3
  4. Undertaxxx

    Undertaxxx Notebook Consultant

    Reputations:
    33
    Messages:
    264
    Likes Received:
    0
    Trophy Points:
    30
    yes i have an MXM and its located on the left, i know thats my gpu, what iw as looking for was my cpu, which is indeed propably under the heatsink.

    Thx for replys

    Grtz

    Undertaxxx, Jun 28, 2009
    #4
