    1.8 MicroSata to Zif

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by ilcaa, Oct 23, 2010.

  1. ilcaa

    ilcaa Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    I own the DELL XTthat carries a 1.8 HD with ZIF/PATA connection..

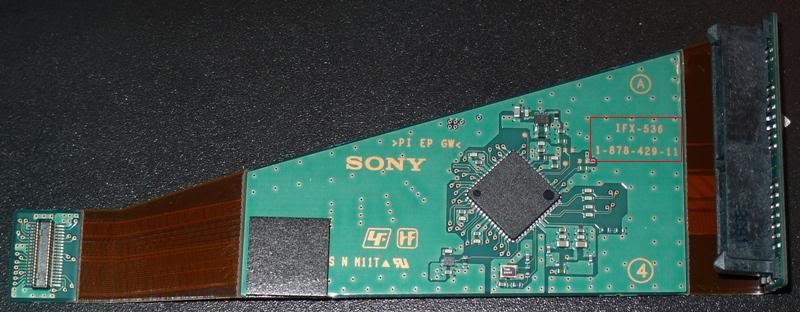

    I won a Intel 1.8 SSD that has the microsata connection. through these forums i purchased the SONY Adaptor (part# A1706718A). Wide end fits perfectly into the microSATA of the SSD BUT the smaller connection doesnt fit the ZIF/PATA Female on the system board.

    Does anyone know if there is an adaptor I can buy to make this end fit to a ZIF/PATA connection?


    Does anyone know what type of connection this is??

    thank you!

    [​IMG]


    Attached Files:

    ilcaa, Oct 23, 2010
    #1
  2. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    The ZIF end is a proprietory Sony Part. Adapting that will be quite challenging, if at all possible. For that reason I'd suggest selling the Intel SSD + adapter and investing in a US$200 64GB Renice K3VLAR ZIF SSD. The overall result will be a faster SSD and likely cheaper too.

    User Retired 2, Oct 23, 2010
    #2
