    2x Crucial M4 SSD in RAID SATA II Mode

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by GalaxySII, Jan 11, 2013.

  1. GalaxySII

    GalaxySII Notebook Deity

    Reputations:
    140
    Messages:
    1,118
    Likes Received:
    22
    Trophy Points:
    56
    Hey guys
    I just wanted show and you could compare performance of Crucial M4 on SATA II laptops how they performing ..
    Here is mine :
    [​IMG]

    GalaxySII, Jan 11, 2013
    #1
  2. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581

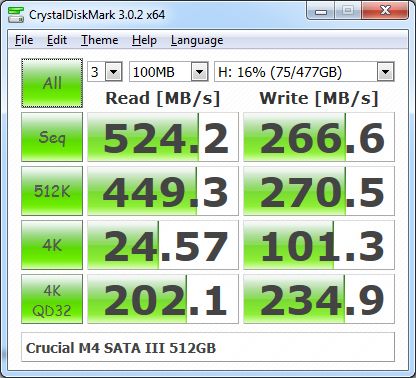

    And here is them on SATA3
    [​IMG]

    Cloudfire, Jan 11, 2013
    #2
  3. Kermee

    Kermee Notebook Evangelist

    Reputations:
    130
    Messages:
    337
    Likes Received:
    0
    Trophy Points:
    30

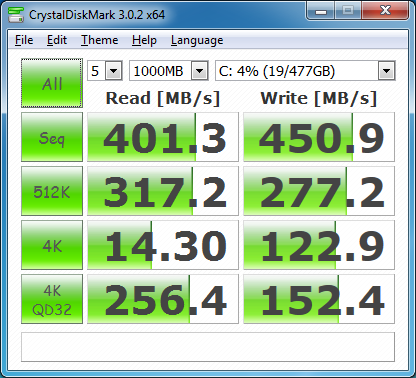

    [​IMG]

    On my 'aging' ASUS G51Vx (SATA II) as noted in my signature.

    Not sure why the write speeds are more than my read speeds, but the results are repeatable. 040H firmware loaded on both M4's.

    Kermee, Jan 11, 2013
    #3
  4. GalaxySII

    GalaxySII Notebook Deity

    Reputations:
    140
    Messages:
    1,118
    Likes Received:
    22
    Trophy Points:
    56
    i know about SATA III
    I wanted know SATA II when u put original SATA II supported only SSD it is less so when SATA III is downgraded it is STILL better than SATA II SSD ...

    GalaxySII, Jan 12, 2013
    #4
  5. GalaxySII

    GalaxySII Notebook Deity

    Reputations:
    140
    Messages:
    1,118
    Likes Received:
    22
    Trophy Points:
    56
    something wrong is here :)

    GalaxySII, Jan 12, 2013
    #5
  6. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    That is odd. It may just be a benefit of RAID. :confused:

    However, quite amazing a single SATA III drive is equal to SATA II RAID more or less (if not faster)

    [​IMG]

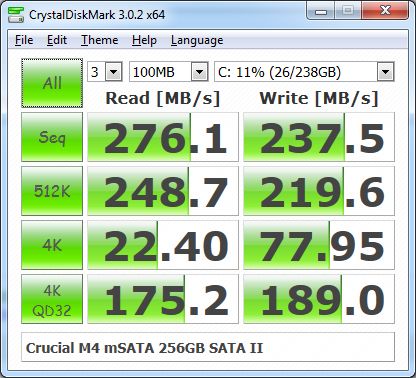

    And fwiw here's my mSATA on SATA II connection:

    [​IMG]

    The funny thing is that I use my mSATA for my main system drive when I used to use my SATA III drive, and I really don't notice much difference in performance.

    HTWingNut, Jan 14, 2013
    #6
  7. sgogeta4

    sgogeta4 Notebook Nobel Laureate

    Reputations:
    2,389
    Messages:
    10,552
    Likes Received:
    7
    Trophy Points:
    456
    That's because sequential speeds aren't really noticeable. The difference in access time is negligible and the difference in 4K random read/writes is not very much (absolute, not relative, think like FPS, above 60+ isn't really much different - same with SSD 4k random R/W speeds).

    sgogeta4, Jan 14, 2013
    #7
  8. GalaxySII

    GalaxySII Notebook Deity

    Reputations:
    140
    Messages:
    1,118
    Likes Received:
    22
    Trophy Points:
    56
    Heloo again

    I just ran test of 2x Crucial m4 128GB in SATA II RAID 0 and here is result ..

    [​IMG]

    And here is 1x crucial m4 128gb in SATA III NON-RAID here is result .. Huge difference .. THAT RAID 0 in SATA II is poor .. SATA III makes huge difference..

    [​IMG]

    GalaxySII, May 6, 2013
    #8
