    Acer 7738G Q9200 upgrade success.

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Meaker@Sager, Dec 13, 2010.

  1. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    :D

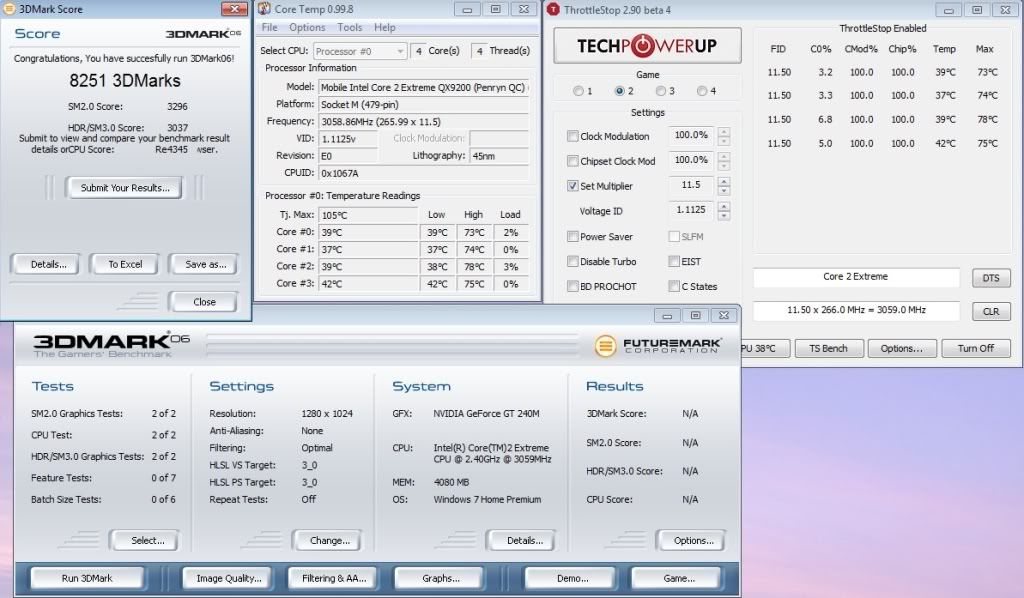

    [​IMG]

    Meaker@Sager, Dec 13, 2010
    #1
  2. Trottel

    Trottel Notebook Virtuoso

    Reputations:
    828
    Messages:
    2,303
    Likes Received:
    0
    Trophy Points:
    0
    Locked or unlocked multi?

    Trottel, Dec 13, 2010
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931

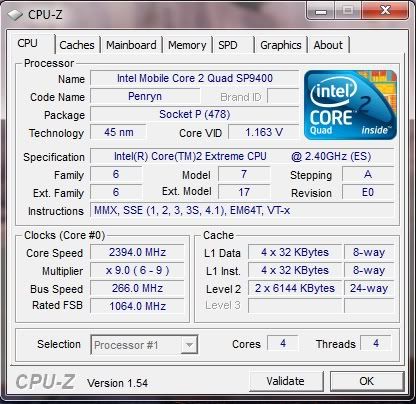

    [​IMG]

    Meaker@Sager, Dec 13, 2010
    #3
  4. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    All your processor cache are belong to me.

    Wait QX9200 is socket M or is Core Temp wrong? Google and your CPU-Z is showing it as socket P.

    Tsunade_Hime, Dec 13, 2010
    #4
  5. Trottel

    Trottel Notebook Virtuoso

    Reputations:
    828
    Messages:
    2,303
    Likes Received:
    0
    Trophy Points:
    0
    :rolleyes: Of course it's socket P.

    Trottel, Dec 13, 2010
    #5
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    It's a quirk of real temp, it's socket P. My temps are actually 5C lower as Tjunc is 100 not 105.

    Meaker@Sager, Dec 13, 2010
    #6
  7. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    Not bad for a Core 2 Extreme in a notebook...

    Tsunade_Hime, Dec 13, 2010
    #7
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    AFAIK the 8935G, the larger brother of this machine does not work with the Q9200 so I am very pleased it has.

    Meaker@Sager, Dec 13, 2010
    #8
  9. Panther214

    Panther214 Notebook Evangelist

    Reputations:
    110
    Messages:
    435
    Likes Received:
    0
    Trophy Points:
    0
    congrats! Now all you need is a 5850?.. Anyways , i thought acers couldn't use exteme CPU's?

    Panther214

    Panther214, Dec 13, 2010
    #9
  10. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Only 1.1125V, that amzing...Will it run Prime95 @4 thread ok?

    kaltmond, Dec 13, 2010
    #10
  11. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    ^ yes that is pretty ridiculous! did you even try increasing voltage? :p Maybe you got an extremely lucky CPU...

    try 1.3v and see if you can get to 4ghz

    Also I wanted to ask, where is that ati 5650 coming from? :confused:

    niffcreature, Dec 13, 2010
    #11
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Ah yes, well actually I need to find someone with an integrated graphics/mxm setup to repair the card *whitles* its from a user in canada who found it on ebay.

    The voltage is lower than stock but I only tested it with OCCT.

    Meaker@Sager, Dec 13, 2010
    #12
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Typical my SSD decided today was a good day to die :(

    Have popped in the original boot drive and its all working. Will have to send it back to the shop.

    As for the CPU I will test how far it will go at stock voltage.

    Meaker@Sager, Dec 14, 2010
    #13
  14. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    It's either my cooling or the power circuitry holding me back, I had to bump it up to 1.13v to get it prime95 stable at 3.06ghz. Any further and the system shut itself off.

    Meaker@Sager, Dec 14, 2010
    #14
  15. TaraNami

    TaraNami Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    Actually, i am interested in trying this in my 8930g, and like to know how much was it ?
    And congratulation on a awesome upgrade.

    TaraNami, Dec 14, 2010
    #15
  16. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Well there are a couple of issues AFAIK.

    Firstly there are two motherboards, one that takes dual and one that takes quad (different power circuitry) and the one that even takes quads wont take any quad apart from the q9000.

    Meaker@Sager, Dec 14, 2010
    #16
  17. valuxin

    valuxin Notebook Evangelist

    Reputations:
    146
    Messages:
    456
    Likes Received:
    159
    Trophy Points:
    56
    I have 7738g with t6600 on board and i'm interested in trying this on my laptop. Have i chance to make it work?) And one more question 2 Meaker, how you will get GTx460m work in 7738 which have MXM 3a?)

    valuxin, Jan 29, 2011
    #17
  18. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    You will need 3 things:

    Q9200
    Quad core heatsink
    120W or higher power brick

    I have not quite got the 460M to work, but you fit it by moving some parts, its all in the MXM thread. I am trying to get hold of a 5850/5870 to see if I can get it working.

    Meaker@Sager, Jan 29, 2011
    #18
  19. valuxin

    valuxin Notebook Evangelist

    Reputations:
    146
    Messages:
    456
    Likes Received:
    159
    Trophy Points:
    56
    ok) and how it work on 11v 5200mAh battery?

    valuxin, Jan 29, 2011
    #19
  20. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    You probably want to upgrade that, but it should work.

    Meaker@Sager, Jan 31, 2011
    #20
  21. valuxin

    valuxin Notebook Evangelist

    Reputations:
    146
    Messages:
    456
    Likes Received:
    159
    Trophy Points:
    56
    Meaker, what is the voltage of battery do you have? and how long your laptop with now spec can operate on battery? Regards)

    valuxin, Feb 22, 2011
    #21
  22. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    14.8V (the standard one included on the quad core models), 2-3 hours if you turn brightness down.

    (please note I am running a 1920x1080 screen, it consumes more power than the standard model)

    Meaker@Sager, Feb 24, 2011
    #22
  23. valuxin

    valuxin Notebook Evangelist

    Reputations:
    146
    Messages:
    456
    Likes Received:
    159
    Trophy Points:
    56
    Hm... I could assume that laptops with 10.8V wouldn't start with quad on board...

    valuxin, Feb 24, 2011
    #23
  24. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    They will work fine, the internals step the input voltage to the correct level.

    Just the battery life will be pretty poor with the 10.8v. Quads are more hungry than the dual, even compared to the x9100.

    Meaker@Sager, Feb 24, 2011
    #24
  25. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    That depends on the graphics and your laptops EC/Bios or something, I had a laptop which specifically did not support EIST on an e8235 so it would not run on battery whatsoever with graphics as low powered as the 8700m GT.

    That said, you can always adjust the voltage and clocks of a q9200 so it shouldn't be a problem.

    niffcreature, Feb 24, 2011
    #25
  26. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Yes but there is twice as much silicon and it never shuts off unlike the core i series.

    So given the same voltage (they only go down to 1.05v at the lowest) it will consume much more power.

    Meaker@Sager, Feb 24, 2011
    #26
  27. valuxin

    valuxin Notebook Evangelist

    Reputations:
    146
    Messages:
    456
    Likes Received:
    159
    Trophy Points:
    56
    But what can I do to make my laptop motherbord be capable with 14.8v battery??
    And one more question, 7738 works with 8 gb ram??

    valuxin, Feb 27, 2011
    #27
  28. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Not tried 8GB of ram.

    There are only two 7738G motherboards.

    One with 3g/tv tuner and one without. Both of which came with quad setups which use the 14.8v battery as standard.

    So you should be able to use the 14.8V battery.

    Meaker@Sager, Feb 27, 2011
    #28
  29. valuxin

    valuxin Notebook Evangelist

    Reputations:
    146
    Messages:
    456
    Likes Received:
    159
    Trophy Points:
    56
    Hm... If I understand you correctly, dual core shouldn't work with 14.8v, but quad on the same board would work, right?
    Oh, if you need 3g or tv you can install THIS))

    valuxin, Feb 28, 2011
    #29
  30. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    I used a 14.8v battery with my 6935G dual core setup and there are no physical differences between quad 7738G and dual 7738G so therefore its safe to assume you can use a 14.8v batttery in yours with the dual core.

    Are you using a tall 1TB drive in your second bay?

    Btw are you using these modules?

    [​IMG]

    Kingston hyper-X, these are the only 5-5-5-15 modules I know of.

    Meaker@Sager, Feb 28, 2011
    #30
  31. valuxin

    valuxin Notebook Evangelist

    Reputations:
    146
    Messages:
    456
    Likes Received:
    159
    Trophy Points:
    56
    But why on ebay everywhere you can this "14.8V( not fit for 11.1V )"?

    No, I use this --> WD Scorpio Blue 1 TB (WD10TPVT) in main bay, as you know it's not suit to second bay space).

    Absolutely!) I think, they are unique))

    valuxin, Feb 28, 2011
    #31
  32. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Because they are ebay sellers and don't know anything.

    The battery is within the listed input range of your DC in at 19v so its fine.

    The power circuitry is fixed if you have a quad or not so it wont make a difference to what batteries you can use.

    Oh and I can't put in a second pci express slot, I have a larger graphics card in the way lol.

    Meaker@Sager, Feb 28, 2011
    #32
  33. valuxin

    valuxin Notebook Evangelist

    Reputations:
    146
    Messages:
    456
    Likes Received:
    159
    Trophy Points:
    56
    Thanks, i'll take a note)
    Your graphics card close pci express slot??)
    And from what laptop the FullHD display you use?)

    valuxin, Feb 28, 2011
    #33
  34. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Any 1080p 17.3" LCD should do.

    The graphics card I am trying atm is MXM-B and is taller than the stock card.

    Meaker@Sager, Feb 28, 2011
    #34
  35. bandrea15

    bandrea15 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    bandrea15, Jun 28, 2011
    #35
  36. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    No since the aspect ratio is wrong, its like trying to fit a square into a rectangular hole that is narrower.

    Also that monitor looks to be 1600x900 not 1920x1080, a mistake in the listing.

    Meaker@Sager, Jun 28, 2011
    #36
  37. bandrea15

    bandrea15 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5

    where I can find a good 1920x1080 display?

    bandrea15, Jun 28, 2011
    #37
  38. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    I got mine off ebay, check out the hannstar 17.3" panels.

    Meaker@Sager, Jun 28, 2011
    #38
  39. me4opuh

    me4opuh Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Hello, Maeker do you know if Q9100 works too on 7738g ?

    me4opuh, Jan 22, 2012
    #39
  40. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Do I know? Never tried, but the Q9200 and Q9000 both do so I don't see why not.

    Though I would avoid the Q9100 if possible, I don't think they are unlocked and there are quite a few early samples around.

    Meaker@Sager, Jan 22, 2012
    #40
  41. me4opuh

    me4opuh Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Thank you for your reply Meaker. I was able to get Q9100 for a good price. And it works good but i have an interesting problem. My 7738g was equipped with T6600 and 10.8V battery, since i changed the CPU to Q9100 the laptop is unable to charge the battery. ( I have changed the PSU to 120W) is it possible that i need the 14.8V battery or the problem lies somewere else ?

    me4opuh, Mar 8, 2012
    #41
  42. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,441
    Messages:
    58,202
    Likes Received:
    17,916
    Trophy Points:
    931
    Strange, possibly as the quad core models shipped with the higher voltage batteries, i'd give it a go because the upgrade is worth it.

    BTW while the Q9100 is locked (IIRC) you can use the IDA mode trick to get another multiplier (or extra 266mhz).

    Meaker@Sager, Mar 8, 2012
    #42
  43. me4opuh

    me4opuh Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Yeah i saw that sometimes it gets higher multplier. So there is no problem to use 14.8V battery on a model that came with 10.8 ?

    me4opuh, Mar 8, 2012
    #43
  44. triturbo

    triturbo Long live 16:10 and MXM-B

    Reputations:
    1,577
    Messages:
    3,845
    Likes Received:
    1,239
    Trophy Points:
    231
    I went from a 4000 mAh 11,1v battery to a 4800 mAh 14,8v one without a problem.

    triturbo, Mar 9, 2012
    #44
  45. me4opuh

    me4opuh Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Thank you very much for your help guys, i`ll order 14.8 battery and i`ll hope it will start to charge it again :) (btw the 10.8 batery is 70% dead so its the perfect time to order a new one :)

    me4opuh, Mar 10, 2012
    #45
