    Acer Travelmate 2482 won't boot after CPU upgrade

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by rmastiyev, Feb 21, 2009.

  1. rmastiyev

    rmastiyev Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    We changed the CPU from Celeron M 420 to Pentium M.

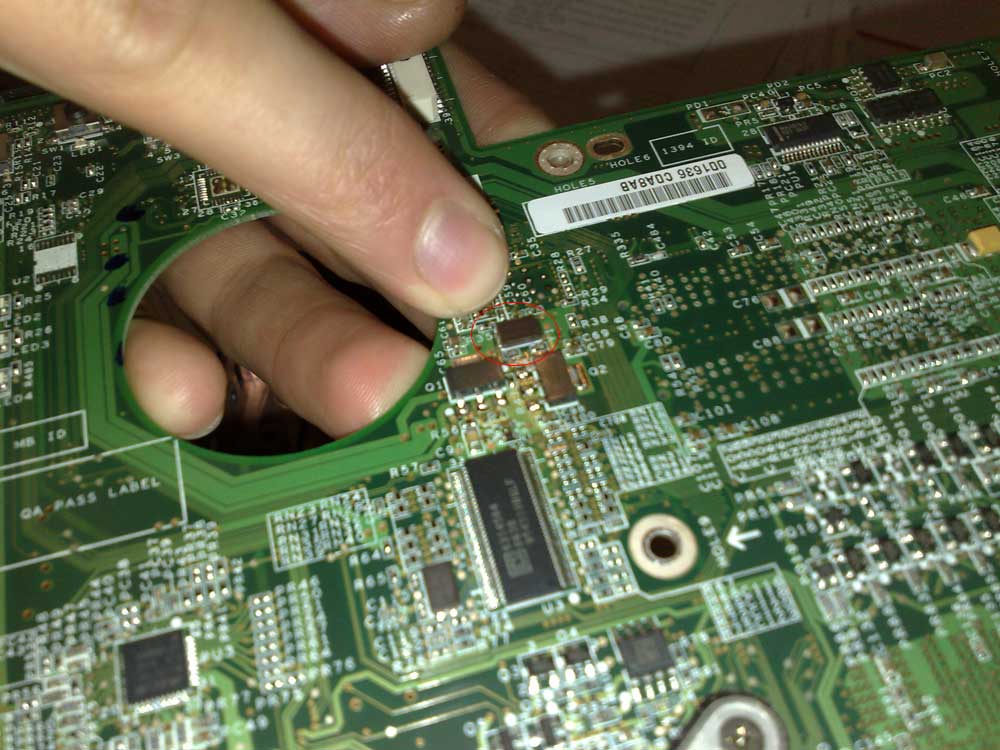

    After initial boot, the system fan stopped and the machine started to heat up very quickly. We powered it down and noticed the small chip being very hot and changed in color slightly. (ref. attached image)
    Could anyone help with resolving this issue? We don't have an Acer service center nearby, but we have a couple of others that could help. What should I expect?


    Attached Files:

    • acer.jpg
      File size:
      97.3 KB
      Views:
      286
    rmastiyev, Feb 21, 2009
    #1
  2. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    Dunno if that chip burning out has anything to do with the CPU upgrade, but Celeron M 420 --> Pentium M is not possible.

    A Pentium M is Socket 479 and a Celeron M 420 is Socket M, and both have different electrical pinouts. So, Pentium Ms are not compatible with your notebook. You need to get a Socket M Core Series or Core 2 Series CPU.

    http://forum.notebookreview.com/showthread.php?t=209284

    Andy, Feb 21, 2009
    #2
