    Additional hard disk in Inspiron 1720 - will it fit into a Studio 17?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by johnwilson09, Apr 22, 2009.

  1. johnwilson09

    johnwilson09 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    I currently have a Dell Inspiron 1720 with a second hard disk I bought and fitted myself. If I get a Studio 17, will I be able to fit this hard disk into the second bay in there? As far as I'm aware the disk itself should be okay, but the caddy might be slightly different for that model - is that right? If so I'll just buy a new caddy or modify this one - otherwise I'll be £100 down for this hard disk!

    Thanks :)

    johnwilson09, Apr 22, 2009
    #1
  2. Hirohata

    Hirohata GBF Danchou

    Reputations:
    492
    Messages:
    1,071
    Likes Received:
    1
    Trophy Points:
    56
    The Studio 17 has a slot loading drive, so I'm not quite sure how you're going to replace the drive with a caddy though... Nor have I heard of any hard drive caddy being available for the Studio XPS series either.

    Hirohata, Apr 22, 2009
    #2
  3. johnwilson09

    johnwilson09 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Sorry I'm not quite sure what you mean. I know the DVD drive is slot-loading, but what does that mean for a hard disk?

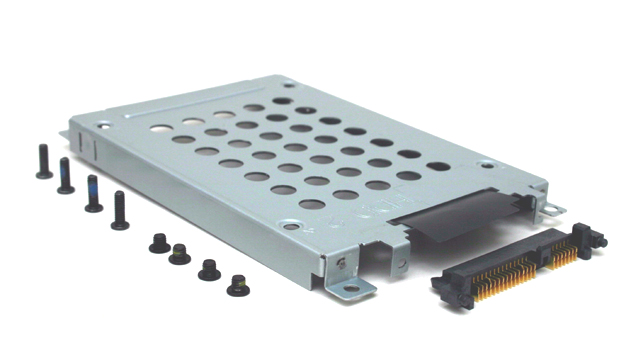

    I found this image of what the hard disk caddy in the Studio 17 looks like, and it looks similar to mine:

    [​IMG]

    ETA: sorry should this be in the inspiron section?

    johnwilson09, Apr 22, 2009
    #3
  4. Hirohata

    Hirohata GBF Danchou

    Reputations:
    492
    Messages:
    1,071
    Likes Received:
    1
    Trophy Points:
    56
    Sorry. I was thinking of a different model. I forgot that the Studio 17 supports dual hard drives. It may fit/work assuming it has the correct size/connection. I'd say give Dell a call when you plan on purchasing it and ask if it would work.

    Hirohata, Apr 22, 2009
    #4
  5. johnwilson09

    johnwilson09 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Thanks Hirohata :) I don't have much faith in their tech support though...

    johnwilson09, Apr 22, 2009
    #5
  6. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    You most likely need to purchase a secondary caddy for your studio 17. Do not buy them through Dell, as they are a rip off.
    Try ebay, and run a google shopping search

    K-TRON

    K-TRON, Apr 22, 2009
    #6
  7. nomoredell

    nomoredell Notebook Deity

    Reputations:
    49
    Messages:
    1,269
    Likes Received:
    0
    Trophy Points:
    0
    while the sata adaptor is likely the same, the metal bracket definately doesnt fit . 2nd hard drive assembly of sutio 17 costs only $10.99 on dell.usa, that includes screws/mount/connector.

    nomoredell, Apr 22, 2009
    #7
  8. johnwilson09

    johnwilson09 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for your replies. So the drive size will still be the same, presumably? (2.5 in?)

    johnwilson09, Apr 23, 2009
    #8
  9. Michel.K

    Michel.K 167WAISIQ

    Reputations:
    353
    Messages:
    1,216
    Likes Received:
    0
    Trophy Points:
    55
    Ofcourse, it's very very rare that notebooks uses anything else than 2.5"

    Michel.K, Apr 23, 2009
    #9
  10. aidil

    aidil Notebook Evangelist

    Reputations:
    311
    Messages:
    490
    Likes Received:
    0
    Trophy Points:
    30
    Ehm.... Currently there are many ultra portable notebooks which use 1.8" drive. But yes, Studio 17 secondary HDD uses 2.5".

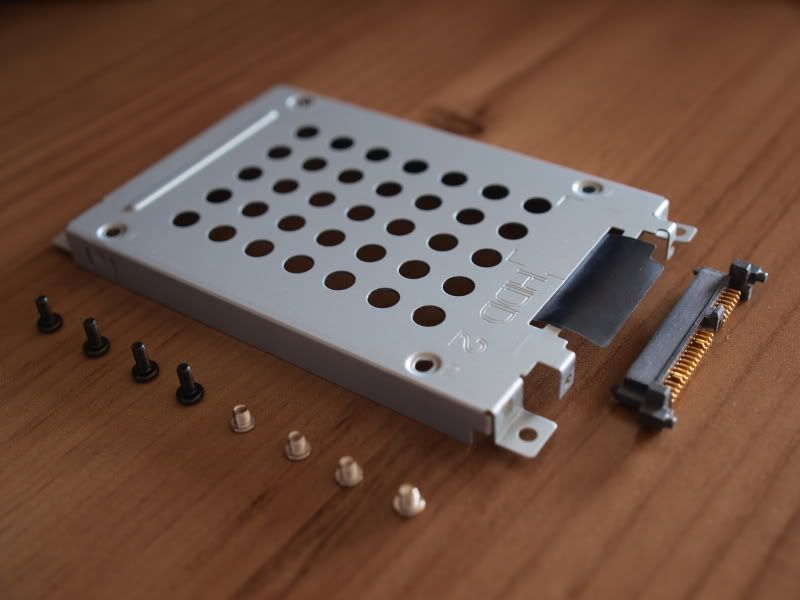

    I don't know for sure whether Studio 17's secondary HDD caddy is the same one as Inspiron 1720's, but the writing outside the box of my Studio 17's secondary HDD caddy says it is also for Vostro & Latitude (not mentioned which exact model), 9.5mm or less, SATA.

    [​IMG]

    aidil, Apr 23, 2009
    #10
