    Anyone know what this cord does?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by amoney3, Jul 4, 2008.

  1. amoney3

    amoney3 Notebook Consultant

    Reputations:
    27
    Messages:
    195
    Likes Received:
    0
    Trophy Points:
    30

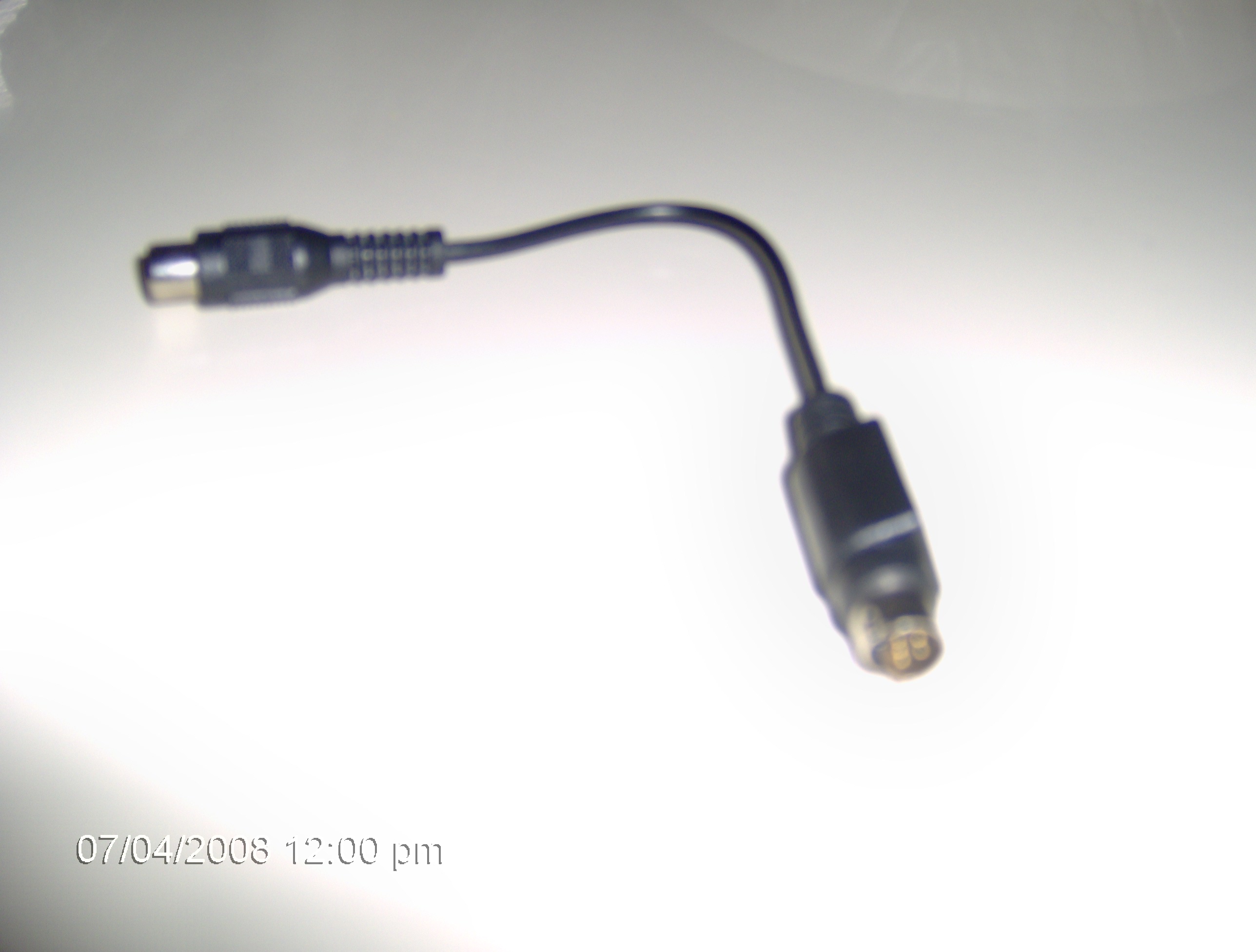

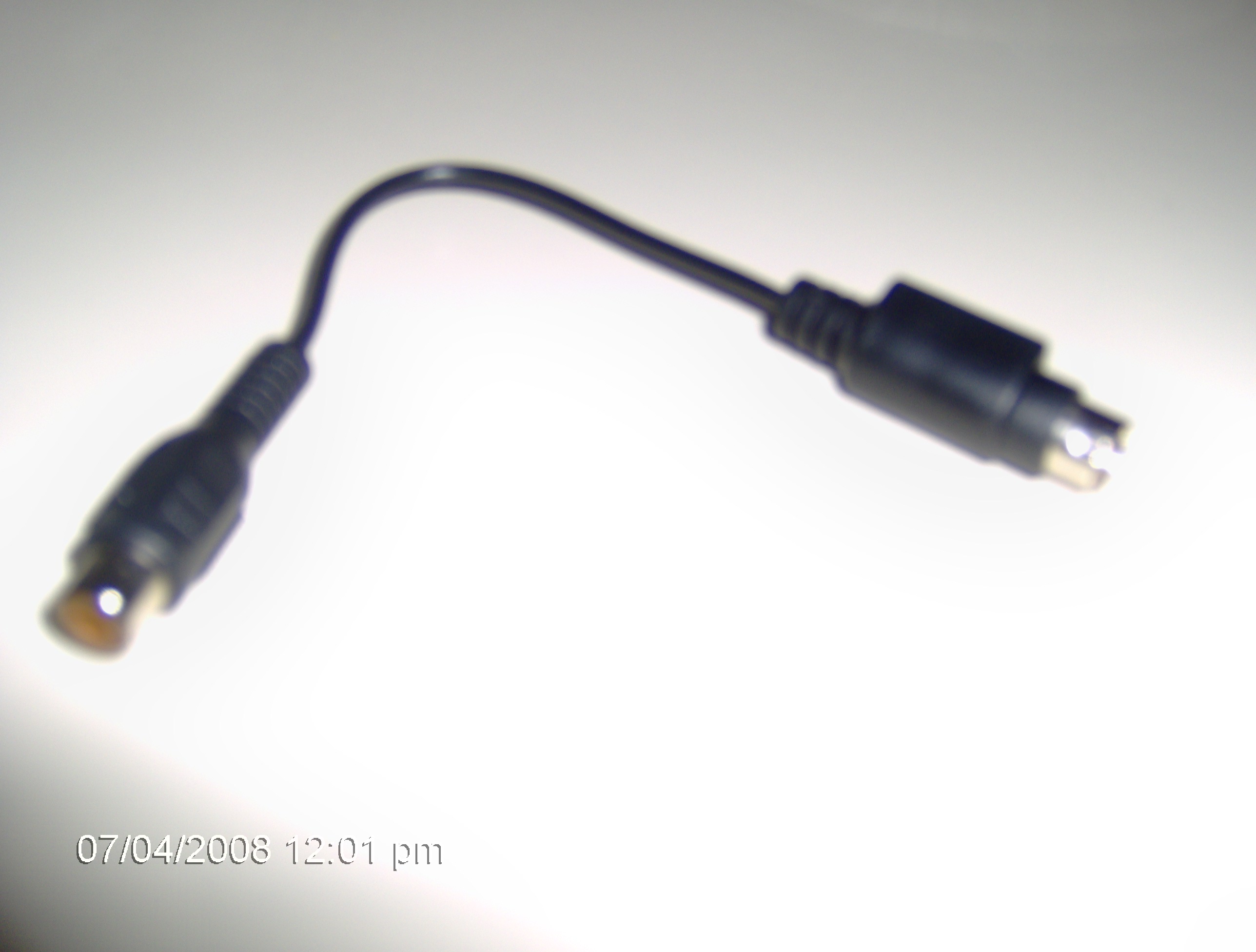

    The attached image is below. I got the cord with my ASUS Lamborghini VX2S and it's been eluding me as to what its function is. I was thinking its an audio output for when you're using VGA. The cord itself plugs into the S-Video port, but has another connection on the other end, so go figure. Any help?


    Attached Files:

    amoney3, Jul 4, 2008
    #1
  2. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    S-video out for tv's. (Video only)

    Use macro mode on your camera for close up shots ;)

    flipfire, Jul 4, 2008
    #2
  3. amoney3

    amoney3 Notebook Consultant

    Reputations:
    27
    Messages:
    195
    Likes Received:
    0
    Trophy Points:
    30
    Could you please clarify? I realize it is an S-Video out cable, however, it only has one S-Video connector. The other end seems to be an a/V jack. How would I go about setting up and using it?

    amoney3, Jul 4, 2008
    #3
  4. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    S-video out is only video, no audio. Thats why theres only 1 hole

    Use a A/V cable but just use the video cable (yellow).

    flipfire, Jul 4, 2008
    #4
  5. Hep!

    Hep! sees beauty in everything

    Reputations:
    1,806
    Messages:
    5,921
    Likes Received:
    1
    Trophy Points:
    206
    You'd plug an analog cable into the other end and that into the TV, it's for hooking your laptop to a TV. As flipfire said, video only.
    Yellow = video
    White/Red = audio L/R

    Hep!, Jul 4, 2008
    #5
  6. amoney3

    amoney3 Notebook Consultant

    Reputations:
    27
    Messages:
    195
    Likes Received:
    0
    Trophy Points:
    30
    Kool, I figured it was along those lines. However, when I do so nothing seems to happen. Do you have to manually enable this output? Since, nVidia's Control Panel doesn't show any option for it. i.e.- when i plug in via VGA or HDMI I automatically see a notification that I'm connected to an external display.

    amoney3, Jul 4, 2008
    #6
  7. Spare Tire

    Spare Tire Notebook Evangelist

    Reputations:
    18
    Messages:
    459
    Likes Received:
    0
    Trophy Points:
    30
    It should be one of those Fn+F* key to switch LCD/CRT-out shortcut on your keyboard. Some laptops will output to the s-video out at the same time than the CRT out, if not you'll have to go into your display properties settings.

    Spare Tire, Jul 4, 2008
    #7
  8. Gregory

    Gregory disassemble?

    Reputations:
    2,869
    Messages:
    1,831
    Likes Received:
    1
    Trophy Points:
    56
    With mine you need to have the cable plugged into both the laptop and TV prior to loading Windows. Then it loads the TV automatically.

    Gregory, Jul 4, 2008
