    BSEL Mod on a socket P explained with photos

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by naton, Jun 16, 2009.

  1. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    Hi guys.

    I succeded on upping the FSB on an Acer AS 4315 laptop from 133 to 166 and to 200MHz via pin mod :). The mod is simple, and can be done in 3-5 minutes if you can access easily to the CPU in your laptop.

    You can use electric wire to do the mod. I used a wire from an IDE cable.

    Note:
    BSEL / FSB mod doesn't with Intel Chipsets
    Undervolting mod works with all chipsets.

    UPDATE: 27/07/2009
    I updated the photos below because:
    1- The undervolting values of the T2060 were wrong. I was showing the T5300 values twice.
    2- There was a mistake on the photos showing the pin connection for Socket P.
    3- I added Photos to show FSB mod for both Socket P and M

    UPDATE: 04/08/2009
    I copied the content of post 81 here.
    UPDATE: 23/07/2010
    The BSEL mod will only work if you have:
    ATI GPU + SIS Chipset
    SIS GPU + SIS Chipset
    nVidia GPU + nVidia Chipset

    If the Chipset is an Intel one the cpu will be locked after the BSEL mod on its lowest multiplier

    Enjoy!

    UPDATE 15/02/2011
    I added a few diagram to show the following mods:
    FSB 133 -> 266
    FSB 166 -> 266
    FSB 200 -> 266

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
    [​IMG]

    [​IMG]

    naton, Jun 16, 2009
    #1
    NeDa1179 likes this.
  2. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    Wow - you're the first person to actually pull this off, if I'm not mistaken.
    +rep and kudos, you've got guts, kid (2.6 GHz Celeron!).

    TehSuigi, Jun 16, 2009
    #2
  3. octagonalman

    octagonalman Notebook Guru

    Reputations:
    2
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    15
    Nice!
    Does the Celeron feel any better/more responsive at this speed?

    octagonalman, Jun 16, 2009
    #3
  4. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Pin mod on PM965 will only via PLL possible. Intel MCH now has a intenal check of FSB. If the CPU FSB isn´t the same like stored in MCH then the Multi will locked to lowest. So if mod the PLL and cut the connection between PLL and MCH then the OC is sucessful.

    kaltmond, Jun 16, 2009
    #4
  5. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    I wanted to know how to volt mod a Q9000 via pin mod on the W90 using the PM45 chipset.

    ViciousXUSMC, Jun 16, 2009
    #5
  6. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    I played the same game with and without the pinmod and the laptop feel faster. I didn't run any benchmarks yet.

    Thanks for the info

    naton, Jun 16, 2009
    #6
  7. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    Guys

    1- Does the i965 chipset suppot 266 FSB?

    2- Can anyone donate a Celeron T1600 CPU?

    3- Is the T2370 faster than the T2500?

    I run some benchmarks and the Celeron M530 pin modded is as fast as a Core Duo T2300.

    UPDATE: 04/08/2009
    Benchmark photos removed

    naton, Jun 18, 2009
    #7
  8. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    VoltMod for those who asked

    UPDATE: 04/08/2009
    Image moved to the first post

    naton, Jun 18, 2009
    #8
  9. Tinselworm

    Tinselworm Notebook Deity

    Reputations:
    1,303
    Messages:
    1,307
    Likes Received:
    0
    Trophy Points:
    0

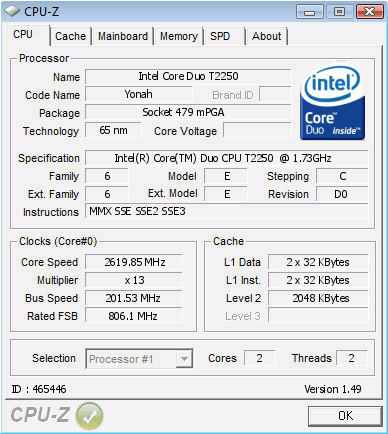

    [​IMG]

    Tinselworm, Jun 18, 2009
    #9
  10. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    Tinselworm

    what laptop/chipset do you have?

    naton, Jun 18, 2009
    #10
  11. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    If Tinselworm's running a Core Duo, it's got to be the 940/943/945 chipset series - they weren't released for anything else. Which is interesting, because I didn't think there was a 200 FSB setting for the 945.

    And no, the 965 chipset can't support 266 FSB, AFAIK.

    TehSuigi, Jun 18, 2009
    #11
  12. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Actually can. I oced my PM965 to 266 FSB.

    [​IMG]

    kaltmond, Jun 18, 2009
    #12
  13. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    Just because you overclocked to it doesn't mean it can be pinmodded to that speed, nor that it's officially supported.
    That being said...DAMN.

    TehSuigi, Jun 18, 2009
    #13
  14. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    It´s hareware modded on the PLL chip, not per software.

    kaltmond, Jun 18, 2009
    #14
  15. Mastershroom

    Mastershroom wat

    Reputations:
    3,833
    Messages:
    8,209
    Likes Received:
    16
    Trophy Points:
    206
    I'd be interested in trying this out on my Socket P T9500 (2.6GHz/FSB 200), PM965 chipset. If I could get the FSB from 200 to 266, then I could be running this at 3.4GHz.

    Mastershroom, Jun 18, 2009
    #15
  16. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    Nop
    I think he has an ATI Chipset (x200) but I need him to confirm that. If he had an intel chip his CPU would have been locked at it lowest multiplier

    What Chipset do you have in your laptop?
    Any photos of the mod?

    naton, Jun 18, 2009
    #16
  17. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    Yeah, now you've got all of us intrigued.
    Oh man...imagine a 3.2GHz Core 2 Duo...

    EDIT: Whoops, I almost forgot about that naton. Good eyes!

    TehSuigi, Jun 18, 2009
    #17
  18. MexicanSnake

    MexicanSnake I'm back!

    Reputations:
    872
    Messages:
    1,244
    Likes Received:
    0
    Trophy Points:
    55
    What about PM45?? :D

    MexicanSnake, Jun 18, 2009
    #18
  19. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    Yeah thats what I need, how to OVERVOLT a QX9300 on a PM45 :D

    ViciousXUSMC, Jun 18, 2009
    #19
  20. MexicanSnake

    MexicanSnake I'm back!

    Reputations:
    872
    Messages:
    1,244
    Likes Received:
    0
    Trophy Points:
    55
    OMG that would be awesome :D :D :D :D.

    MexicanSnake, Jun 18, 2009
    #20
  21. triturbo

    triturbo Long live 16:10 and MXM-B

    Reputations:
    1,577
    Messages:
    3,845
    Likes Received:
    1,238
    Trophy Points:
    231
    Oh WOW! Things are getting better and better :D Maybe there is a light in the end of the tunnel for my 5920G (<s>SetFSB, BIOS mod</s>).

    triturbo, Jun 18, 2009
    #21
  22. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Overvolt is possible, but creates too much heat.......

    kaltmond, Jun 18, 2009
    #22
  23. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    not when you have a celeron :rolleyes:
    I think this is because of the amount of cache on the CPU.
    Less cache = less voltage = less heat

    naton, Jun 18, 2009
    #23
  24. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    yeah maybe. When i ov my X9000, the temp gets 90°C in a few seconds. But that also depends on how many volt you give it. ;)

    kaltmond, Jun 18, 2009
    #24
  25. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    I agree :).

    naton, Jun 18, 2009
    #25
  26. Tinselworm

    Tinselworm Notebook Deity

    Reputations:
    1,303
    Messages:
    1,307
    Likes Received:
    0
    Trophy Points:
    0
    I had an ATI RS690G chipset

    Tinselworm, Jun 18, 2009
    #26
  27. tianxia

    tianxia kitty!!!

    Reputations:
    1,212
    Messages:
    2,612
    Likes Received:
    0
    Trophy Points:
    55
    i thought the w90vp doesn't use pm45 chipset?

    tianxia, Jun 18, 2009
    #27
  28. triturbo

    triturbo Long live 16:10 and MXM-B

    Reputations:
    1,577
    Messages:
    3,845
    Likes Received:
    1,238
    Trophy Points:
    231
    Oh well, I guess I have to wait for T9500 to bring some improvement :(

    triturbo, Jun 18, 2009
    #28
  29. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    Hmmm not sure, I will have to figure out what it is tonight, but it can definitly handle the heat.

    My Q9000 under 100% load on all 4 cores wont even hit 70c when overclocked to 2.8ghz via setfsb.

    This is max temp on a sustainted test with no additional cooling.

    ViciousXUSMC, Jun 18, 2009
    #29
  30. usapatriot

    usapatriot Notebook Nobel Laureate

    Reputations:
    3,266
    Messages:
    7,360
    Likes Received:
    14
    Trophy Points:
    206
    Weren't pin mods also possible with Pentium M's?

    usapatriot, Jun 18, 2009
    #30
  31. tianxia

    tianxia kitty!!!

    Reputations:
    1,212
    Messages:
    2,612
    Likes Received:
    0
    Trophy Points:
    55
    woah! that's some beefy cooling!
    asus says it has the x38 chipset, but who knows('part from asus). maybe have a look at the ich?

    tianxia, Jun 18, 2009
    #31
  32. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    yes they are. There is a tutorial in the forum explaining how to do it.

    naton, Jun 21, 2009
    #32
  33. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    can you please provide more info?
    how do you cut the connection to the MCH, is it just a pin on the PLL?

    moral hazard, Jun 21, 2009
    #33
  34. netc0rd

    netc0rd Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    @ naton
    Props to you for sharing about this cool mod :)
    I tried the pin mod with my AS 4315, Celeron M530, and I was successful with a 166FSB. However I was considering going for the 200FSB, but I would like to know what temperatures I might be looking at first. Is it a huge increase from the original 1.73Ghz?

    Also, what memory sticks are you using? - Mine are 2xPC2-5300 (333Mhz designated at max, according to SPD in CPU-Z), would it still work with a FSB of 200, or is entirely dependant on what your memory sticks can cope with?

    /Regards, net

    netc0rd, Jun 21, 2009
    #34
  35. Mastershroom

    Mastershroom wat

    Reputations:
    3,833
    Messages:
    8,209
    Likes Received:
    16
    Trophy Points:
    206
    Memory frequency and FSB are completely independent. You do not need to match memory to FSB frequency (1:1), although it is nice.

    Mastershroom, Jun 21, 2009
    #35
  36. xxbadboys93

    xxbadboys93 Notebook Deity

    Reputations:
    89
    Messages:
    913
    Likes Received:
    0
    Trophy Points:
    30
    Hmm can i do this on my t5800 2.0 ghz intel c2d. Its rated fsb is 200

    xxbadboys93, Jun 21, 2009
    #36
  37. netc0rd

    netc0rd Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    That was all the assurance I needed. Now I'm running my CPU at 200FSB, 2.6Ghz :)

    Thanks!

    netc0rd, Jun 21, 2009
    #37
  38. Mastershroom

    Mastershroom wat

    Reputations:
    3,833
    Messages:
    8,209
    Likes Received:
    16
    Trophy Points:
    206
    Well done. My T9500 is running 200/800FSB and 2.6GHz as well, but it's a T9500 and that's its native speed. :p

    Mastershroom, Jun 21, 2009
    #38
  39. Natej

    Natej Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hey everyone i have a GM45 chipset and a T4200 socket P cpu (2Ghz,800FSB,1Mb L2) I did see the mod for socket P but i didnt know if the chipset diffrence was a big deal? also does this mod change the FSB or the cpu multi.

    Natej, Jun 22, 2009
    #39
  40. Mastershroom

    Mastershroom wat

    Reputations:
    3,833
    Messages:
    8,209
    Likes Received:
    16
    Trophy Points:
    206
    I'm not sure about how it works with the 45 chipset, but pin modding changes the Front Side Bus. The multiplier is constant, and except in the cases of Extreme Edition processors, cannot be increased.

    Mastershroom, Jun 22, 2009
    #40
  41. Natej

    Natej Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Do you think that it will work the same bc of the socket being the same? do i fallow the mod to a t or do i have to do anything diffrent? I really want to try this out even if i have to buy a new cpu or mob.

    Natej, Jun 22, 2009
    #41
  42. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    yes, follow it to a t.
    the only difference is how your chipset would react.
    my chipset would force the lowest multi, so making this mod useless.
    your chipset may be different but since it is also intel like myne I wouldn't get my hopes up. the best pin mod is a PLL pin mod. pretty much always works, but it's difficult because the pins are small. I will do it to my laptop soon, just wanna know how to cut the connection from my PLL to the MCH.

    moral hazard, Jun 23, 2009
    #42
  43. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    I have the same type of memory as you (i.e. 2 sticks of PC5300). The Acer AS4315 Bios will set the memory multiplier to he right ratio when the FSB is upped to 200.

    Temperature wise, between 42c and 60c depending on the load. The cooling system in Acer laptops is very good.

    naton, Jun 23, 2009
    #43
  44. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    If the chipset in your laptop is not an intel chipset (i.e. ATI/nVidia).

    naton, Jun 23, 2009
    #44
  45. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    There no risque on doing the mod. The worst that can happen is that your laptop would reboot itself every 5-10 seconds. This usually happen when the wires are not in the right holes or when they are in contact with CPU pins that they should be in contact with.

    Resetting the wires will solve the problem.

    Try and let us know if it works

    Question:
    I thought that the GM45 support only 200 and 266FSB?

    The pin mod for 266 is done by using the short/small wire only.

    naton, Jun 23, 2009
    #45
  46. catacylsm

    catacylsm Notebook Prophet

    Reputations:
    423
    Messages:
    4,135
    Likes Received:
    1
    Trophy Points:
    106
    Could voltages be modded with a pin mod? I know its probably unlikely but im just wondering.

    catacylsm, Jun 23, 2009
    #46
  47. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    naton, Jun 23, 2009
    #47
  48. lee_what2004

    lee_what2004 Wee...

    Reputations:
    822
    Messages:
    1,137
    Likes Received:
    14
    Trophy Points:
    56
    just tried with my setup in my sig
    changing fsb to 166MHz, it wouldn't boot at all.
    try to vmod VID4, it will hang when entering windows and rmclock run.
    After disabled it on safe mode, can enter normal mode, but no changes on its voltage.
    So now revert to original.

    lee_what2004, Jun 23, 2009
    #48
  49. naton

    naton Notebook Virtuoso

    Reputations:
    806
    Messages:
    2,044
    Likes Received:
    5
    Trophy Points:
    56
    intel chips are bit funny and the FSB mod won't 100% work unless your using a CELERON M

    I think the VID4 worked in your laptop and this why you had trouble booting in Windows.

    What makes you think tha there are no changes on the voltage?

    After VID4 the voltages on RMclock should be read - 0.2v

    read the thread below and download the PDF in the first post. It explaines in details what happens when you do the volt mod
    http://forum.notebookreview.com/showthread.php?t=365230

    naton, Jun 23, 2009
    #49
  50. lee_what2004

    lee_what2004 Wee...

    Reputations:
    822
    Messages:
    1,137
    Likes Received:
    14
    Trophy Points:
    56
    because after done the volt mod, when starting windows,
    rmclock is set autorun, the windows just freeze without anything can be done.
    So I try to go safe mode and disable rmclock autorun, and reboot.
    This way I could enter windows, using cpuz, there's no difference voltage, still 1.263v, the same without volt mod and rmclock is not running.
    When I tried to run rmclock, windows instantly freeze.

    lee_what2004, Jun 23, 2009
    #50
 Next page →
