    Black marks on cpu & gpu die

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by tareyza, Dec 12, 2015.

  1. tareyza

    tareyza Notebook Consultant

    Reputations:
    0
    Messages:
    126
    Likes Received:
    9
    Trophy Points:
    31

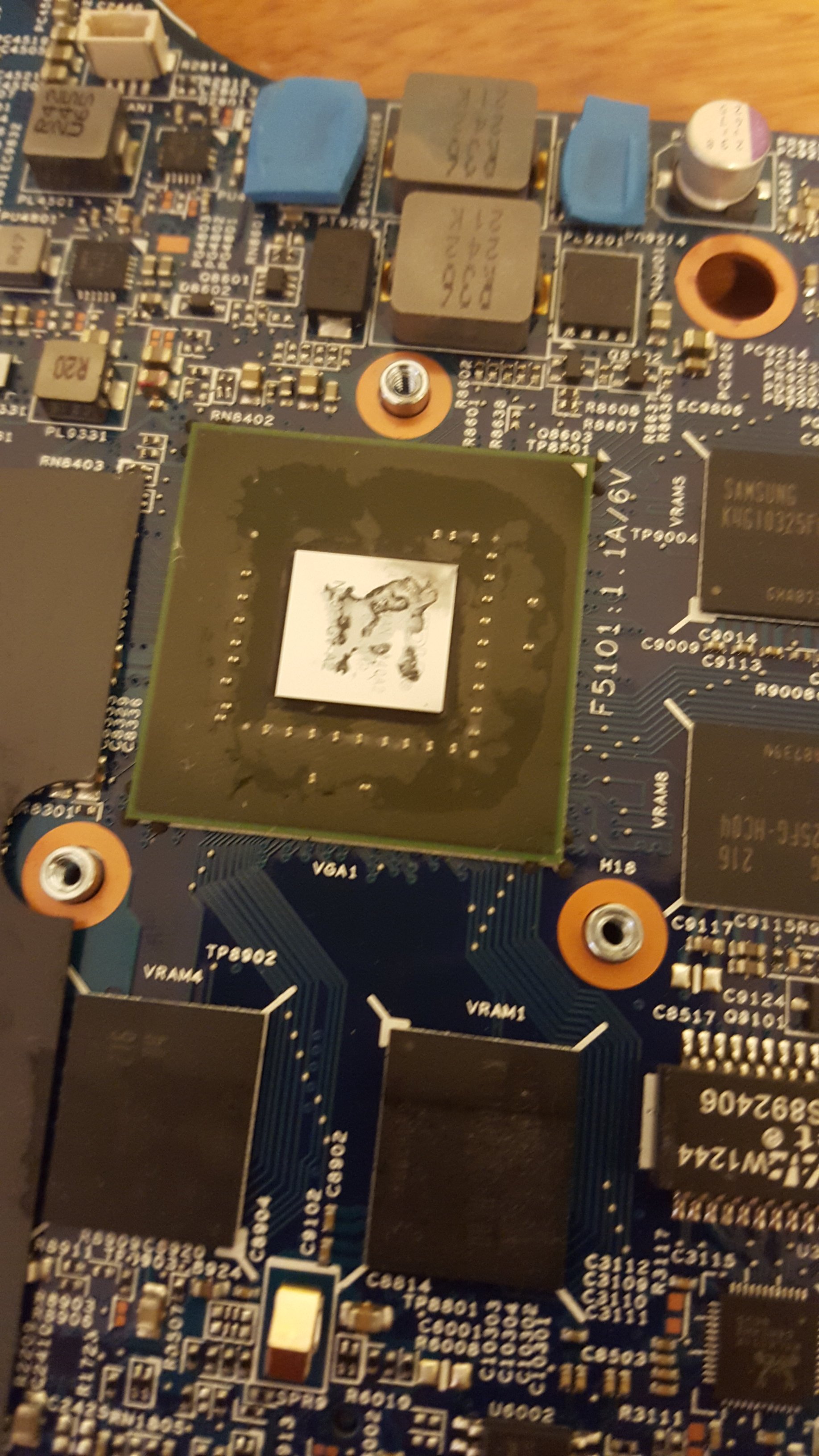

    So I've found some black colored marks on my die that i haven't been able to remove with a lot of isopropyl alcohol, any idea what they might be? and is not removing them before applying IC diamond a good idea? Thanks!


    Attached Files:

    tareyza, Dec 12, 2015
    #1
  2. kosti

    kosti Notebook Virtuoso

    Reputations:
    596
    Messages:
    2,162
    Likes Received:
    466
    Trophy Points:
    101
    Try zippo lighter fluid. It may be hardened thermal paste that alcohol won't remove. Use a cotton swab with some zippo lighter fluid and let it settle for a little while. It should take it off. Then use alcohol to do a final cleaning of the die before thermal paste application. By the way, zippo lighter fluid is basically the same as Naptha which is available in most hardware stores.

    kosti, Dec 12, 2015
    #2
  3. TANWare

    TANWare Just This Side of Senile, I think. Super Moderator

    Reputations:
    2,548
    Messages:
    9,585
    Likes Received:
    4,997
    Trophy Points:
    431
    Thereb are some TIM's that actually are glue based. This as in Artic Silver having a GPU paste. If this is the case it must be removed and you may need to use acetone to get it off.

    TANWare, Dec 12, 2015
    #3
