    Broke connector from fan to mobo. In miserable distress. Please Help.

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by bennytobe, Jan 19, 2012.

  1. bennytobe

    bennytobe Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Total amateur noob here. I've managed to destroy my computer in the process of trying to upgrade it.

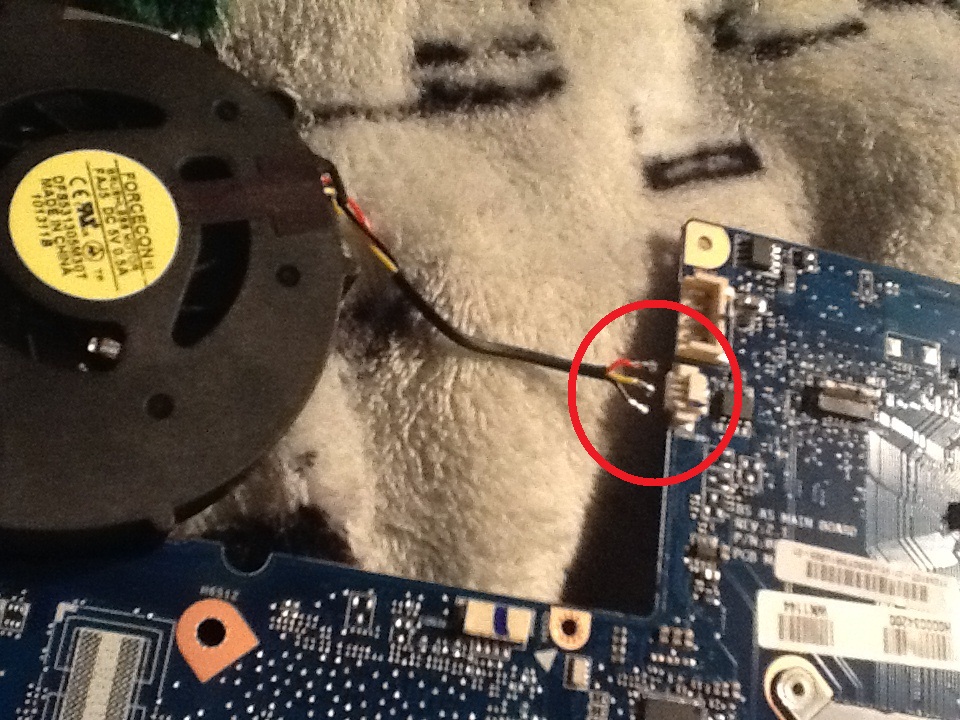

    In an attempt to replace the CPU, which is located on the bottom of motherboard, I broke the connector that links the fan to the mobo. It was made up of three little prongs that connected a yellow, red, and black wire.

    The prong pretty much disintegrated in the process... so there's no putting that thing back on. So does anybody know I can go about fixing this? Which wires connect to which sockets?

    Pic related... it's my effed up situation. Thanks in advance.


    Attached Files:

    bennytobe, Jan 19, 2012
    #1
  2. Nick

    Nick Professor Carnista

    Reputations:
    3,870
    Messages:
    4,089
    Likes Received:
    652
    Trophy Points:
    181
    You should be able to just buy an new fan.

    Nick, Jan 19, 2012
    #2
  3. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    My thoughts exactly. Unless you have some super obscure laptop, it should be cheap and available.

    Commander Wolf, Jan 19, 2012
    #3
  4. FlossBandit

    FlossBandit Notebook Guru

    Reputations:
    29
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    i don't know... these things seem to fit pretty snug... the macgyver in me wants to give it a shot... i'm just not sure which wires go where... a google search clearly shows the order of the wires, but there are some inconsistencis from picture to picture

    how bad of an idea is this?

    FlossBandit, Jan 19, 2012
    #4
  5. bennytobe

    bennytobe Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    not really sure where to find one that fits... the fan says


    forcecon
    brushless motors
    faj5 dc 5v 0.5a
    dfs531305m30t
    made in china
    101311b

    i searched for a forcecon faj5 and had less than a page of results come up with none still in stock........

    bennytobe, Jan 19, 2012
    #5
  6. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    Go to eBay, Google Shopping, etc, and search for "[your laptop model] fan". Typically don't need to worry about the details unless you're looking for a specific LCD panel, etc.

    Commander Wolf, Jan 19, 2012
    #6
